Toyota YARIS vacuum tube — Figure 1708

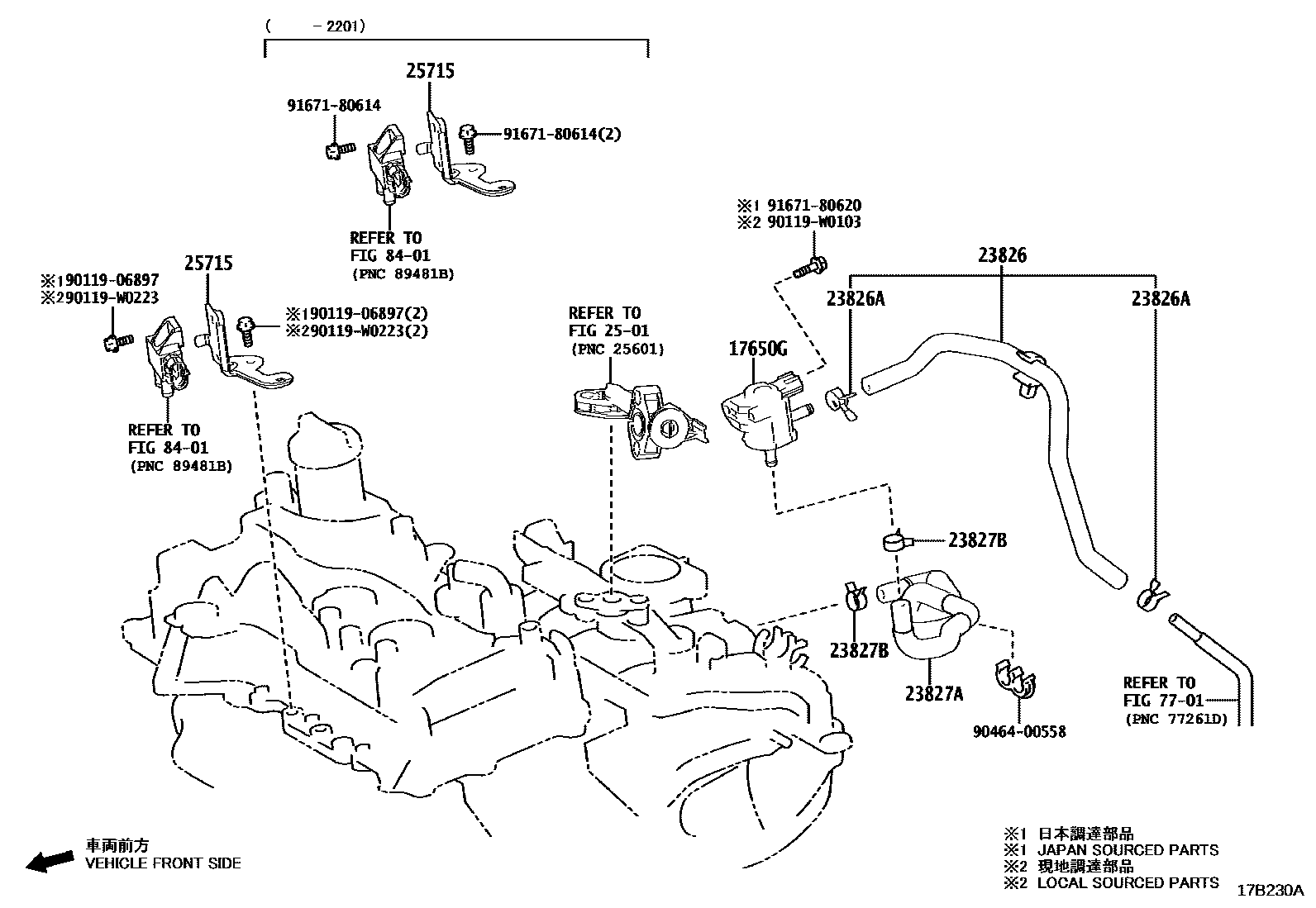

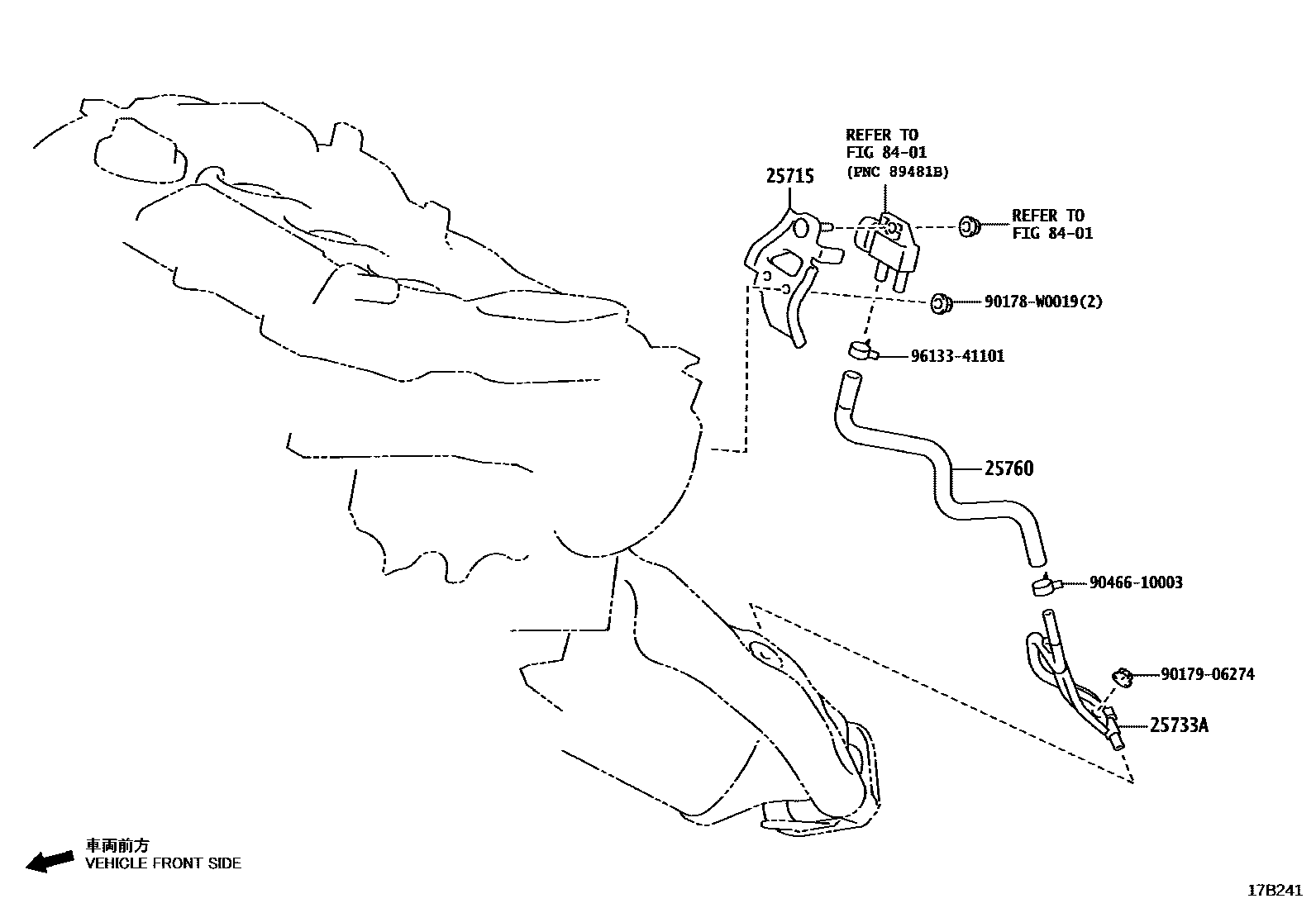

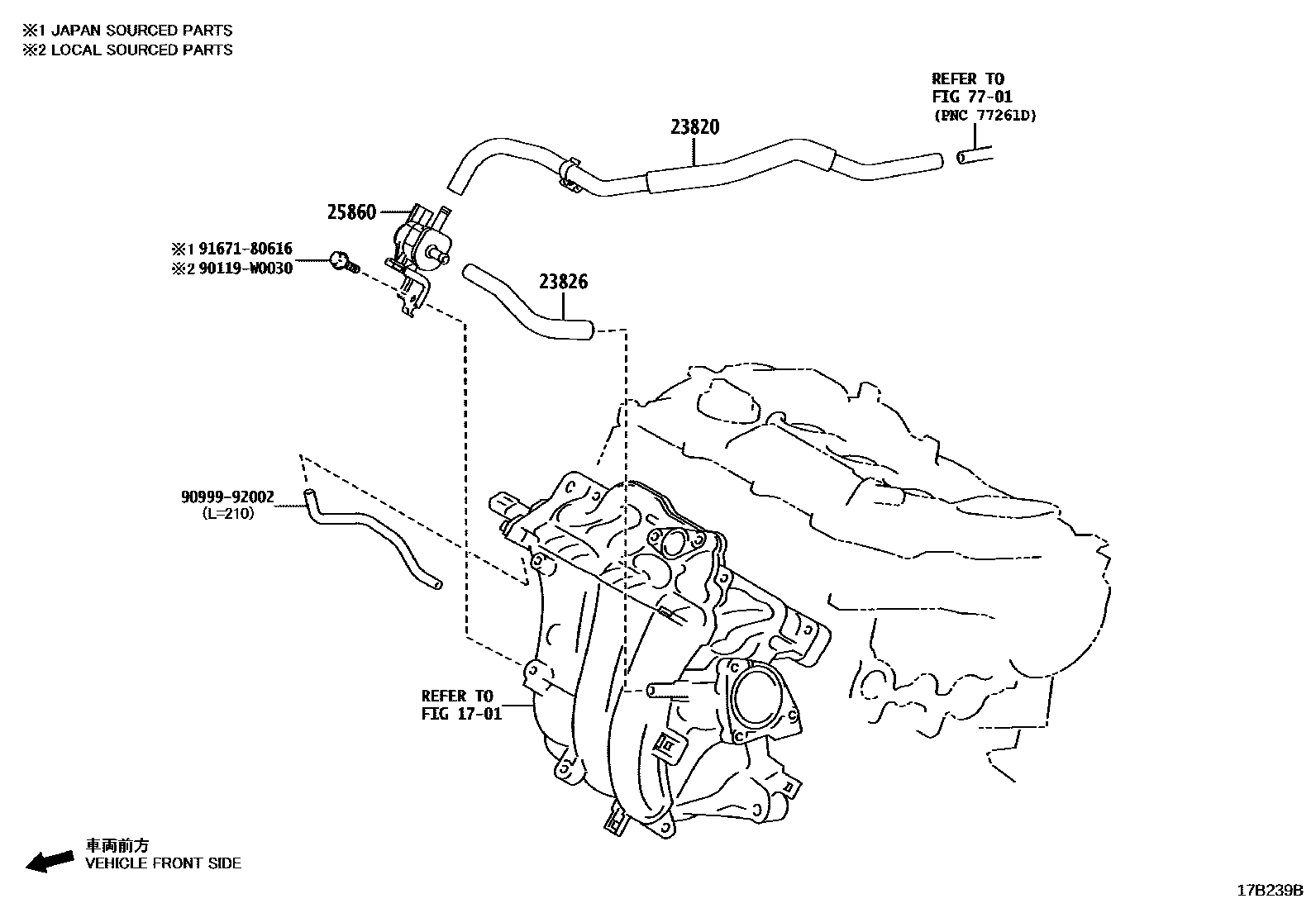

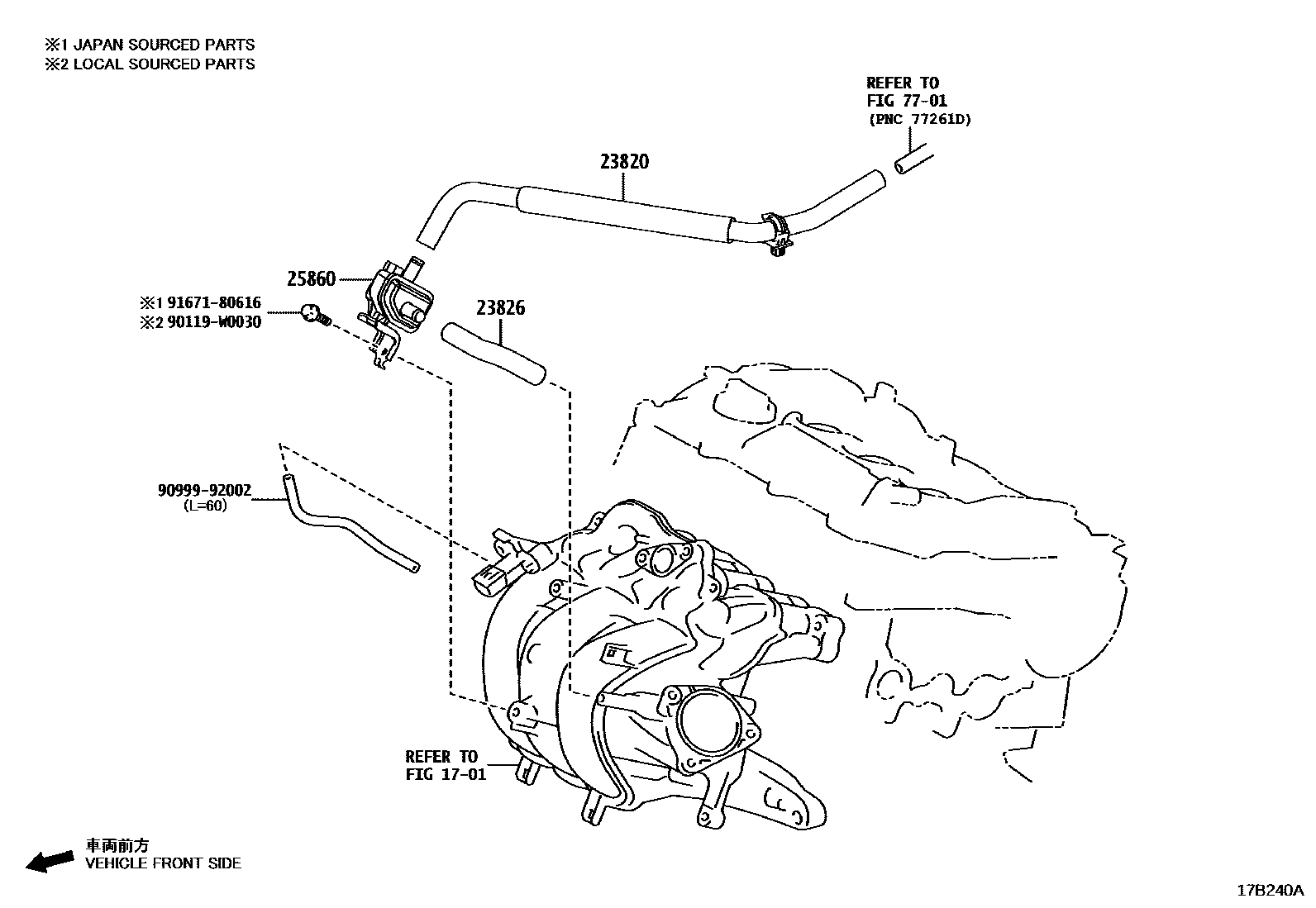

Toyota YARIS EPC diagram 1708, vacuum tube, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12282 |
| 23820 | Fuel vapor supply hose assembly | 23820-F3030 · 23820-F3040 |
| 23826 | No. 1 fuel vapor supply hose | 23826-F3070 · 23826-F3080 · 23826-K0020 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-W0006 |
| 23827A | No. 2 fuel vapor supply hose | 23827-0Q010 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96138-41501 |
| 25715 | Emission control valve bracket | 25715-0Q010 · 25715-0Q020 · 25715-F3010 |
| 25733A | No. 1 vacuum tube | 25733-F3010 |
| 25760 | Vacuum transfer hose assembly | 25760-15040 · 25760-F3040 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-F3030 · 25860-F3040 |
