Toyota YARIS Air Cleaner — Figure 1703

Toyota YARIS EPC diagram 1703, Air Cleaner, with 6 images and 19 PNC and OE references.

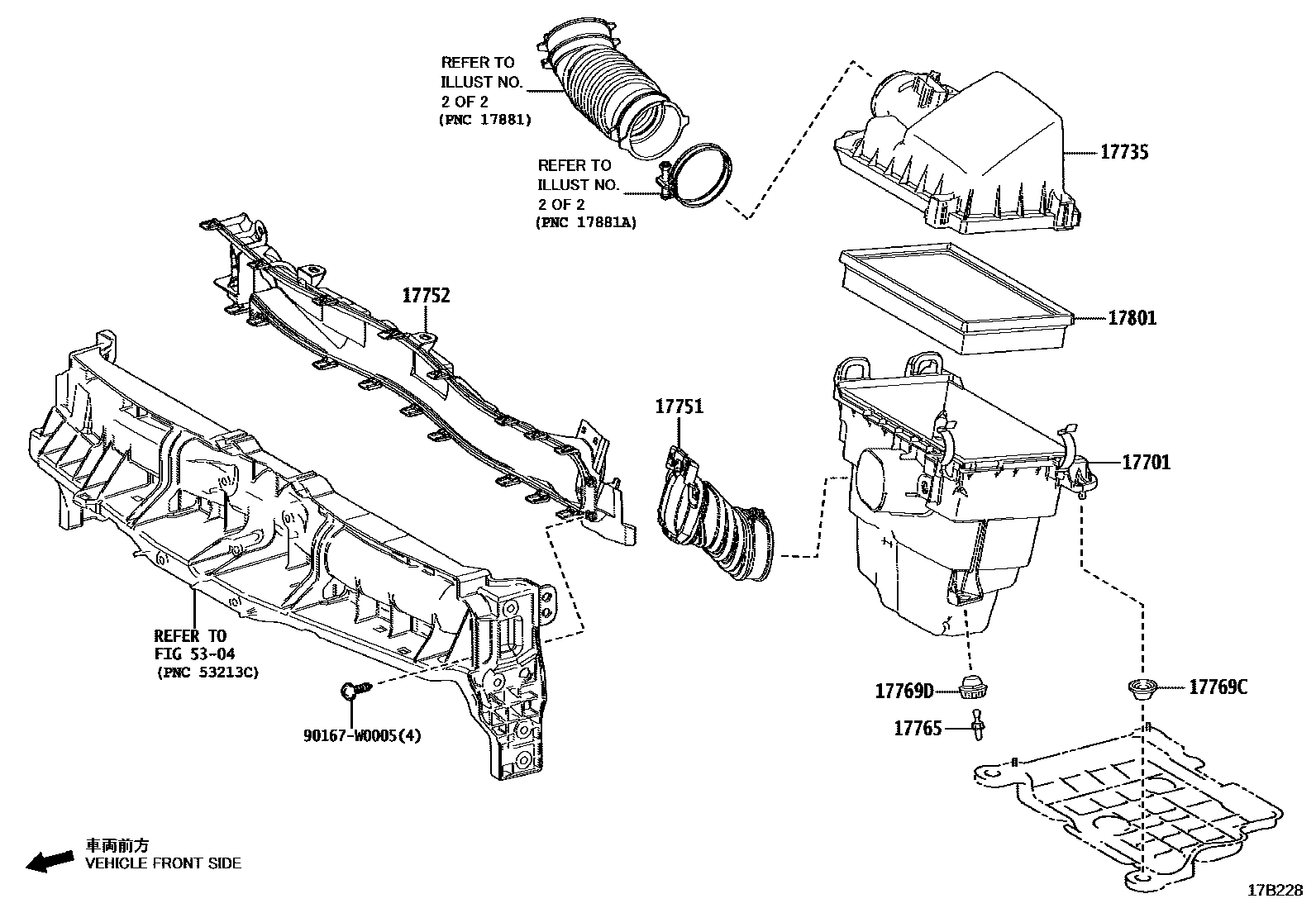

Toyota YARIS Air Cleaner EPC diagram — 17B228
Air Cleaner — 17B228 (202007 – 999999)

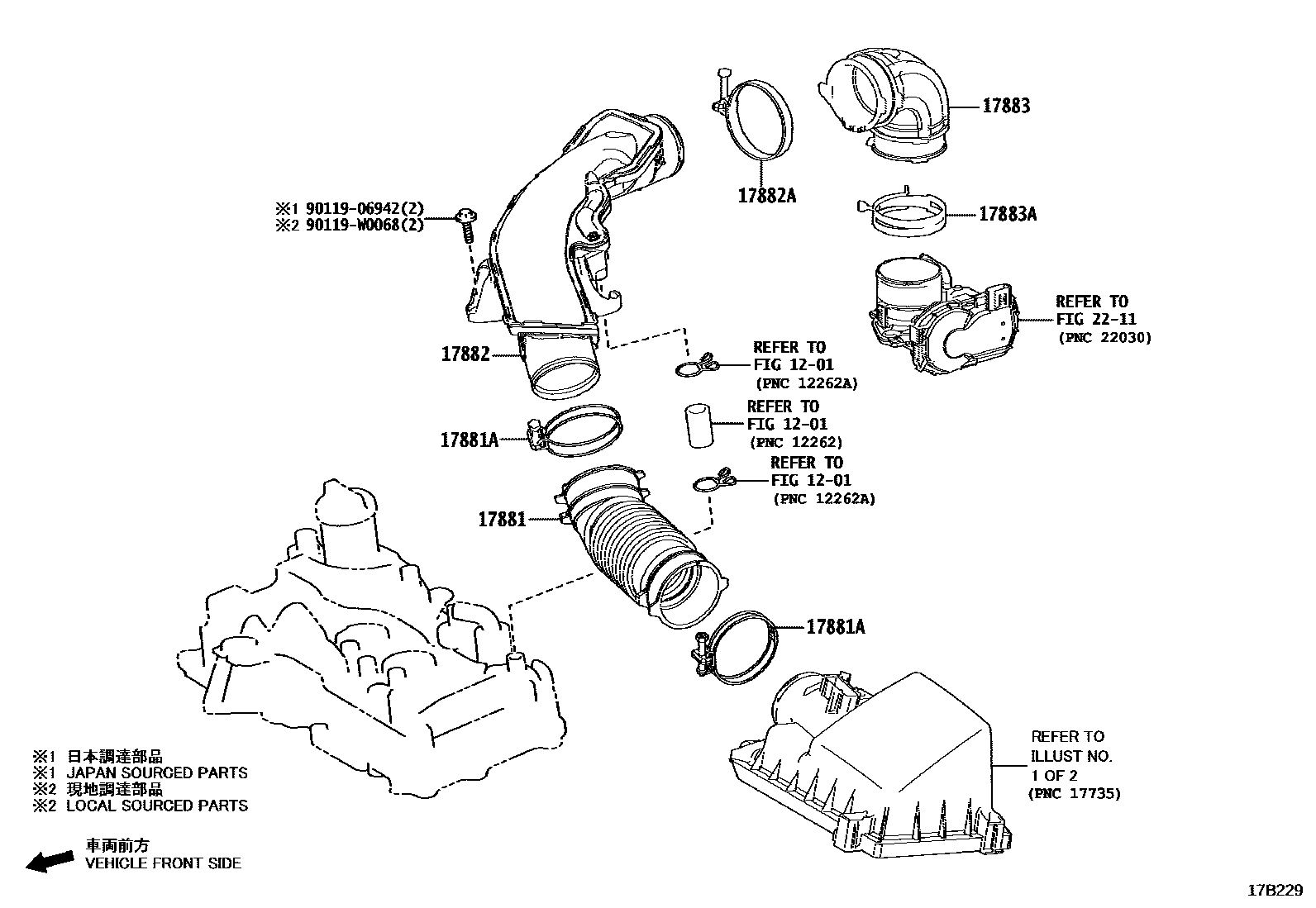

Toyota YARIS Air Cleaner EPC diagram — 17B229
Air Cleaner — 17B229 (202007 – 999999)

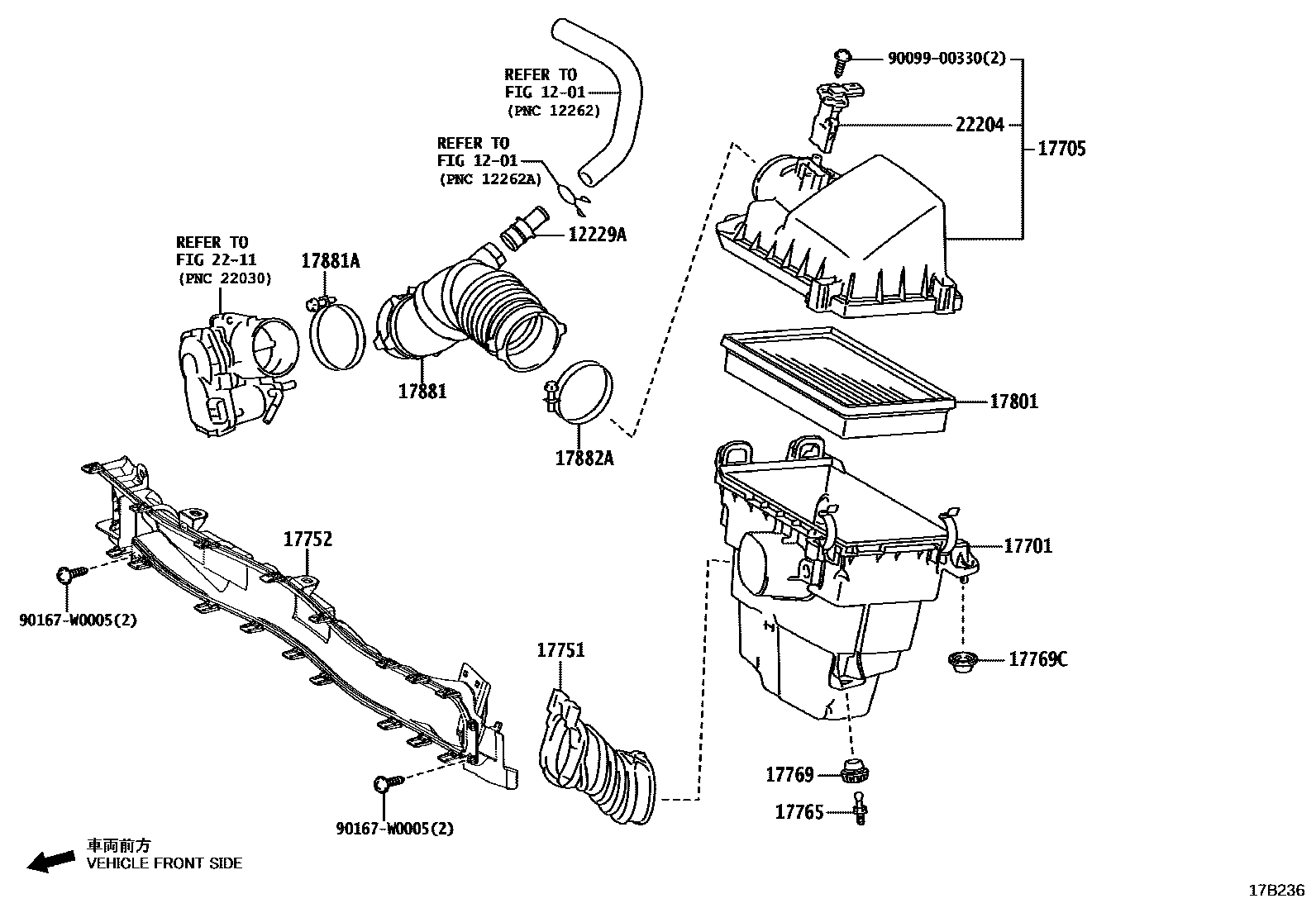

Toyota YARIS Air Cleaner EPC diagram — 17B236
Air Cleaner — 17B236 (202007 – 202204)

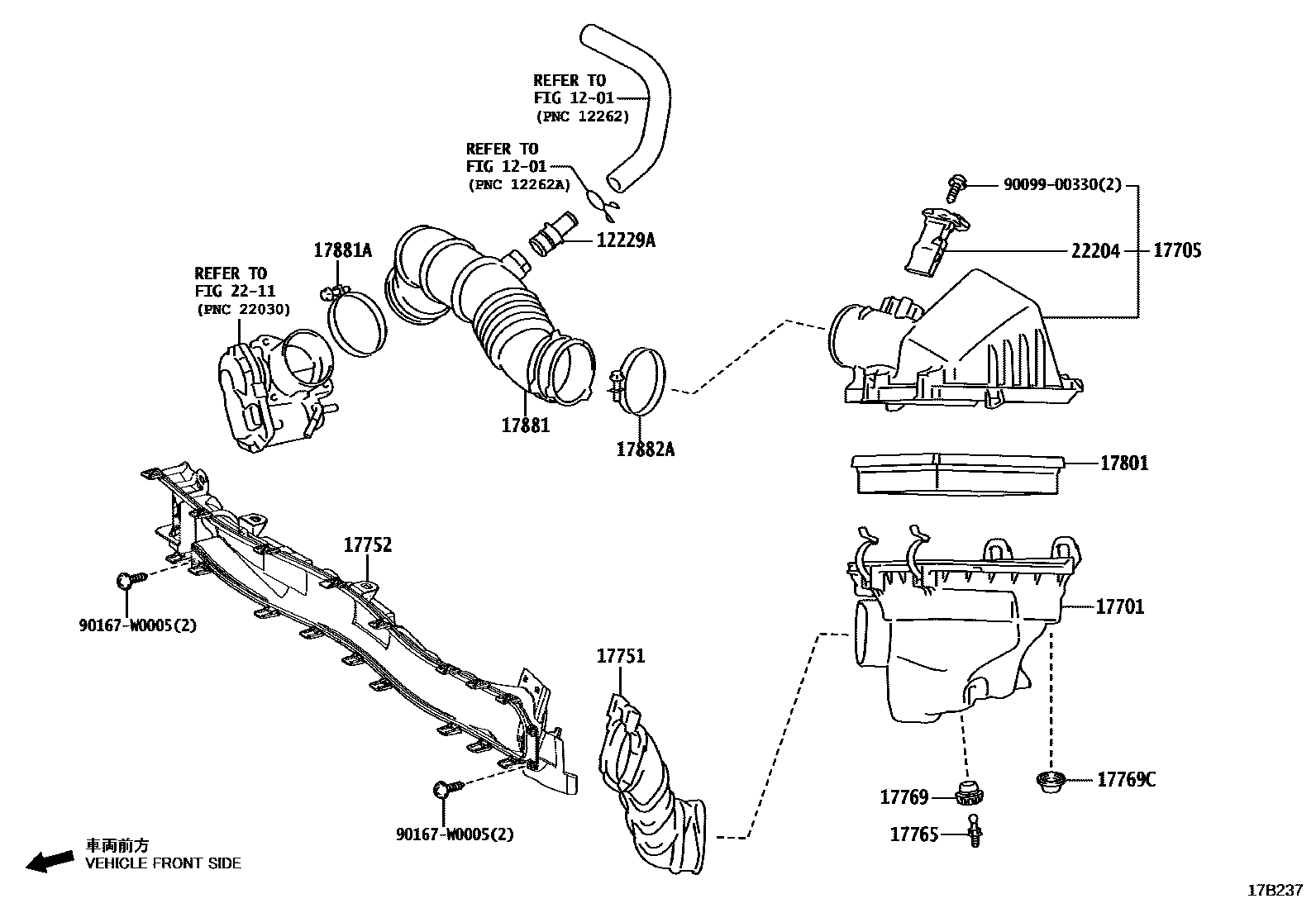

Toyota YARIS Air Cleaner EPC diagram — 17B237
Air Cleaner — 17B237 (202007 – 202204)

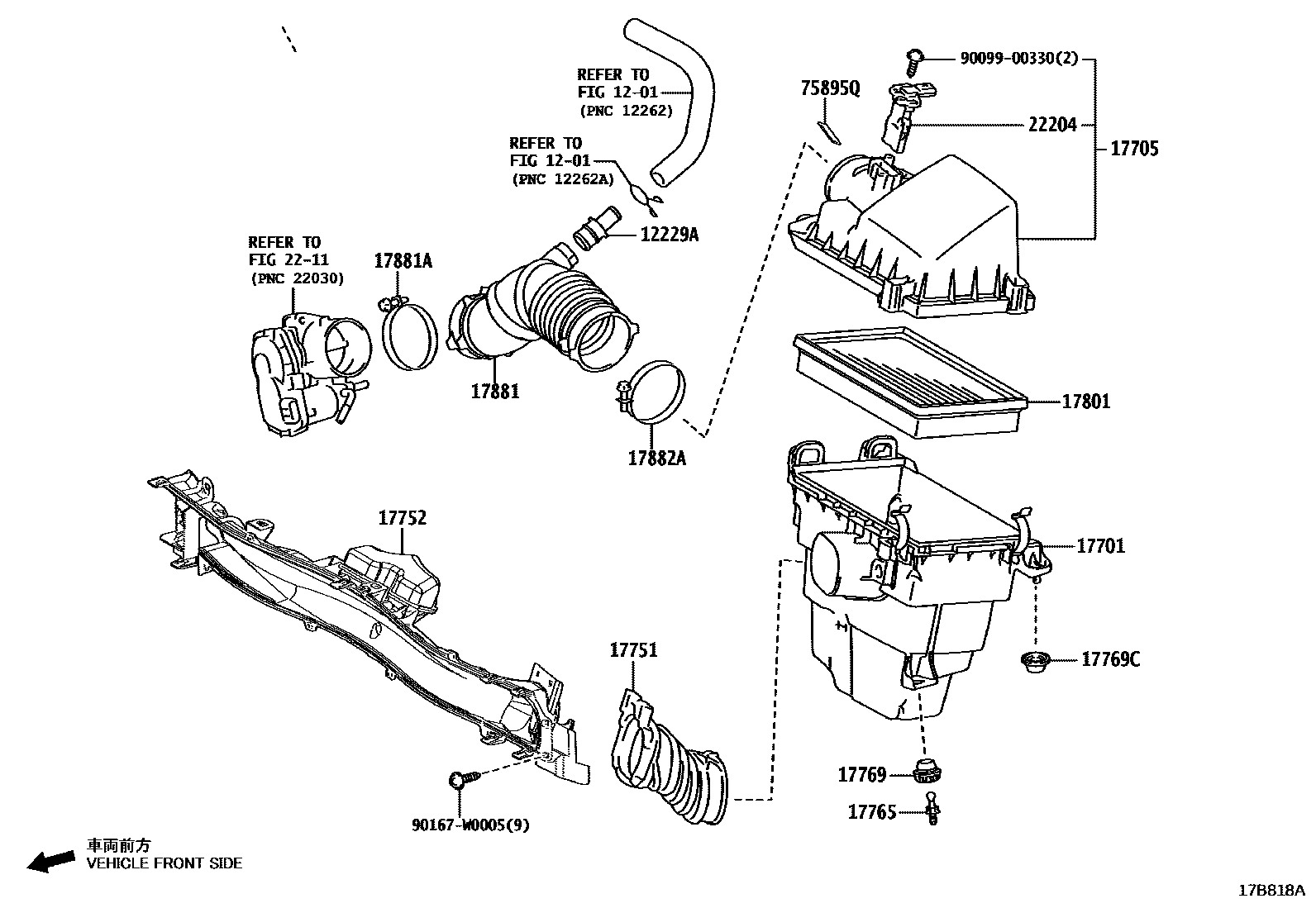

Toyota YARIS Air Cleaner EPC diagram — 17B818A
Air Cleaner — 17B818A (202204 – 999999)

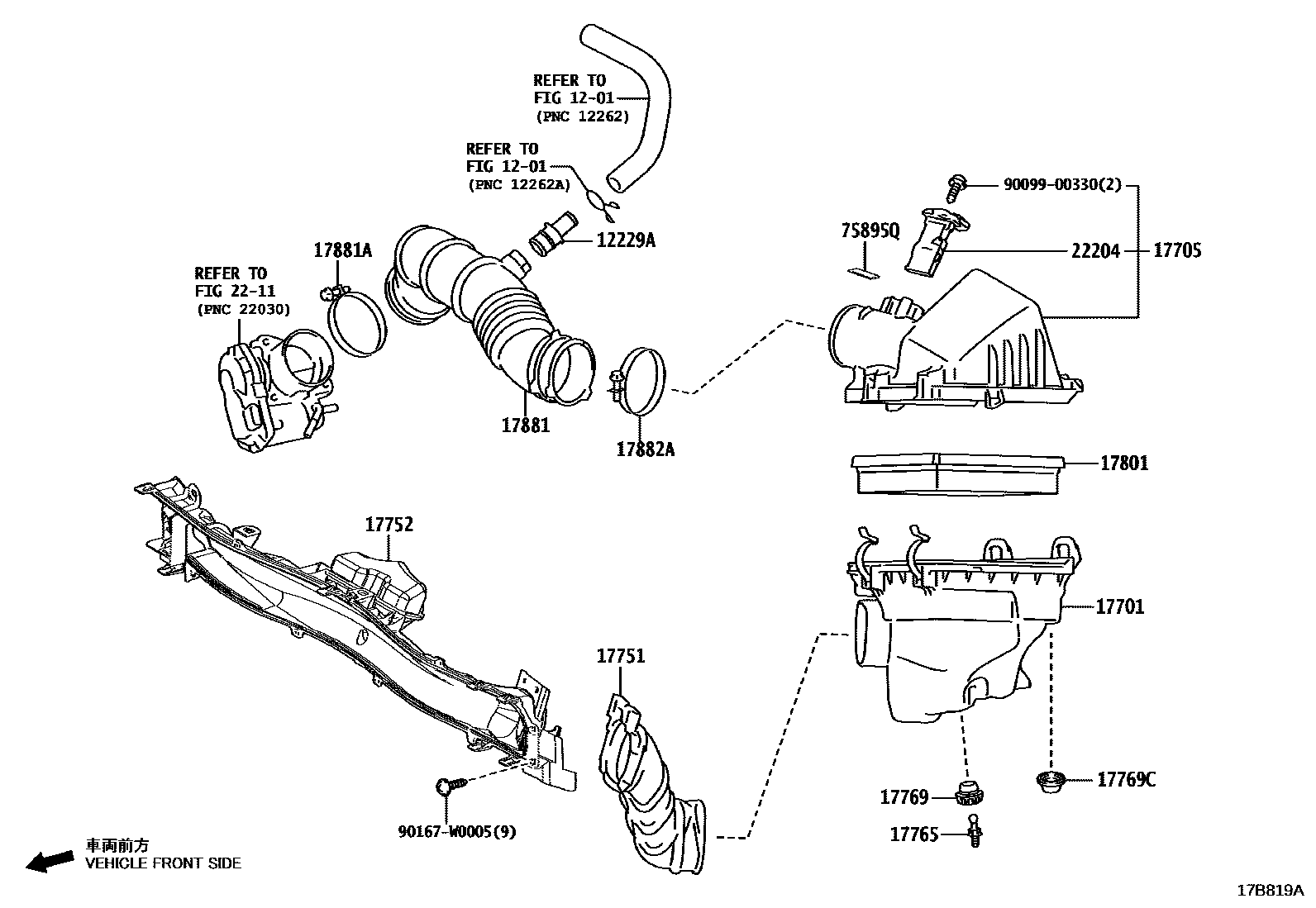

Toyota YARIS Air Cleaner EPC diagram — 17B819A
Air Cleaner — 17B819A (202204 – 999999)

PNC and OE references

PNCPart nameOE numbers
12229Aventilation duct12229-21010
17701Air filter housing sub-assembly17701-15310 · 17701-K0030 · 17701-K0040
17705Air filter cover sub-assembly17705-15200 · 17705-K0030 · 17705-K0040
17735air filter cover17735-K0060
17751No. 1 air filter air inlet17751-K0030 · 17751-K0040
17752No. 2 air filter air inlet17752-F3040 · 17752-K0020
17765No. 1 air filter stay17765-25010
17769air filter bracket17769-25030
17769CSUPPORT, FILTRE A AIR, NO.117769-25020
17769DSUPPORT, FILTRE A AIR, NO.217769-25030
17801Air filter element sub-assembly17801-15090 · 17801-K0020 · 17801-K0030
17881No. 1 air cleaner hose17881-K0040 · 17881-K0050 · 17881-K0060
17881AClamp (for No. 1 air cleaner hose)96111-10690 · 96111-10710
17882No. 2 air cleaner hose17882-0Q010
17882AClamp (for No. 2 air cleaner hose)96111-10710
17883No. 3 air cleaner hose17883-0Q010
17883AClamp (for No. 3 air cleaner hose)90466-62002
22204Intake air flow meter assembly22204-24010 · 22204-F2010
75895QRUBAN, MOULURE, NO.175895-52080
