Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 3 images and 9 PNC and OE references.

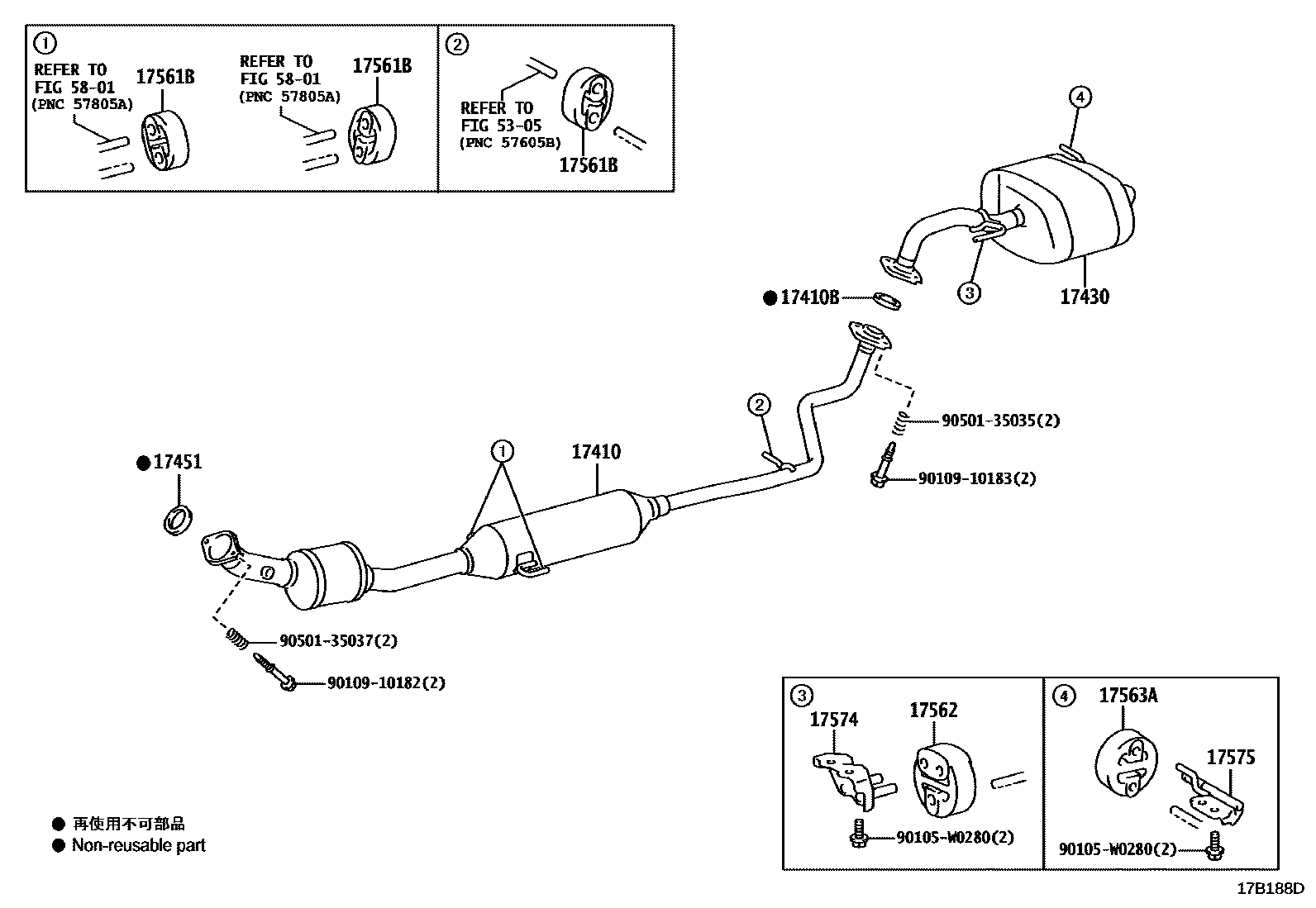

Toyota YARIS Exhaust Pipe EPC diagram — 17B188D
Exhaust Pipe — 17B188D (202007 – 999999)

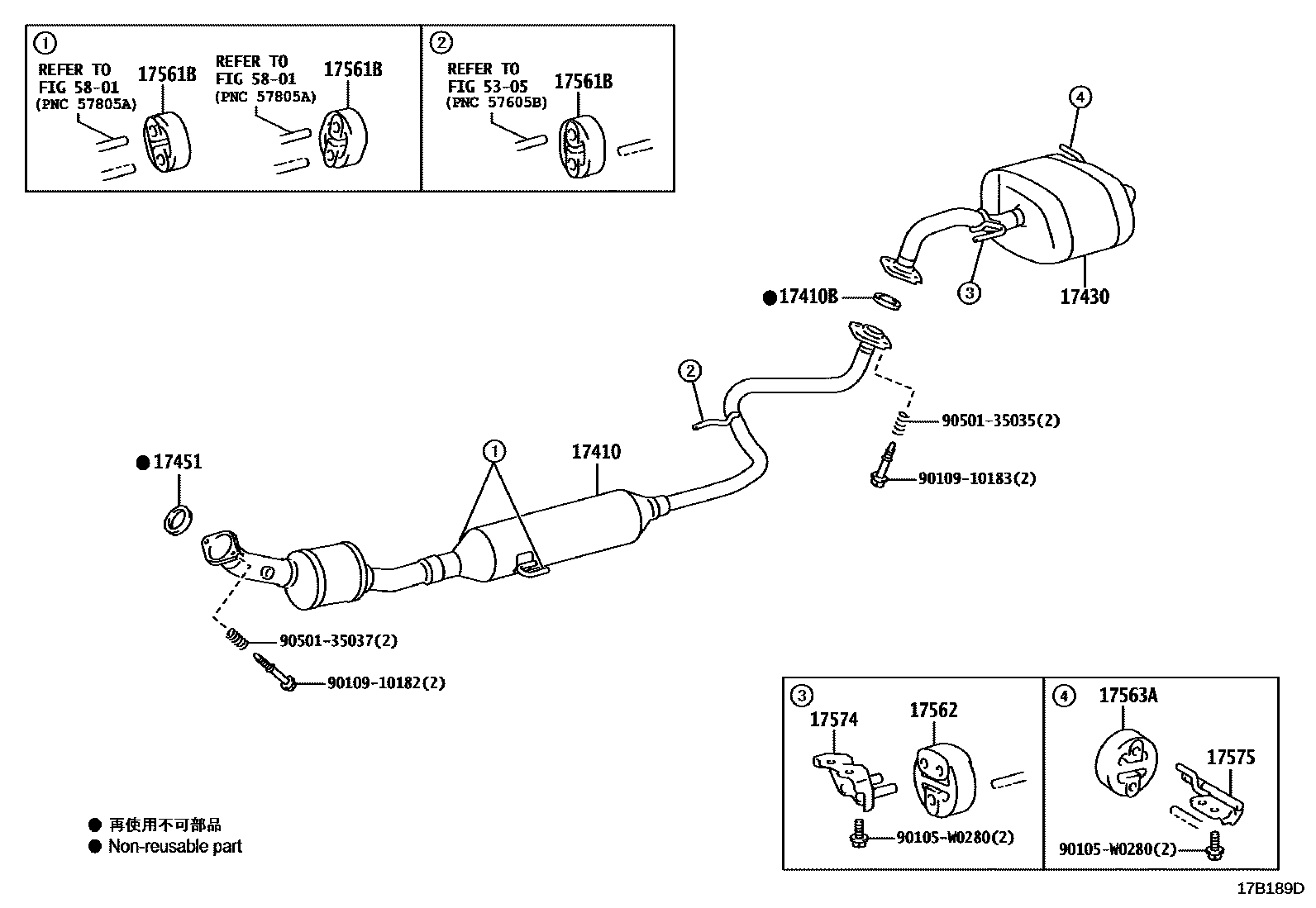

Toyota YARIS Exhaust Pipe EPC diagram — 17B189D
Exhaust Pipe — 17B189D (202007 – 999999)

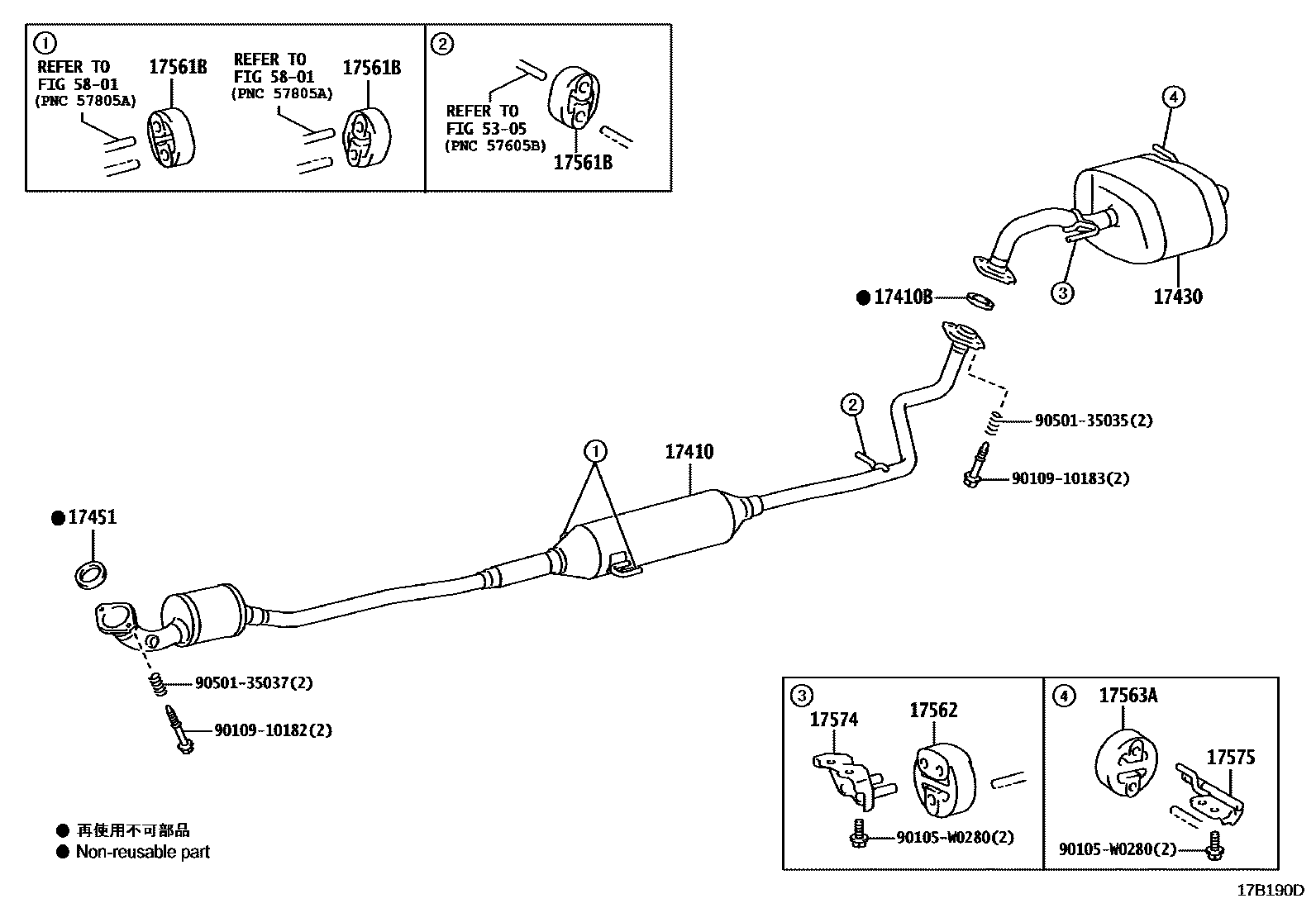

Toyota YARIS Exhaust Pipe EPC diagram — 17B190D
Exhaust Pipe — 17B190D (202007 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-F3120 · 17410-K0080 · 17410-K0090 · 17410-K0100 · 17410-K0120 · 17410-K0130 · 17410-K0140
17410BExhaust pipe gasket17451-0J022
17430Exhaust tailpipe assembly17430-0Q090 · 17430-F3070 · 17430-F3080 · 17430-K0050
17451Exhaust pipe gasket17451-0J030 · 17451-0Q030
17561BNo. 1 exhaust pipe lifting lug17565-0Q030
17562No. 2 exhaust pipe lifting lug17565-74320
17563ANo. 3 exhaust pipe lifting lug17565-0T040
17574No. 4 exhaust pipe bracket17574-K0030
17575No. 5 exhaust pipe bracket17575-K0030
