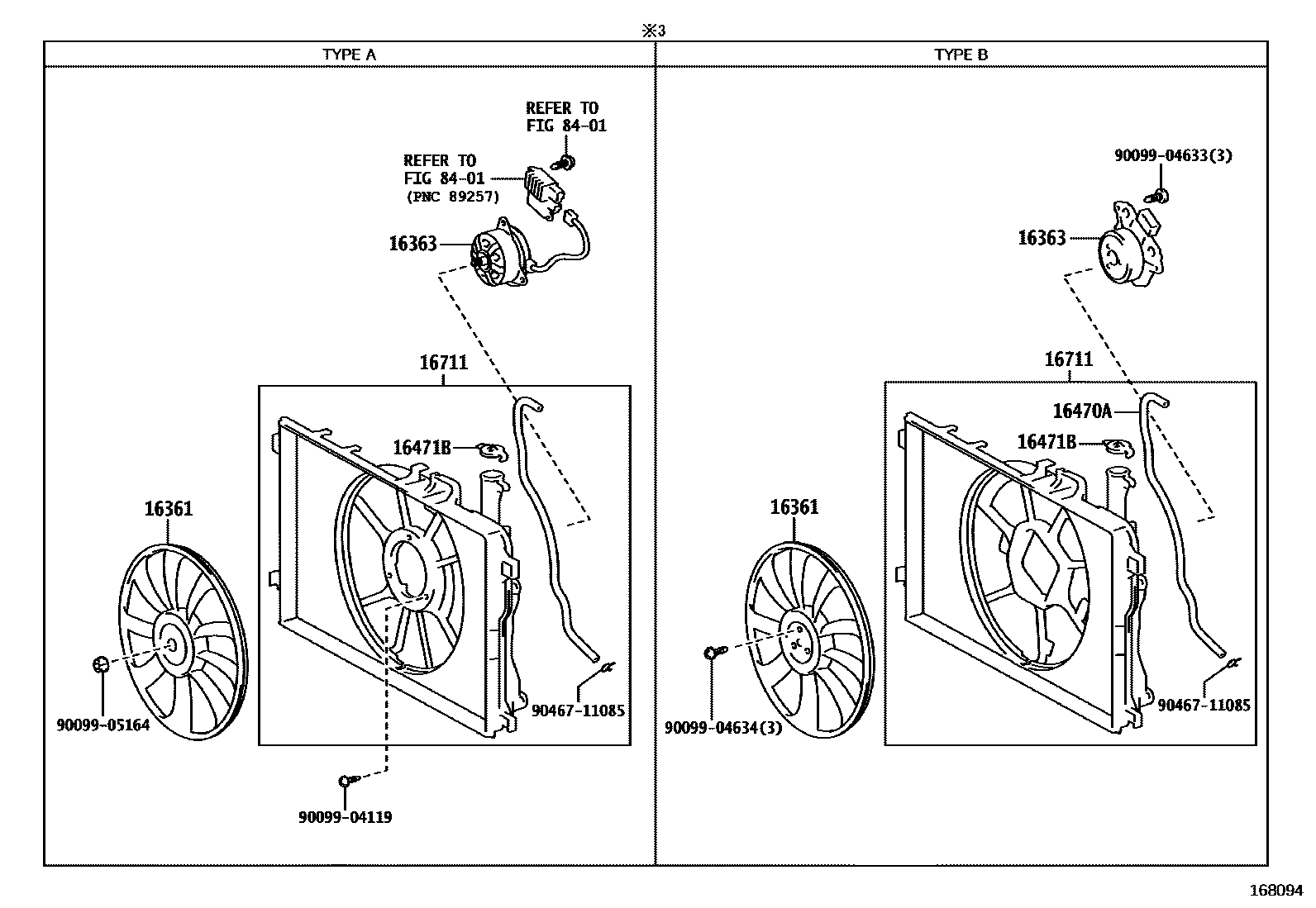

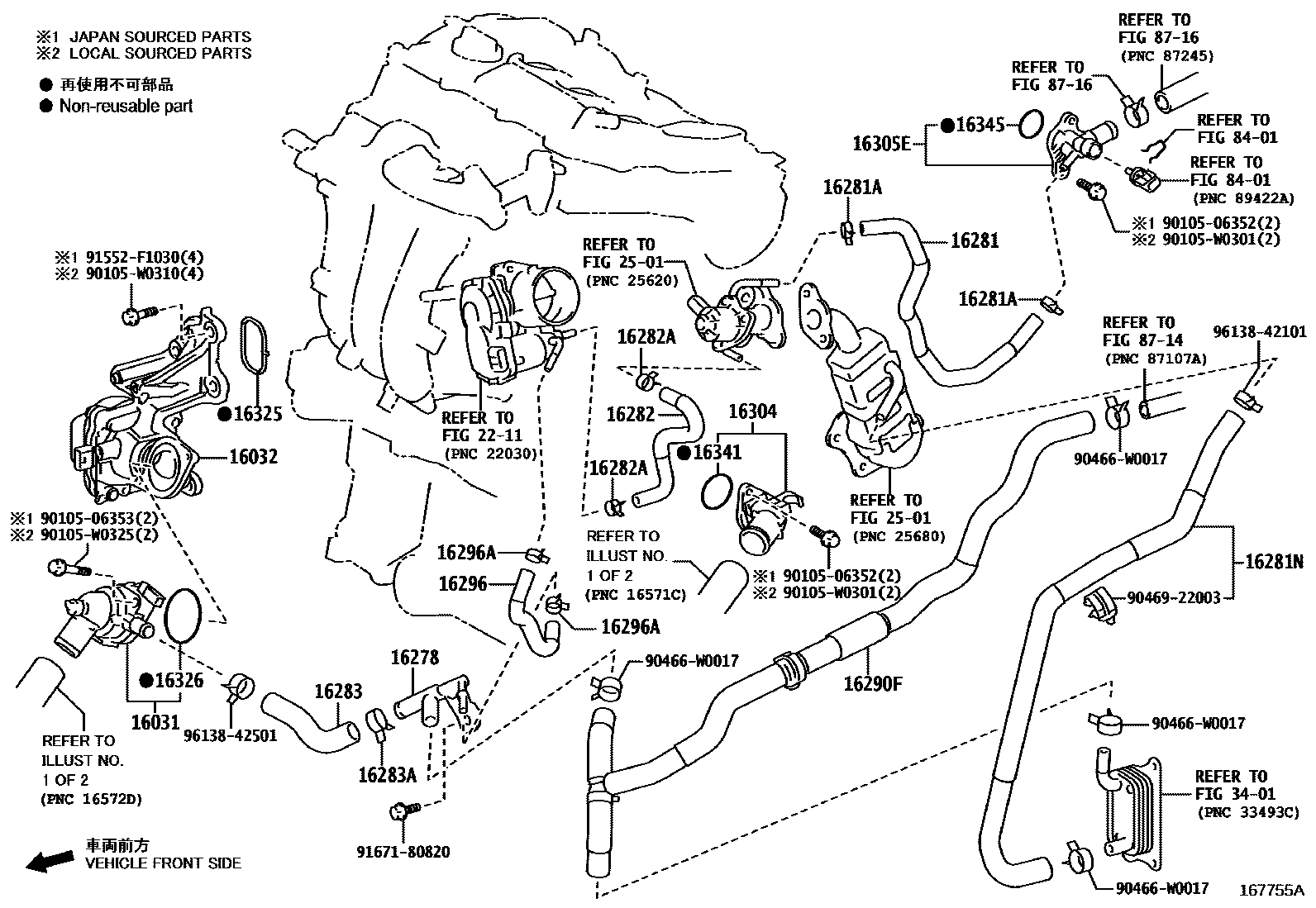

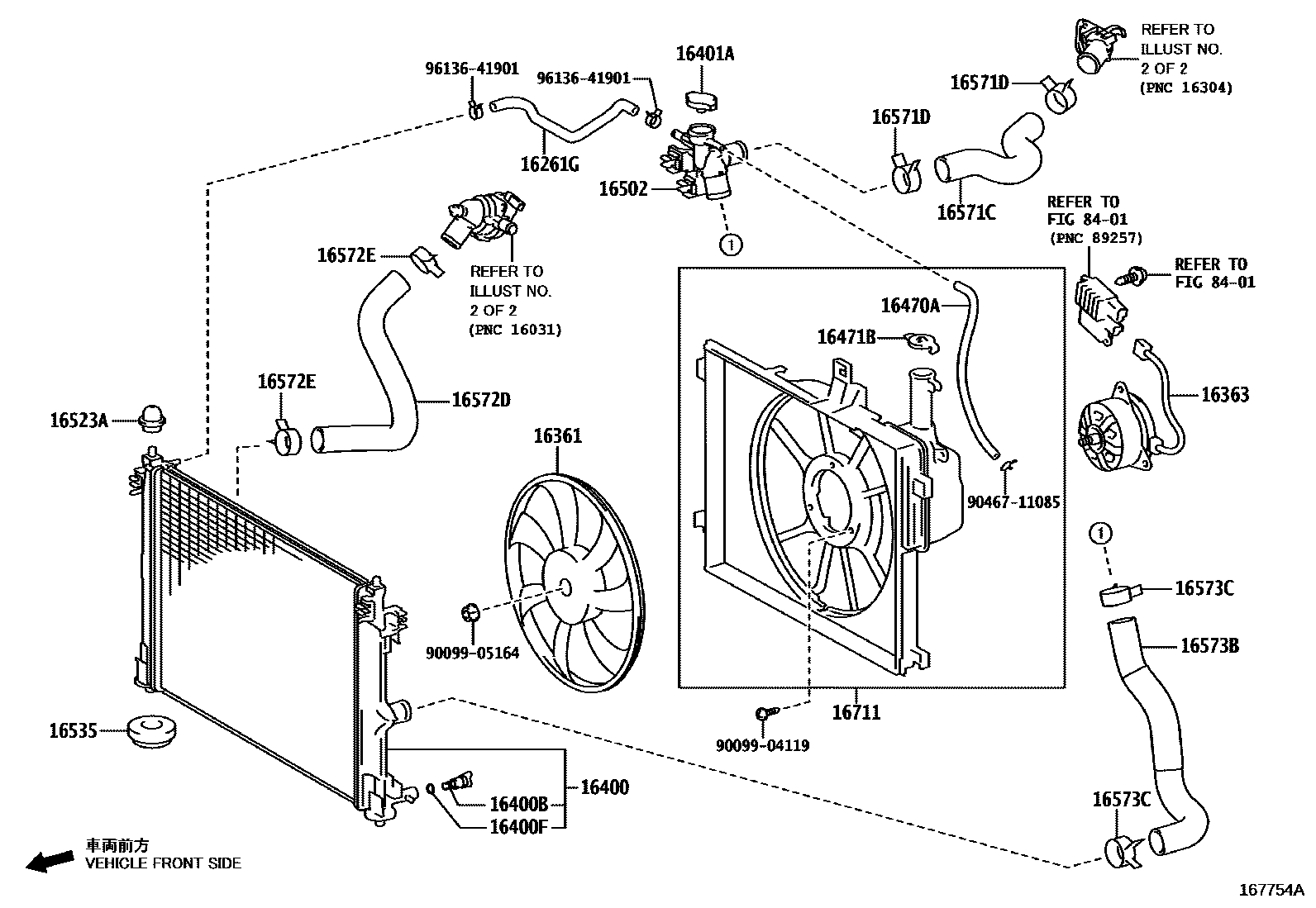

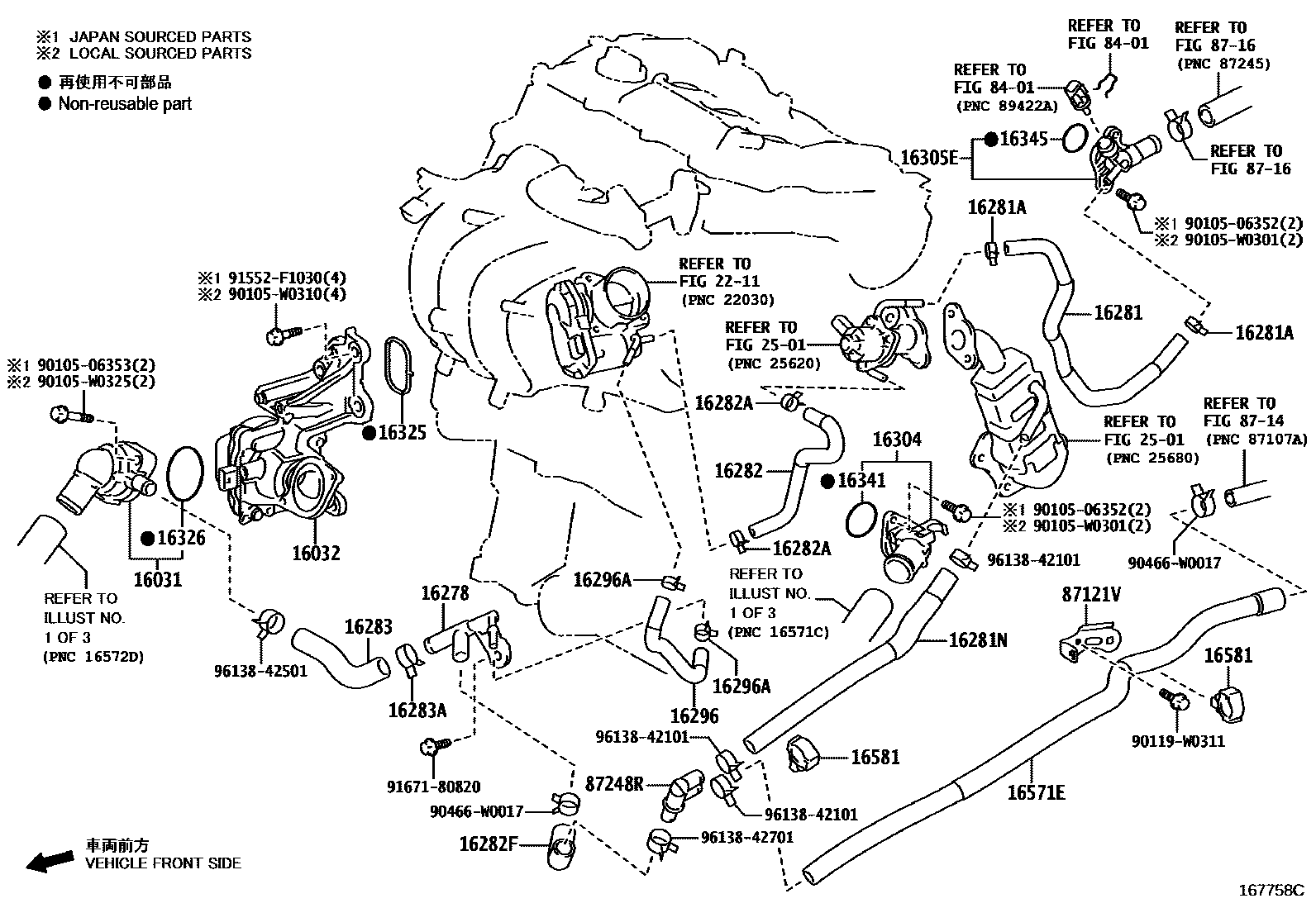

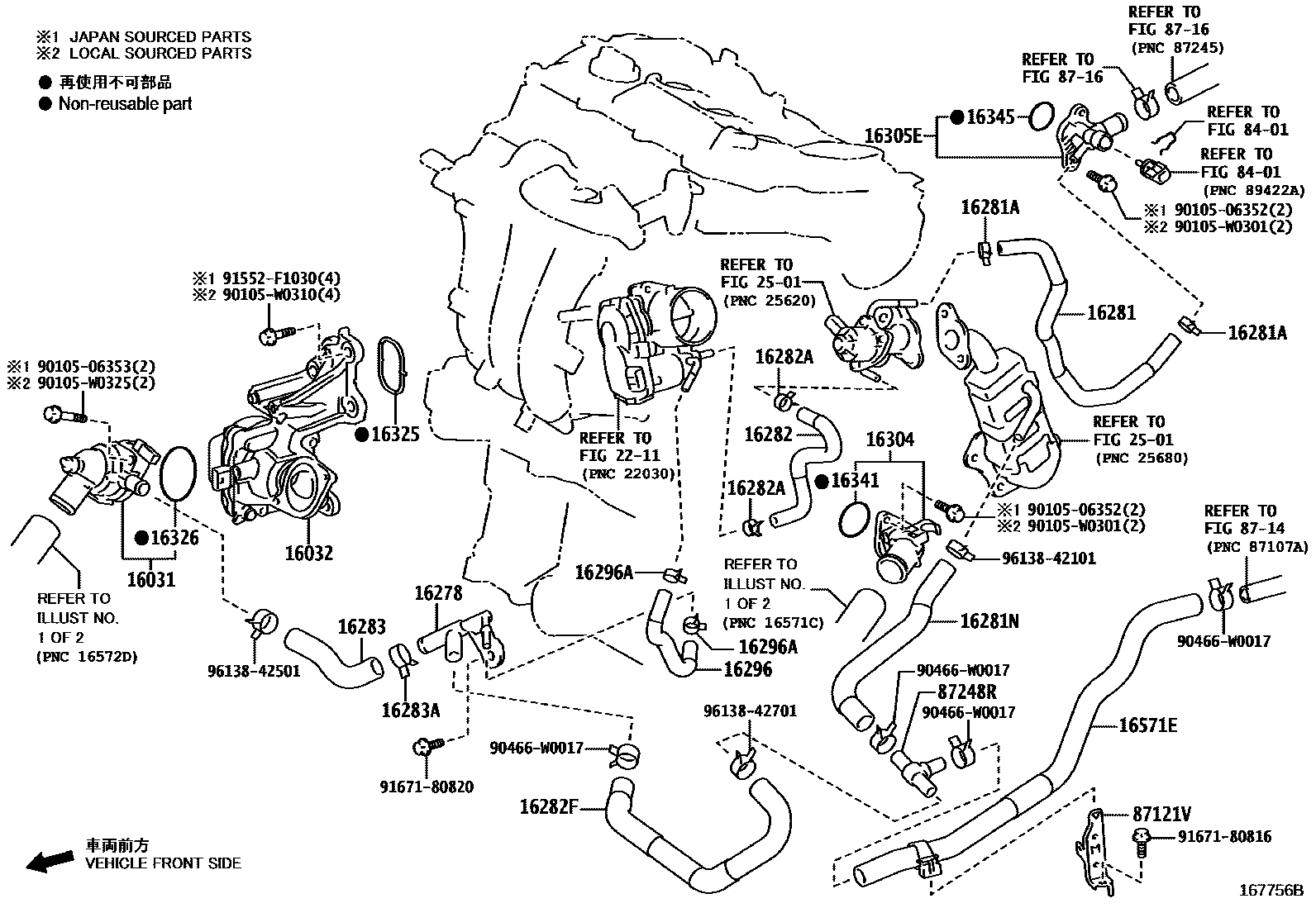

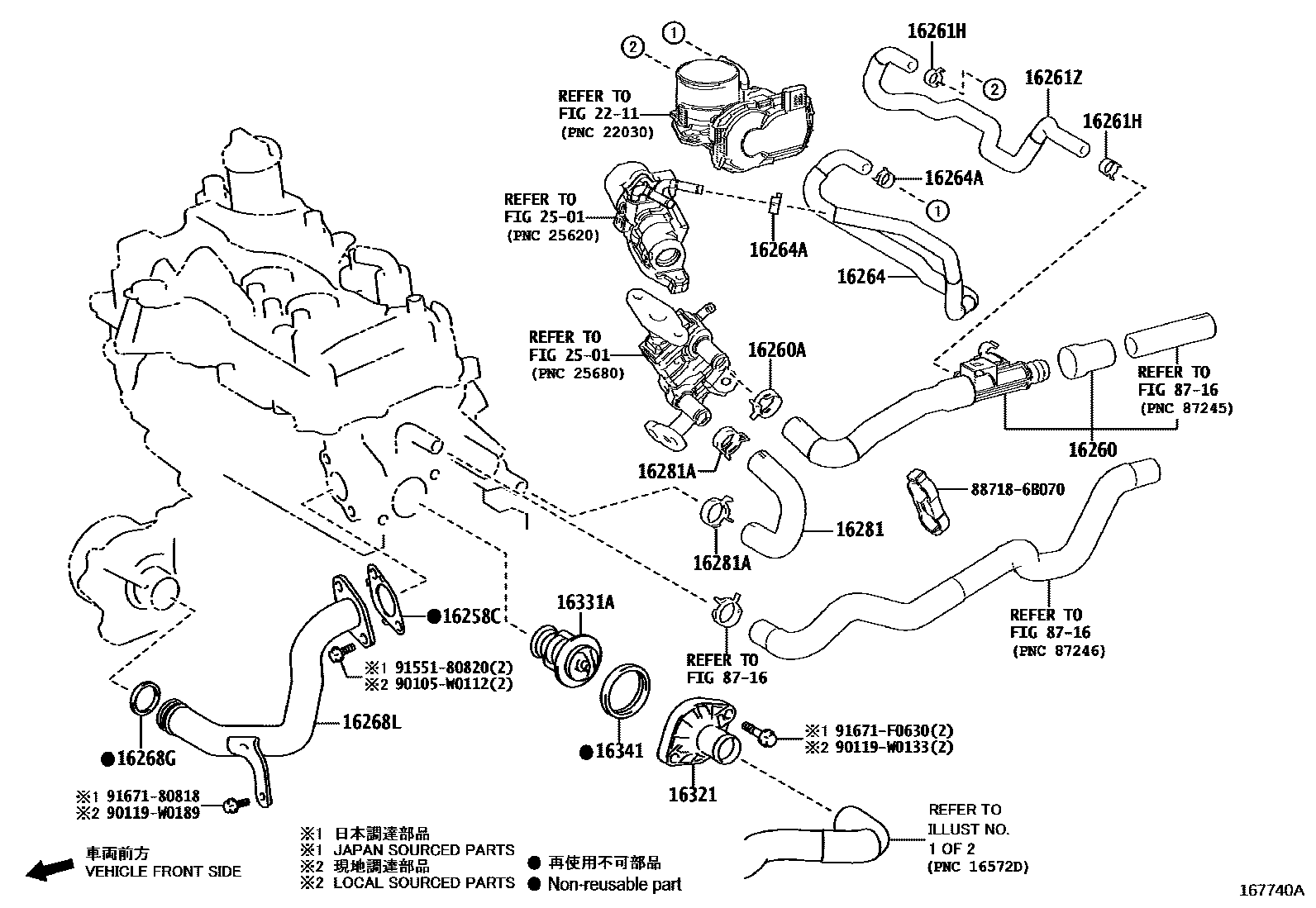

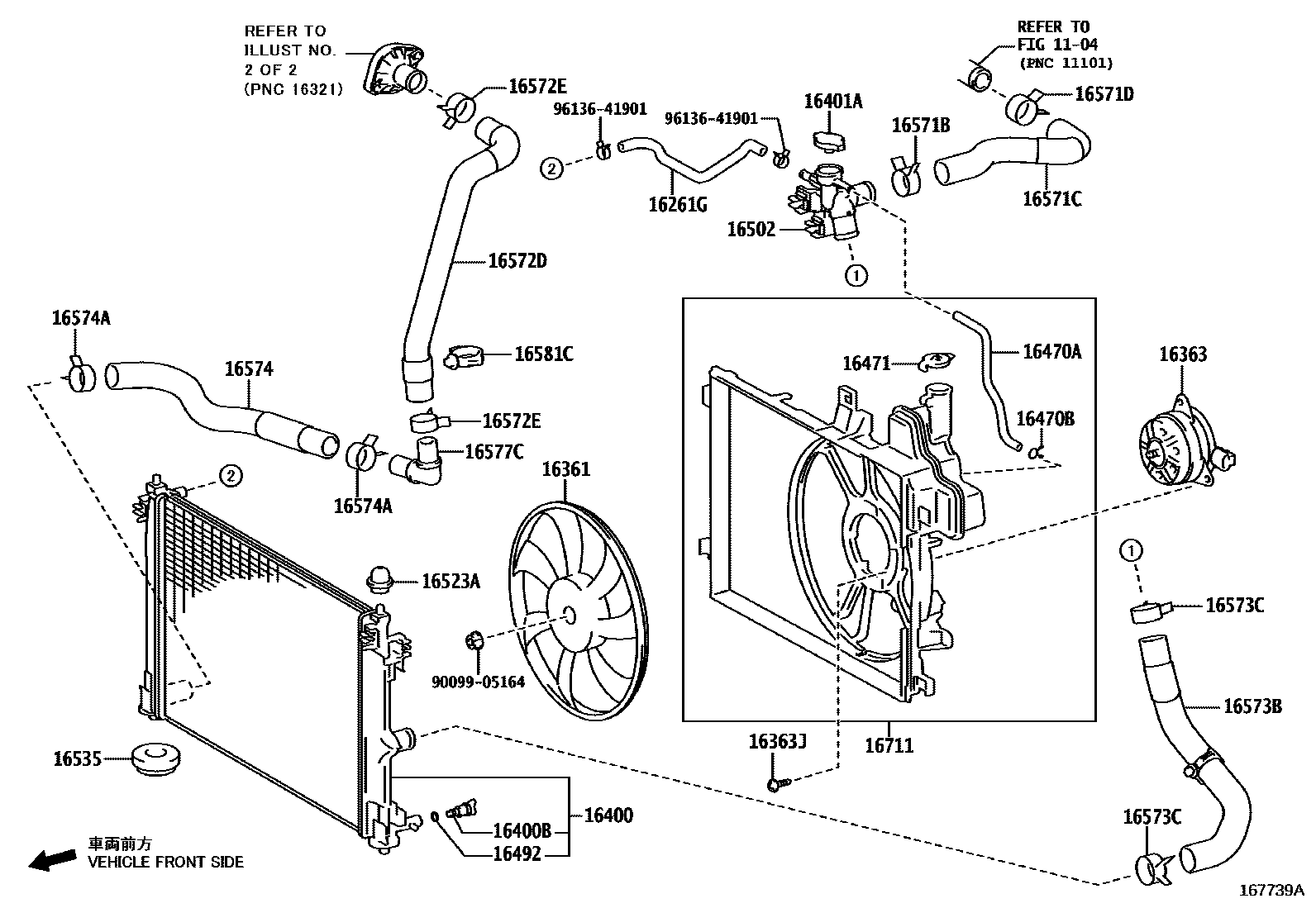

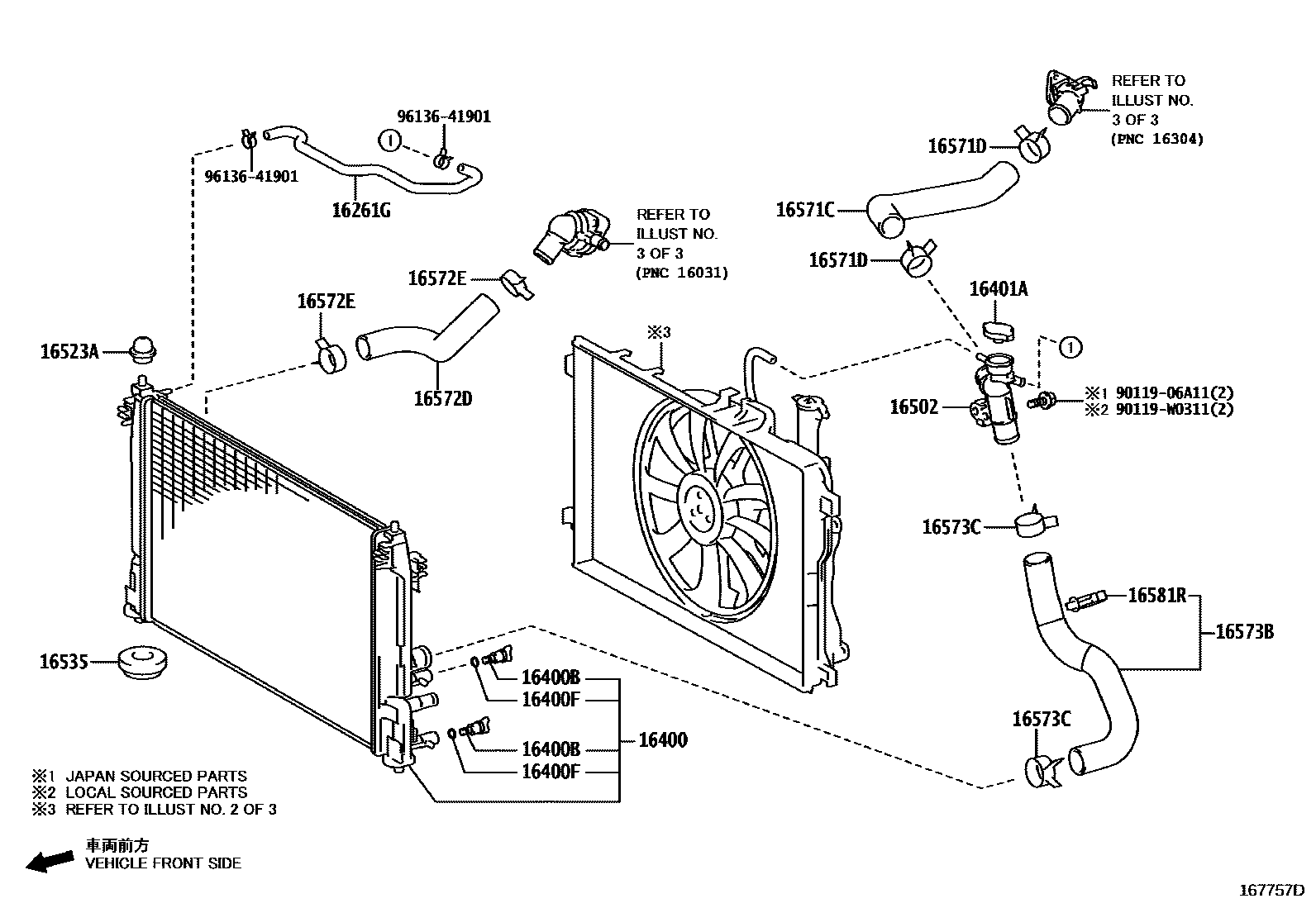

Toyota YARIS RADIATOR & WATER OUTLET — Figure 1603
Toyota YARIS EPC diagram 1603, RADIATOR & WATER OUTLET, with 8 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-15010 · 16031-15020 |
| 16032 | SOUS-ENS. LOGEMENT, ENTREE EAU AV POMPE EAU | 16032-15190 |
| 16258C | Gasket (for water bypass pipe) | 16258-40021 |
| 16260 | Water bypass hose assembly | 16260-40200 |
| 16260A | Clamp (for water bypass hose assembly) | 90466-W0017 · 96138-42501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-K0040 · 16261-K0060 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 96138-41501 |
| 16261Z | FLEXIBLE, DERIV EAU, NO.1 | 16261-0Q070 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0Q030 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96138-41501 |
| 16268G | Gasket (for water bypass pipe) | 16258-0Q010 |
| 16268L | PIPE, WATER BY-PASS | 16268-0Q010 · 16268-0Q020 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-15080 · 16278-F3010 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-0Q010 · 16281-15010 · 16281-F3030 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90466-21004 · 90466-W0007 · 96138-41501 |
| 16281N | FLEX, DERIVATION EAU, NO.4 | 16281-K0040 · 16281-K0050 · 16281-K0060 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-15020 · 16282-F3050 · 16282-F3060 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96138-41501 |
| 16282F | FLEX, DERIVATION EAU, NO.5 | 16282-K0050 · 16282-K0060 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-15010 · 16283-F3050 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 96138-42501 |
| 16290F | ENS. COND. FLEX., CONDUIT DERIVATION EAU, NO.3 | 16290-15010 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-15020 · 16296-F3050 · 16296-F3060 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 96138-41501 |
| 16304 | Water outlet sub-assembly | 16304-15010 · 16304-F3010 |
| 16305E | Water bypass outlet sub-assembly | 16305-15010 · 16305-15020 · 16305-F3010 · 16305-F3020 |
| 16321 | water inlet | 16321-0Q010 · 16321-40010 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-15030 · 16325-F3010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-15010 |
| 16331A | thermostat | 90916-03153 |
| 16341 | GASKET, WATER OUTLET | 16341-15020 · 16341-35010 · 16341-F3010 · 16341-F3020 |
| 16345 | Outlet pipe gasket | 16345-15010 · 16345-F3010 · 16345-F3020 · 16345-F3040 |
| 16361 | Fan | 16361-K0050 · 16361-K0060 · 16361-K0070 · 16361-K0110 |
| 16363 | cooling fan motor | 16363-0D090 · 16363-31500 · 16363-K0020 · 16363-K0030 |
| 16363J | BOULON(POUR MOTEUR VENT REFROID) | 90099-04119 |
| 16400 | Radiator assembly | 16400-K0040 · 16400-K0050 · 16400-K0080 |
| 16400B | Radiator drain switch screw plug | 16417-0Q040 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401A | Radiator reservoir cap sub-assembly | 16401-36020 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16377-K0010 · 16377-K0020 · 16377-K0040 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16471-0J010 |
| 16471B | Reservoir tank cover | 16471-0J010 · 16471-F3010 |
| 16492 | JOINT, TORIQUE(POUR ROBINET RESERVOIR RESERVE RADIATEUR) | 16492-21050 |
| 16502 | Water injection port sub-assembly | 16502-K0030 · 16502-K0040 |
| 16523A | Radiator bracket cushion | 16523-0Q020 · 16523-0T050 |
| 16535 | Radiator lower support | 90480-40021 |
| 16571B | Slim hose (for radiator hose) | 90466-W0011 |
| 16571C | Radiator hose No. 1 | 16571-K0040 · 16571-K0050 · 16571-K0060 |
| 16571D | No. 1 radiator hose clip | 90466-W0011 · 90466-W0015 |
| 16571E | water hose | 87242-K0010 · 87242-K0030 |
| 16572D | Radiator hose No. 2 | 16572-K0040 · 16572-K0050 · 16572-K0060 |
| 16572E | No. 2 radiator hose clip | 90466-W0011 · 90466-W0015 |
| 16573B | Radiator hose No. 3 | 16573-K0040 · 16573-K0050 · 16573-K0060 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-W0016 |
| 16574 | Radiator hose No. 4 | 16574-K0020 |
| 16574A | No. 4 radiator hose clip | 90466-W0011 |
| 16577C | radiator pipe | 16577-K0010 |
| 16581 | Hose clamp (for water hose) | 16581-15060 |
| 16581C | Hose clamp (for No. 2 radiator hose) | 16581-25030 |
| 16581R | COL. FIX. COND. FLEX. (CONDUITE FLEXIBLE RADIATEUR NO. 3) | 16581-25030 |
| 16711 | fan cover | 16711-K0050 · 16711-K0060 · 16711-K0070 · 16711-K0120 |
| 87121V | PLAT. FIX., CHAUFFAGE | 87121-10020 · 87121-K0040 |
| 87248R | TUYAU, EAU | 87248-K0080 · 87248-K0100 |
