Toyota YARIS Oil Filter — Figure 1502

Toyota YARIS EPC diagram 1502, Oil Filter, with 2 images and 4 PNC and OE references.

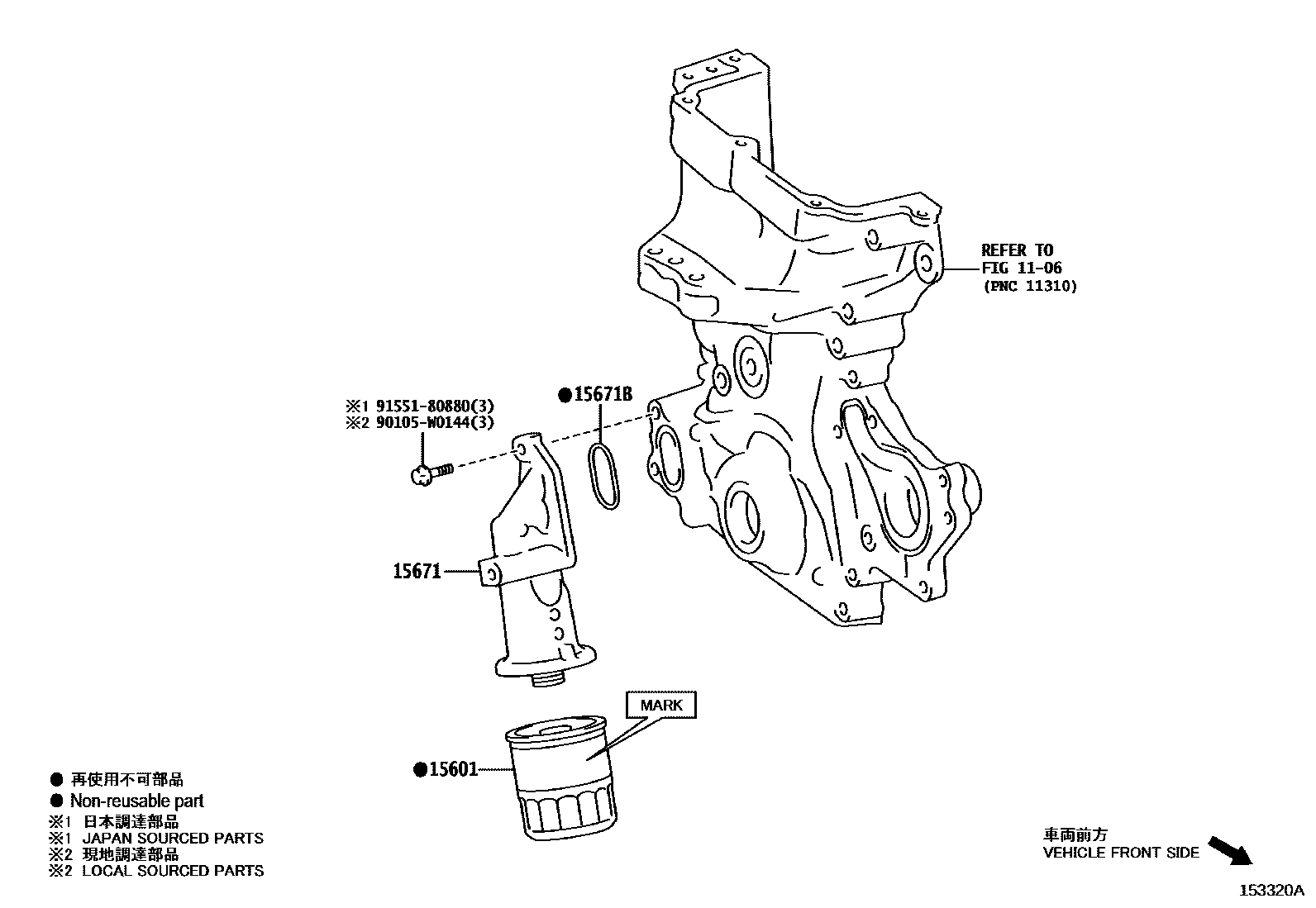

Toyota YARIS Oil Filter EPC diagram — 153320A
Oil Filter — 153320A (202007 – 999999)

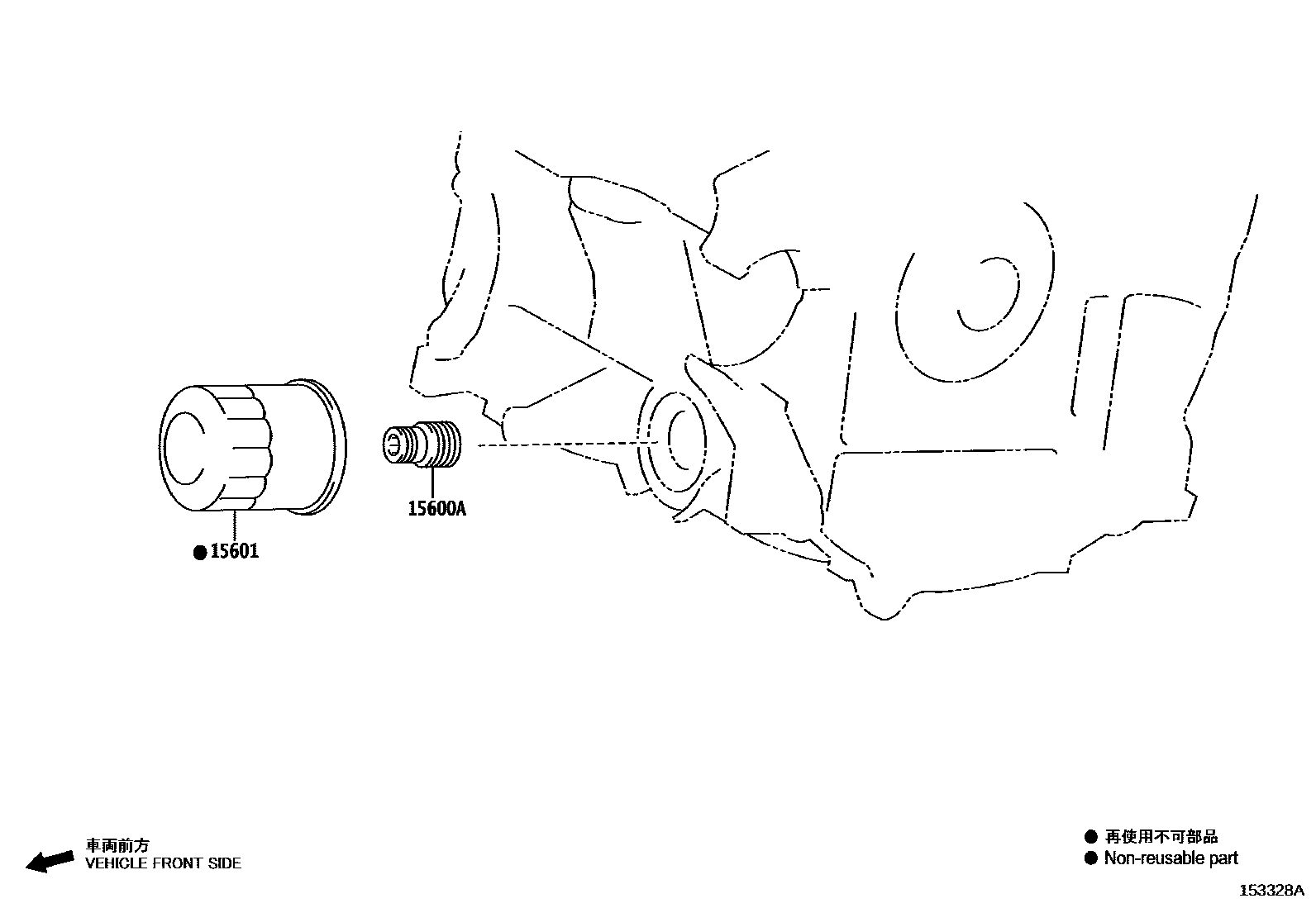

Toyota YARIS Oil Filter EPC diagram — 153328A
Oil Filter — 153328A (202007 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90904-04006
15601Oil filter sub-assembly90915-10003 · 90915-10009 · 90915-CA003 · 90915-CA004 · 90915-TA001
15671Oil filter bracket15671-0Q030
15671BOil filter holder gasket15691-40020
