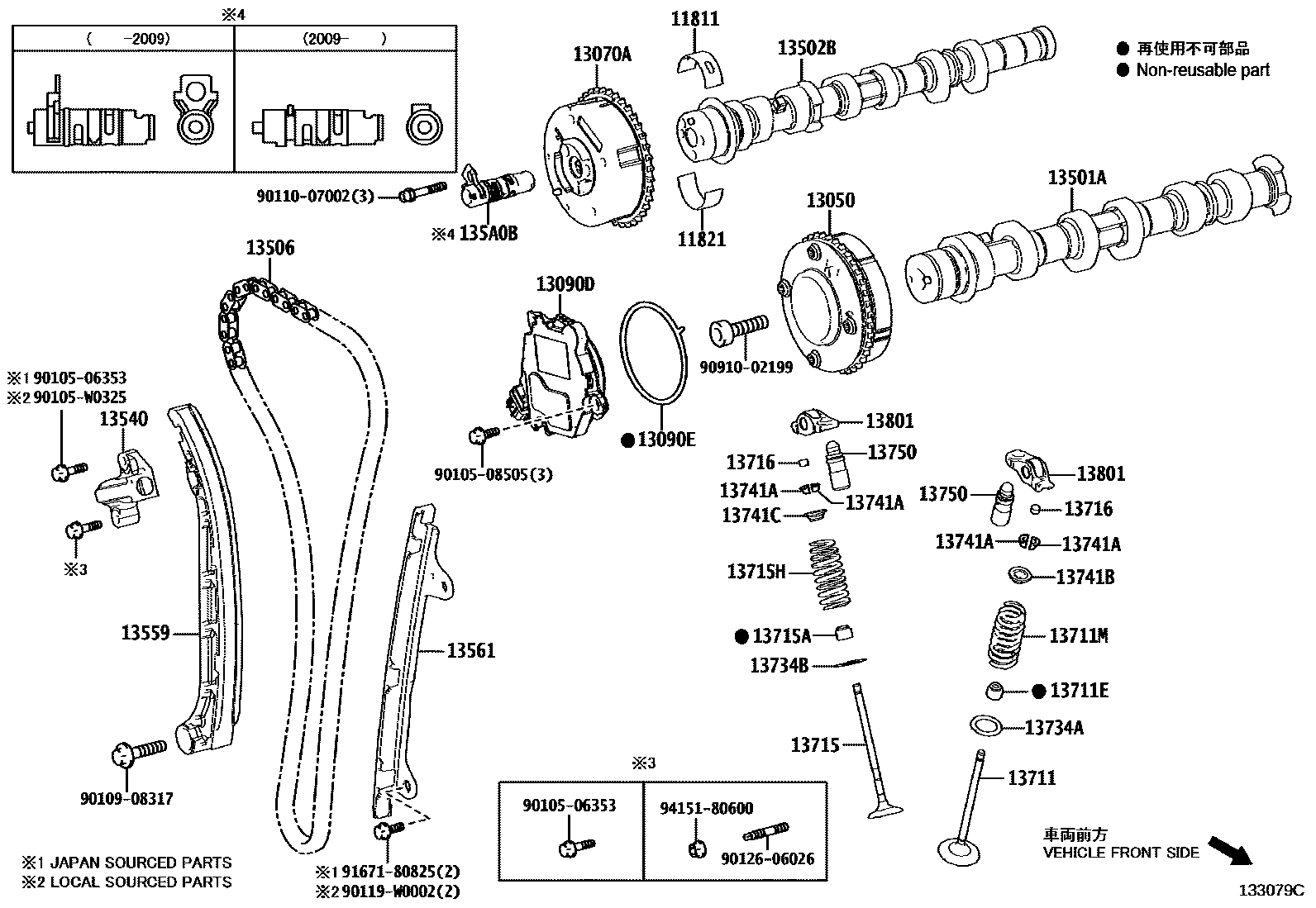

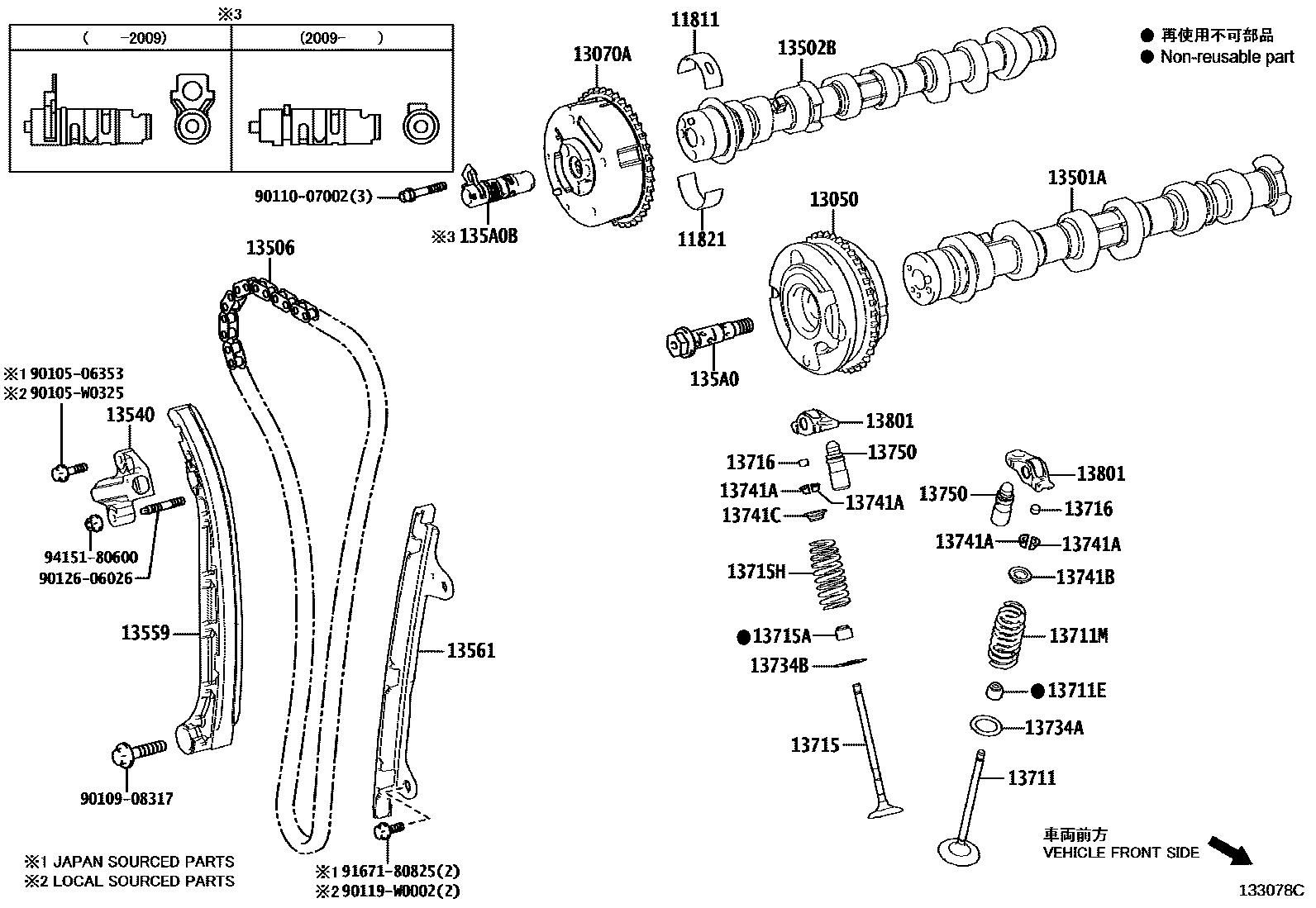

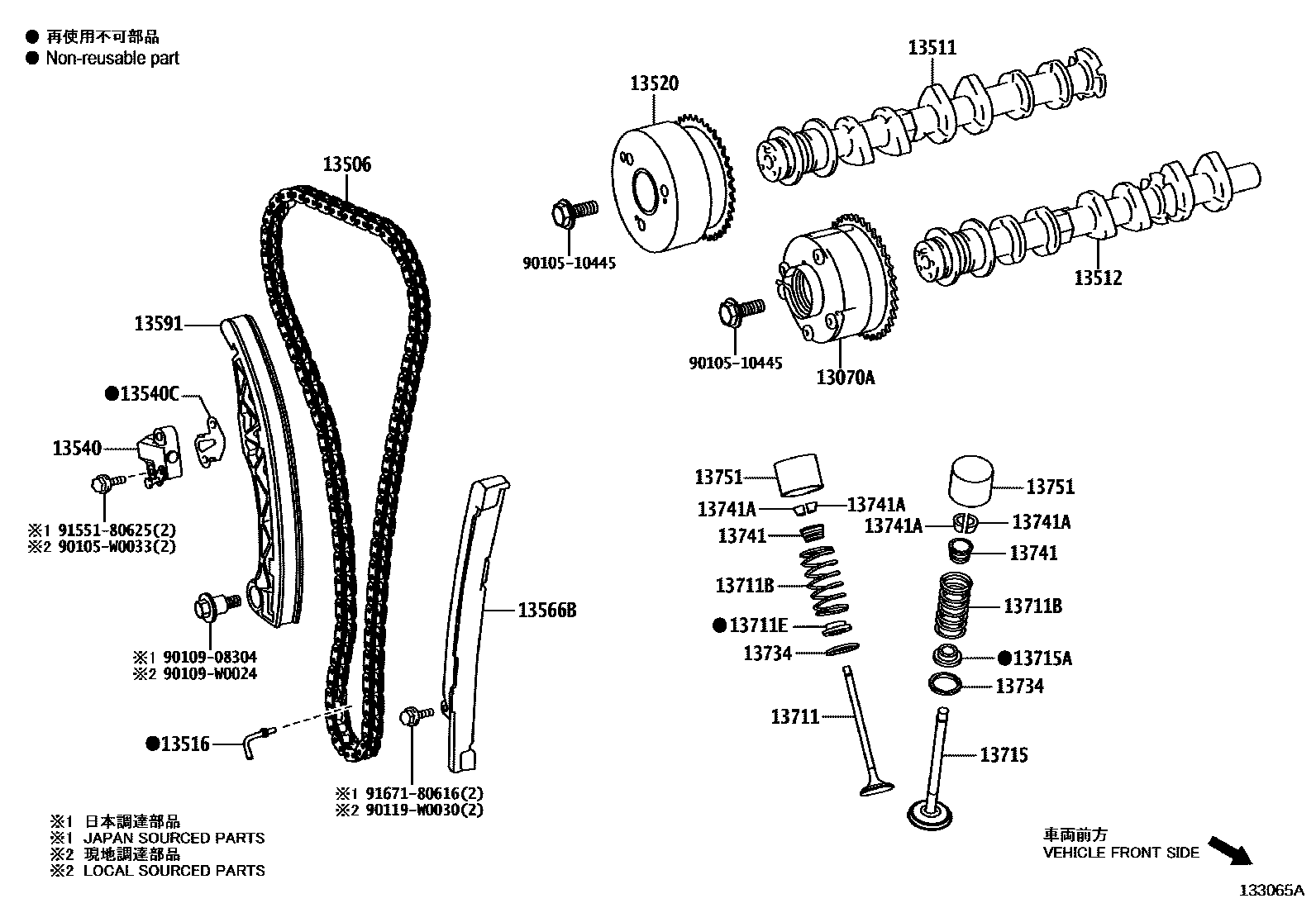

Toyota YARIS Camshaft & Valve — Figure 1302
Toyota YARIS EPC diagram 1302, Camshaft & Valve, with 3 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11811 | No. 1 camshaft bearing | 11811-15010 · 11811-F3050 |
| 11821 | No. 2 camshaft bearing | 11821-15010 · 11821-F3050 |
| 13050 | Camshaft timing gear assembly | 13050-15010 · 13050-15020 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-0Q010 · 13070-25020 · 13070-25030 · 13070-F2040 |
| 13090D | ENS. MOTEUR, COM. AVAN. ALLUM. CAME AVEC EDU | 13090-25010 |
| 13090E | JOINT TOR. (DE MOTEUR COM. AVAN. ALLUM. CAME) | 90301-92005 |
| 13501A | SS-ENS. ARBRE A CAMES, ADMISSION | 13501-15070 · 13501-F3010 · 13501-F3020 |
| 13502B | SS-ENS. ARBRE A CAMES, ECHAPPEMENT | 13502-15070 · 13502-F3010 · 13502-F3020 |
| 13506 | Chain sub-assembly | 13506-0Q030 · 13506-24020 · 13506-F2030 |
| 13511 | camshaft | 13501-0Q020 |
| 13512 | Camshaft No. 2 | 13502-0Q020 |
| 13516 | oil nozzle | 13516-40010 |
| 13520 | Camshaft timing sprocket assembly | 13520-0Q010 |
| 13540 | No. 1 chain tensioner assembly | 13540-0Q020 · 13540-15010 · 13540-F3020 |
| 13540C | Pad (for chain tensioner) | 13552-0Q010 |
| 13559 | chain tensioner guide plate | 13559-15010 · 13559-F3010 |
| 13561 | No. 1 chain shock absorber | 13561-15010 · 13561-F3020 |
| 13566B | Timing chain guide plate | 13566-0Q030 |
| 13591 | Timing chain tensioner arm | 13591-0Q020 |
| 135A0 | ENS. BOULON, PIGN CALAGE ARBRE CAMES, CENTR(POUR ADMIS) | 135A0-31020 |
| 135A0B | ENS. SOUPAPE, DISTRIB ARBRE A CAMES | 135A0-15010 · 135A0-70020 |
| 13711 | intake valve | 13711-0Q020 · 13711-24040 · 13711-F2050 |
| 13711B | Compression spring (for inner side) | 90501-24044 |
| 13711E | Intake valve stem oil seal | 90080-31061 · 90080-31064 · 90913-02093 · 90913-02101 |
| 13711M | RESSORT, COMPRESSION(POUR SOUPAPE ADMISSION) | 90501-30043 · 90501-32076 |
| 13715 | exhaust valve | 13715-15090 · 13715-24040 · 13715-40060 · 13715-F2040 · 13715-F3010 |
| 13715A | Exhaust valve stem oil seal | 90080-31062 · 90080-31065 · 90913-02112 · 90913-02128 |
| 13715H | RESSORT, COMPRESSION(POUR SOUPAPE ECHAPPEMENT) | 90501-30043 · 90501-32076 |
| 13716 | valve stem cover | 13716-25010 · 13716-F2020 |
| 13734 | Valve spring seat | 13734-40010 |
| 13734A | Intake valve spring seat | 13734-62020 |
| 13734B | Exhaust valve spring seat | 13734-62020 |
| 13741 | Valve spring seat ring | 13741-0Q010 · 13741-22021 |
| 13741A | Valve spring seat lock plate | 90913-03028 · 90913-03031 |
| 13741B | Intake valve spring seat ring | 13741-36010 |
| 13741C | Exhaust valve spring seat ring | 13741-36010 |
| 13750 | Valve lash adjuster assembly | 13750-25010 · 13750-F2050 |
| 13751 | valve lifter | 13751-0QA90 · 13751-0QB00 · 13751-0QB10 · 13751-0QB20 · 13751-0QB30 · 13751-0QB40 · 13751-0QB50 · 13751-0QB60 · 13751-0QB70 · 13751-0QB80 · 13751-0QB90 · 13751-0QC00 · 13751-0QC10 · 13751-0QC20 · 13751-0QC30 · 13751-0QC40 · 13751-0QC50 · 13751-0QC60 · 13751-0QC70 · 13751-0QC80 · 13751-0QC90 · 13751-0QD00 · 13751-0QD10 · 13751-0QD20 · 13751-0QD30 · 13751-0QD40 · 13751-0QD50 · 13751-0QD60 · 13751-0QD70 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-25010 · 13801-F2050 |
