Toyota YARIS Ventilation Hose — Figure 1201

Toyota YARIS EPC diagram 1201, Ventilation Hose, with 2 images and 8 PNC and OE references.

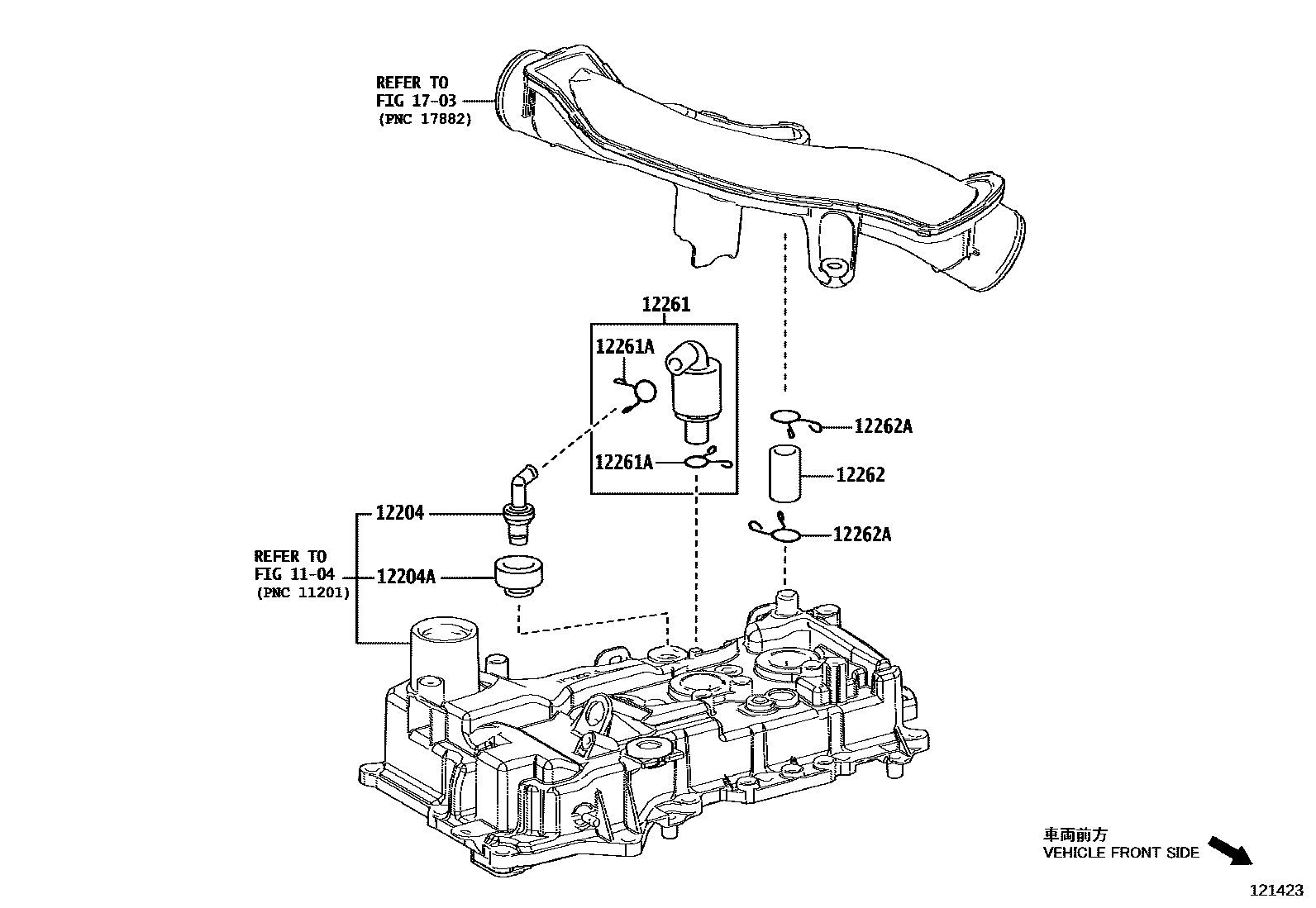

Toyota YARIS Ventilation Hose EPC diagram — 121423
Ventilation Hose — 121423 (202007 – 999999)

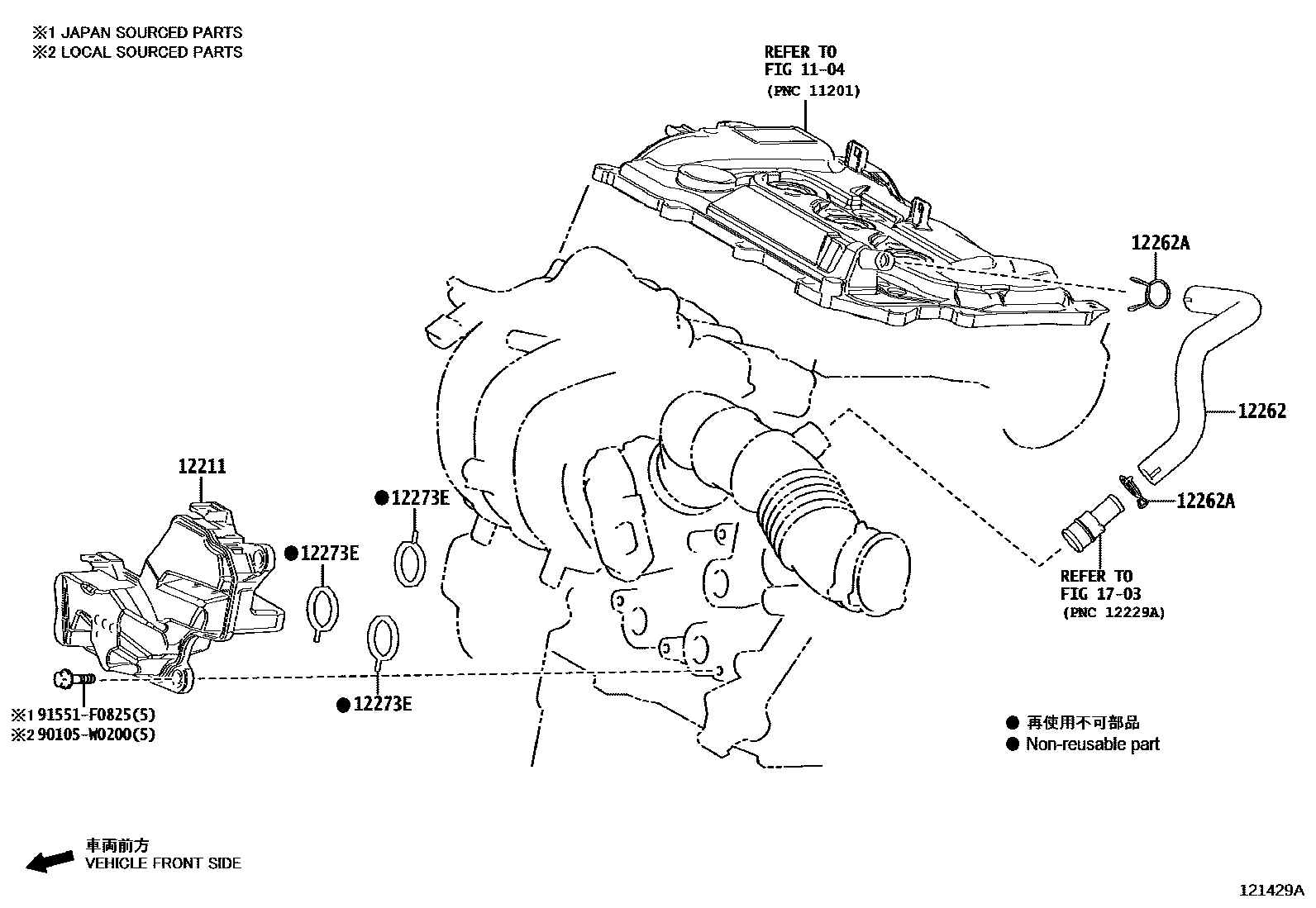

Toyota YARIS Ventilation Hose EPC diagram — 121429A
Ventilation Hose — 121429A (202007 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-40040
12204AGasket (for ventilation system)90480-18016
12211Ventilation box No. 112211-15060 · 12211-15061 · 12211-F3010 · 12211-F3011
12261Ventilation Hose12261-0Q010 · 12261-0Q011
12261AClip or clip (for vent hose)90467-15120
12262Ventilation hose No. 212262-15100 · 12262-15110 · 12262-40040
12262AClamp (for vent hose No. 2)90467-21004
12273EJOINT(POUR CARTER VENTILATION)12273-15010
