Toyota YARIS Engine Overhaul Gasket Kit — Figure 1103

Toyota YARIS EPC diagram 1103, Engine Overhaul Gasket Kit, with 6 images and 2 PNC and OE references.

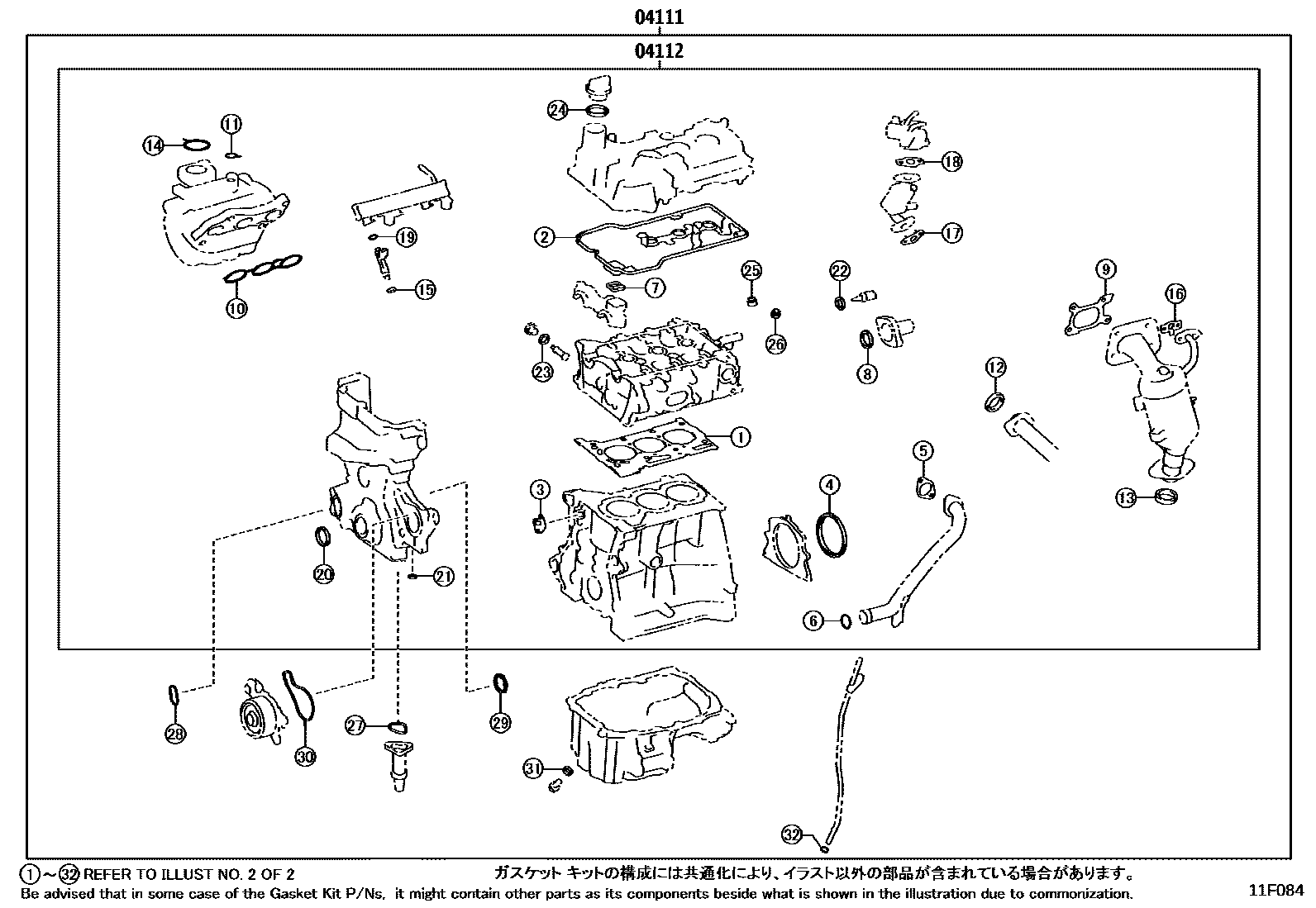

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11F084
Engine Overhaul Gasket Kit — 11F084 (202007 – 999999)

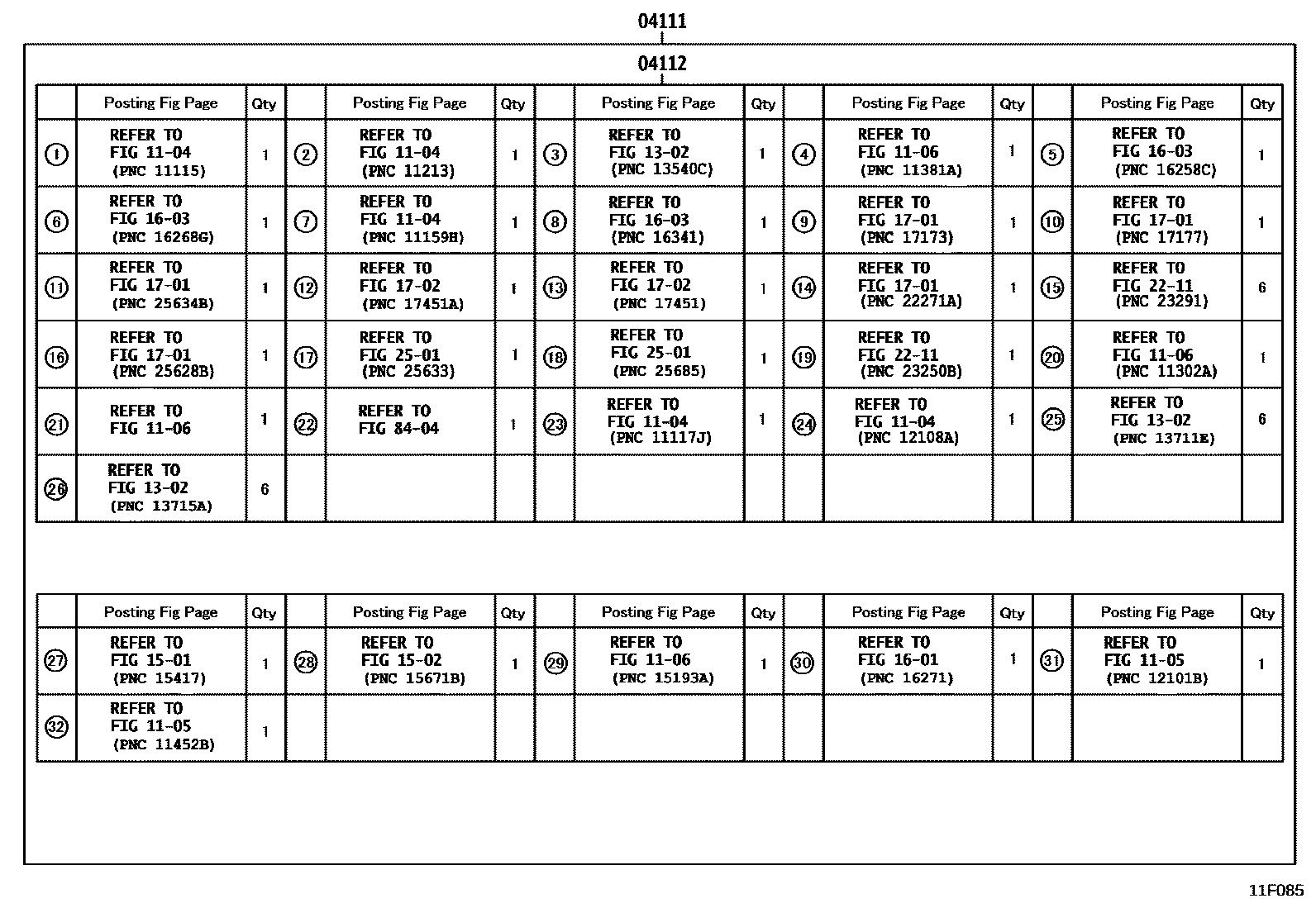

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11F085
Engine Overhaul Gasket Kit — 11F085 (202007 – 999999)

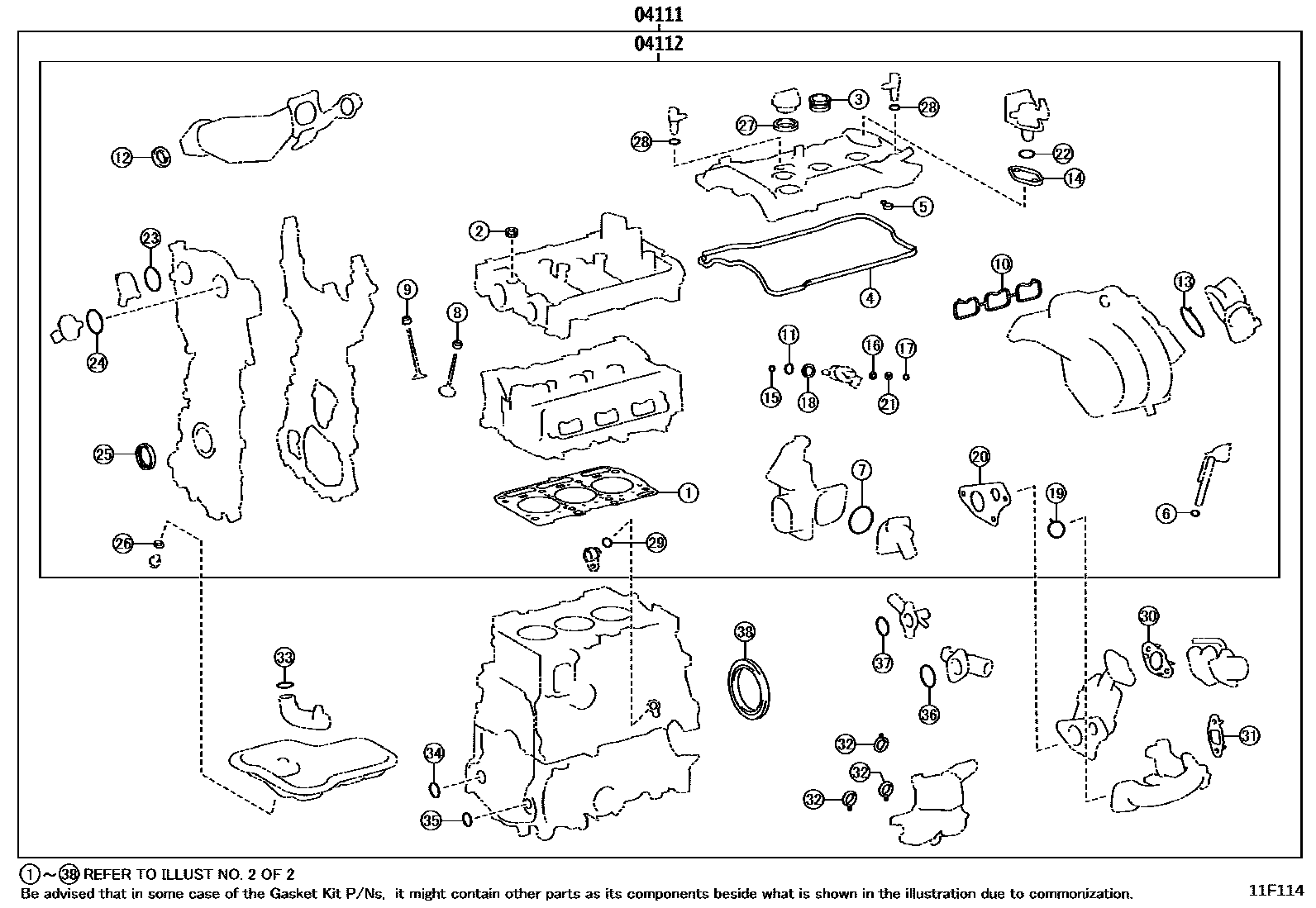

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11F114
Engine Overhaul Gasket Kit — 11F114 (202007 – 999999)

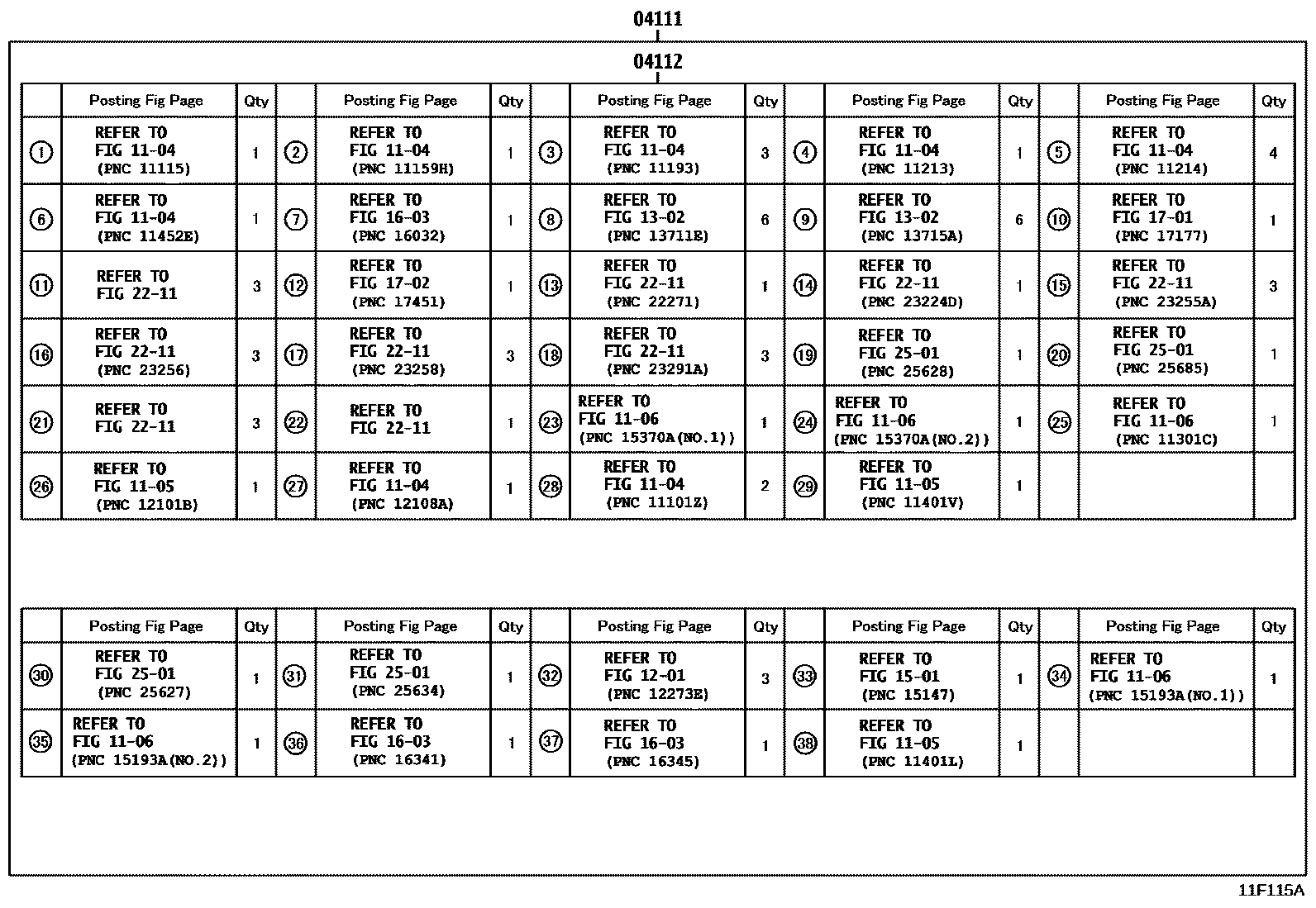

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11F115A
Engine Overhaul Gasket Kit — 11F115A (202007 – 999999)

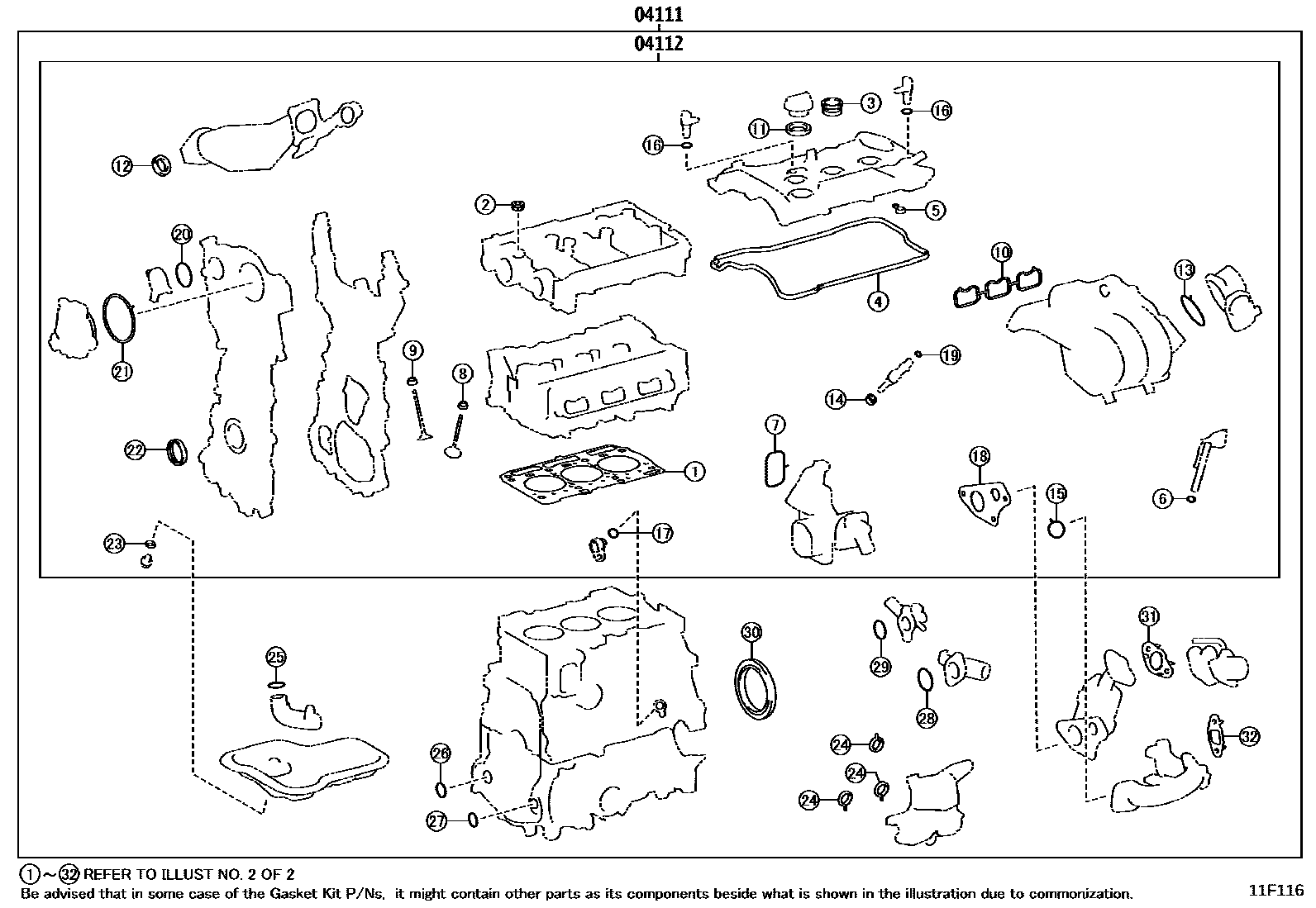

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11F116
Engine Overhaul Gasket Kit — 11F116 (202007 – 999999)

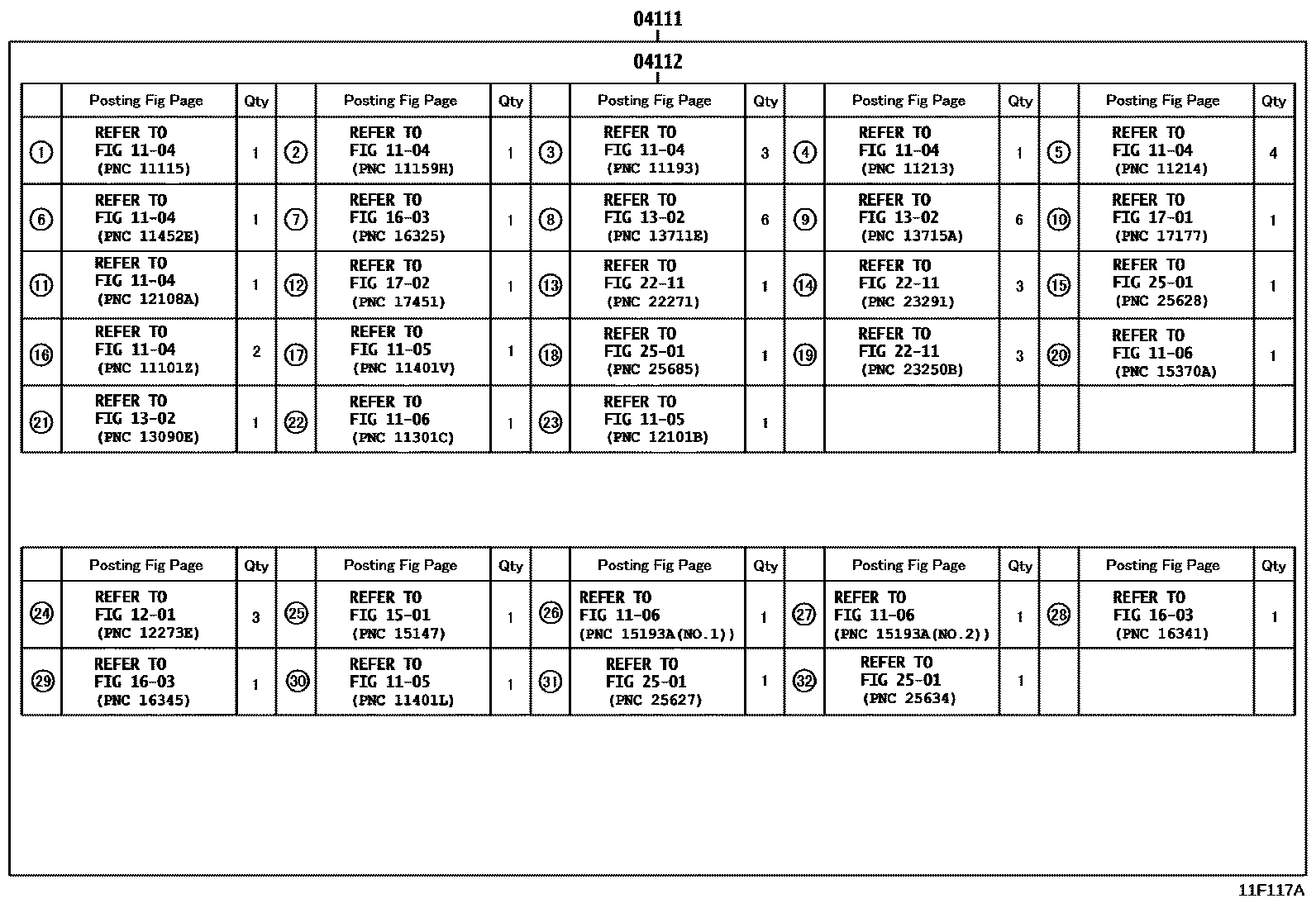

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11F117A
Engine Overhaul Gasket Kit — 11F117A (202007 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0Q100 · 04111-0Q101 · 04111-F3010 · 04111-F3020 · 04111-F3021
04112Engine valve grinding pad assembly04112-0Q100 · 04112-0Q101 · 04112-F3010 · 04112-F3020 · 04112-F3021
