Toyota YARIS Short Block Assembly — Figure 1102

Toyota YARIS EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

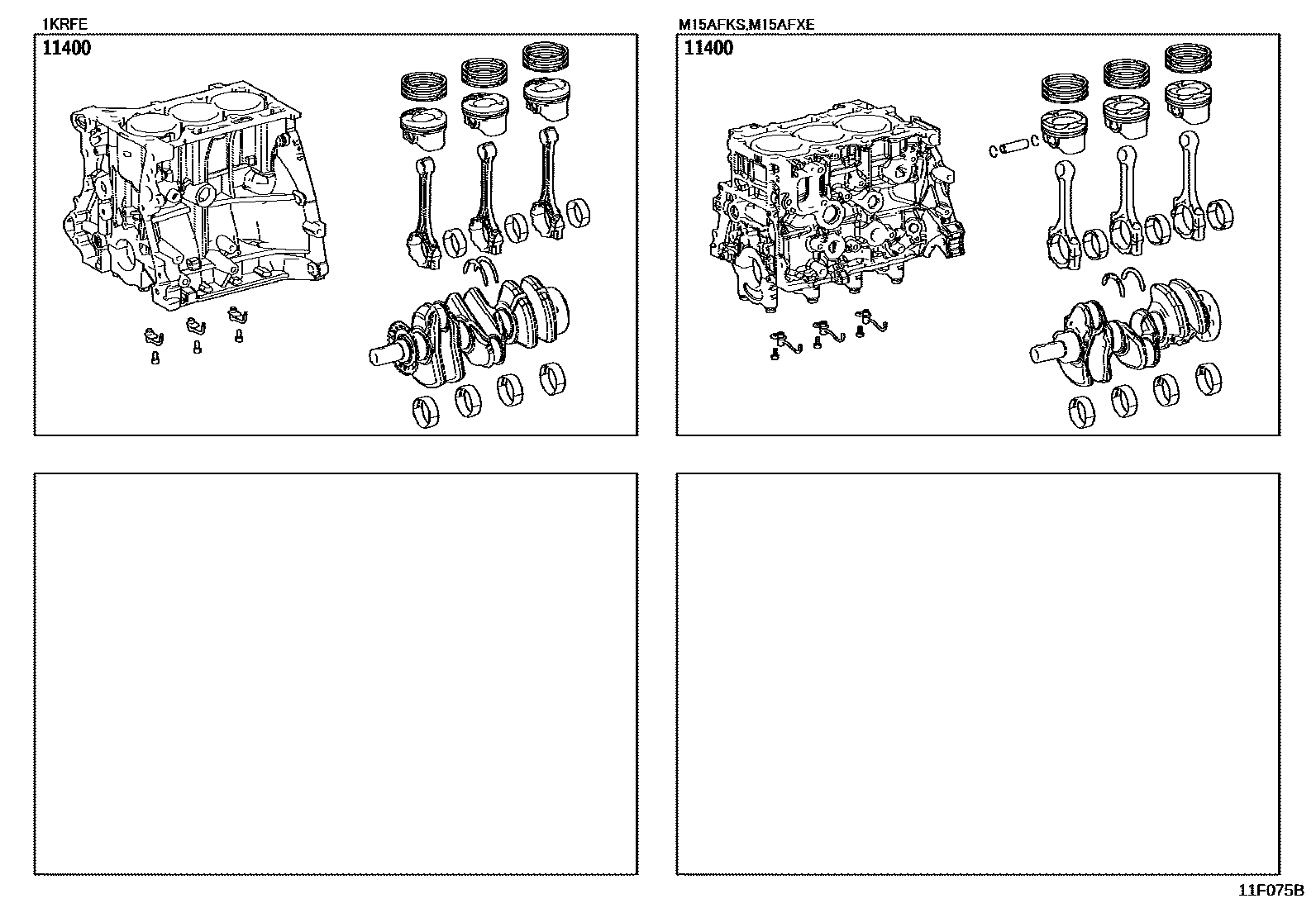

Toyota YARIS Short Block Assembly EPC diagram — 11F075B
Short Block Assembly — 11F075B (202007 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-0Q090 · 11400-0Q110 · 11400-0Q120 · 11400-F3010 · 11400-F3020
