Toyota YARIS Partial Engine Assembly — Figure 1101

Toyota YARIS EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

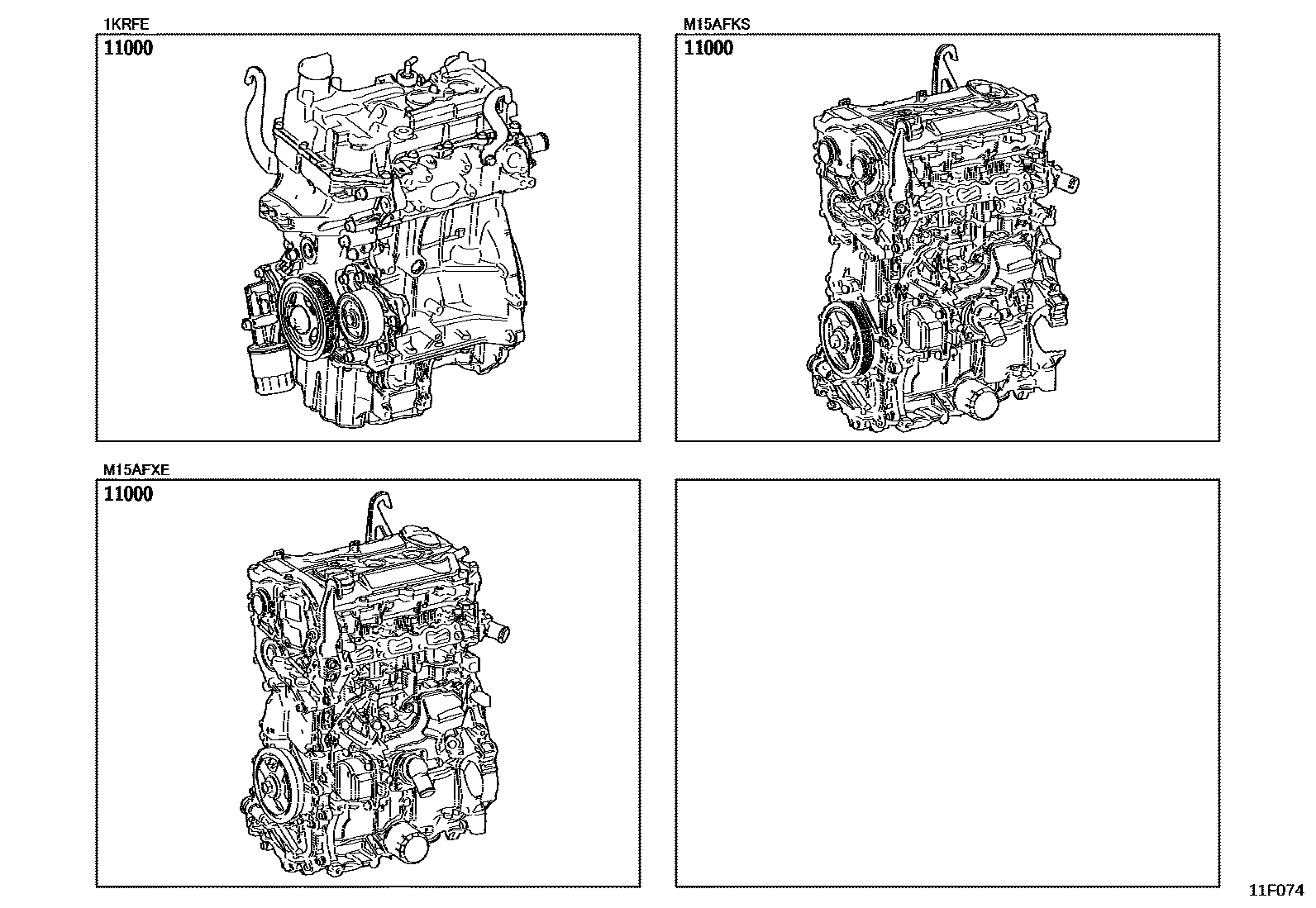

Toyota YARIS Partial Engine Assembly EPC diagram — 11F074
Partial Engine Assembly — 11F074 (202007 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-0Q150 · 19000-0Q160 · 19000-0Q170 · 19000-F3010 · 19000-F3020
