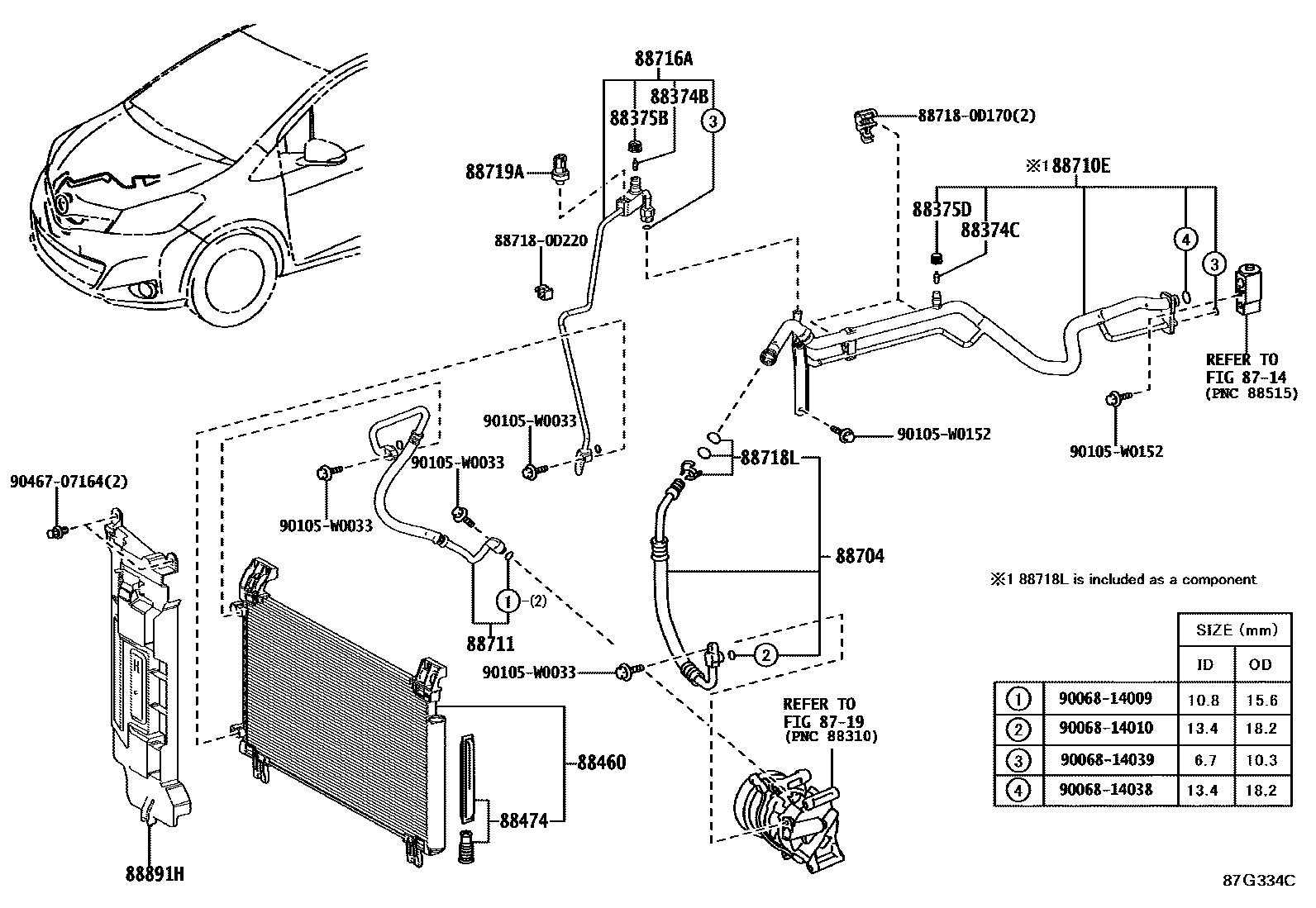

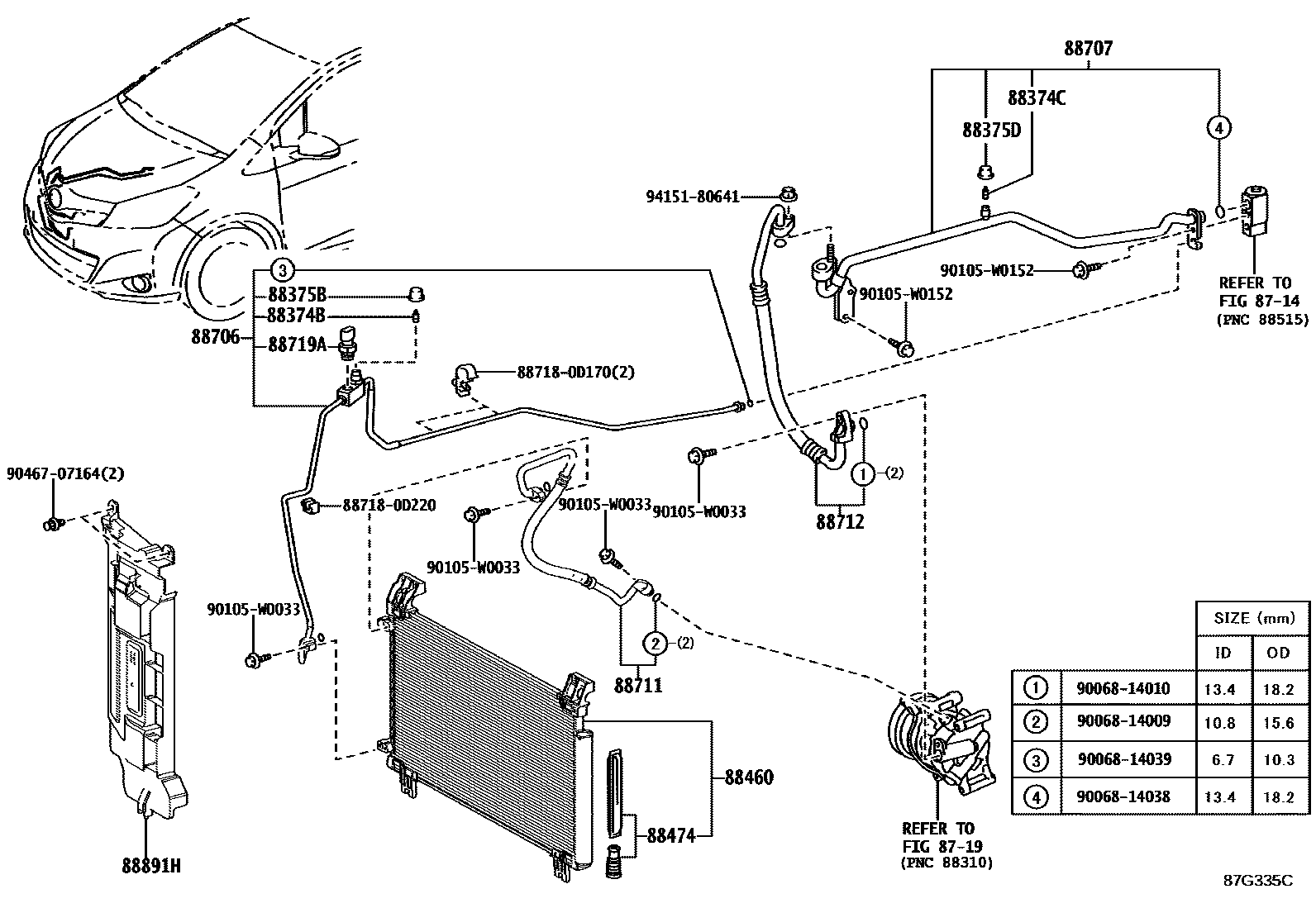

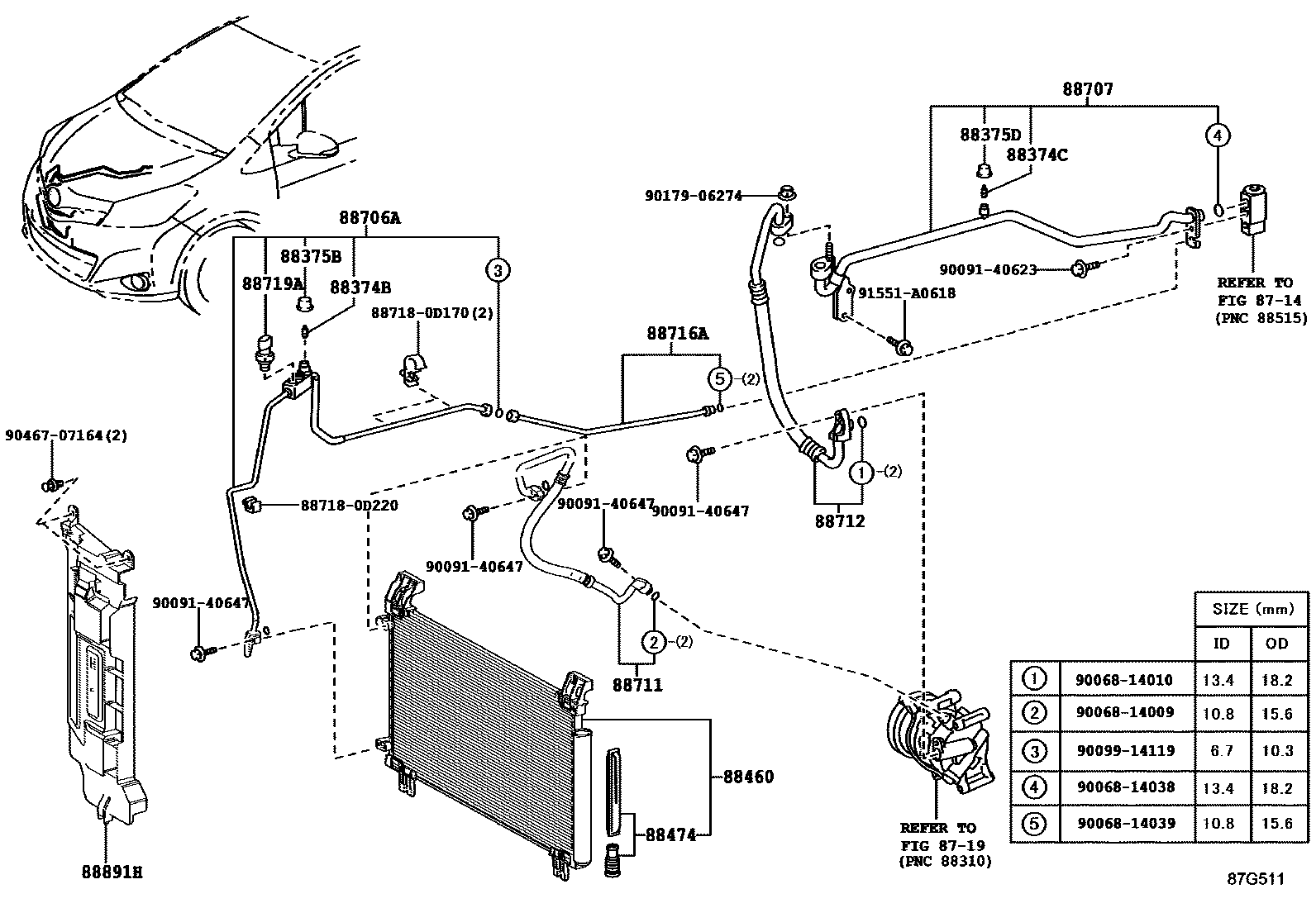

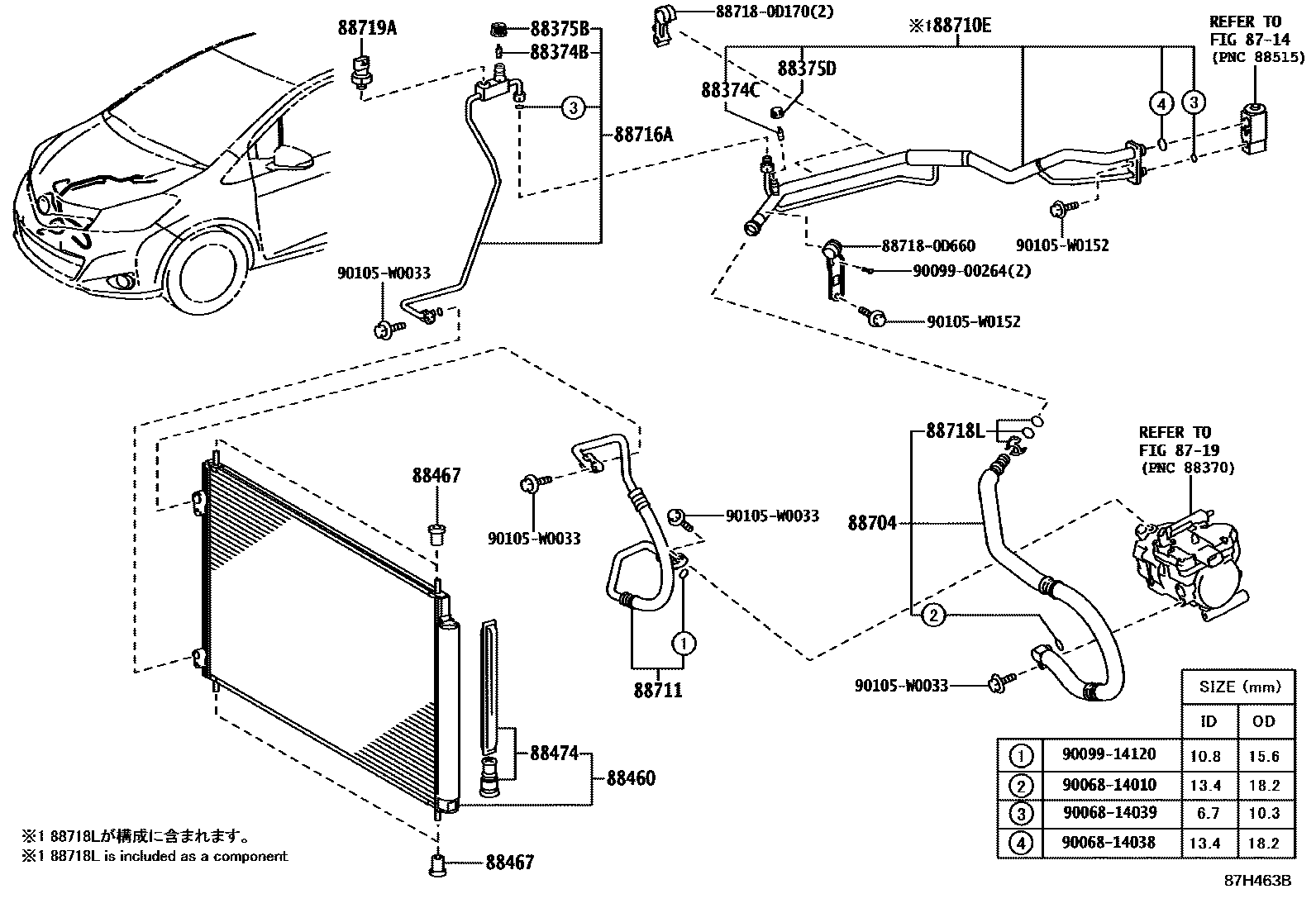

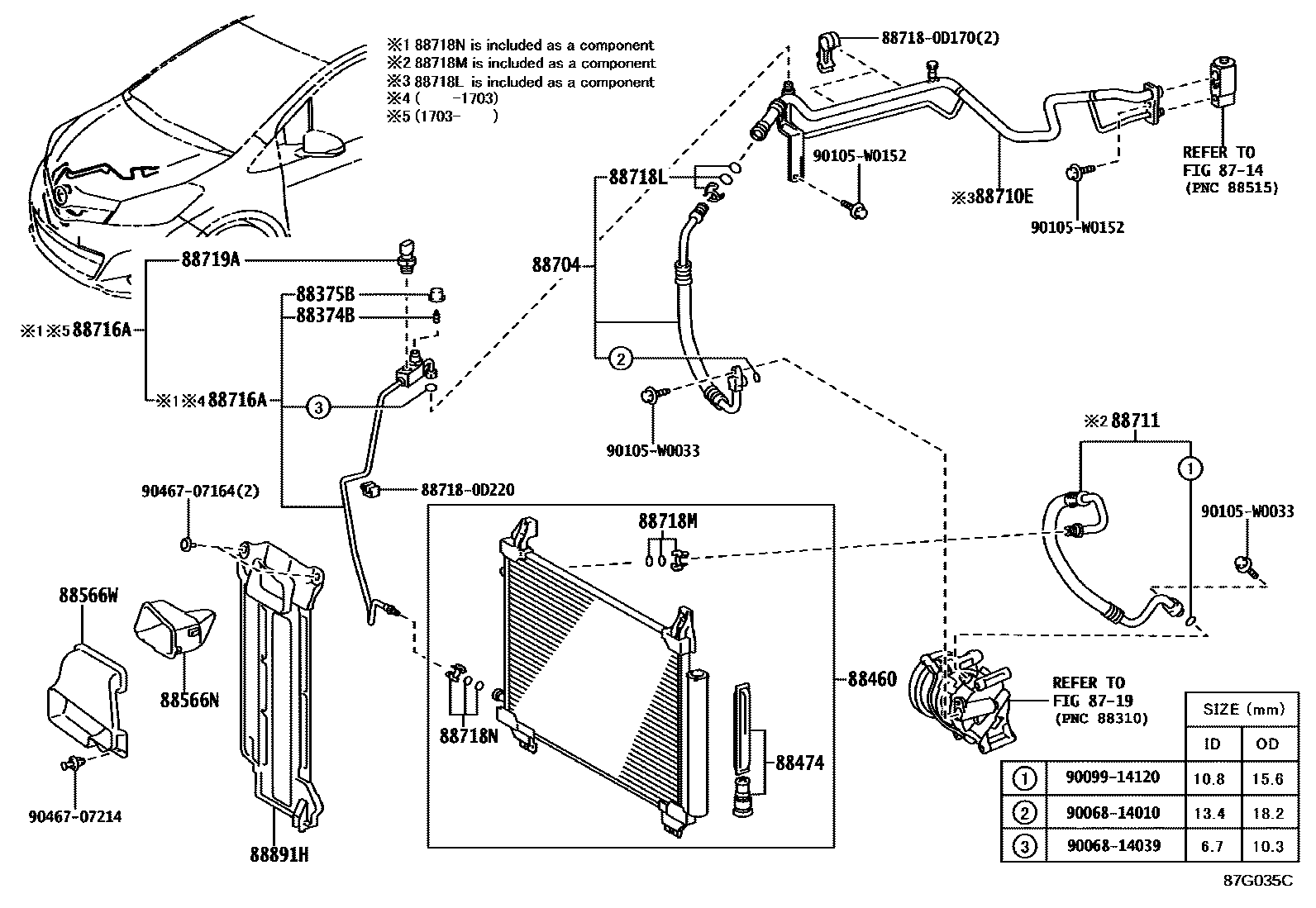

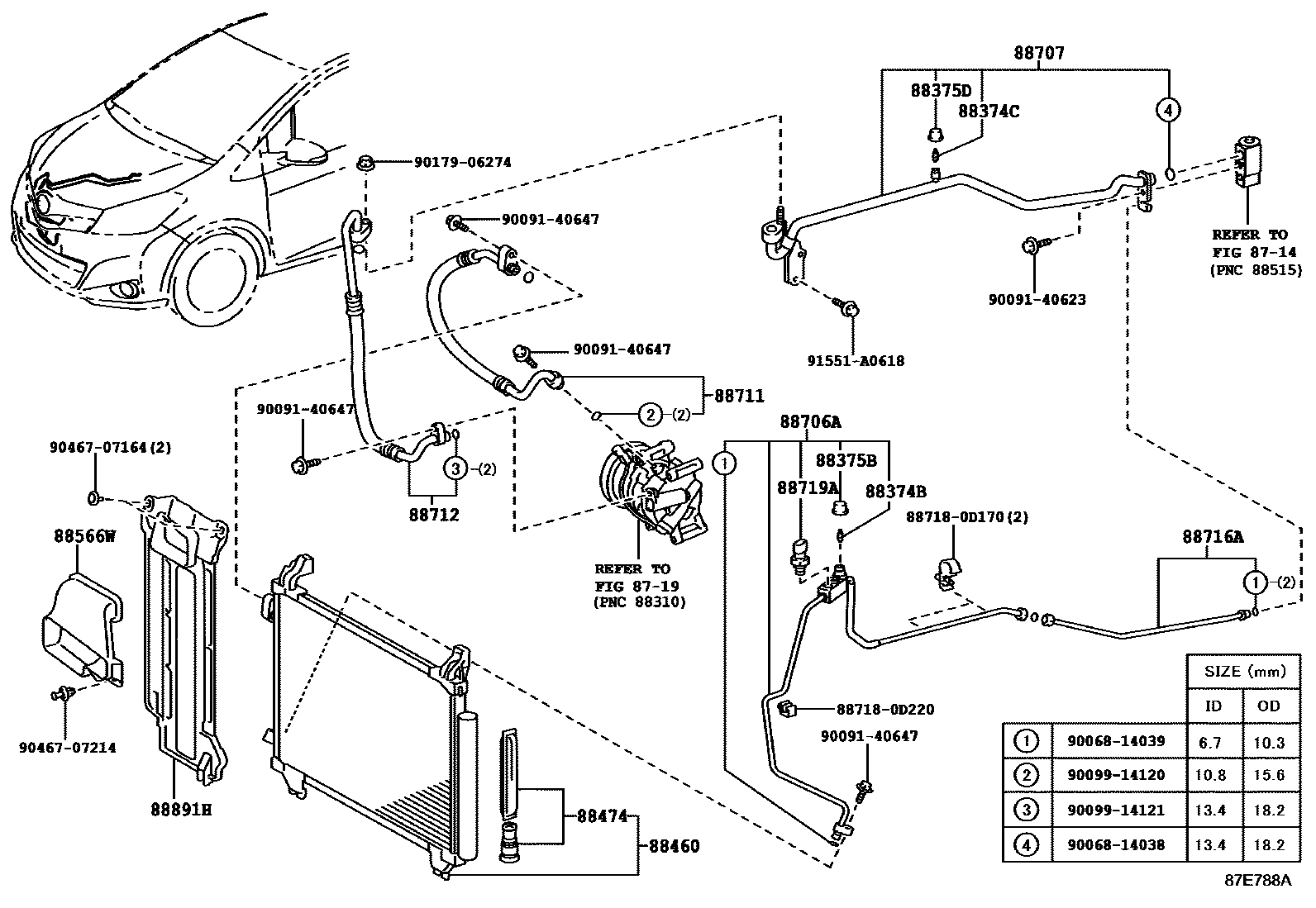

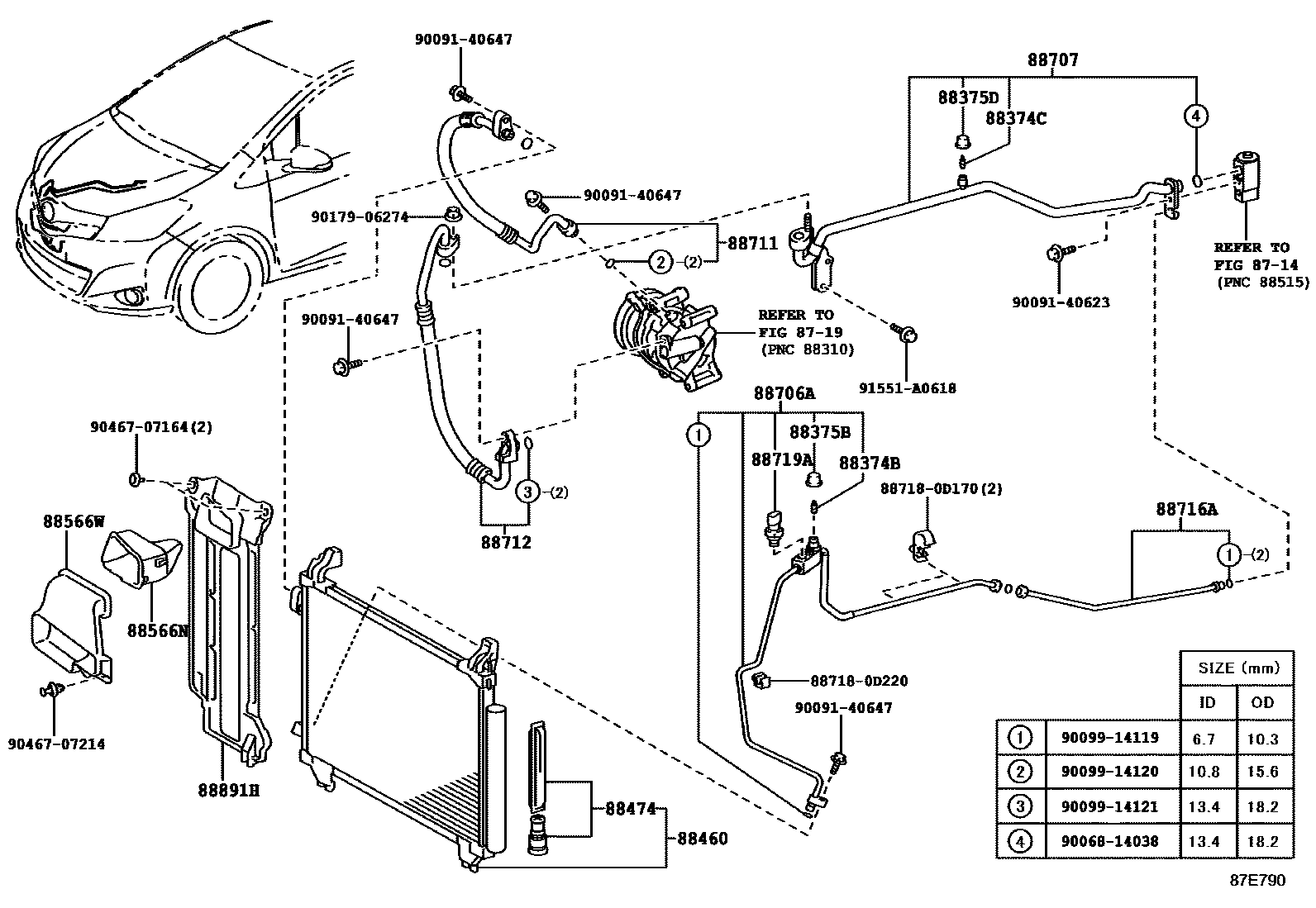

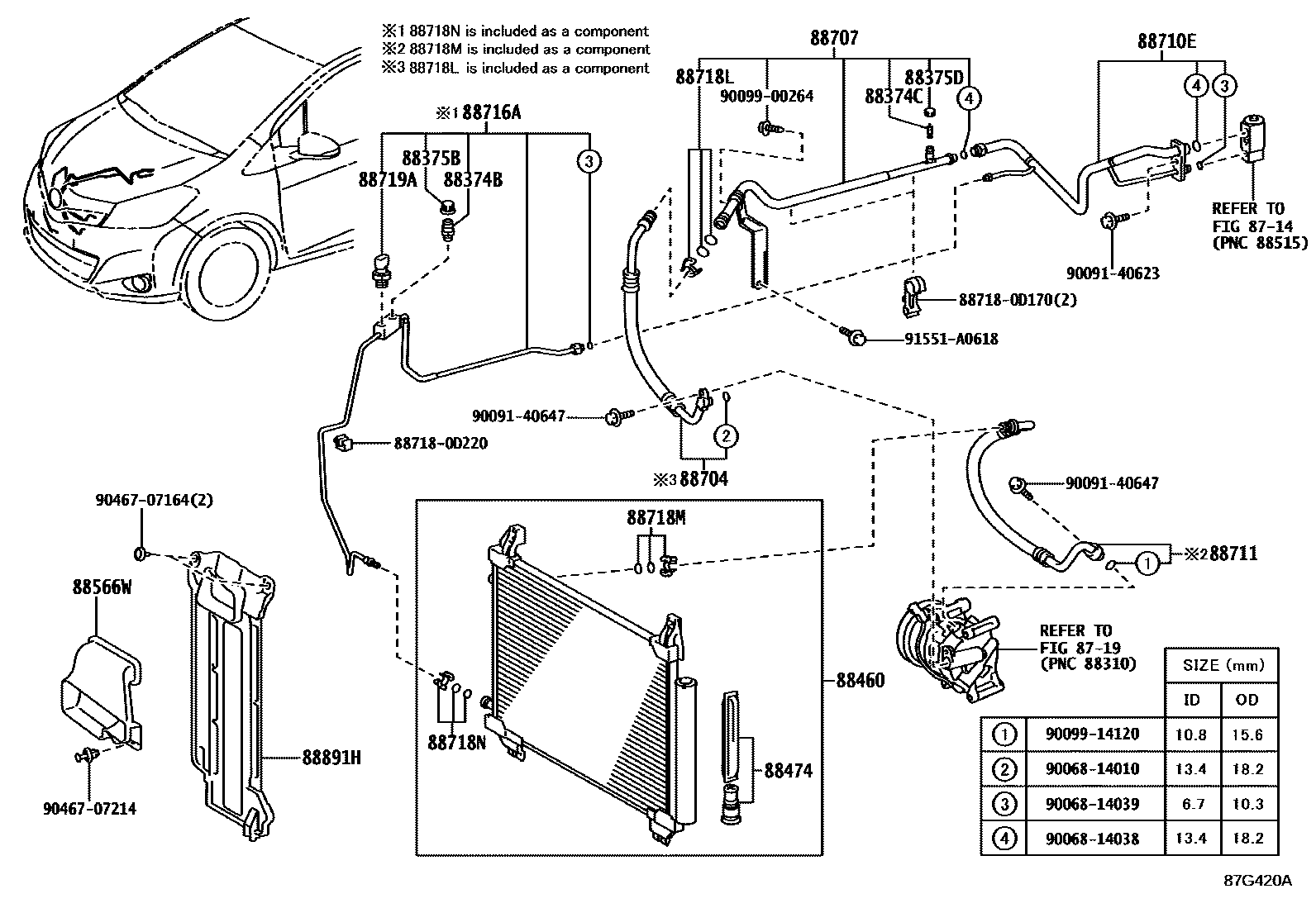

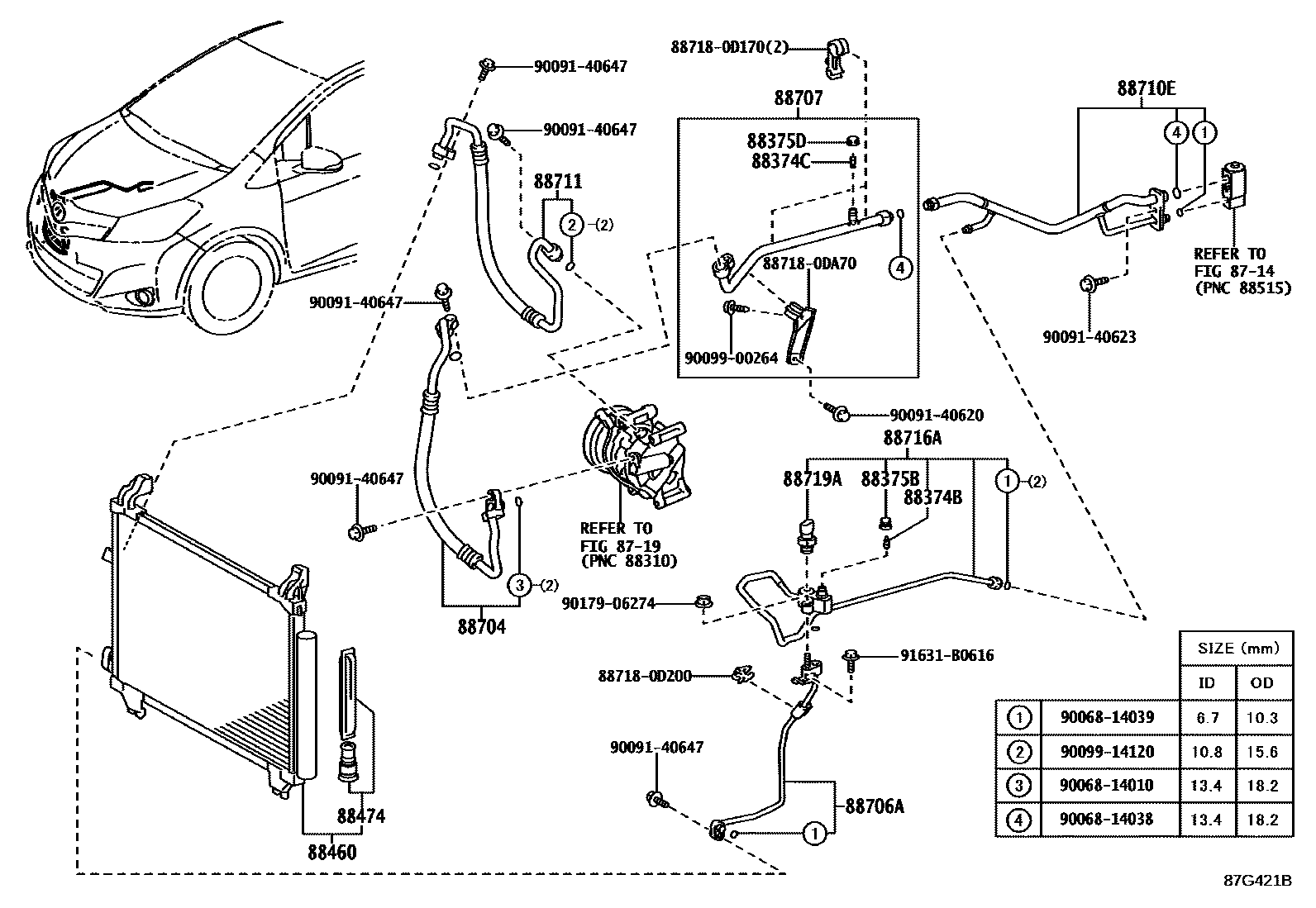

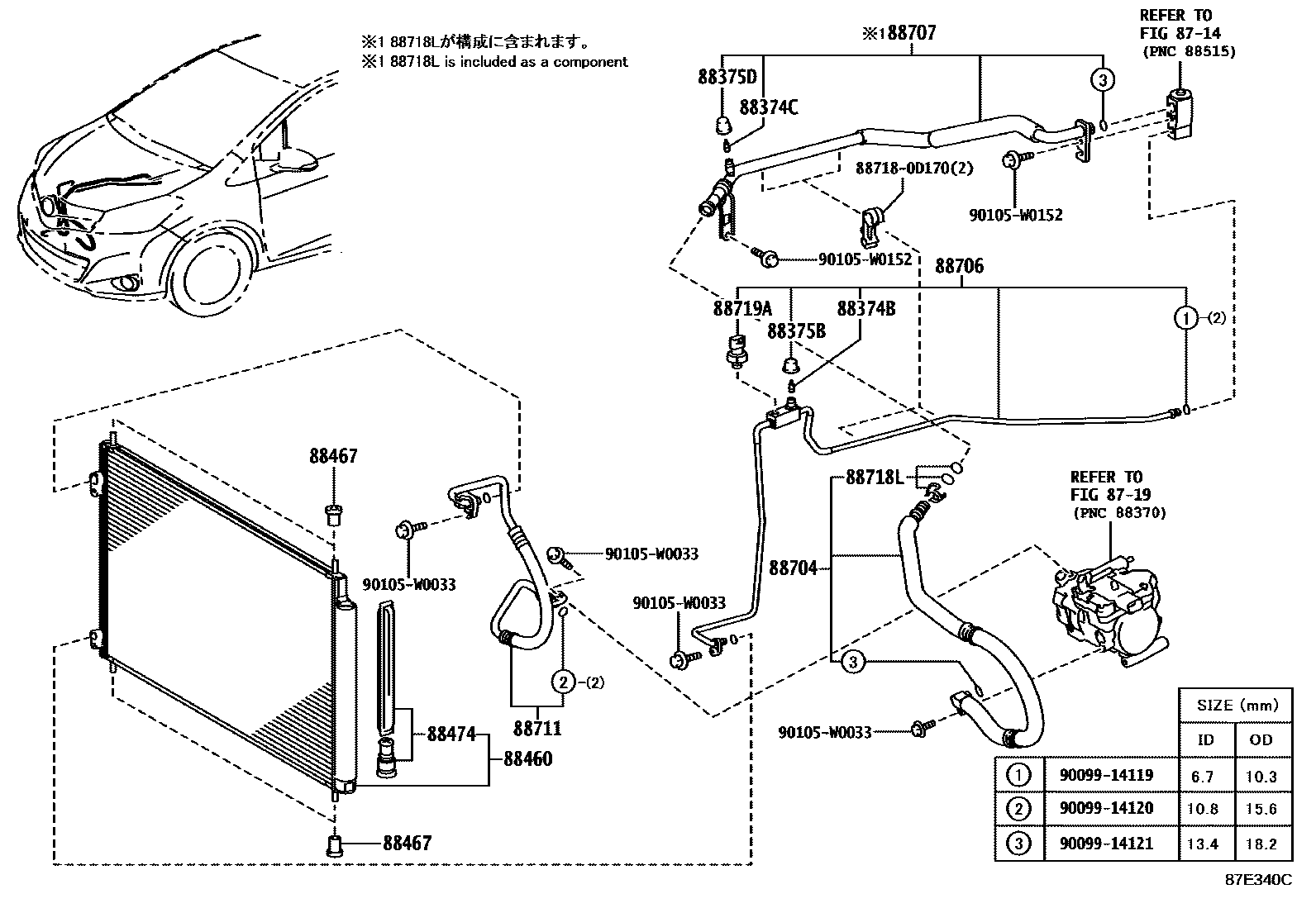

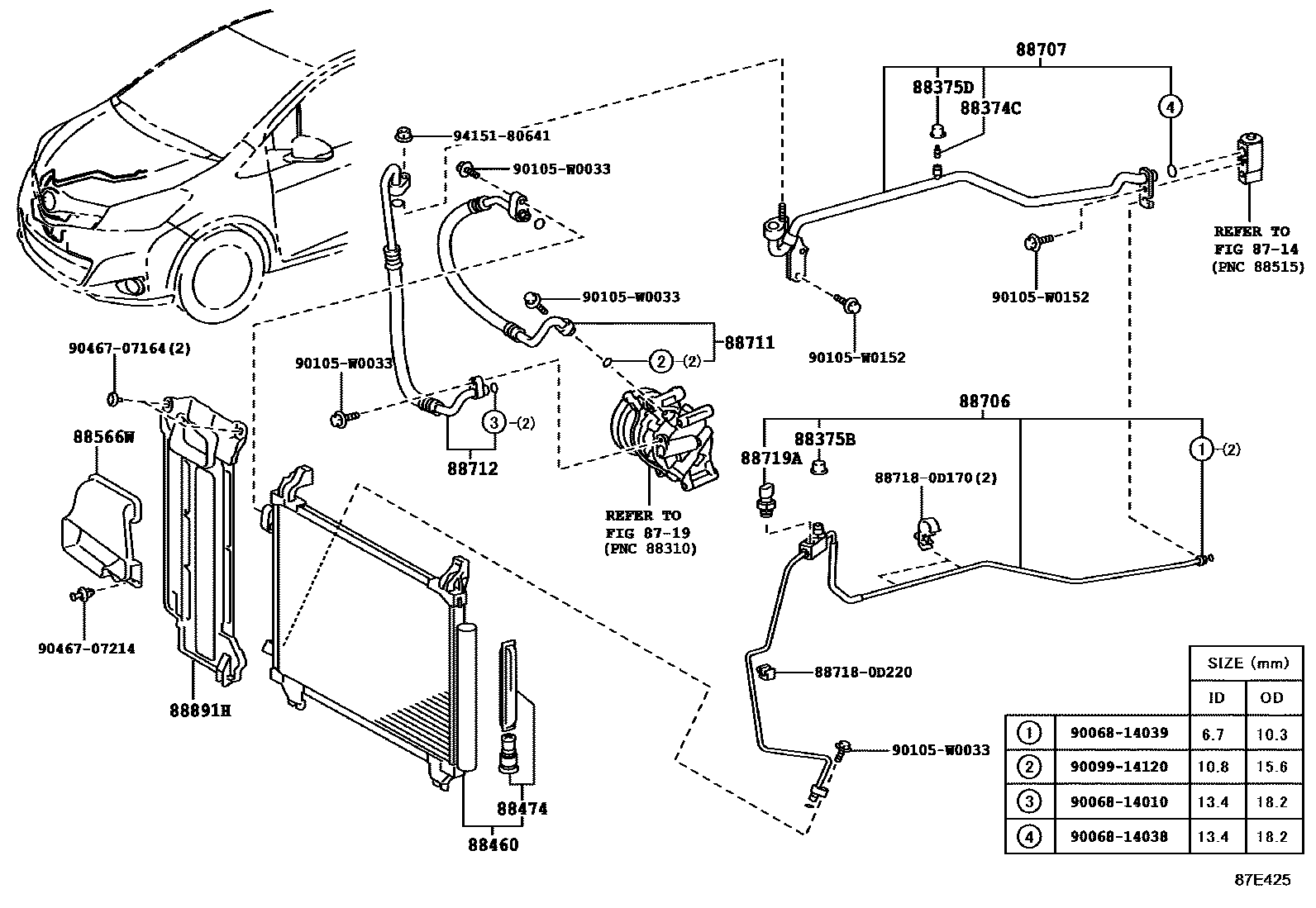

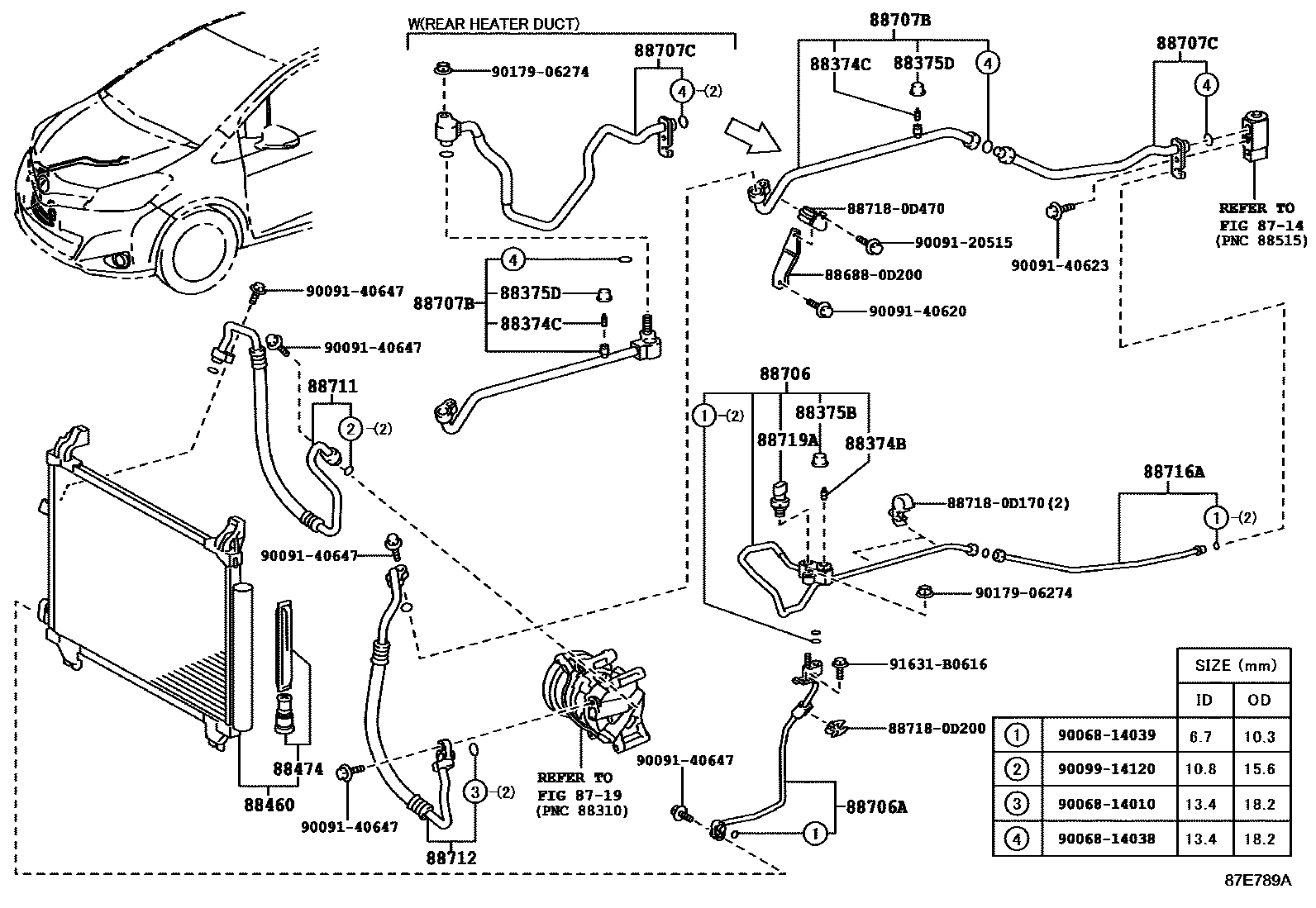

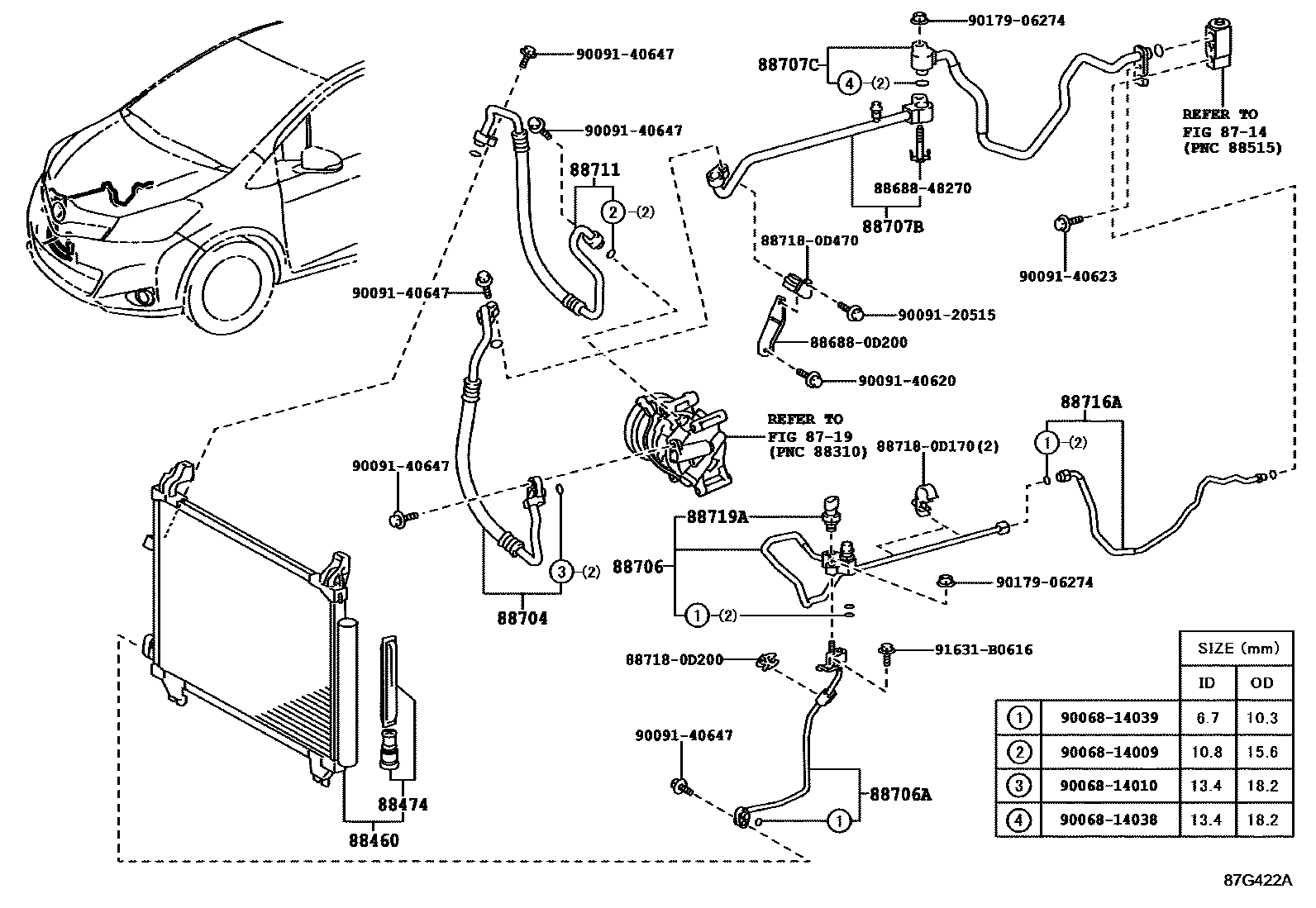

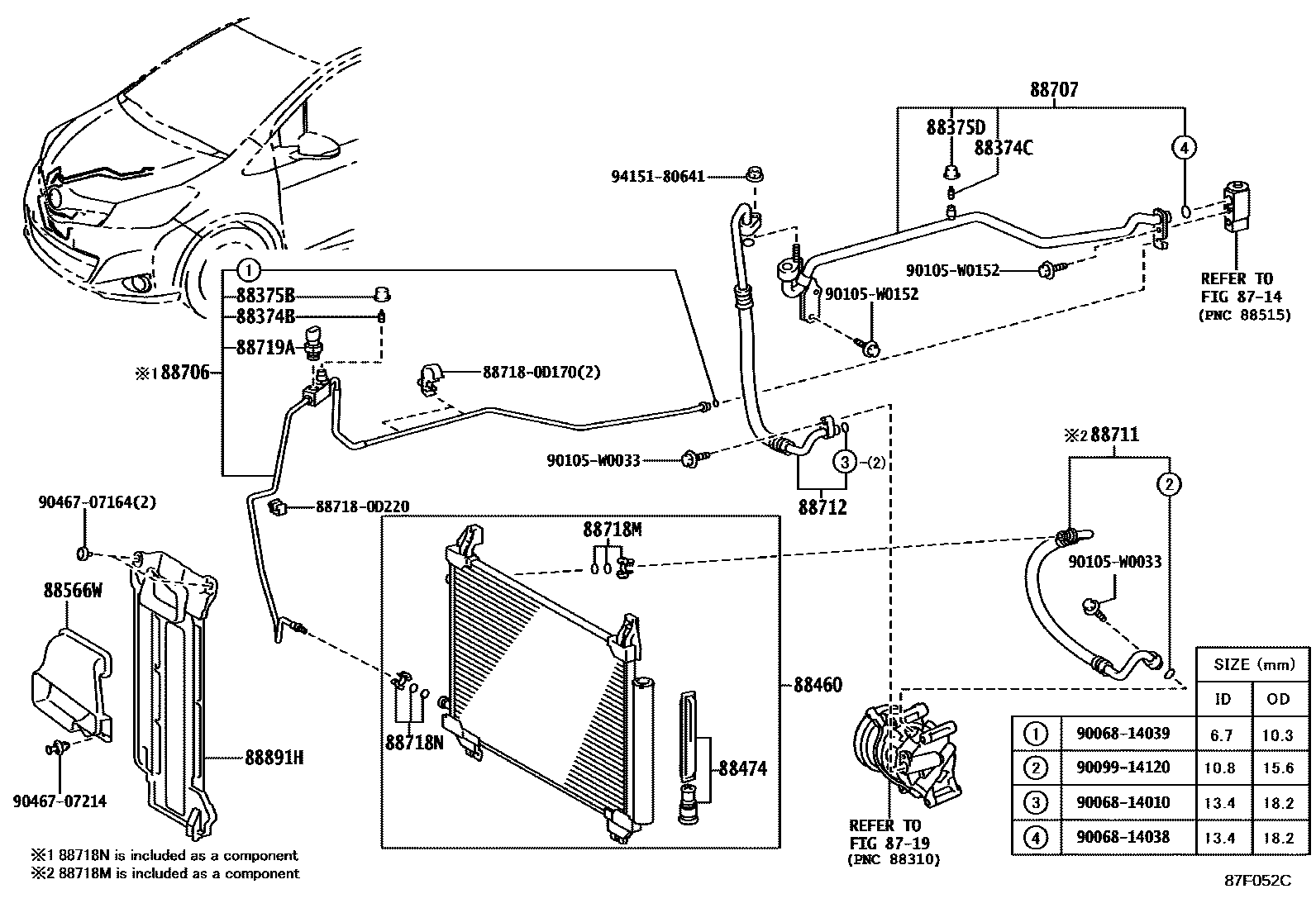

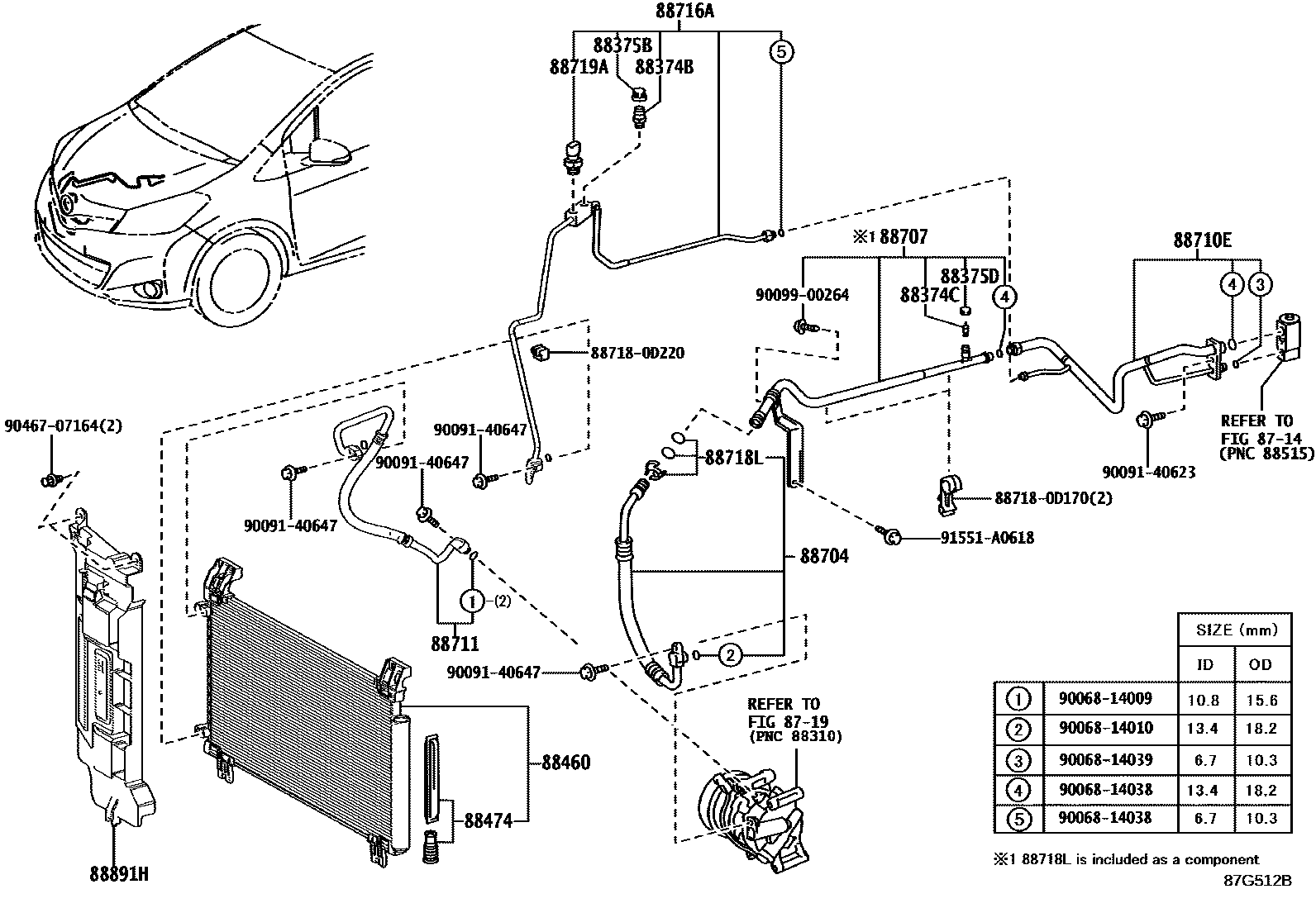

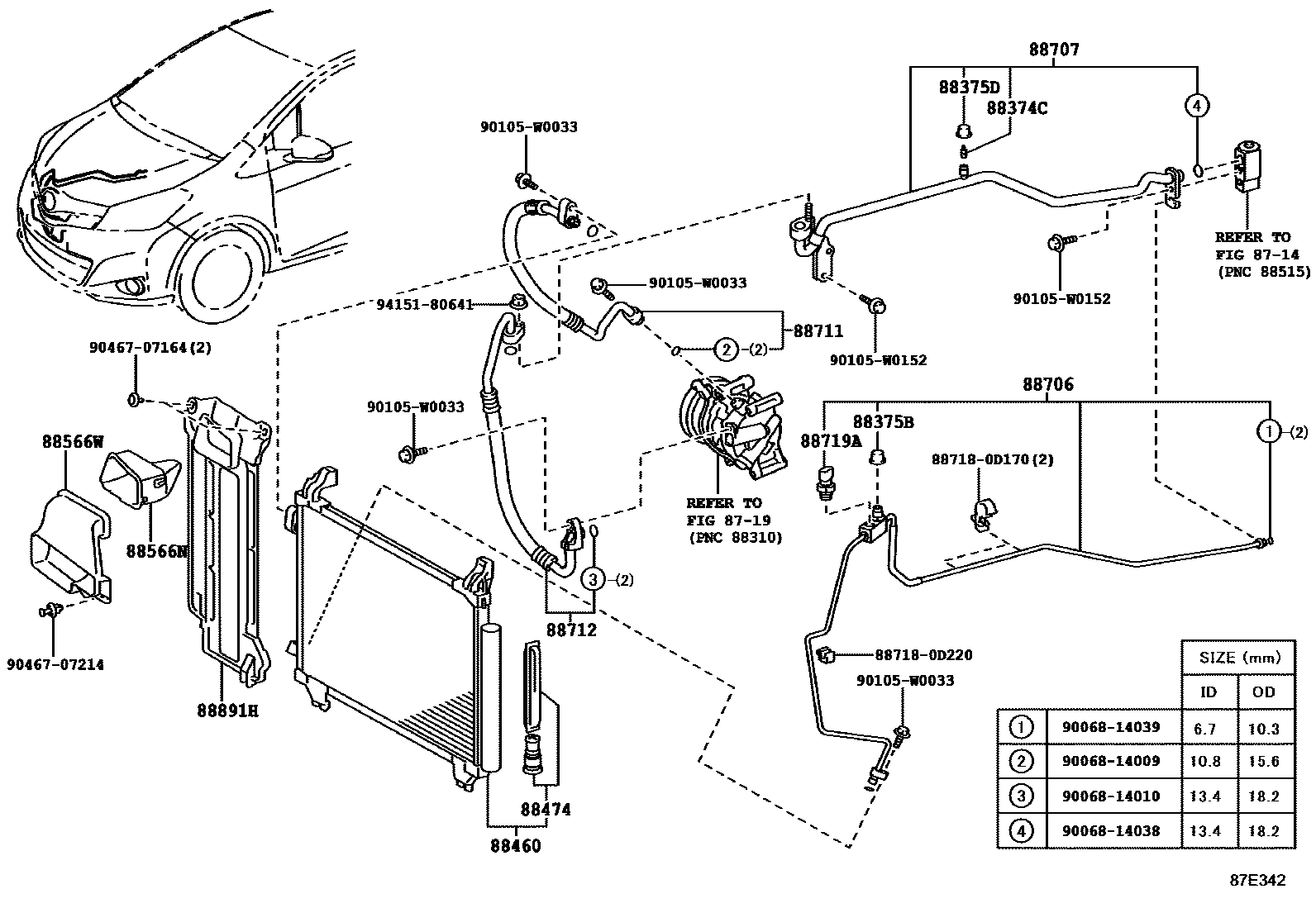

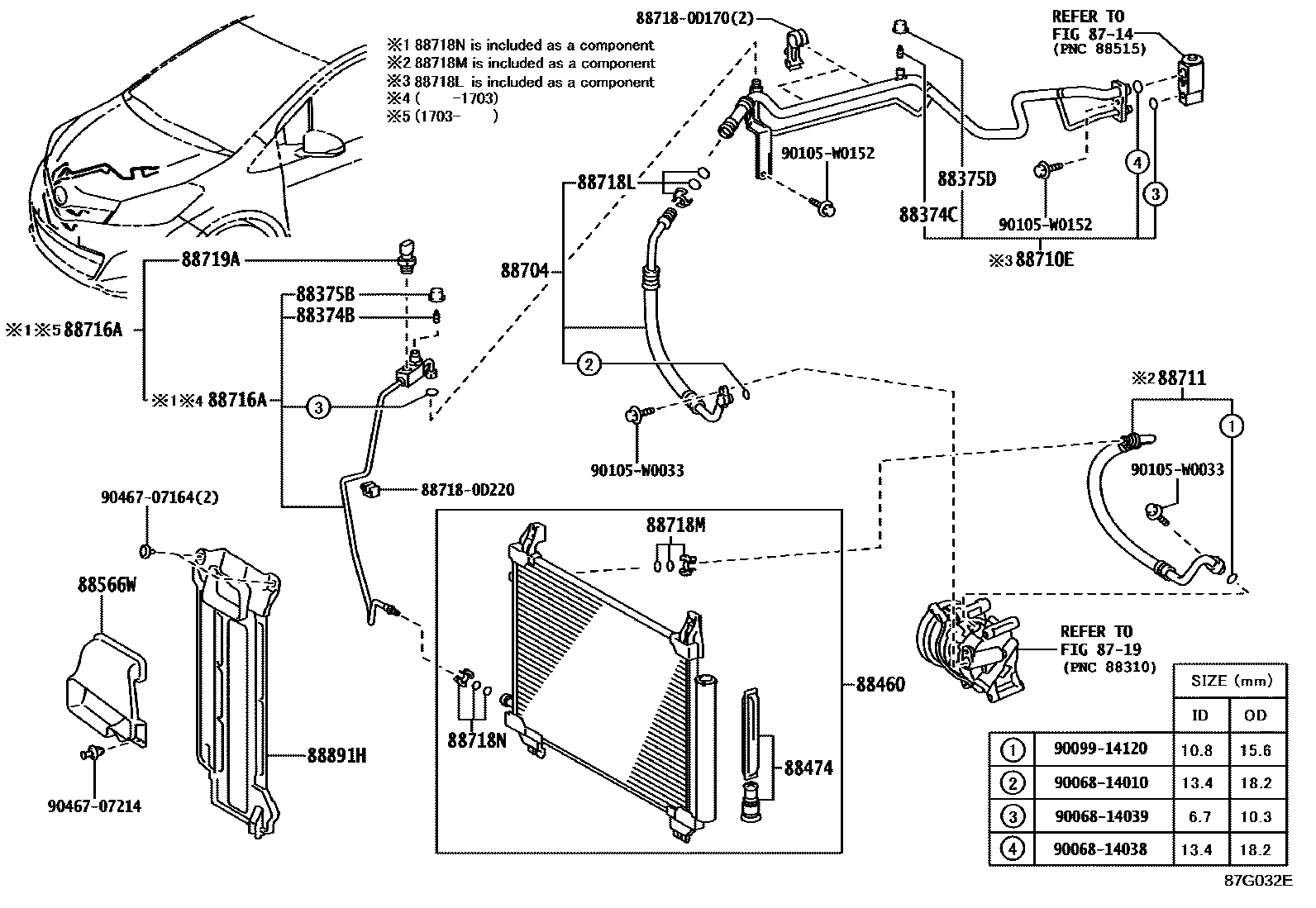

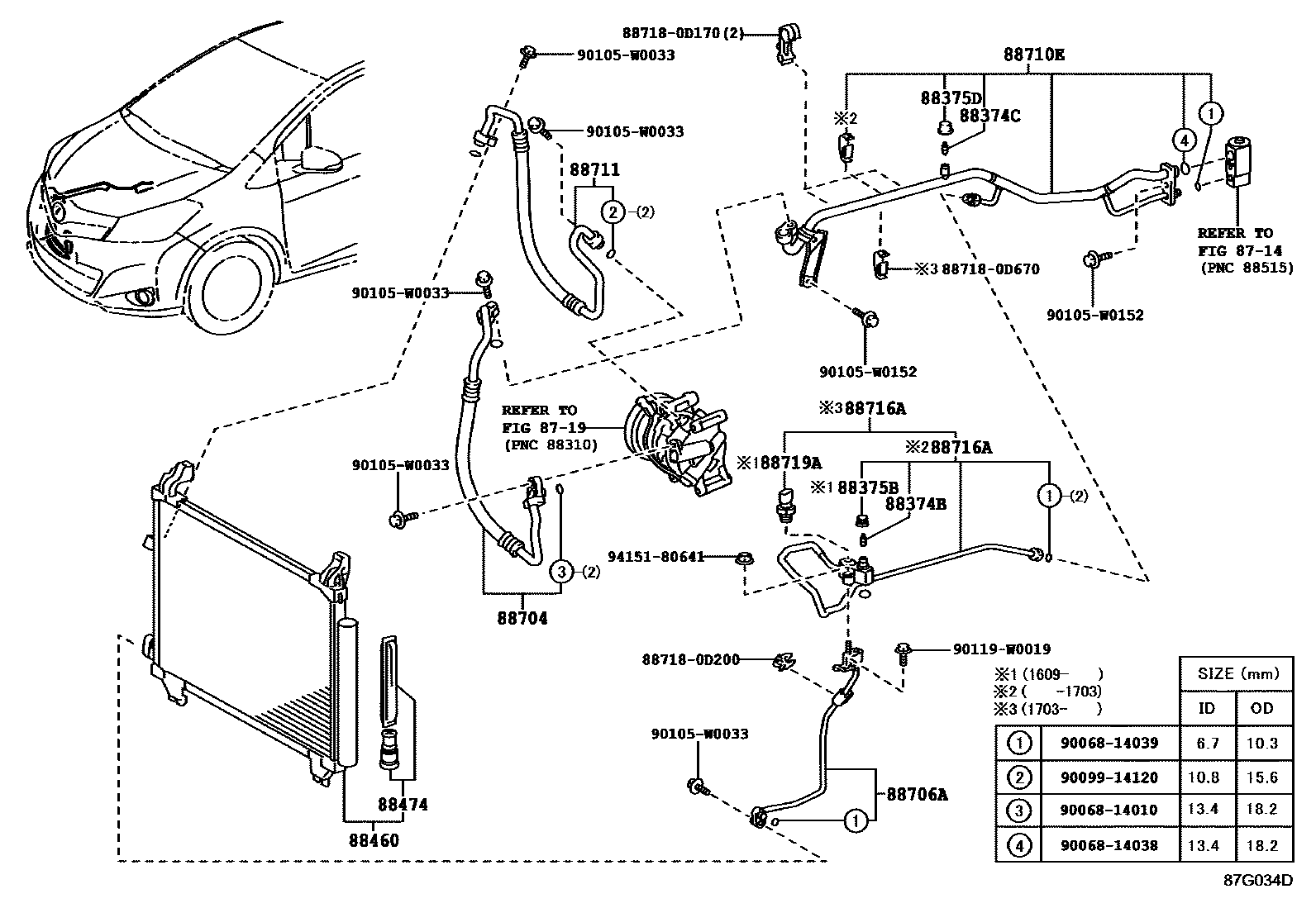

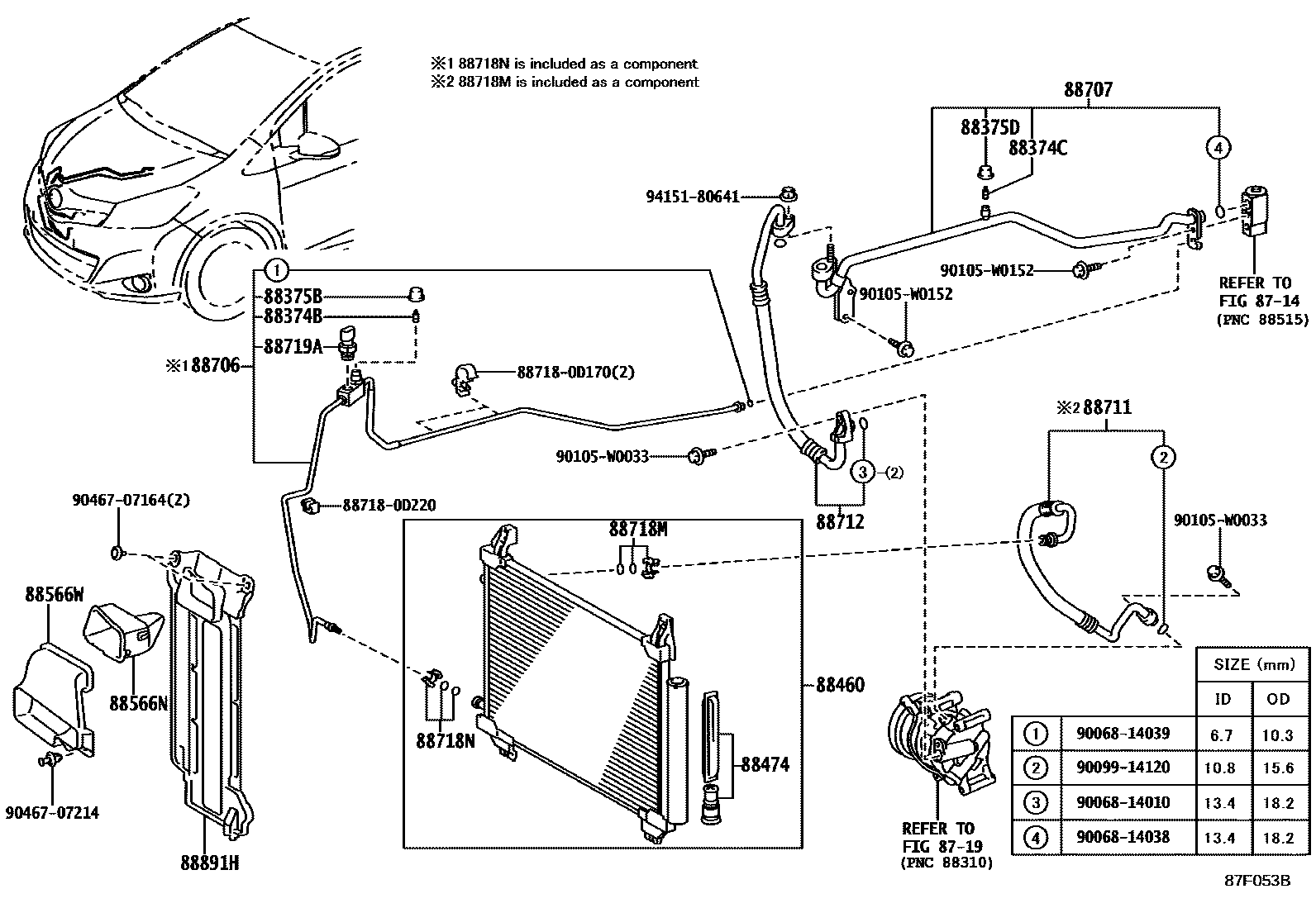

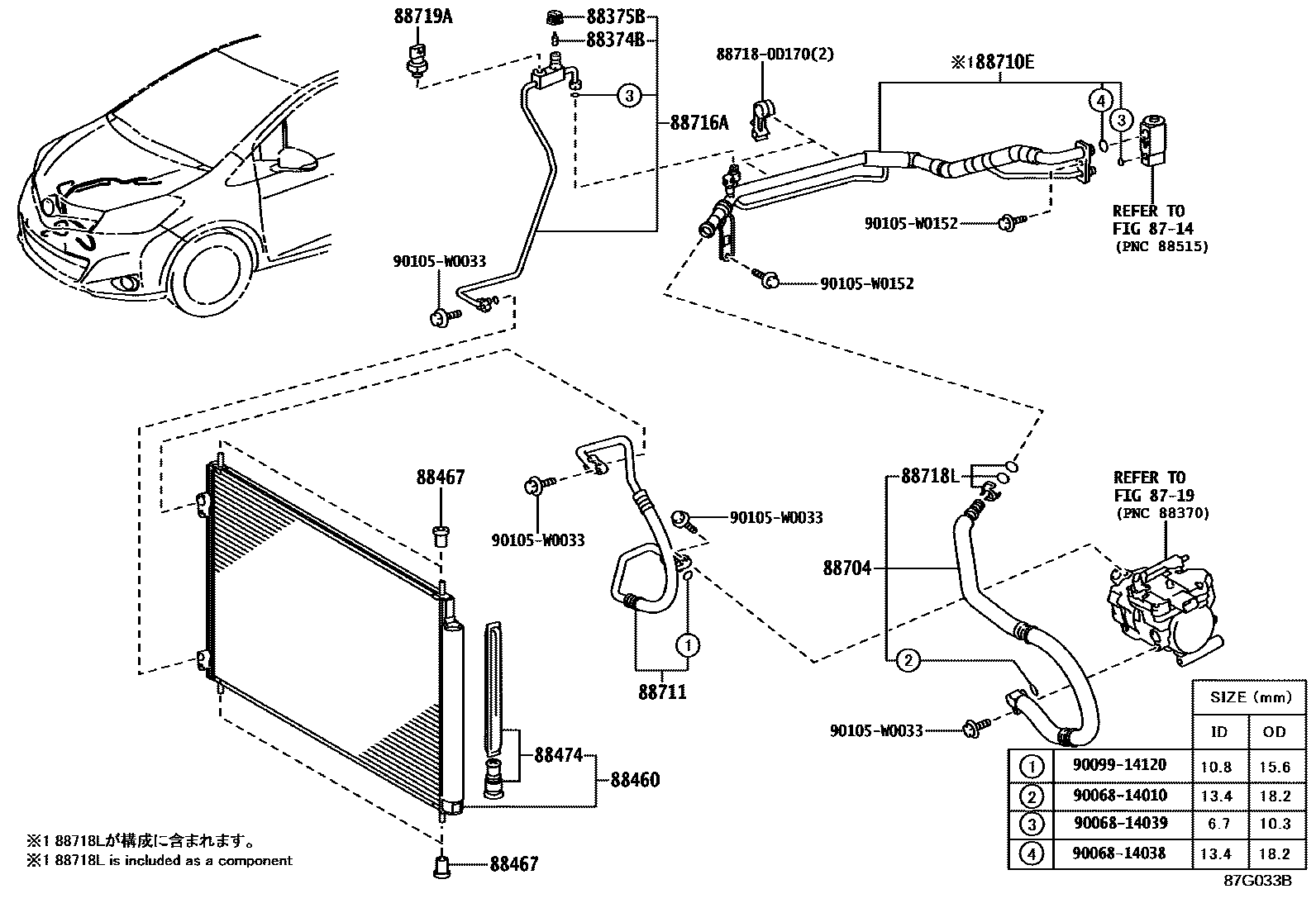

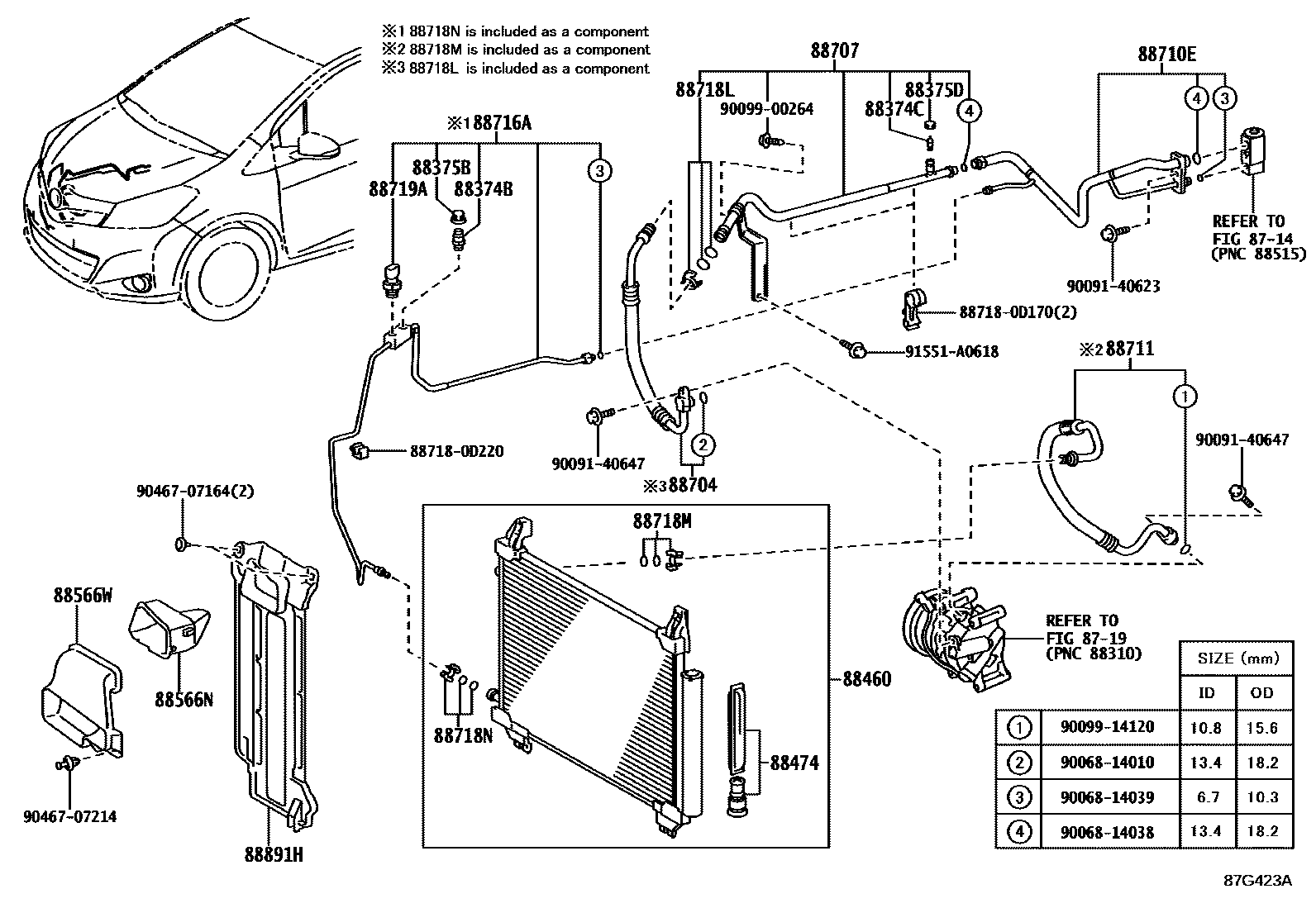

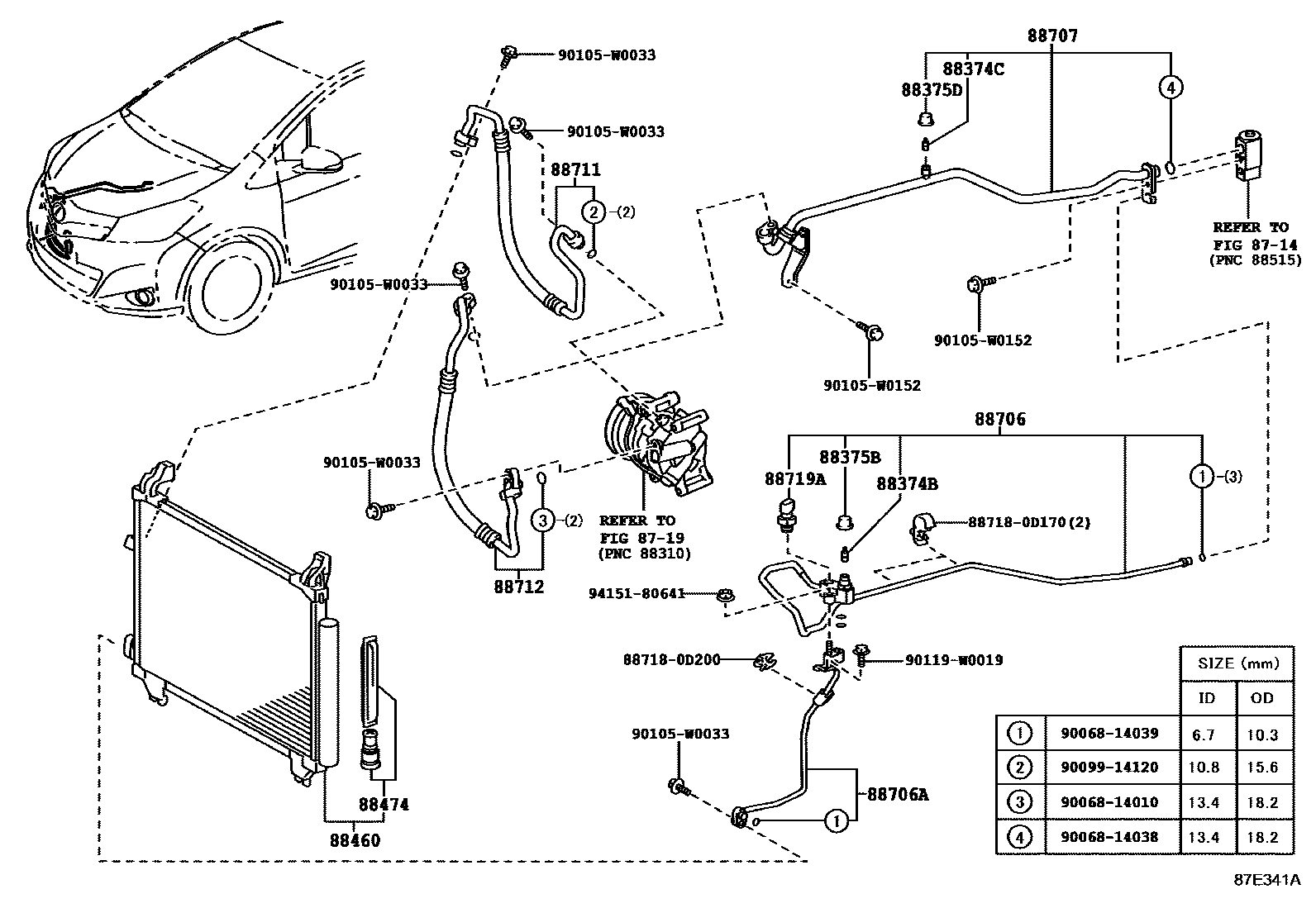

Toyota YARIS Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota YARIS EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 22 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 · 88374-30020 · 88374-33010 · 88374-33020 · 88374-33070 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30280 · 88375-30320 |
| 88375D | No. 2 maintenance valve cover | 88375-30290 · 88375-30310 |
| 88460 | Air conditioning condenser assembly | 88460-0D200 · 88460-0D210 · 88460-0D220 · 88460-0D400 · 88460-0D420 · 88460-0D500 · 88460-0D510 · 88460-0D520 · 88460-0D550 |
| 88467 | No. 1 air conditioning condenser buffer pad | 16716-28010 |
| 88474 | cooler dryer | 88474-12010 · 88474-12020 · 88474-17010 · 88474-17030 · 88474-47020 |
| 88566N | Cooler No. 1 air duct | 88566-0D010 |
| 88566W | GAINE CIRCULATION AIR NO. 2 CLIMATISEUR | 88566-0D050 · 88566-0D060 |
| 88704 | Oil suction hose sub-assembly | 88704-0D070 · 88704-0D130 · 88704-0D140 · 88704-0D150 |
| 88706 | Liquid pipe sub-assembly | 88706-0D400 · 88706-0D410 · 88706-0D450 · 88706-0D460 · 88706-0D470 · 88706-0D640 · 88706-0D660 · 88706-0DB40 · 88706-0DD00 · 88706-0DD10 · 88706-0DD20 · 88706-0DD30 |
| 88706A | Liquid pipe A sub-assembly | 88706-0D420 · 88706-0D440 · 88706-0DB50 · 88706-0DD40 |
| 88707 | Suction pipe sub-assembly | 88707-0D230 · 88707-0D240 · 88707-0D290 · 88707-0D440 · 88707-0D570 · 88707-0D580 · 88707-0D610 · 88707-0D620 · 88707-0D630 |
| 88707B | Suction pipe B sub-assembly | 88707-0D250 · 88707-0D270 · 88707-0D560 |
| 88707C | Suction pipe C sub-assembly | 88707-0D190 · 88707-0D260 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-0D130 · 88710-0D340 · 88710-0D350 · 88710-0D360 · 88710-0D370 · 88710-0D400 · 88710-0D420 · 88710-0D500 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-0D320 · 88711-0D330 · 88711-0D340 · 88711-0D370 · 88711-0D520 · 88711-0D530 · 88711-0D550 · 88711-0D730 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-0D410 · 88712-0D420 · 88712-0D430 |
| 88716A | Cooler refrigerant liquid pipe A | 88706-0D610 · 88706-0DB50 · 88706-0DB60 · 88706-0DC60 · 88706-0DC80 · 88706-0DC90 · 88706-0DD50 · 88716-0D400 · 88716-0D450 · 88716-0D460 · 88716-0D860 · 88716-0D870 · 88716-0D880 |
| 88718L | Pipe clamp | 88718-52280 |
| 88718M | FIXATION, TUYAUTERIE | 88718-1E140 |
| 88718N | FIXATION, TUYAUTERIE | 88718-1E150 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
| 88891H | Cooler cover No. 1 | 88891-0D190 · 88891-0D450 |
