Toyota YARIS 后视镜 — Figure 8701

Toyota YARIS EPC diagram 8701, 后视镜, with 2 images and 10 PNC and OE references.

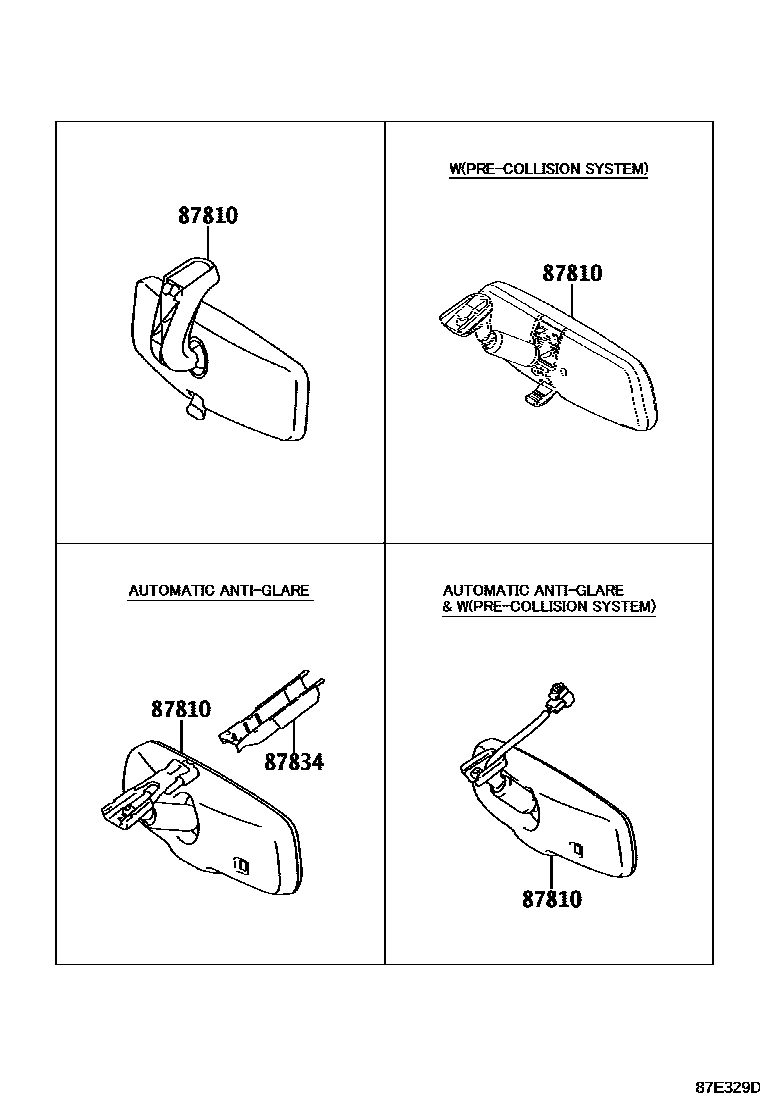

Toyota YARIS 后视镜 EPC diagram — 87E329D
后视镜 — 87E329D (201407 – 999999)
Toyota YARIS 后视镜 EPC diagram — 87F575C
后视镜 — 87F575C (201407 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-0D080 · 87810-0D100 · 87810-0F010 · 87810-0WK00 · 87810-0WQ40
87834Interior rearview mirror stay fixing cover87818-33010
87910Right exterior rearview mirror assembly87910-0D580 · 87910-0DB20 · 87910-0DB30 · 87910-0DB40 · 87910-0DB50 · 87910-0DB60 · 87910-0DB70 · 87910-0DB80
87915Right exterior rearview mirror cover87915-0D200 · 87915-0D390
87931Right exterior rearview mirror87908-0D591 · 87908-0D601
87939Right exterior rearview mirror hole cover87939-0D540
87940Left exterior rearview mirror assembly87940-0DB20 · 87940-0DB30 · 87940-0DB40 · 87940-0DB50 · 87940-0DB60 · 87940-0DB70 · 87940-0DB80 · 87940-0DB90
87945Left exterior rearview mirror cap87945-0D190 · 87945-0D370
87948Left exterior rearview mirror hole cover87948-0D540
87961Left exterior rearview mirror87909-0D581 · 87909-0D591
