Toyota YARIS antenna — Figure 8604

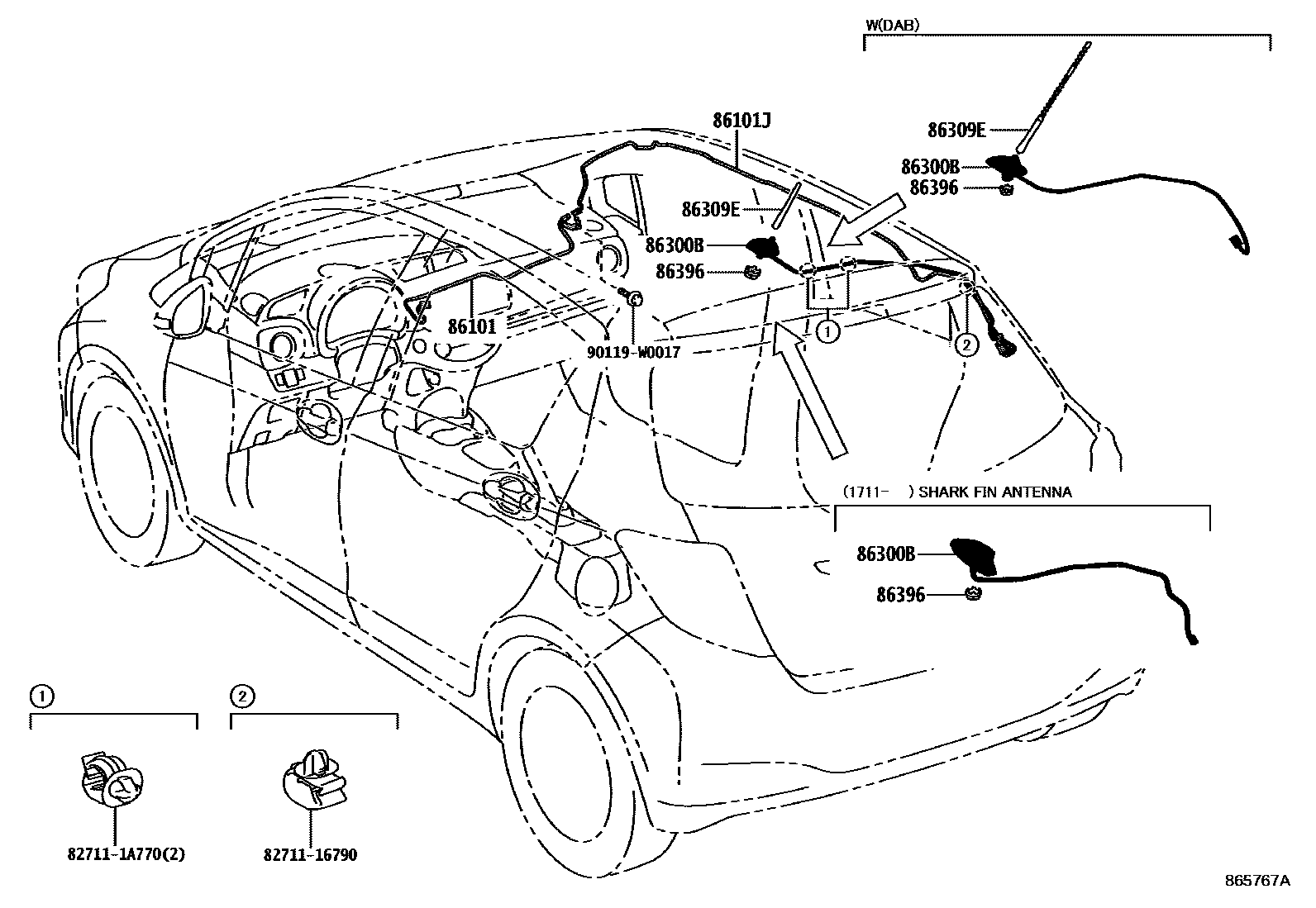

Toyota YARIS EPC diagram 8604, antenna, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-0D410 · 86101-0D420 · 86101-0D650 · 86101-0D660 |
| 86101J | No. 2 antenna wire sub-assembly | 86101-0D390 · 86101-0D400 |
| 86300B | Amplifier antenna assembly | 86300-0D220 · 86300-0D490 · 863C0-0D010 |
| 86309E | Roof antenna sub-assembly | 86309-02120 · 86309-0D110 · 86309-0D210 |
| 86396 | Antenna nut | 86396-47010 |
