Toyota YARIS 挡风玻璃清洗器 — Figure 8503

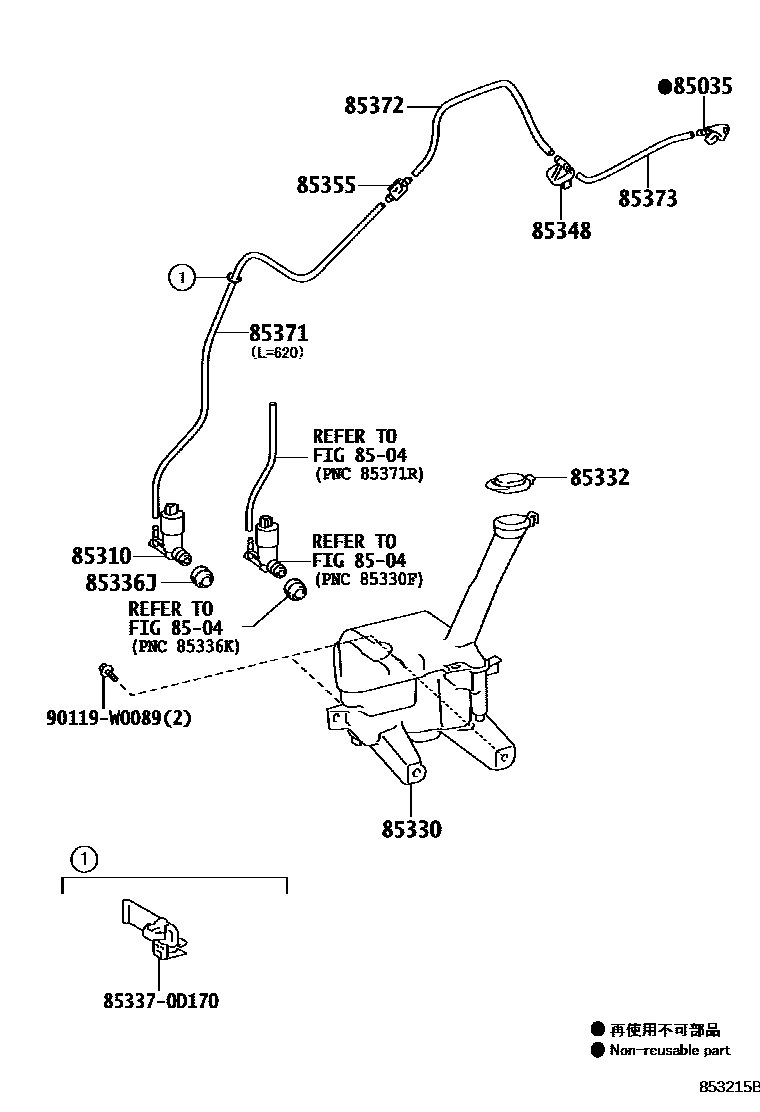

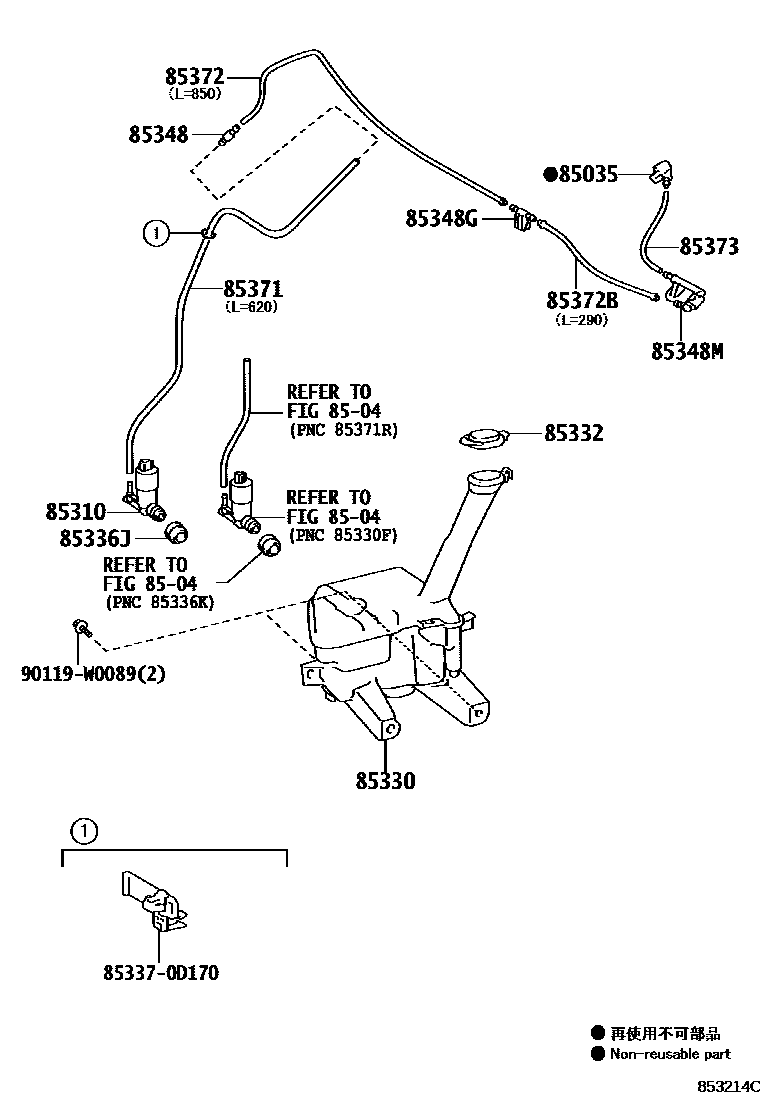

Toyota YARIS EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-52480 · 85381-52490 |
| 85310 | Windshield washer motor and pump assembly | 85330-0D120 · 85330-0D121 |
| 85330 | Windshield washer fluid tank assembly | 85315-0D170 |
| 85332 | Windshield washer fluid tank cap | 85316-0D170 |
| 85336J | Cleaning fluid tank protection device | 85336-0D170 |
| 85348 | Windshield washer hose connector No. 1 | 85375-0D260 · 85375-52190 |
| 85348G | Windshield washer hose connector No. 2 | 85377-0D260 |
| 85348M | No. 3 windshield washer hose connector | 85385-52200 |
| 85355 | Windshield washer hose valve | 85321-26020 |
| 85371 | Windshield washer hose (from motor to connector) | 90069-46057 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90069-46057 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90069-46058 |
