Toyota YARIS 后刮水器 — Figure 8502

Toyota YARIS EPC diagram 8502, 后刮水器, with 2 images and 6 PNC and OE references.

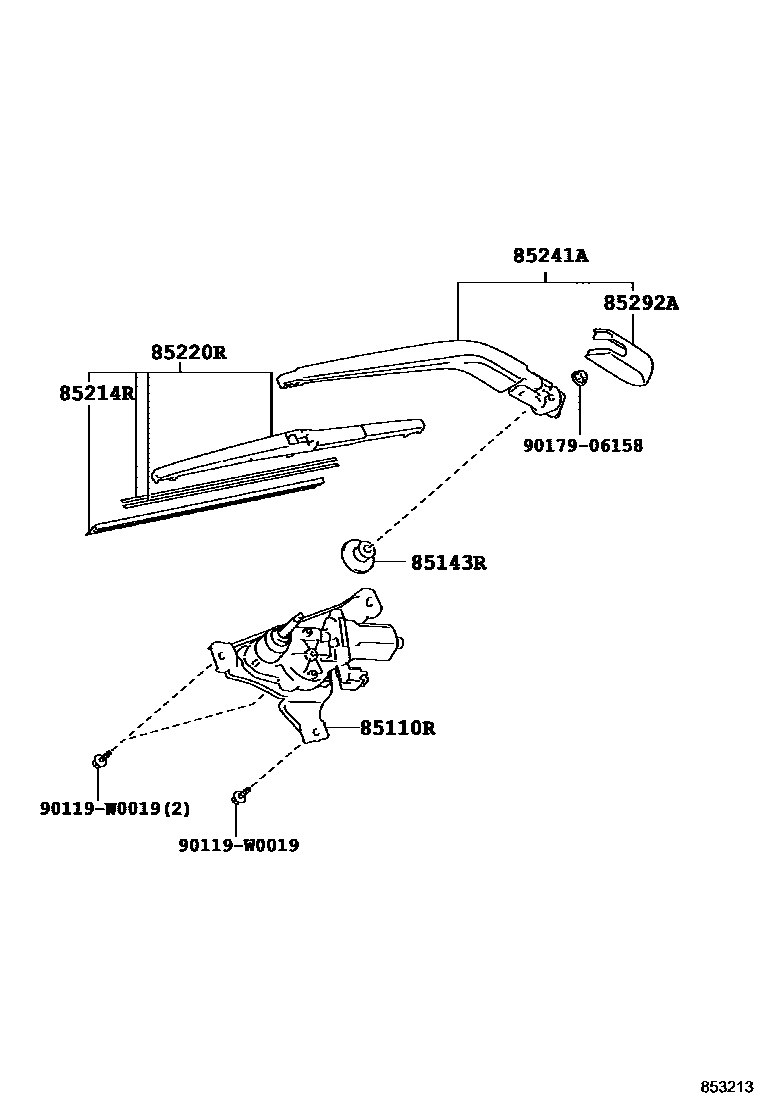

Toyota YARIS 后刮水器 EPC diagram — 853213
后刮水器 — 853213 (201407 – 201703)

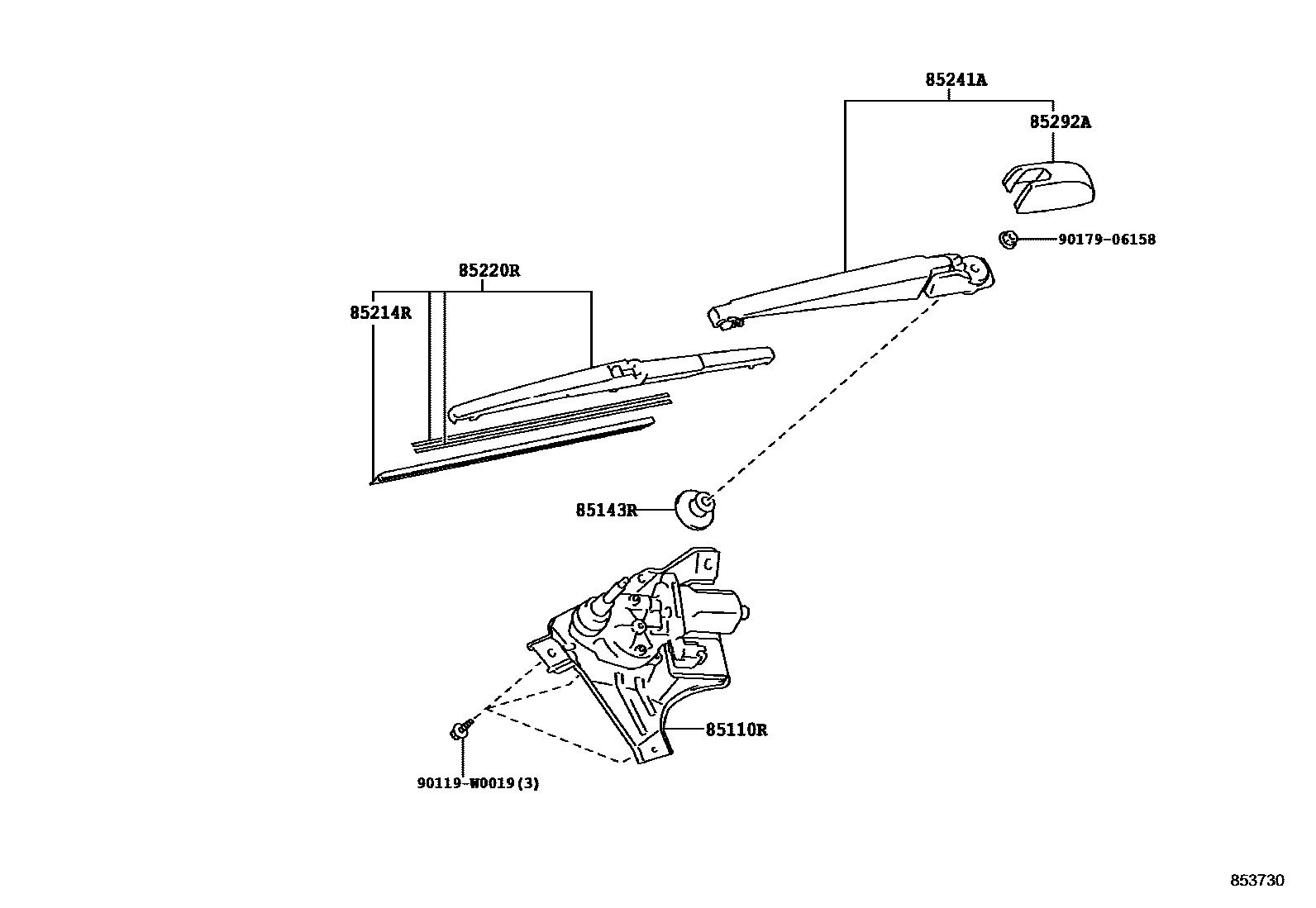

Toyota YARIS 后刮水器 EPC diagram — 853730
后刮水器 — 853730 (201703 – 999999)

PNC and OE references

PNCPart nameOE numbers
85110RRear wiper motor assembly85130-0D080 · 85130-0D190
85143RRear wiper motor seal85143-02030 · 85143-05070
85214RRear wiper rubber strip85214-0D440 · 85214-42040
85220RRear wiper blade assembly85242-0D130 · 85242-0R010
85241Arear wiper arm85241-0D060 · 85241-0D150
85292ARear wiper arm cap85292-0D080
