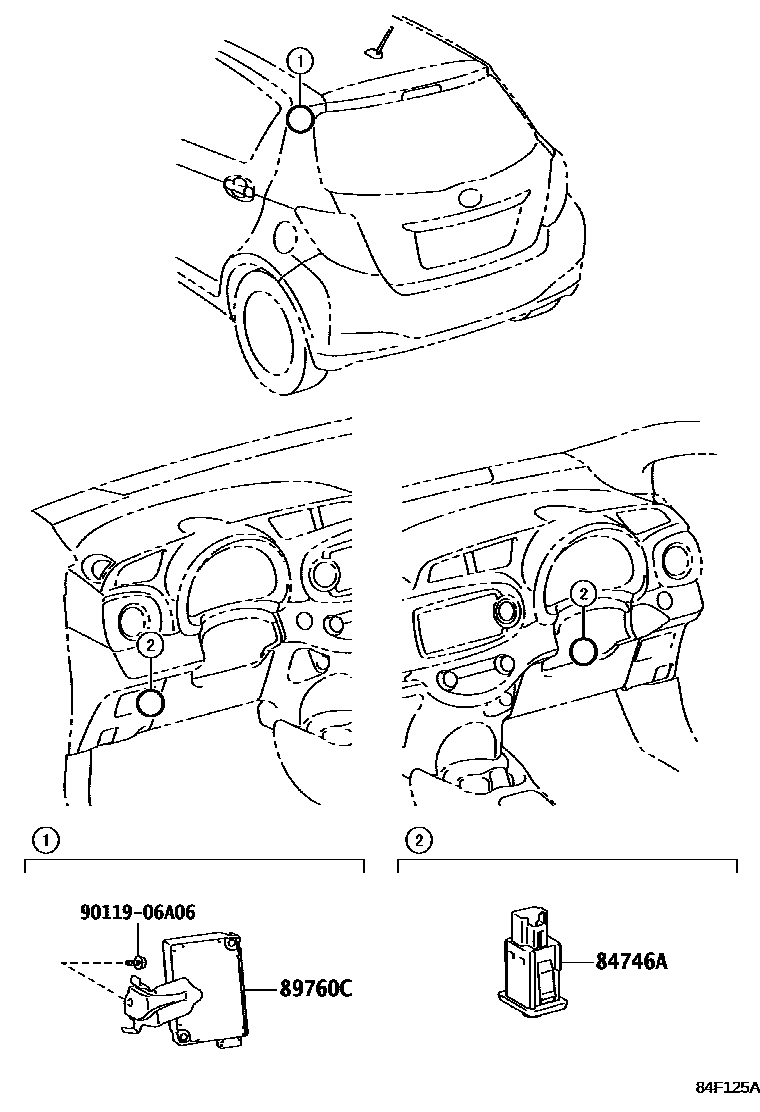

Toyota YARIS 轮胎压力警告系统 — Figure 8435
Toyota YARIS EPC diagram 8435, 轮胎压力警告系统, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84746A | Tire pressure warning switch No. 1 | 84746-02020 |
| 89760C | Tire pressure monitoring receiver assembly | 89760-0D010 · 89760-0D011 · 89760-0D030 · 89760-0D031 · 89760-0D060 · 89760-0D070 |
