Toyota YARIS HV逆变器 — Figure 8431

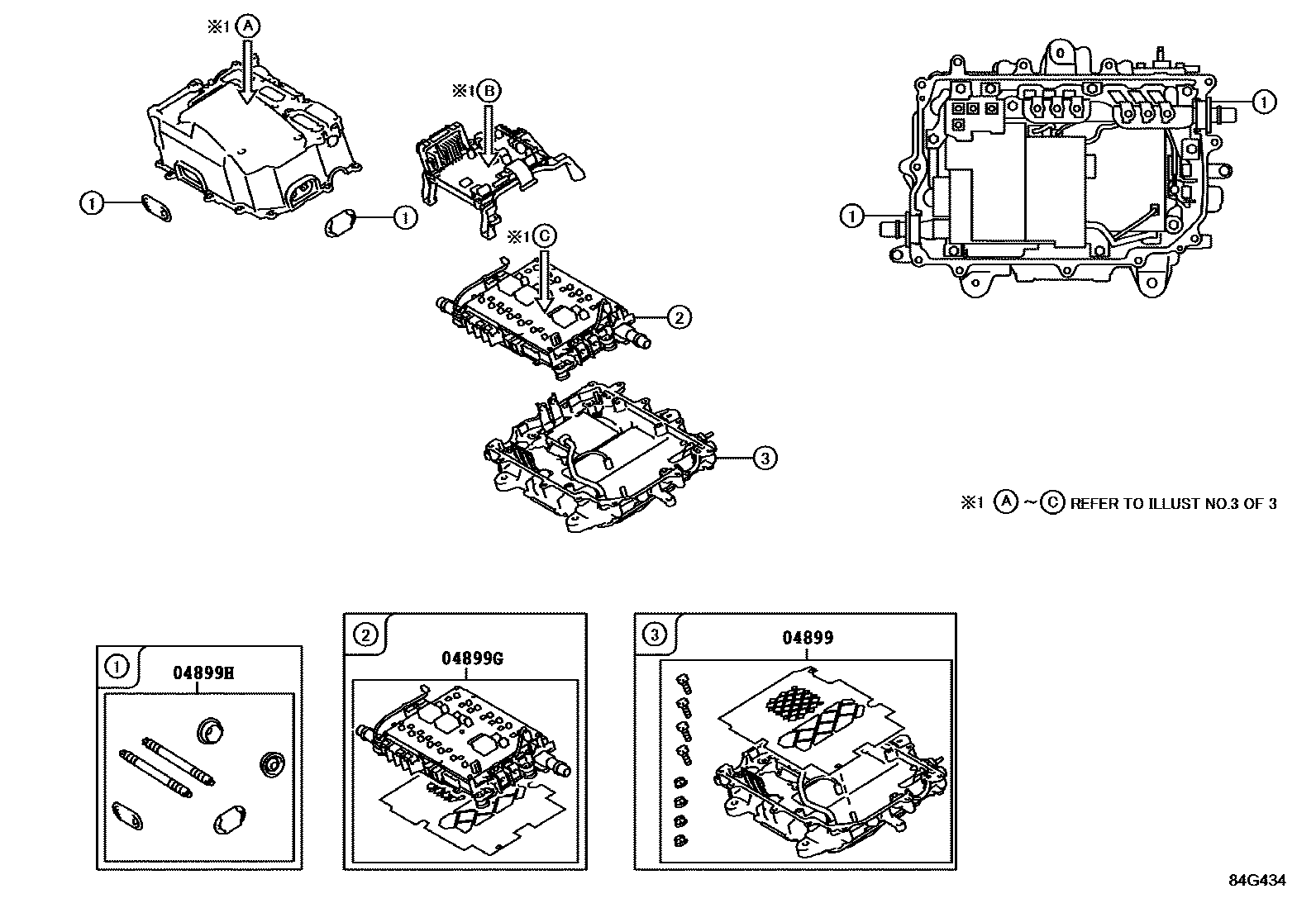

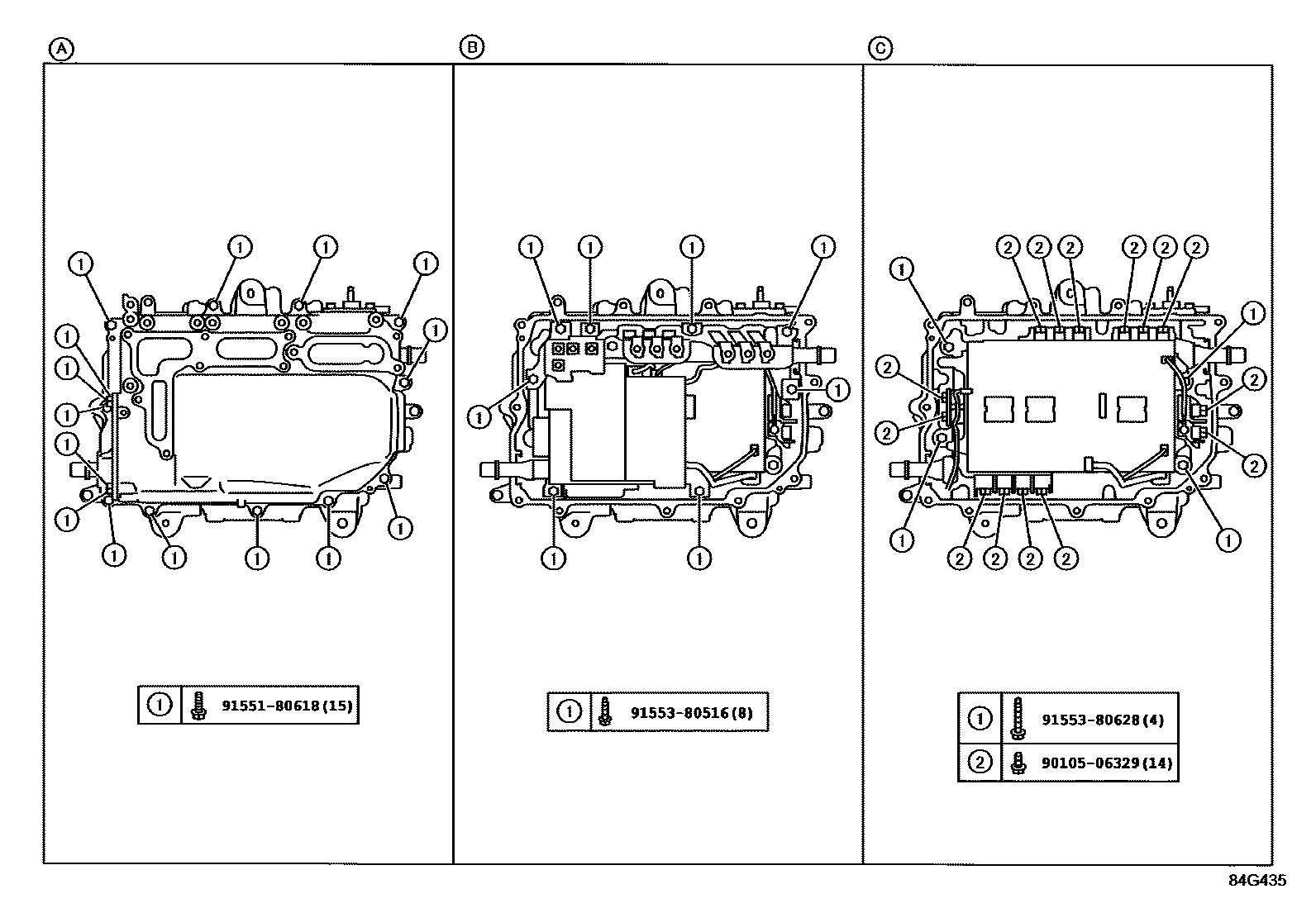

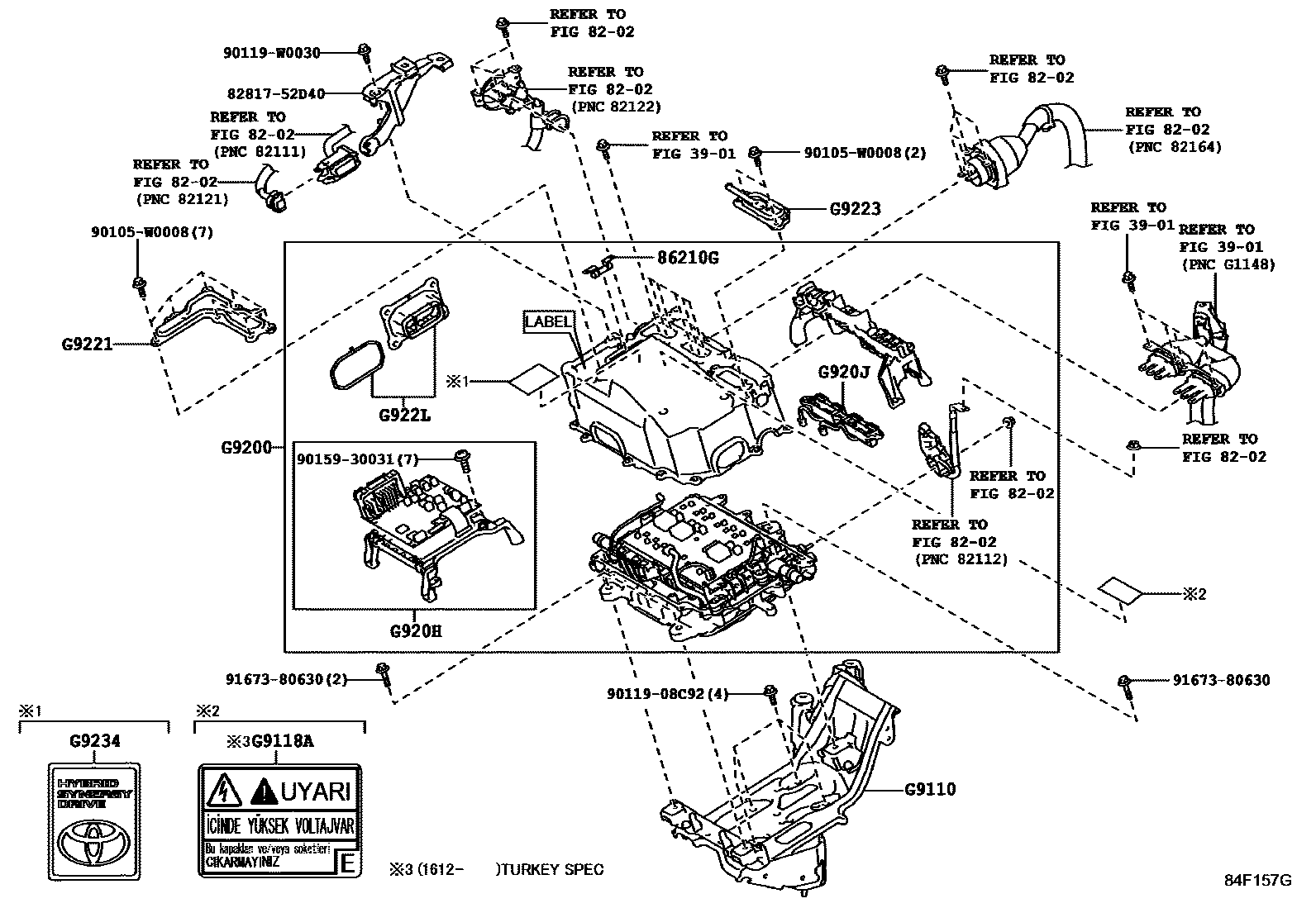

Toyota YARIS EPC diagram 8431, HV逆变器, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04899 | KIT CONVERTISSEUR, VEHICULE HYBRIDE | 04899-52010 · 04899-52011 |
| 04899G | KIT TRANSISTOR, BLOC DE PUISSANCE INTELLIGENT | 04899-52020 · 04899-52030 |
| 04899H | KIT BOUCHON, VIDANGE INVERSEUR | 04899-47060 |
| 86210G | FUSIBLE, HAUTE TENSION | 90982-11050 |
| G9110 | Inverter bracket assembly | G9110-52010 |
| G9118A | No. 1 Electric Vehicle Device Controller Warning Label | G9118-52010 |
| G9200 | Inverter assembly with converter | G9200-59025 · G9200-59045 · G9200-59046 · G9200-59047 · G9200-59075 |
| G920H | SOUS-ENS. ORDINATEUR, COMMANDE GENERATEUR MOTEUR | G920H-52030 · G920H-52031 · G920H-52032 · G920H-52060 |
| G920J | SOUS-ENSEMBLE DE CAPTEUR, COURANT D'ONDULEUR | G920J-52010 |
| G9221 | Inverter cover | G9221-52010 |
| G9223 | Inverter terminal cover | G9223-52010 |
| G922L | REVETEMENT, RACCORD DE SIGNAL D'INVERSEUR | G922L-47010 |
| G9234 | Inverter nameplate | G923F-52010 |
