Toyota YARIS 防盗装置 — Figure 8424

Toyota YARIS EPC diagram 8424, 防盗装置, with 2 images and 4 PNC and OE references.

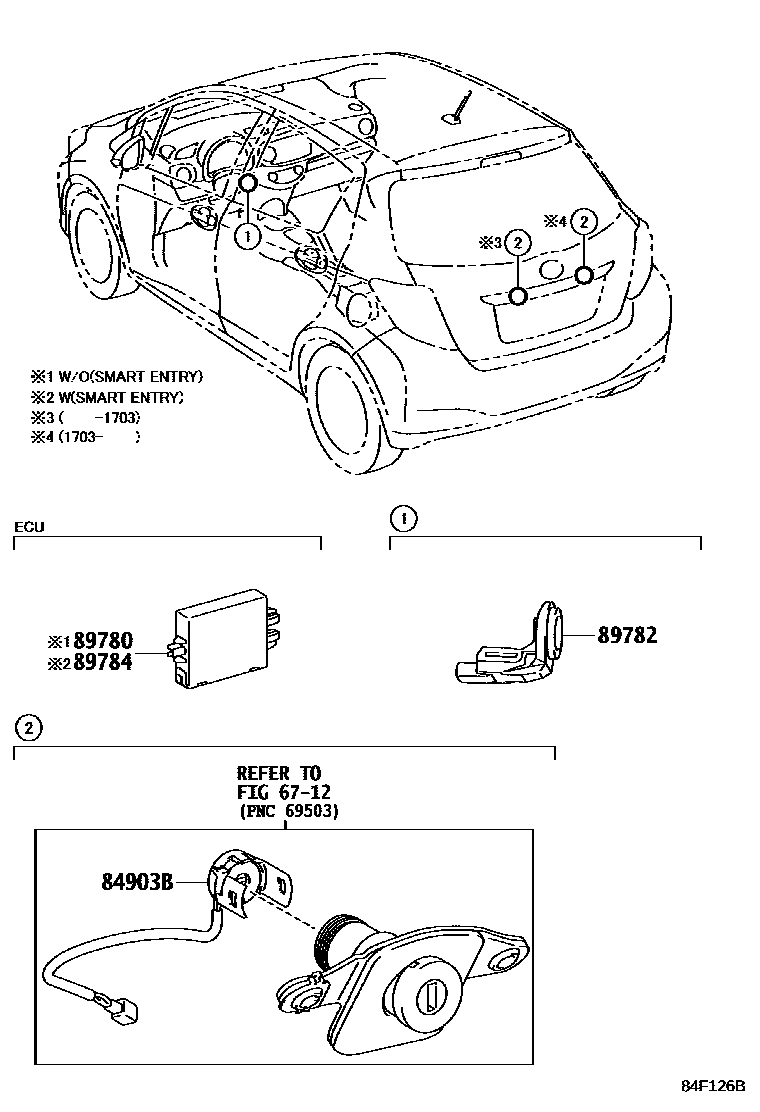

Toyota YARIS 防盗装置 EPC diagram — 84F126B
防盗装置 — 84F126B (201407 – 999999)

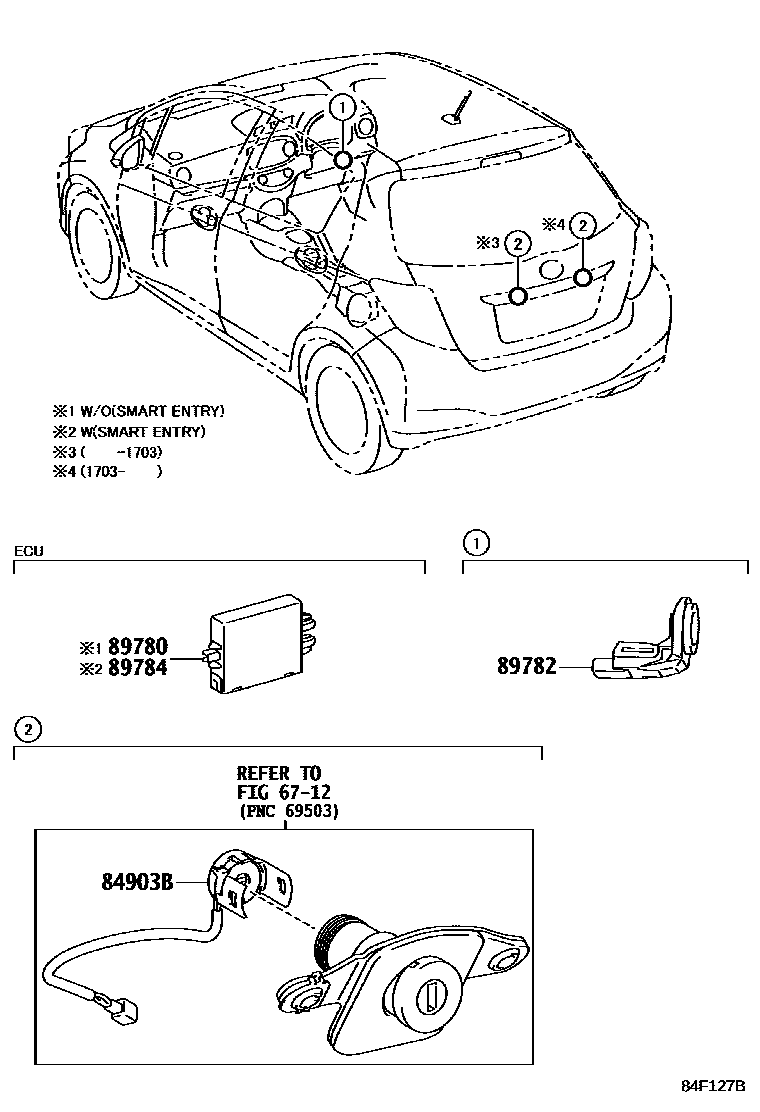

Toyota YARIS 防盗装置 EPC diagram — 84F127B
防盗装置 — 84F127B (201407 – 999999)

PNC and OE references

PNCPart nameOE numbers
84903BDoor unlock switch sub-assembly84903-52040 · 84903-52060
89780Transceiver key ECU assembly89780-0D130
89782transceiver key coil89782-02010
89784Shutdown code system ECU89784-0D030
