Toyota YARIS 电子控制柴油机(ECD) — Figure 8405

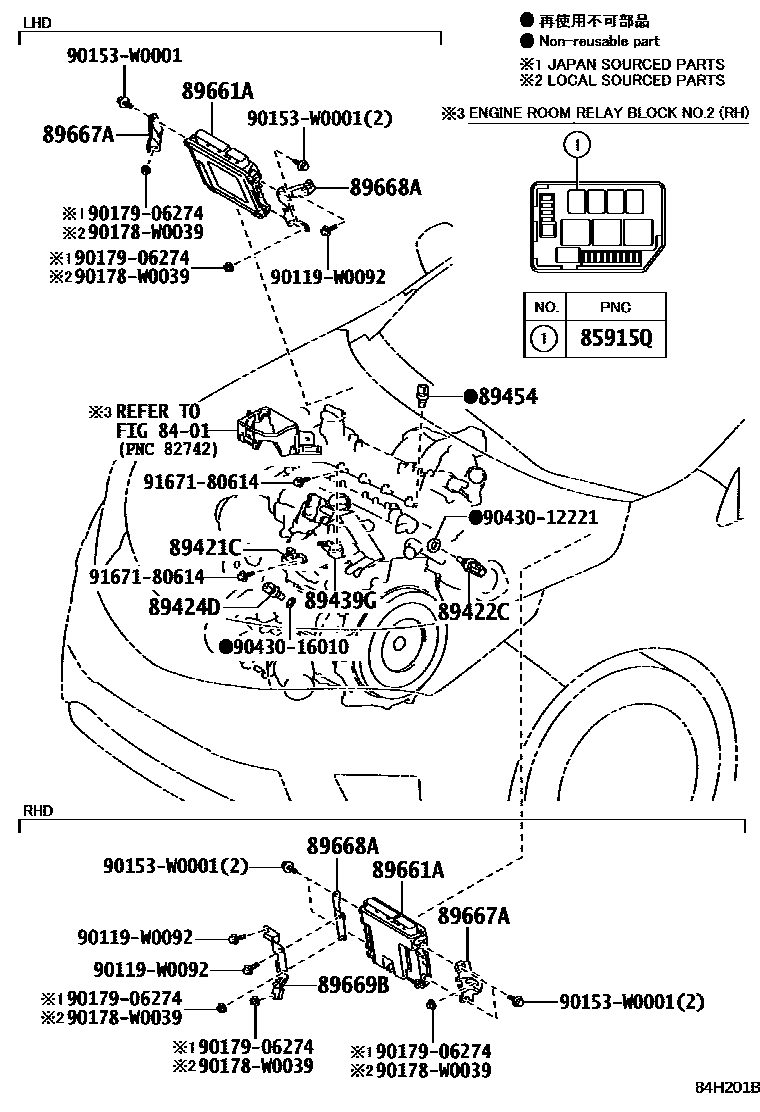

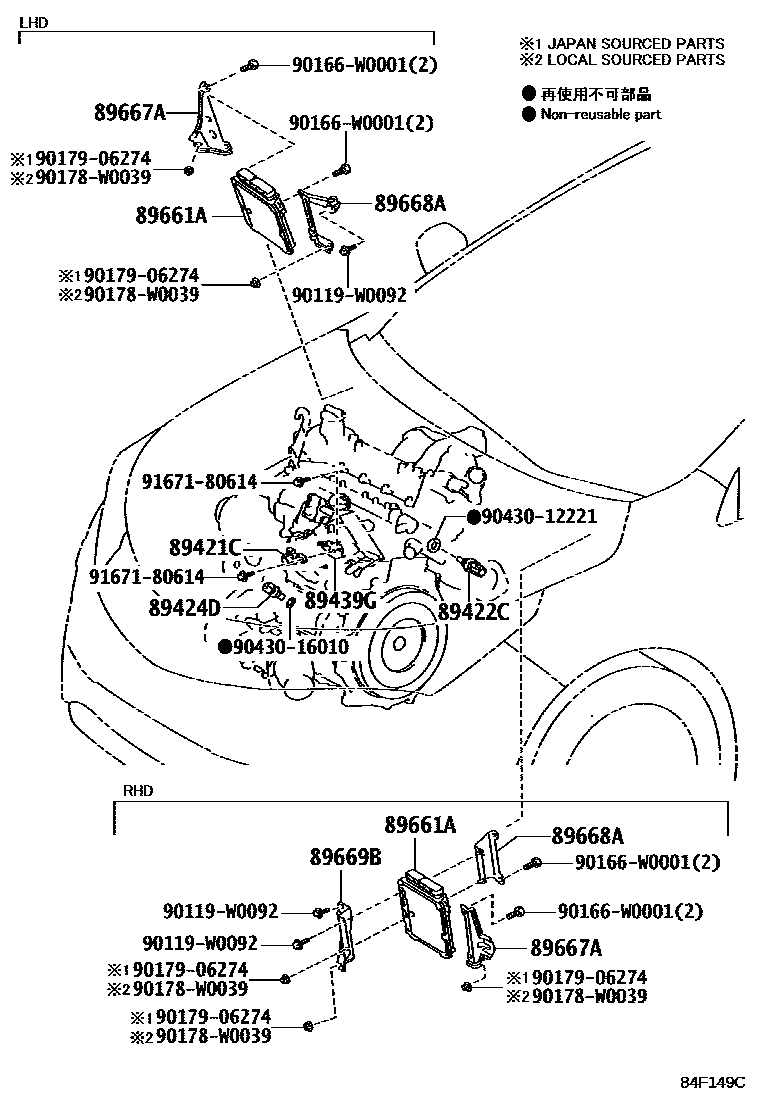

Toyota YARIS EPC diagram 8405, 电子控制柴油机(ECD), with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85915Q | ECU relay (for diesel engine) | 90080-87021 |
| 89421C | Turbo pressure sensor (for diesel turbines) | 89421-20200 |
| 89422C | Diesel engine water temperature sensor | 89422-33030 |
| 89424D | Intake air temperature sensor | 89424-60010 |
| 89439G | Sensor holder | 89431-12010 |
| 89454 | fuel temperature sensor | 89454-02010 |
| 89661A | Engine control ECU | 89661-0D510 · 89661-0DE70 · 89661-0DK50 · 89661-0DK51 · 89661-0DK60 · 89661-0DK61 · 89661-0DQ30 |
| 89667A | No. 1 engine control ECU bracket | 89667-0D090 · 89667-0D100 · 89667-0D300 · 89667-0D310 |
| 89668A | No. 2 engine control ECU bracket | 89668-0D090 · 89668-0D100 · 89668-0D180 · 89668-0D190 |
| 89669B | No. 3 engine control ECU bracket | 89669-0D010 · 89669-0D020 |
