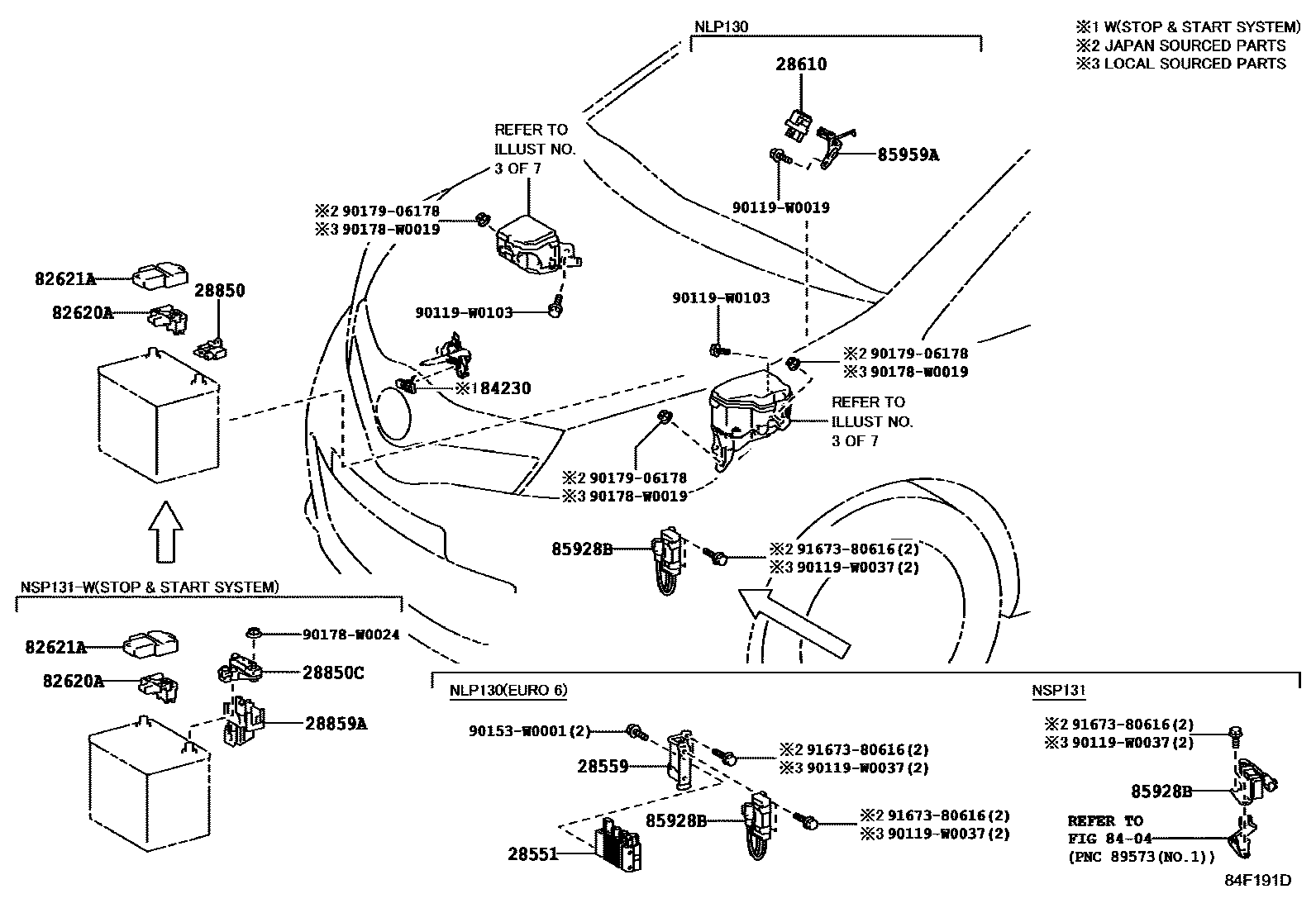

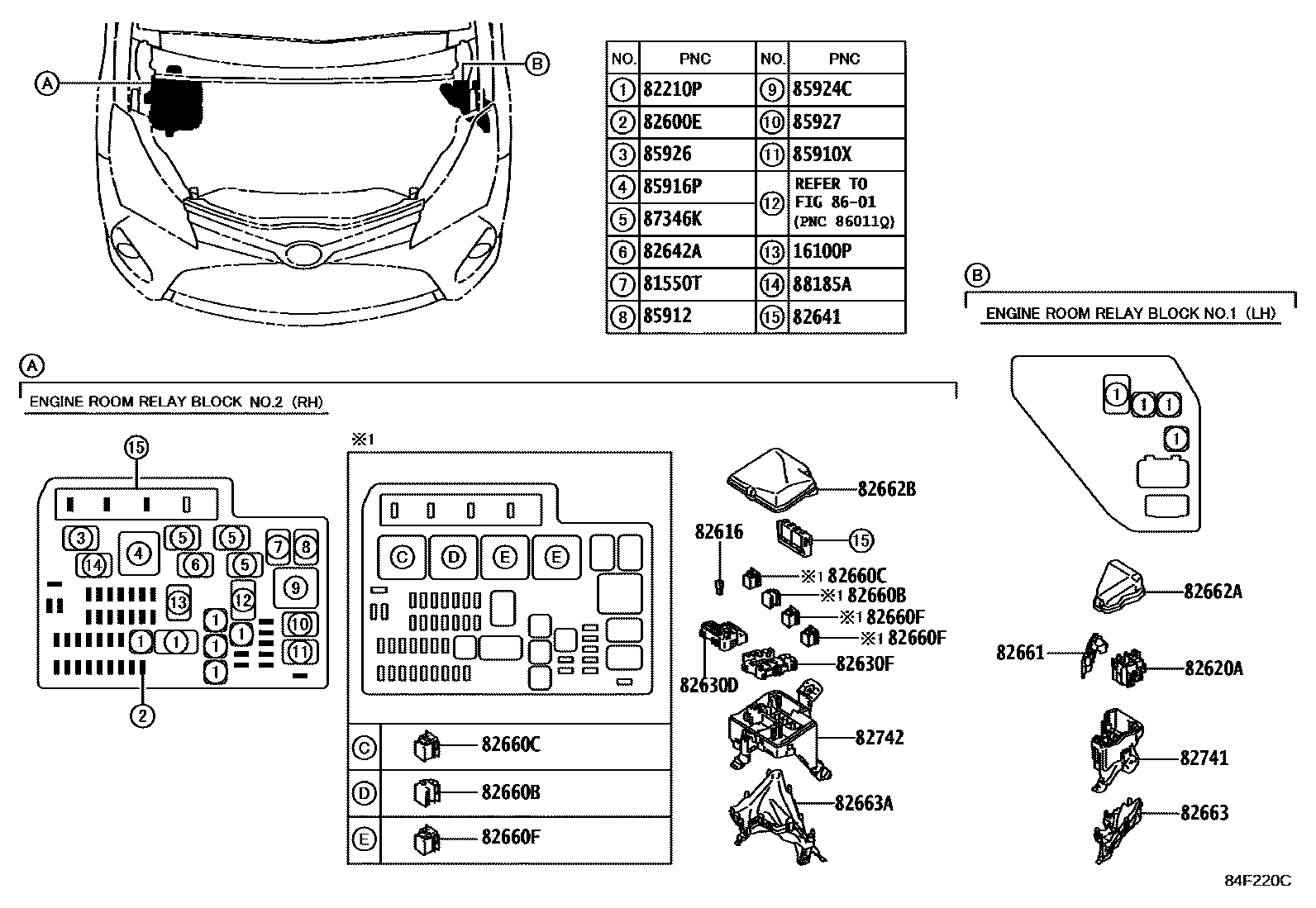

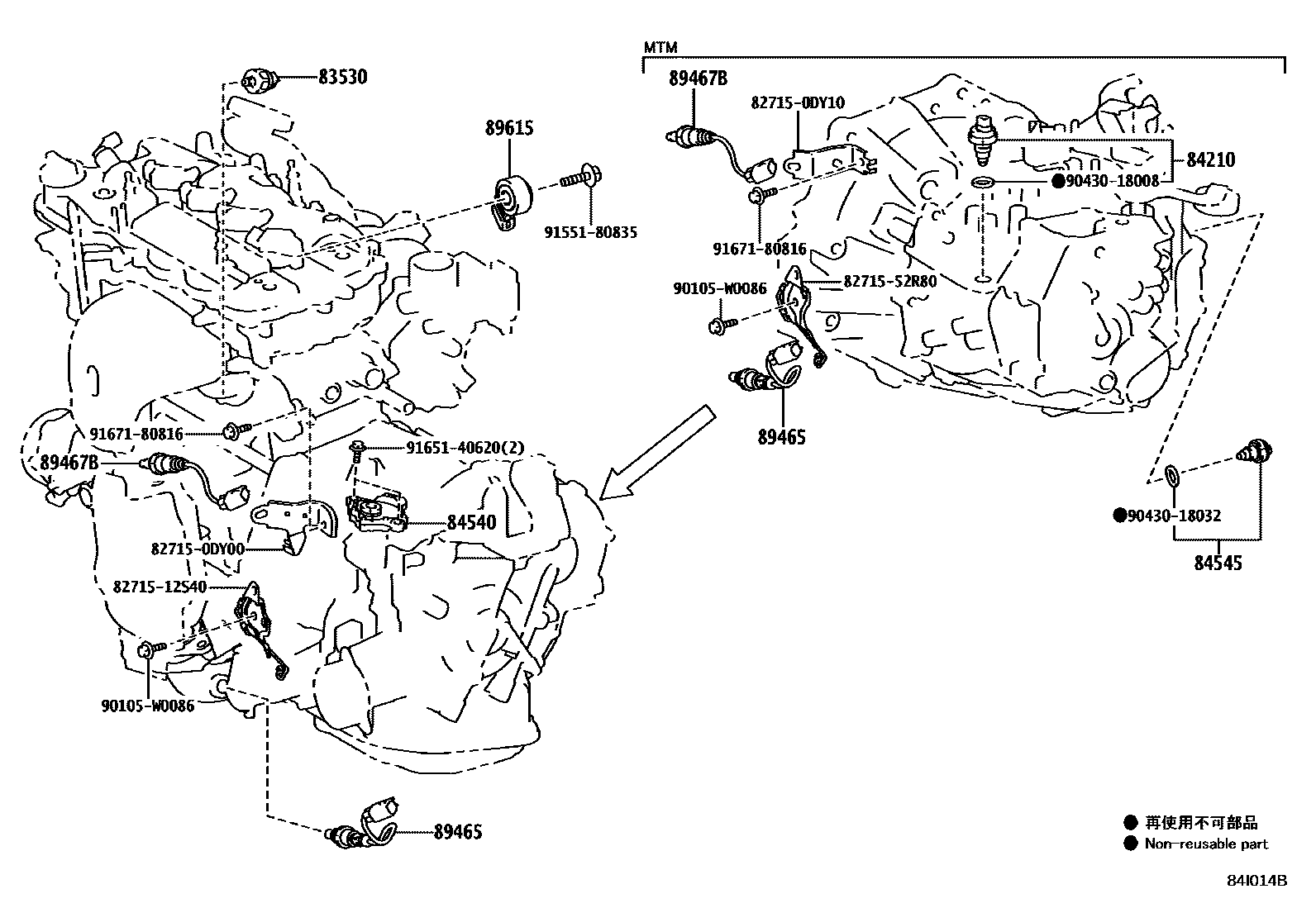

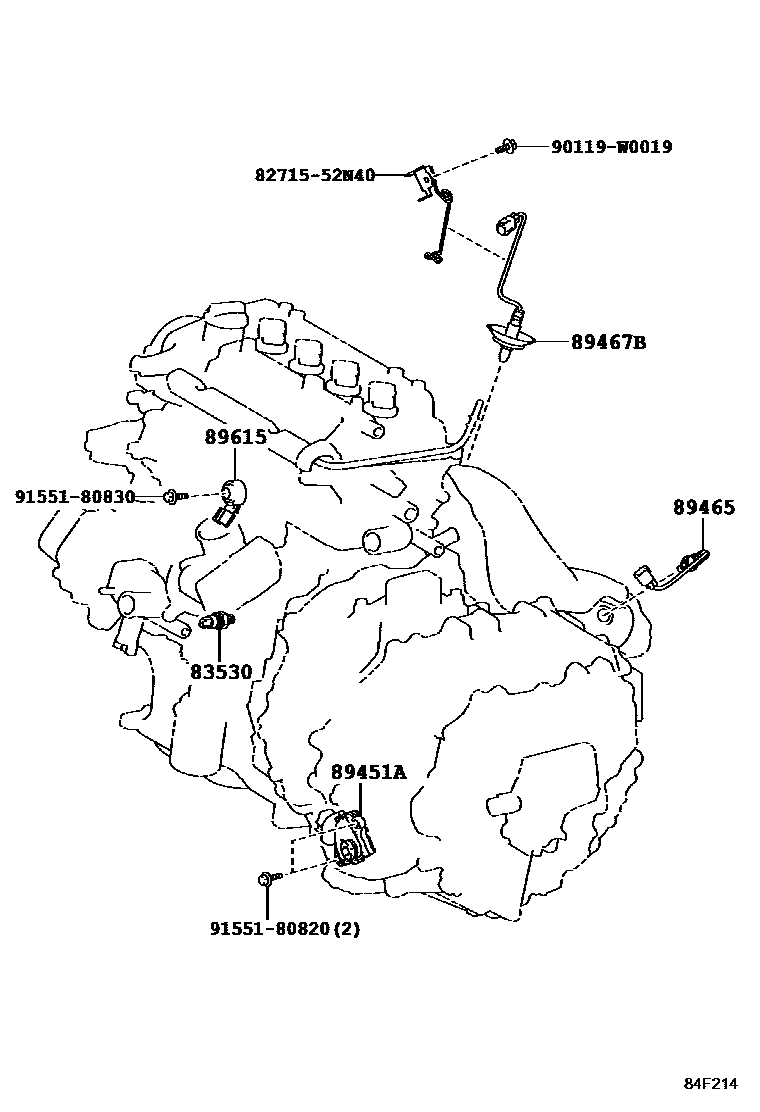

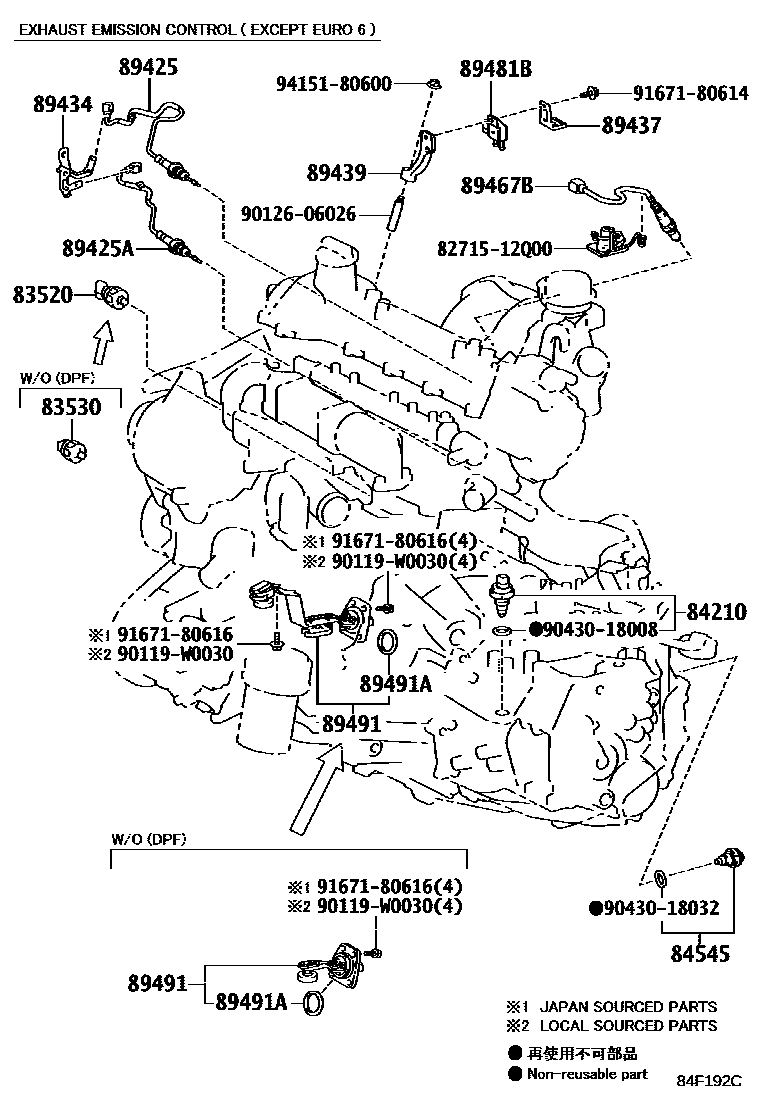

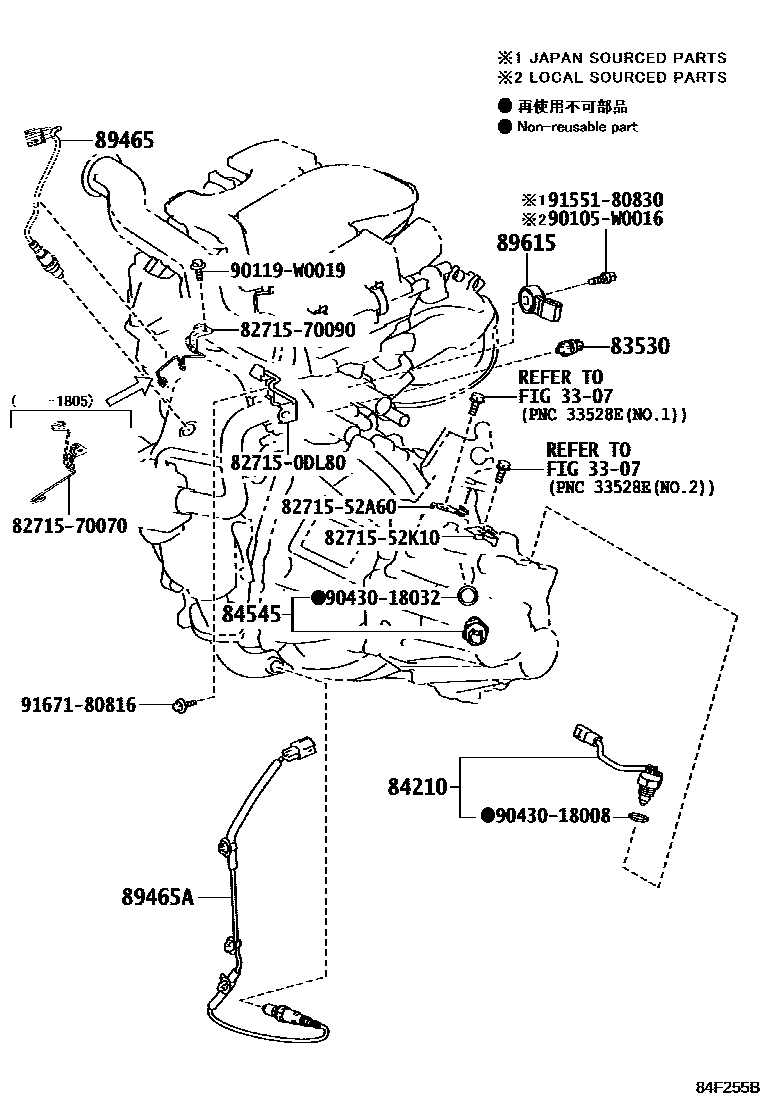

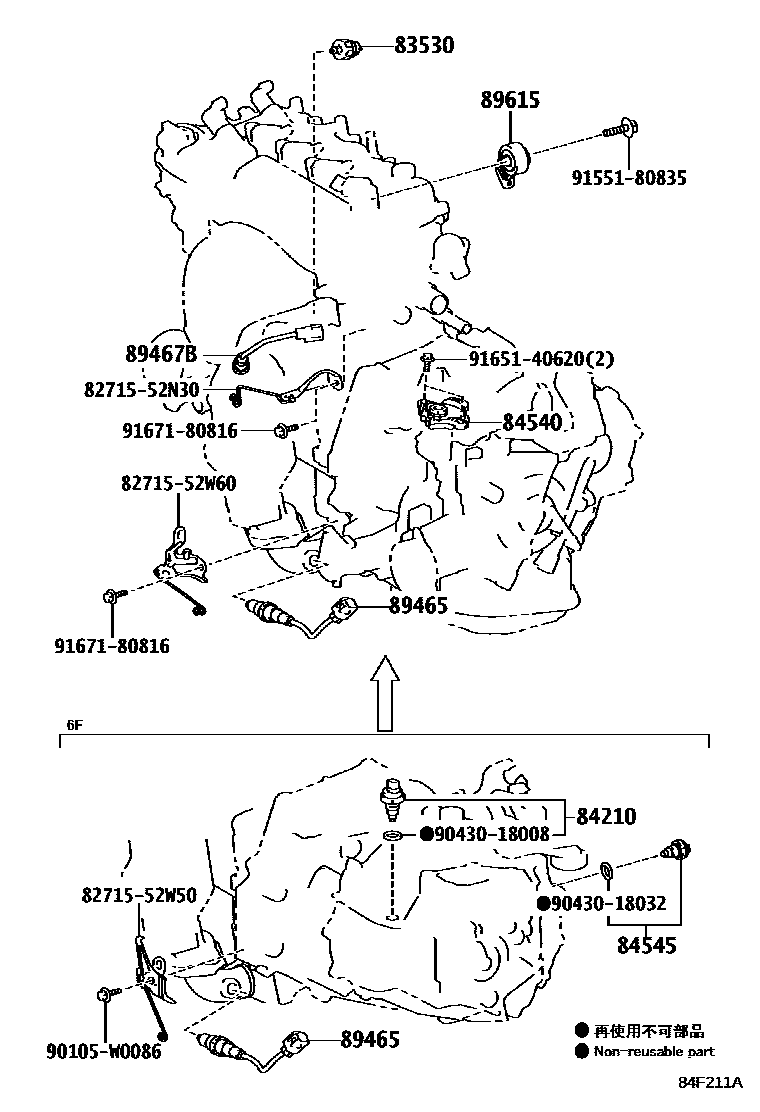

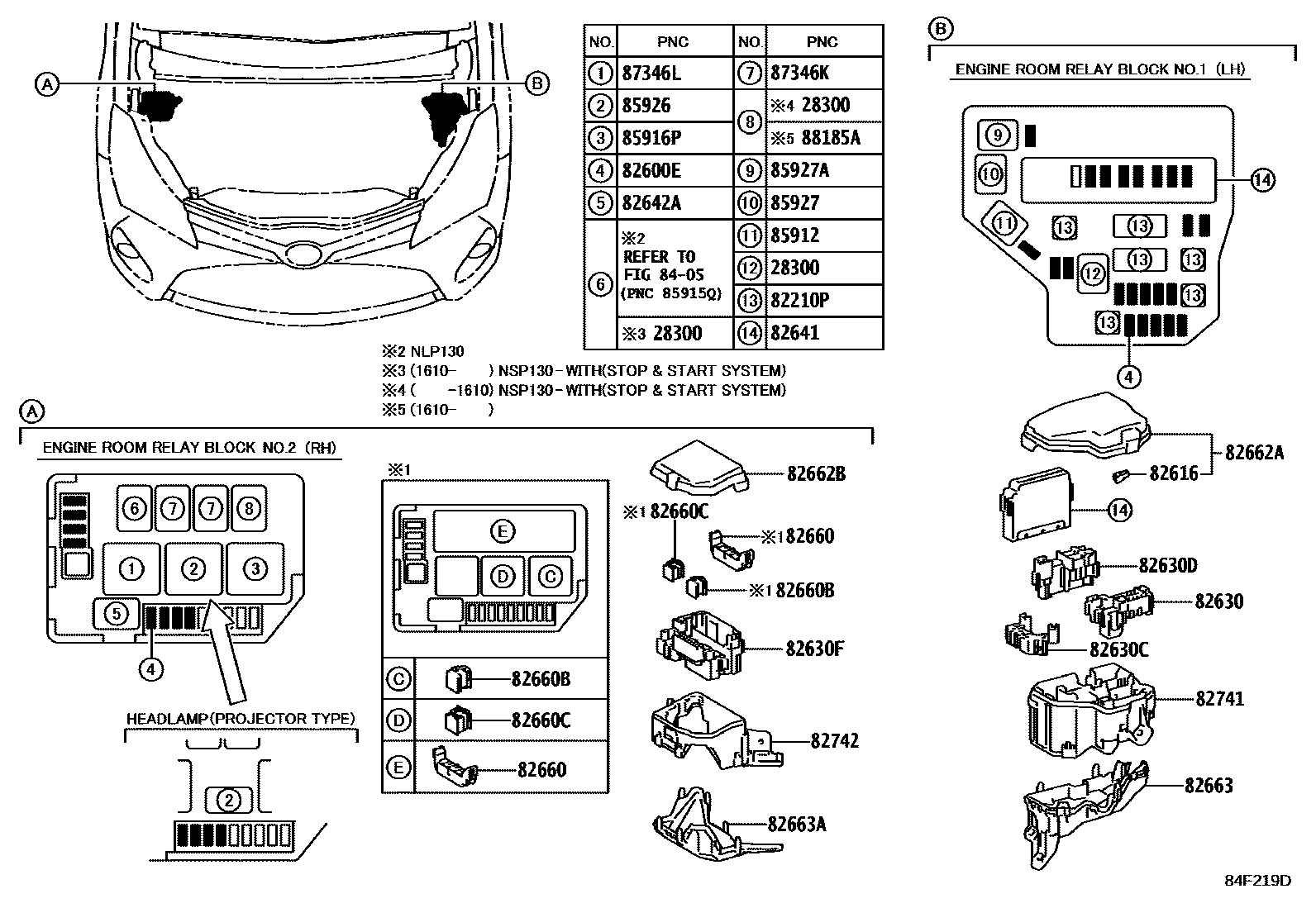

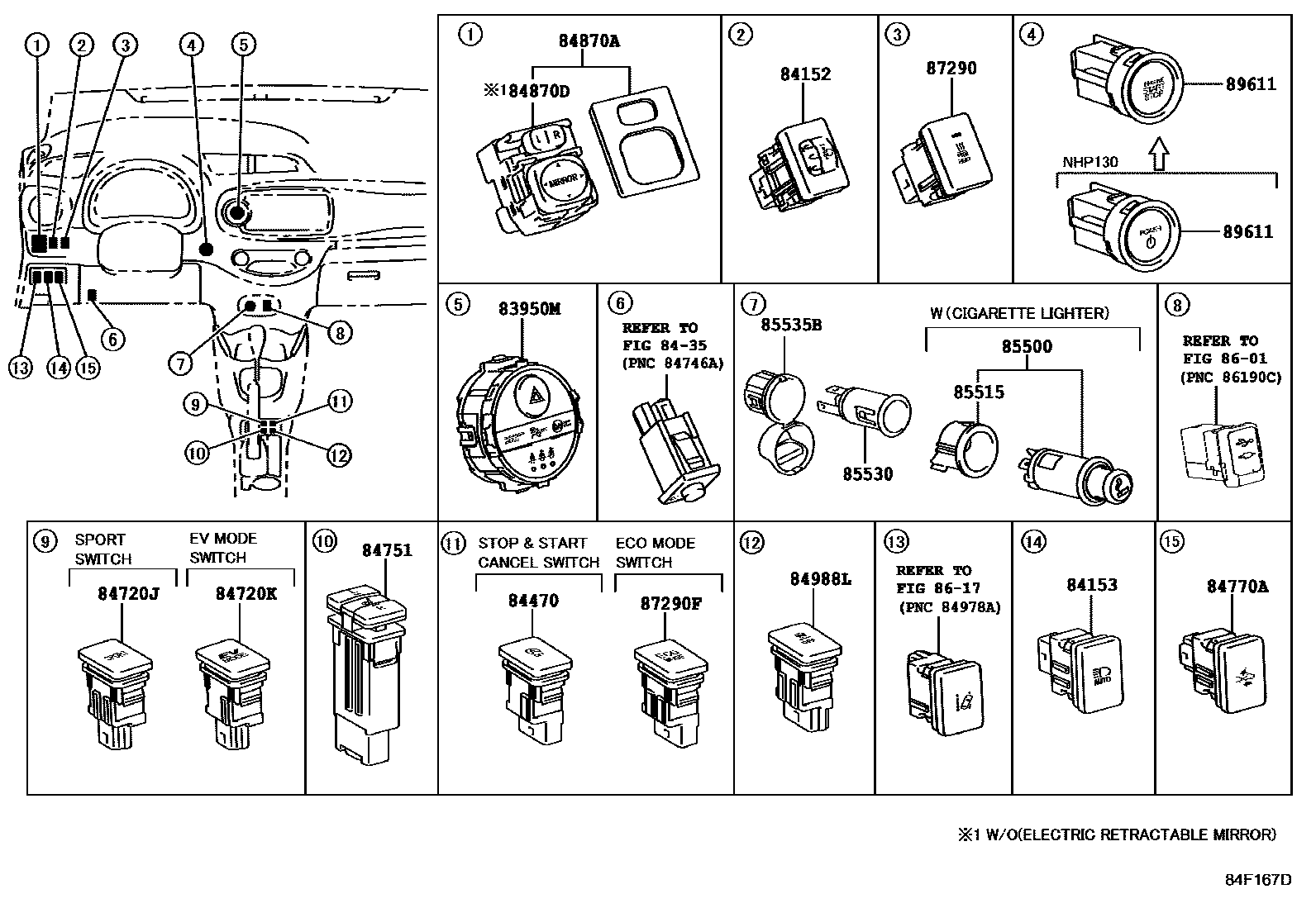

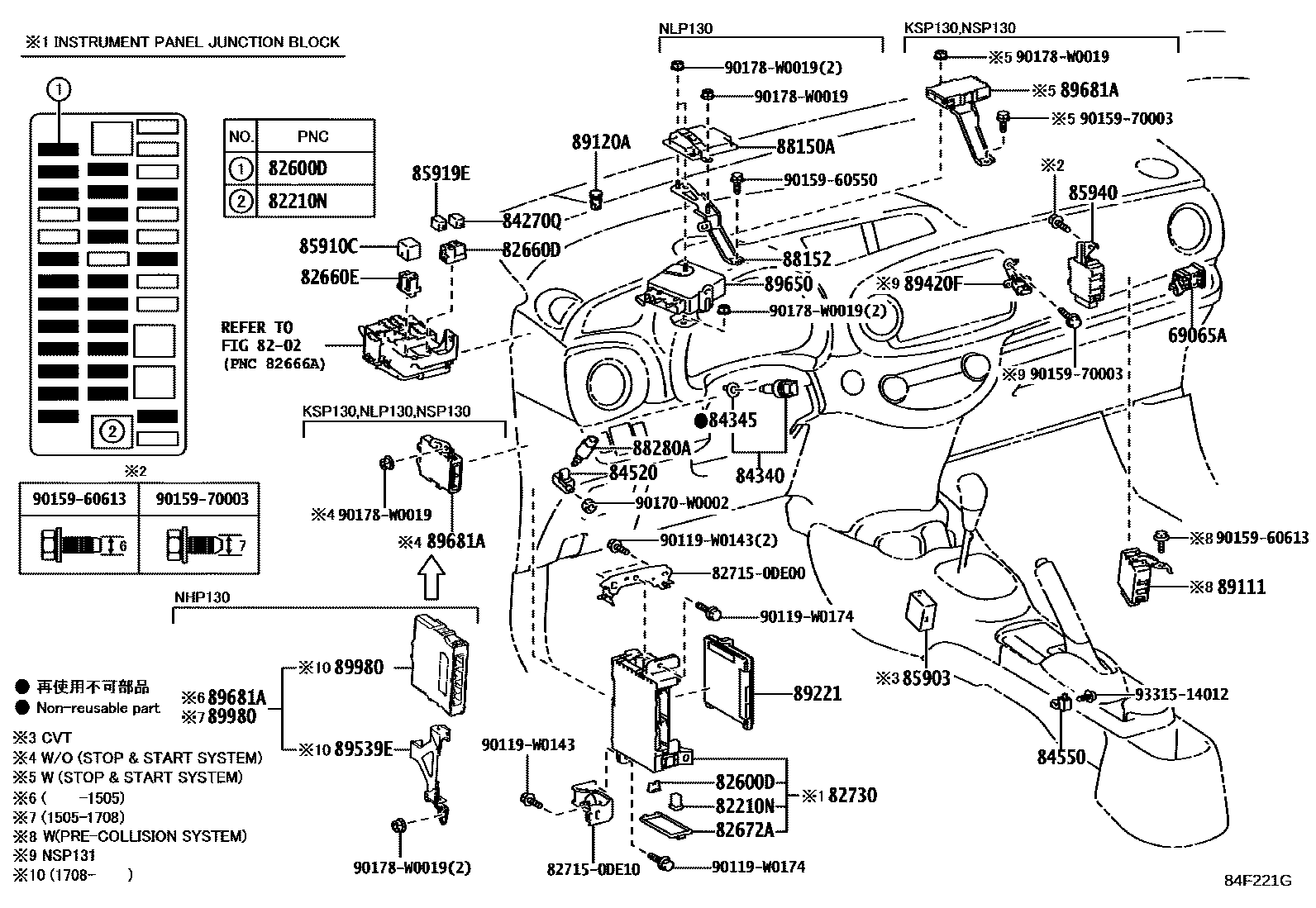

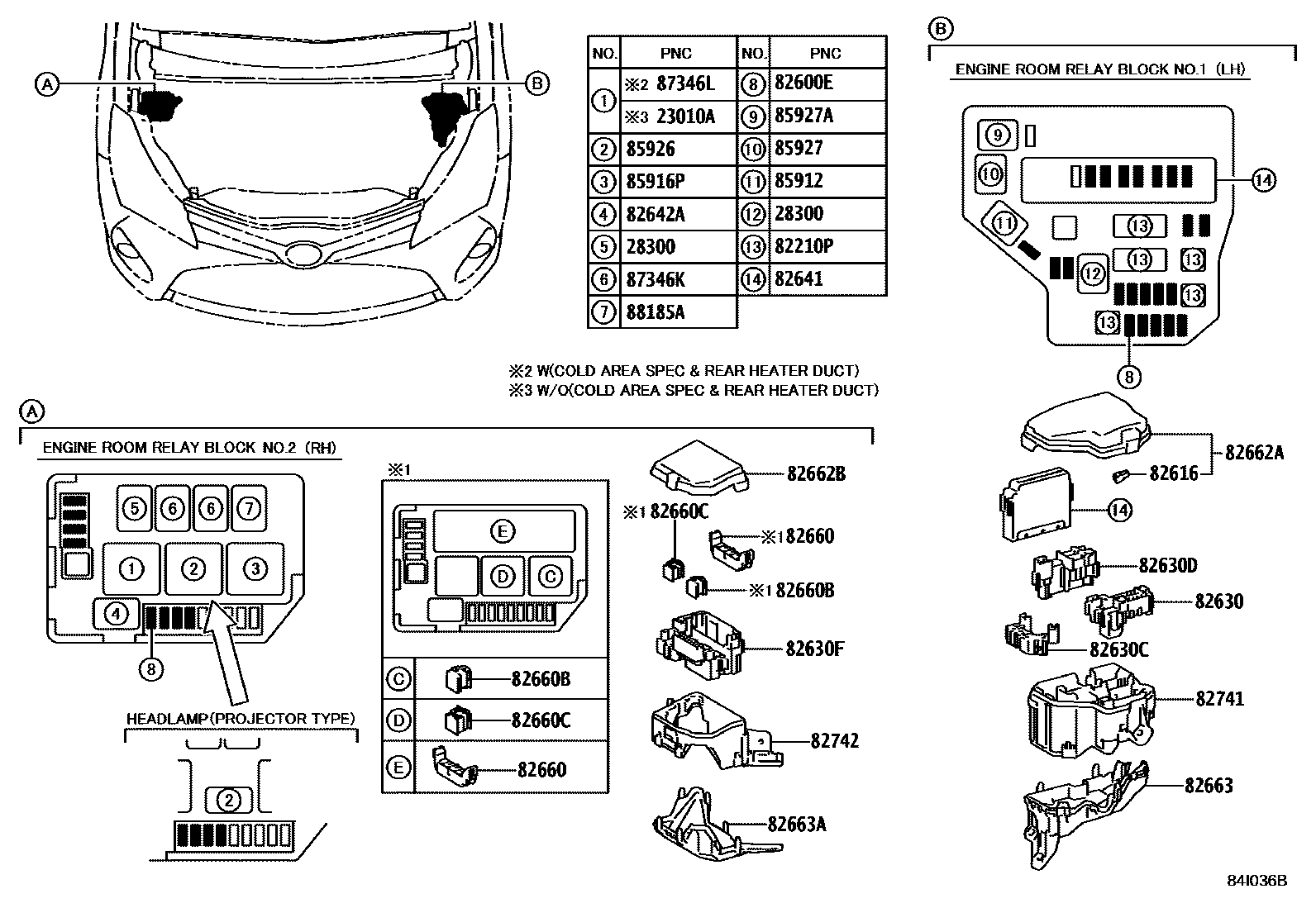

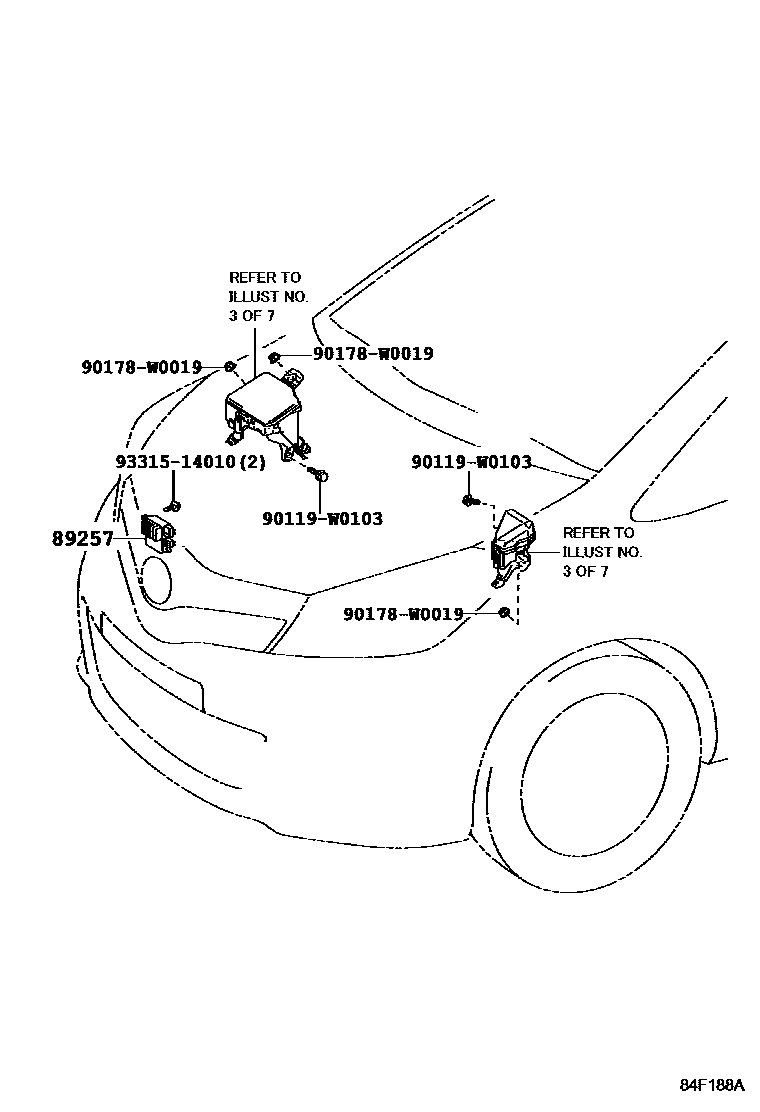

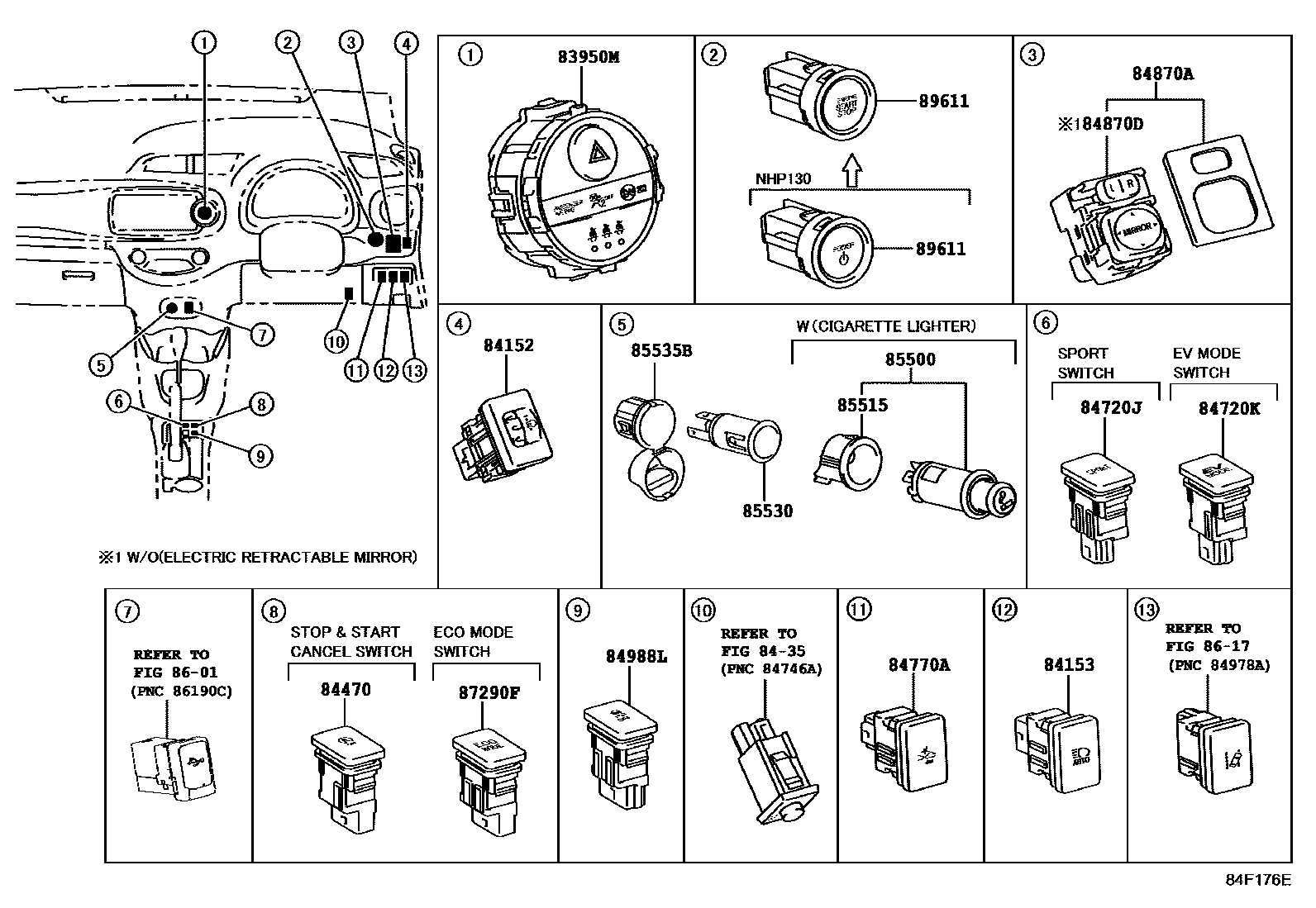

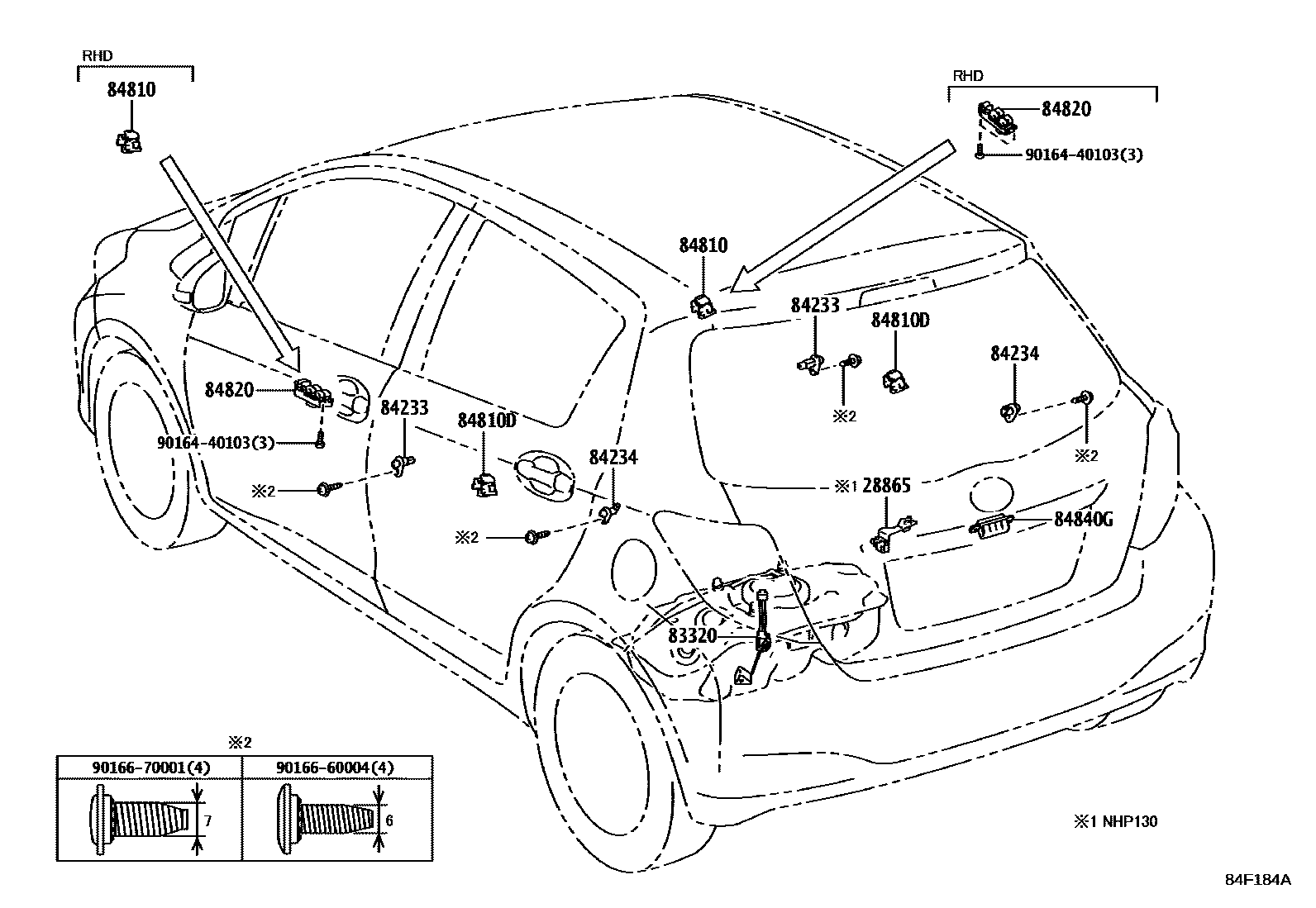

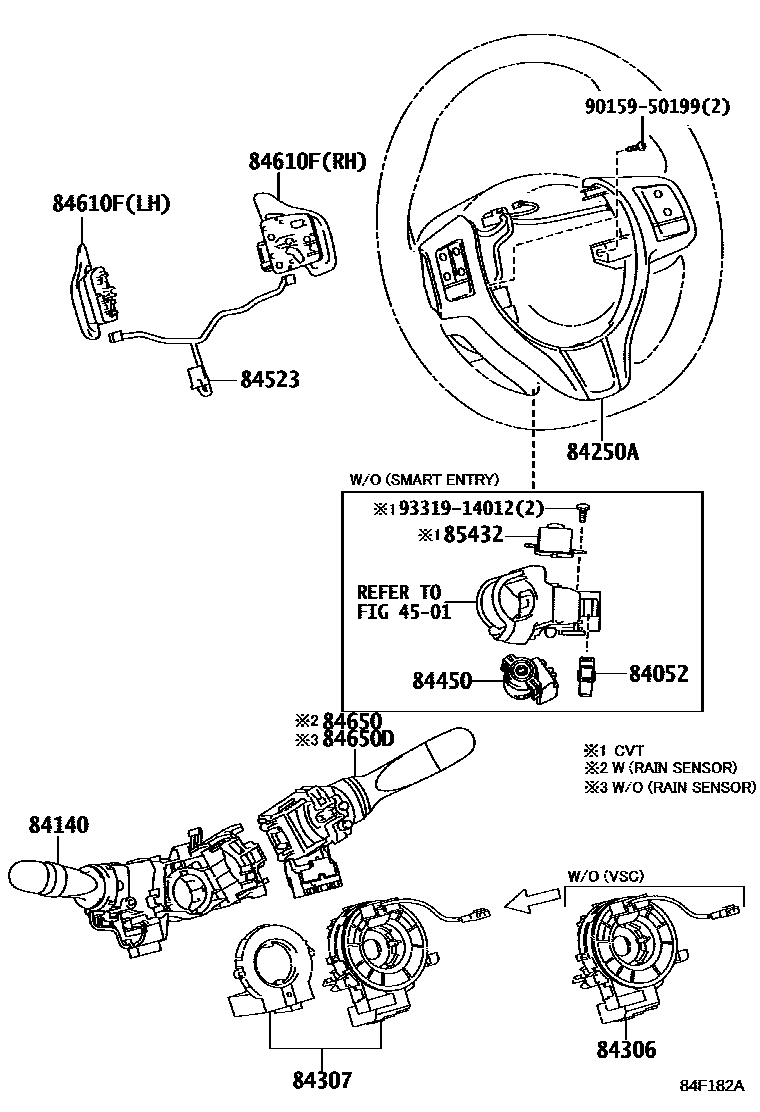

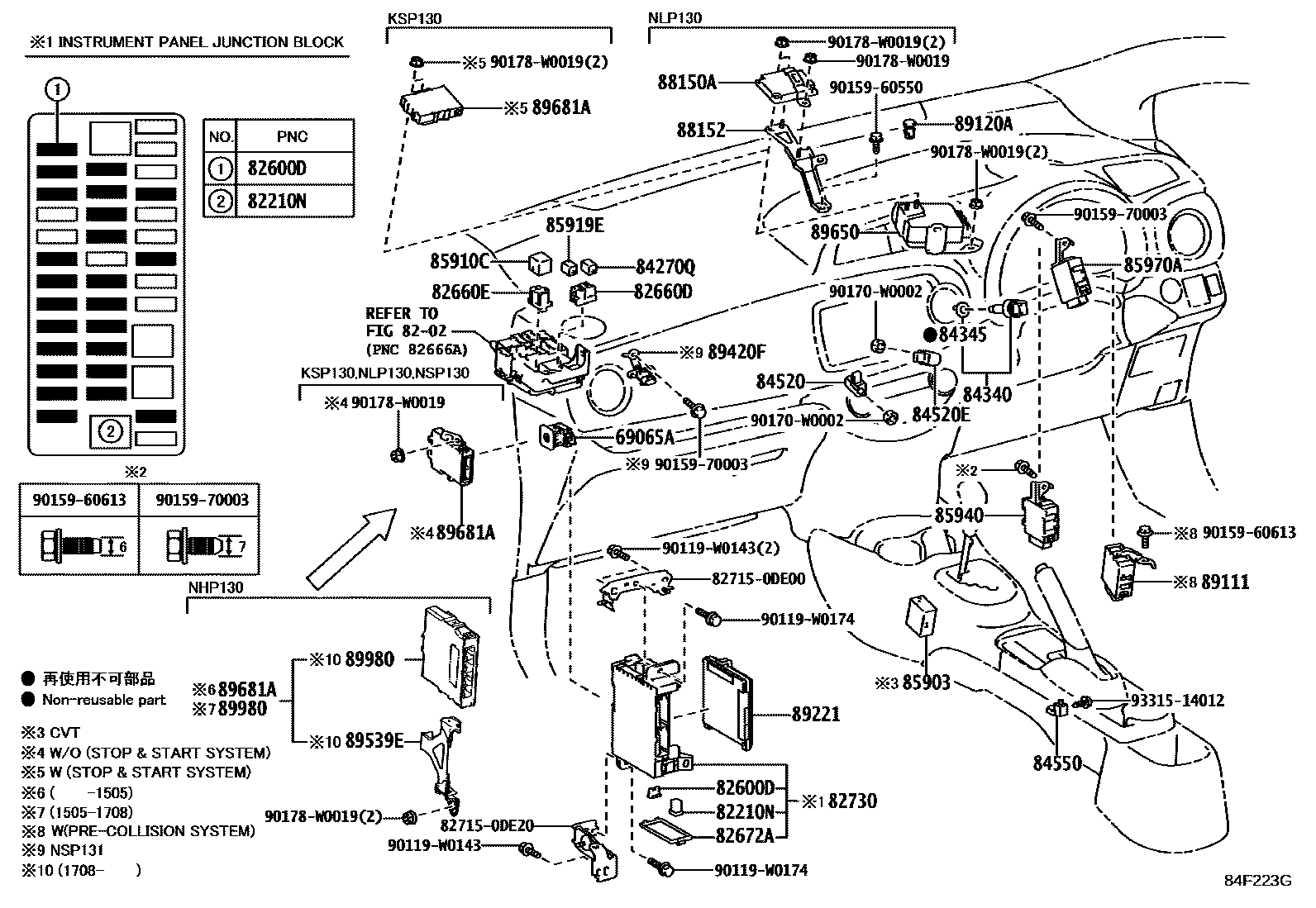

Toyota YARIS 开关和继电器和ECU — Figure 8401
Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 17 images and 130 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100P | water pump relay | 90080-87021 |
| 23010A | RELAIS, DISTRIBUTION A PROGRAMME VARIABLE | 90080-87030 |
| 28300 | Starter relay assembly | 28300-21020 |
| 28551 | glow plug controller | 28551-30010 |
| 28559 | Glow plug controller bracket No. 1 | 28559-0N010 |
| 28610 | Glow plug relay assembly | 28610-67010 |
| 28850 | Battery current sensor assembly | 28850-40020 |
| 28850C | ENS. CAPTEUR, ETAT BATTERIE | 28850-0Y020 |
| 28859A | SUPPORT, CAPTEUR D'INTENSITE DE BATTERIE | 28859-0Y050 |
| 28865 | battery thermometer sensor | 28865-21030 |
| 69065A | Air bag cut-off switch lock cylinder sub-assembly | 69065-02010 |
| 81550T | Reversing light relay | 90080-87021 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08246 · 90982-08294 · 90982-08295 · 90982-08296 · 90982-08300 · 90982-08302 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-52070 · 82620-52080 · 82620-52091 |
| 82621A | Fuse cover | 82621-0D020 · 82621-52150 |
| 82630 | Fuse holder assembly | 82631-0D010 |
| 82630C | Fuse holder assembly | 82631-0D020 |
| 82630D | fuse holder | 82631-0D030 · 82631-52050 |
| 82630F | fuse holder | 82631-0D040 · 82631-52060 |
| 82641 | Integrated relay No. 1 | 82641-47020 · 82641-52020 · 82641-52030 |
| 82642A | driving light relay | 90080-87021 |
| 82660 | Engine room relay box assembly | 82660-52120 |
| 82660B | Relay assembly | 82660-0H070 |
| 82660C | Relay assembly | 82660-0C110 · 82660-26270 |
| 82660D | Relay assembly | 82660-48020 |
| 82660E | Relay assembly | 82660-52100 |
| 82660F | Relay assembly | 82660-52010 |
| 82661 | No. 1 relay box cover | 82661-52030 |
| 82662A | No. 1 relay box upper cover | 82662-0D100 · 82662-0D110 · 82662-0D710 · 82662-52791 |
| 82662B | No. 2 relay box upper cover | 82662-0D310 · 82662-0D320 · 82662-0D321 · 82662-0D322 · 82662-0DA70 · 82662-0DD30 · 82662-52800 · 82662-52801 |
| 82663 | Relay box lower cover | 82663-0D060 · 82663-52100 |
| 82663A | No. 2 relay box lower cover | 82663-0D070 · 82663-52110 |
| 82672A | Junction box cover | 82672-52090 |
| 82730 | Instrument panel junction box assembly | 82730-52K40 |
| 82741 | Engine room relay box | 82741-0D070 · 82741-52090 |
| 82742 | Engine room No. 2 relay box | 82741-0D080 · 82741-52100 |
| 83320 | Fuel gauge sensor assembly | 83320-52261 · 83320-52270 · 83320-52280 |
| 83520 | Oil pressure gauge sensor assembly | 83520-60060 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-05010 · 83530-28010 · 83530-28020 · 83530-60010 · 83530-60020 |
| 83950M | Warning light assembly | 83950-0D050 · 83950-0D070 · 83950-0D100 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84140 | Headlight dimmer switch assembly | 84140-0D270 · 84140-0D300 · 84140-0D310 · 84140-0D320 |
| 84152 | Headlight beam height adjustment switch | 84152-02080 · 84152-0D090 |
| 84153 | Automatic high beam switch | 84153-0D010 · 84153-0D021 · 84153-15010 · 84153-F4010 |
| 84210 | Reversing light switch assembly | 84210-52030 · 84210-52050 |
| 84230 | Door control light switch assembly (for engine room) | 84230-52100 |
| 84233 | Door control light switch assembly (for front door) | 84231-0D030 |
| 84234 | Door control light switch assembly (for rear door) | 84231-0D040 |
| 84270Q | headlight relay | 90987-02027 |
| 84306 | Spiral cable sub-assembly | 84306-0D070 · 84306-0D270 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-0D060 · 84307-0D250 |
| 84340 | brake light switch assembly | 84340-09020 · 84340-09100 · 84340-09180 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-71010 |
| 84470 | Warning release switch assembly | 84470-0D030 · 84470-0D031 · 84470-0D060 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84520E | No. 2 clutch start switch assembly | 84520-42010 |
| 84523 | No. 1 switch harness | 84523-02010 |
| 84540 | Neutral start switch assembly | 84540-52070 |
| 84545 | INTERRUPTEUR, POSITION NEUTRE | 84545-52010 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84610F | Transmission shift switch assembly | 84610-02011 · 84610-02021 |
| 84650 | Windshield wiper switch assembly | 84652-0D190 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-0D180 · 84652-0D190 |
| 84720J | Mode selection switch assembly | 84720-0D050 · 84720-0D051 · 84720-0D110 |
| 84720K | ENSEMBLE INTERRUPTEUR, SELECTION DU MODELE | 84720-0D070 · 84720-0D071 |
| 84751 | Seat heater switch | 84751-0D040 · 84751-0D041 · 84751-0D050 · 84751-0D051 |
| 84770A | Collision prediction system cancel switch assembly | 84770-05011 · 84770-0D010 · 84770-0D020 · 84770-0D040 |
| 84810 | Electric window lift switch assembly | 84810-0D030 |
| 84810D | Rear electric window lift switch assembly | 84810-0D030 |
| 84820 | Electric window lift main switch assembly | 84820-02310 · 84820-02320 · 84820-02330 · 84820-02340 · 84820-0D170 · 84820-0D260 · 84820-0D270 · 84820-0D280 |
| 84840G | Back door opener switch assembly | 84840-02050 · 84840-02060 · 84840-05040 · 84840-05050 · 84840-28030 · 84840-28040 |
| 84870A | Exterior rearview mirror switch assembly | 84870-0D150 · 84870-0D151 · 84870-0F010 |
| 84870D | No. 2 exterior rearview mirror switch assembly | 84872-02050 |
| 84988L | VSC off switch | 84988-02040 · 84988-02041 · 84988-0D010 · 84988-0D011 |
| 85432 | Key interlock solenoid valve | 85432-71010 |
| 85500 | Cigarette lighter assembly | 85500-09080 |
| 85515 | Cigarette lighter frame bracket | 85515-0D010 |
| 85530 | No. 1 power socket assembly | 85530-0D020 · 85530-0D021 |
| 85535B | No. 1 power outlet cover | 85535-52040 |
| 85903 | Shift lock control ECU sub-assembly | 85903-52010 |
| 85910C | Relay assembly (for heater blower motor) | 90080-87031 · 90987-04010 |
| 85910X | Rear view mirror heater relay | 90080-87021 |
| 85912 | defogger relay | 90080-87020 · 90080-87021 |
| 85916P | headlight relay | 90080-87030 |
| 85919E | brake light relay | 90080-87020 |
| 85924C | RELAI, IGCT | 90080-87030 |
| 85926 | Headlight dimmer relay | 90080-87021 · 90080-87031 |
| 85927 | cooling fan relay | 90080-87021 · 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90080-87020 · 90987-04004 |
| 85928B | Cooling fan resistor | 85928-52030 · 85928-52032 |
| 85940 | Windshield wiper relay assembly | 85940-0D030 |
| 85959A | Relay mounting parts | 85959-0D010 |
| 85970A | Double lock door control relay assembly | 85970-52050 |
| 87290 | Heater switch assembly | 87290-02030 · 87290-0D050 |
| 87290F | ECO switch assembly | 87290-0D070 · 87290-0D071 |
| 87346K | PTC heater relay | 90080-87021 |
| 87346L | PTC heater relay | 90080-87030 |
| 88150A | Driving assistance ECU assembly | 88150-52010 |
| 88152 | SUPPORT, ORDINATEUR D'ASSISTANCE DE CONDUITE | 88152-0D010 · 88152-0D020 |
| 88185A | RELAIS, CHAUFFAGE PRE-COLLISION EN VILLE | 90080-87021 |
| 88280A | Clutch switch assembly | 88280-42010 |
| 89111 | Network gateway ECU | 89100-52030 |
| 89120A | Automatic light control sensor | 89121-52010 |
| 89221 | Multi-channel network body ECU | 89220-0D120 · 89220-0D121 · 89220-0D130 · 89220-0D131 · 89220-0D140 · 89220-0D141 · 89220-0D150 · 89220-0D151 · 89220-0D160 · 89220-0D170 · 89220-0D230 · 89220-0D240 · 89220-0D250 · 89220-0D270 · 89220-0D280 · 89220-0D290 · 89220-0D300 · 89220-0D310 · 89220-0D320 · 89220-0D360 · 89220-0D370 · 89220-0D380 · 89220-0D390 |
| 89257 | Cooling fan ECU | 89257-12020 |
| 89420F | Vacuum sensor assembly | 89420-52110 |
| 89425 | Exhaust gas temperature sensor | 89425-02010 · 89425-52031 |
| 89425A | No. 2 exhaust gas temperature sensor | 89425-02020 · 89425-52021 |
| 89434 | Manifold temperature sensor bracket | 89434-52050 |
| 89437 | sensor cover | 89437-12110 |
| 89439 | Sensor holder | 89439-12090 · 89439-52010 |
| 89451A | shift lever position sensor | 89451-52040 |
| 89465 | oxygen sensor | 89465-0H030 · 89465-0H060 · 89465-52540 · 89465-52670 · 89465-52740 |
| 89465A | Oxygen sensor No. 2 | 89465-0D240 · 89465-0D250 · 89465-0D280 |
| 89467B | air fuel ratio sensor | 89467-02080 · 89467-02100 · 89467-52080 · 89467-52110 · 89467-53060 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-02110 |
| 89481B | Differential pressure sensor | 89481-12050 · 89481-71010 |
| 89491 | Engine oil level sensor | 89491-52031 · 89491-52051 · 89491-52052 |
| 89491A | Engine oil level sensor gasket | 90430-36005 |
| 89539E | ECU bracket | 896B7-0D020 |
| 89611 | push button start switch | 89611-02102 · 89611-02110 · 89611-02111 · 89611-02112 · 89611-0D030 |
| 89615 | knock control sensor | 89615-0H010 · 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-0D254 · 89650-0D255 · 89650-0D256 · 89650-0D264 · 89650-0D265 · 89650-0D266 · 89650-0D274 · 89650-0D275 · 89650-0D276 · 89650-0D283 · 89650-0D284 · 89650-0D285 · 89650-0D294 · 89650-0D295 · 89650-0D296 · 89650-0D303 · 89650-0D304 · 89650-0D305 · 89650-0D314 · 89650-0D315 · 89650-0D316 · 89650-0D324 · 89650-0D325 · 89650-0D326 · 89650-0D332 · 89650-0D333 · 89650-0D334 · 89650-0D342 · 89650-0D343 · 89650-0D352 · 89650-0D353 · 89650-0D354 · 89650-0D362 · 89650-0D363 · 89650-0D371 · 89650-0D372 · 89650-0D373 · 89650-0D381 · 89650-0D382 · 89650-0D383 · 89650-0D393 · 89650-0D394 · 89650-0D395 · 89650-0D501 · 89650-0D511 · 89650-0D521 · 89650-0D552 |
| 89681A | Power management control ECU | 89690-0D080 · 89690-0D090 · 89690-0D100 · 89690-0D110 · 89690-0D120 · 89690-0D130 |
| 89980 | Hybrid vehicle control ECU assembly | 89980-0D010 · 89980-0D020 · 89980-0D030 · 89980-0D040 · 89980-0D050 · 89980-0D060 · 89981-0D161 · 89981-0D171 |
