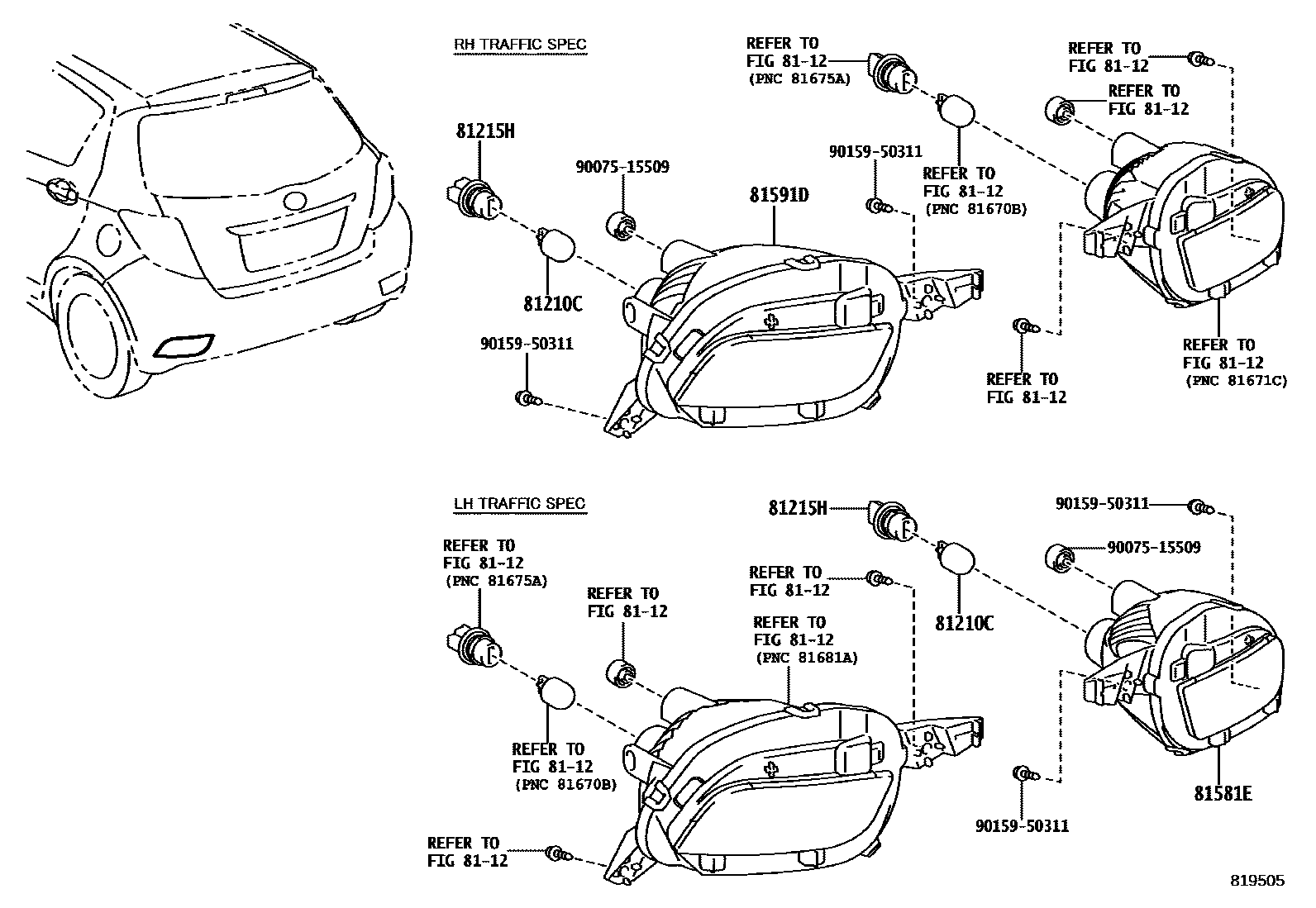

Toyota YARIS 后雾灯 — Figure 8116
Toyota YARIS EPC diagram 8116, 后雾灯, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210C | Rear fog light bulb | 90981-13043 |
| 81215H | Rear fog light lamp holder | 90075-99080 |
| 81581E | Right rear fog lamp cover and lamp body | 81581-0D230 |
| 81591D | Left rear fog lamp cover and lamp body | 81591-0D190 |
