Toyota YARIS 倒车灯 — Figure 8112

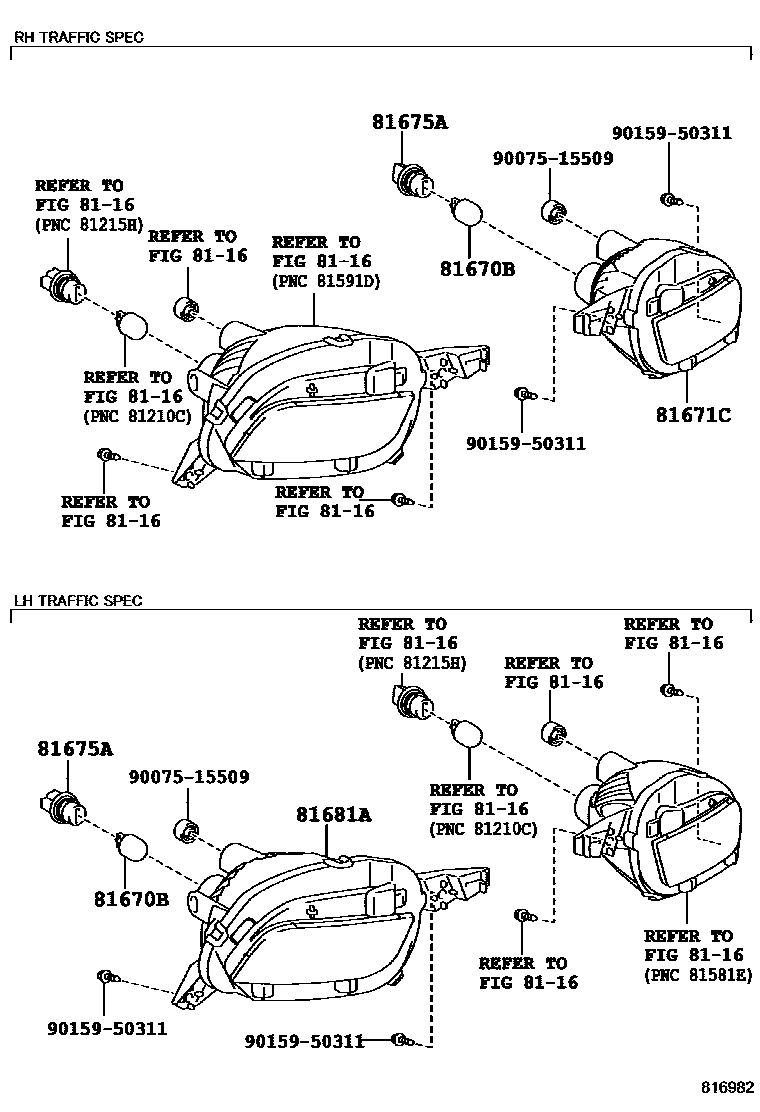

Toyota YARIS EPC diagram 8112, 倒车灯, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81670B | Bulb (for reversing lights) | 90981-13043 |
| 81671C | Right reversing light shade and body | 81581-0D220 |
| 81675A | Lamp holder plug (for reversing lights) | 90075-99080 |
| 81681A | Left reversing light shade and body | 81591-0D200 |
