Toyota YARIS Headlamp — Figure 8101

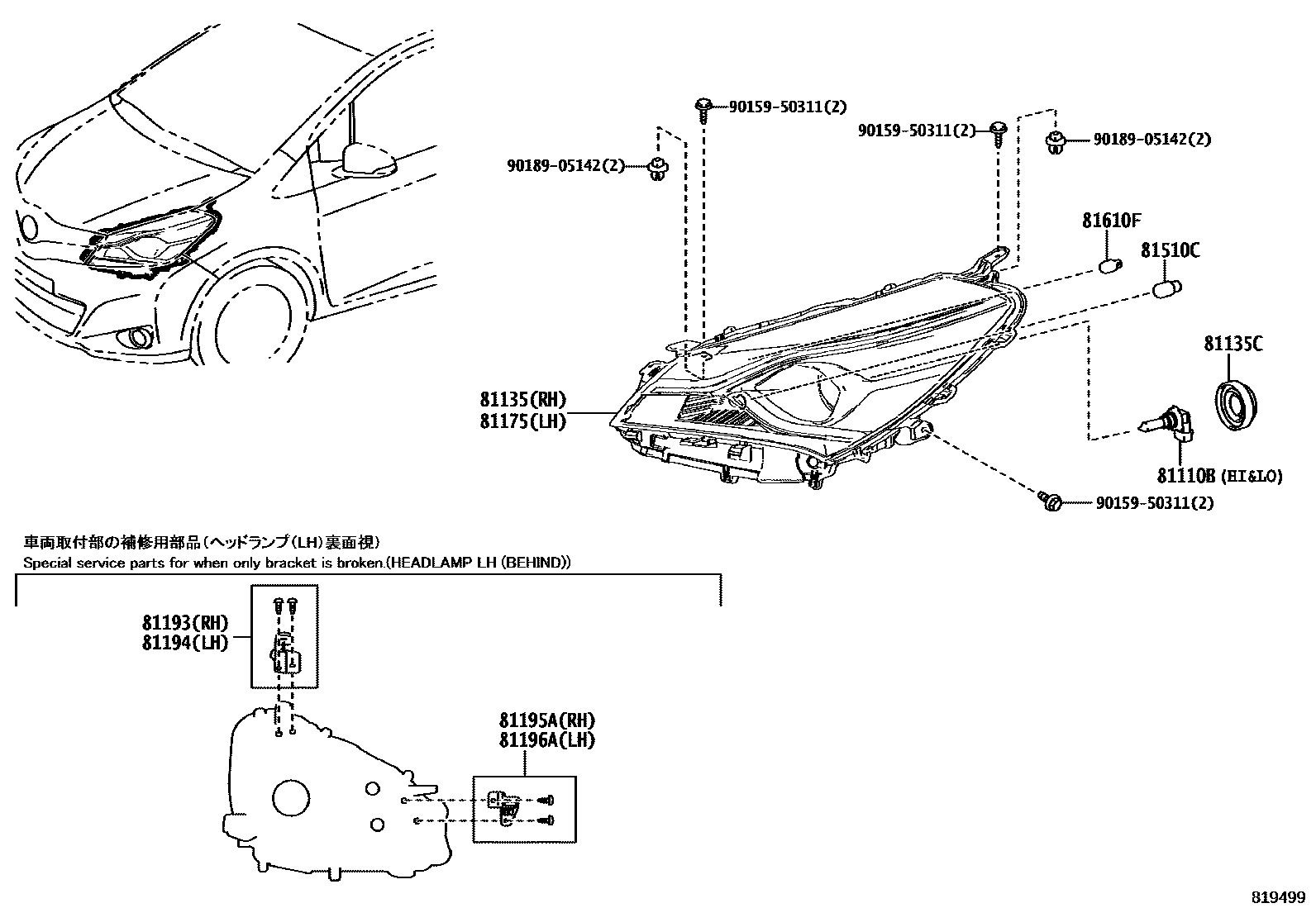

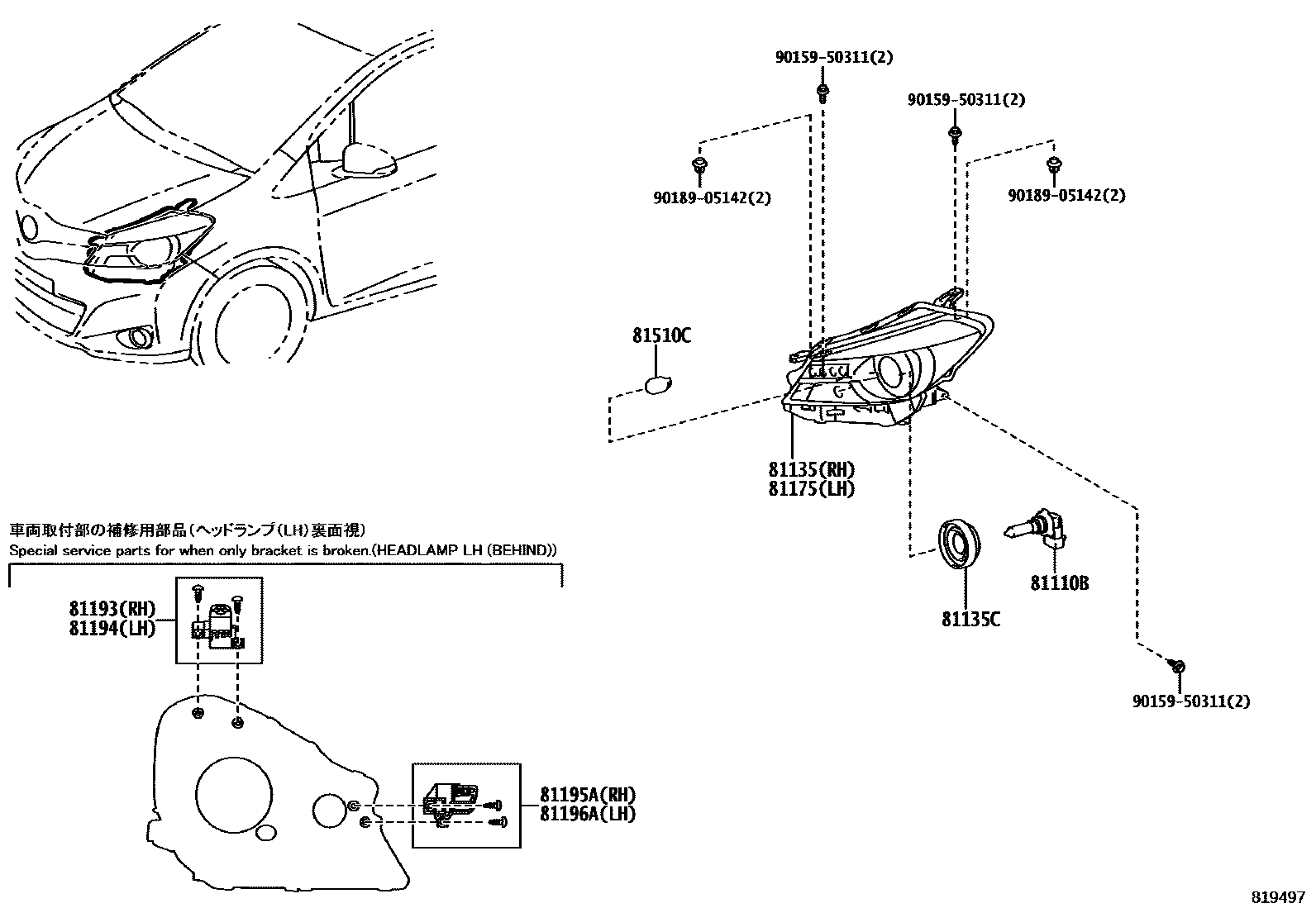

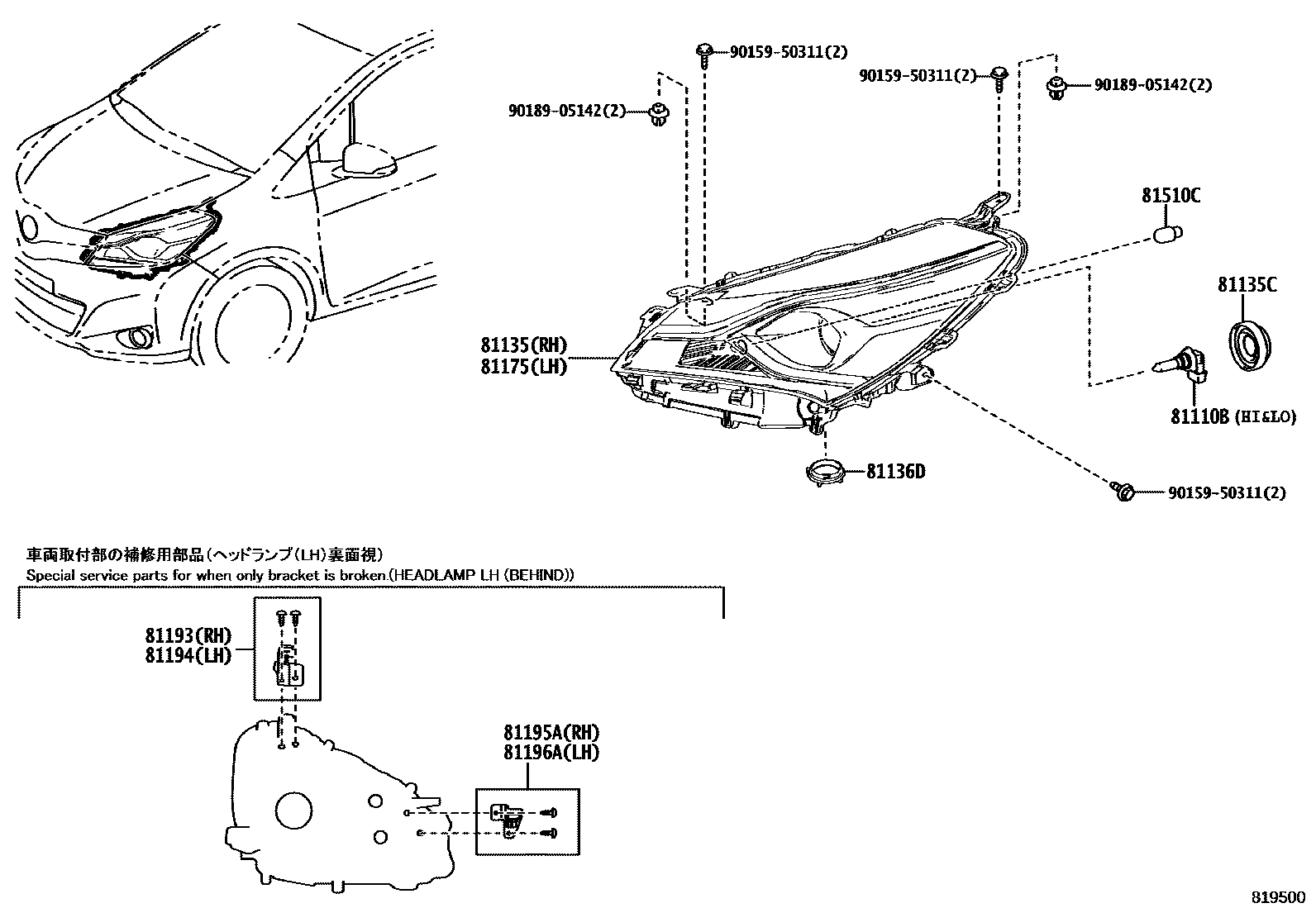

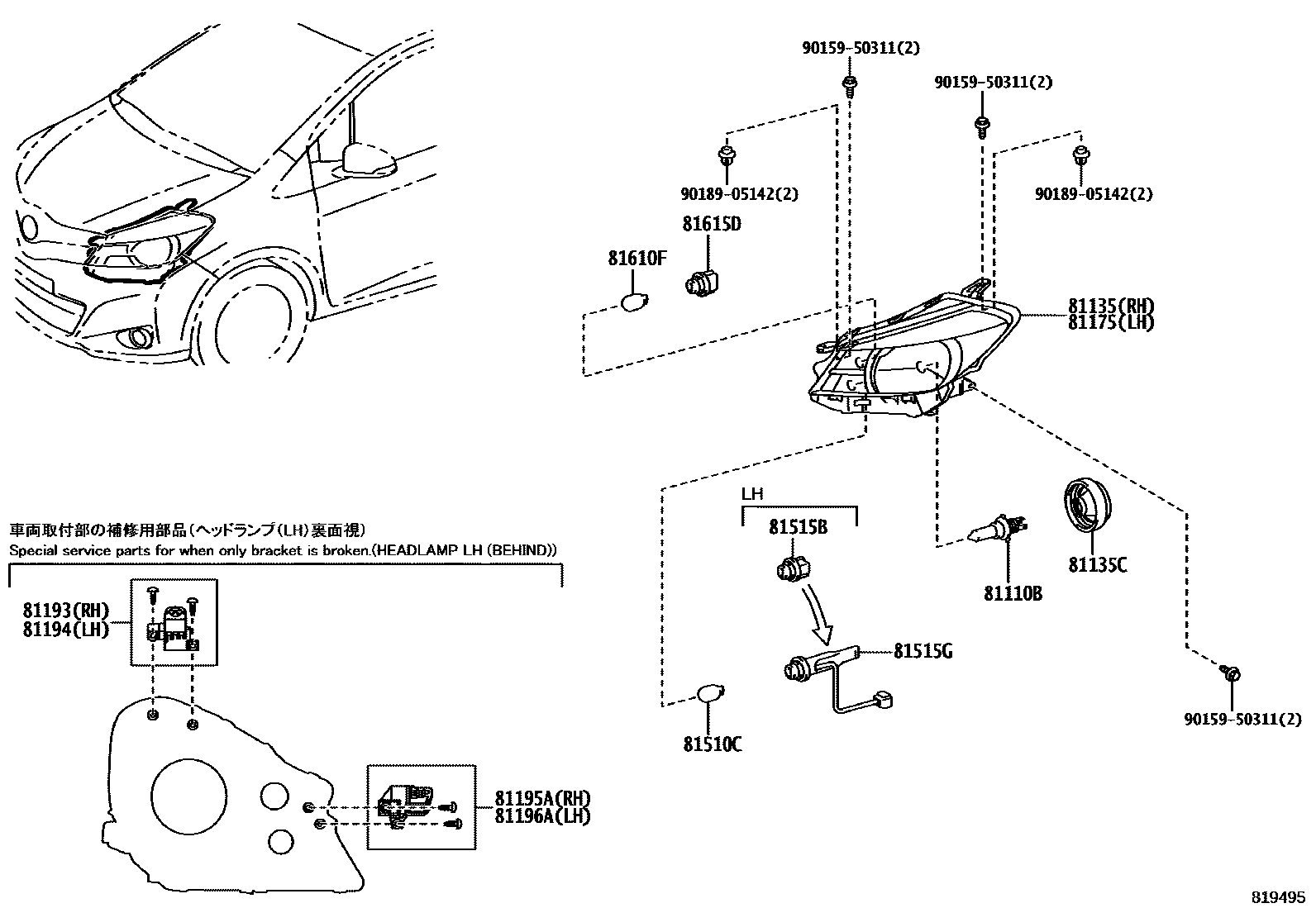

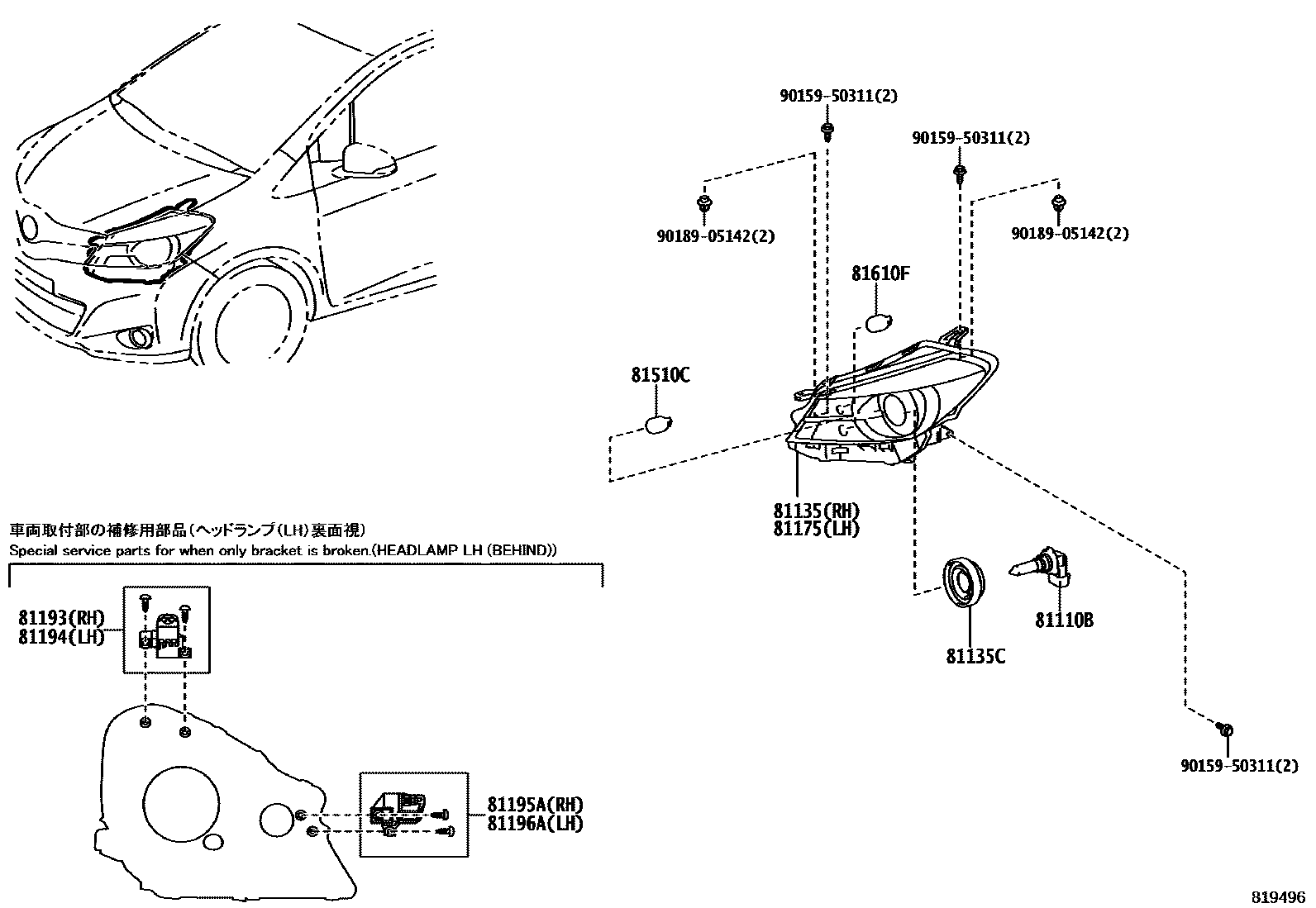

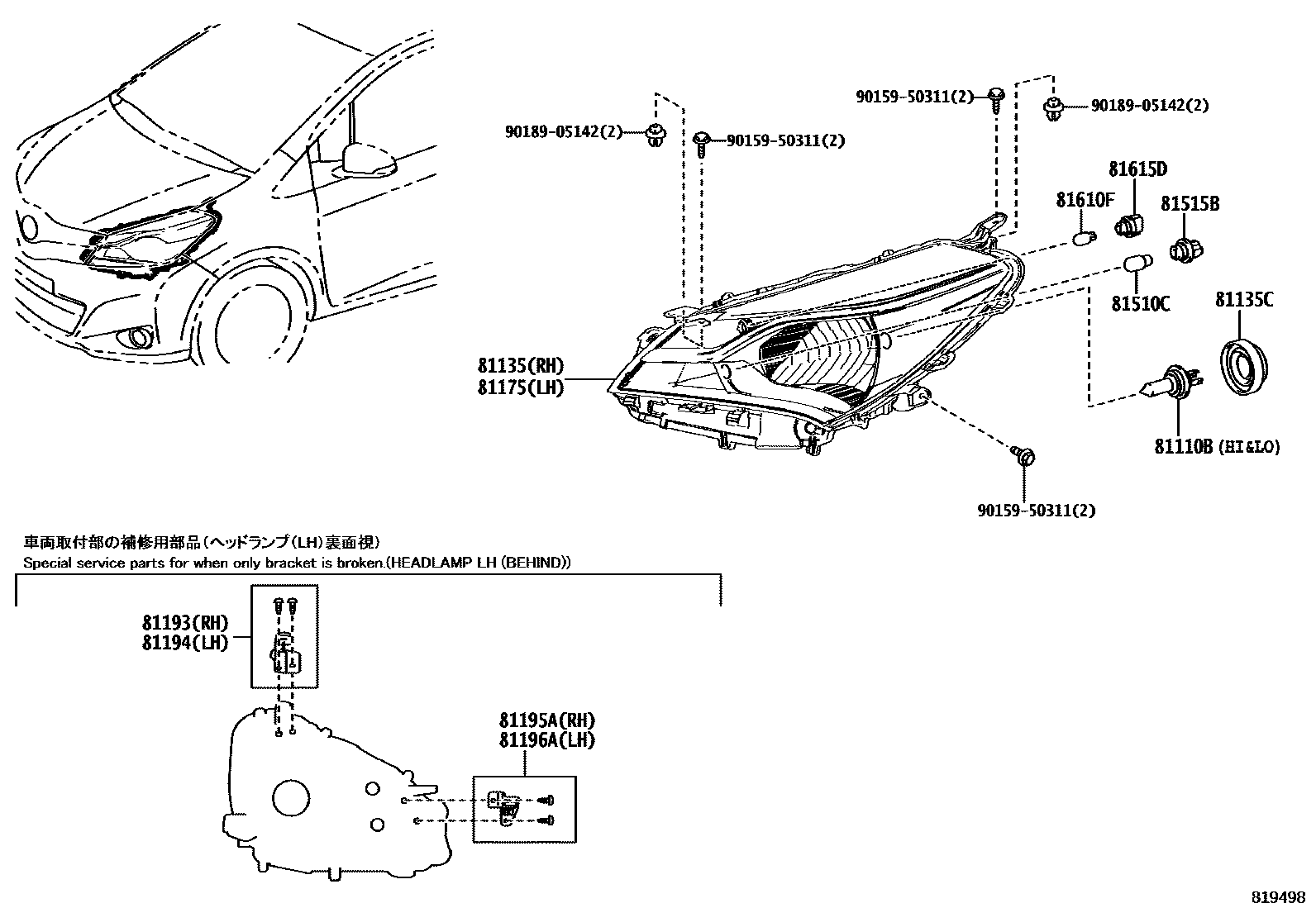

Toyota YARIS EPC diagram 8101, Headlamp, with 6 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110B | Bulb (for headlight No. 1) | 90981-13058 · 90981-13091 |
| 81135 | Right headlight assembly | 81130-0DA10 · 81130-0DA20 · 81130-0DA30 · 81130-0DA40 · 81130-0DA50 · 81130-0DA60 · 81130-0DJ70 · 81130-0DJ80 · 81130-0DJ90 · 81130-0DK00 · 81130-0DK10 · 81130-0DK20 · 81130-0DN00 · 81130-0DN10 |
| 81135C | No. 1 headlight rear cover | 90075-65002 · 90075-65006 |
| 81136D | headlight cover | 90075-66017 |
| 81175 | Left headlight assembly | 81170-0DA10 · 81170-0DA20 · 81170-0DA30 · 81170-0DA40 · 81170-0DA50 · 81170-0DA60 · 81170-0DJ70 · 81170-0DJ80 · 81170-0DJ90 · 81170-0DK00 · 81170-0DK10 · 81170-0DK20 · 81170-0DM70 · 81170-0DM80 |
| 81193 | Right headlight upper protective ring | 81193-0D100 |
| 81194 | Left headlight upper protective ring | 81194-0D100 |
| 81195A | Right headlight lower protection ring | 81195-0D090 |
| 81196A | Left headlight lower protection ring | 81196-0D090 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81515G | Front turn signal lamp holder and wiring harness | 81125-0DA10 |
| 81610F | Light bulb (for width indicator light) | 90981-13088 |
| 81615D | Width light lamp holder | 90075-60086 |
