Toyota YARIS accelerator pedal connecting rod — Figure 7801

Toyota YARIS EPC diagram 7801, accelerator pedal connecting rod, with 1 images and 2 PNC and OE references.

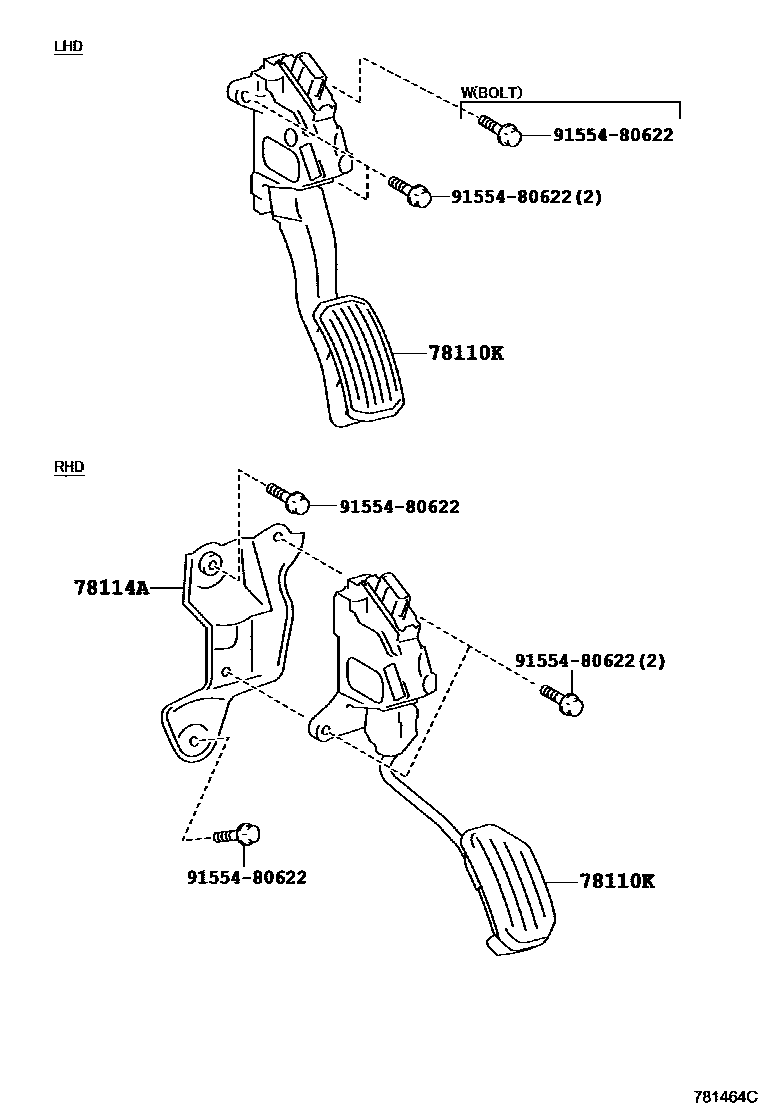

Toyota YARIS accelerator pedal connecting rod EPC diagram — 781464C
accelerator pedal connecting rod — 781464C (201407 – 999999)

PNC and OE references

PNCPart nameOE numbers
78110KAccelerator pedal sensor assembly78110-0D040 · 78110-0D100 · 78110-0D110 · 78110-0D120
78114Aaccelerator pedal bracket78114-0D032
