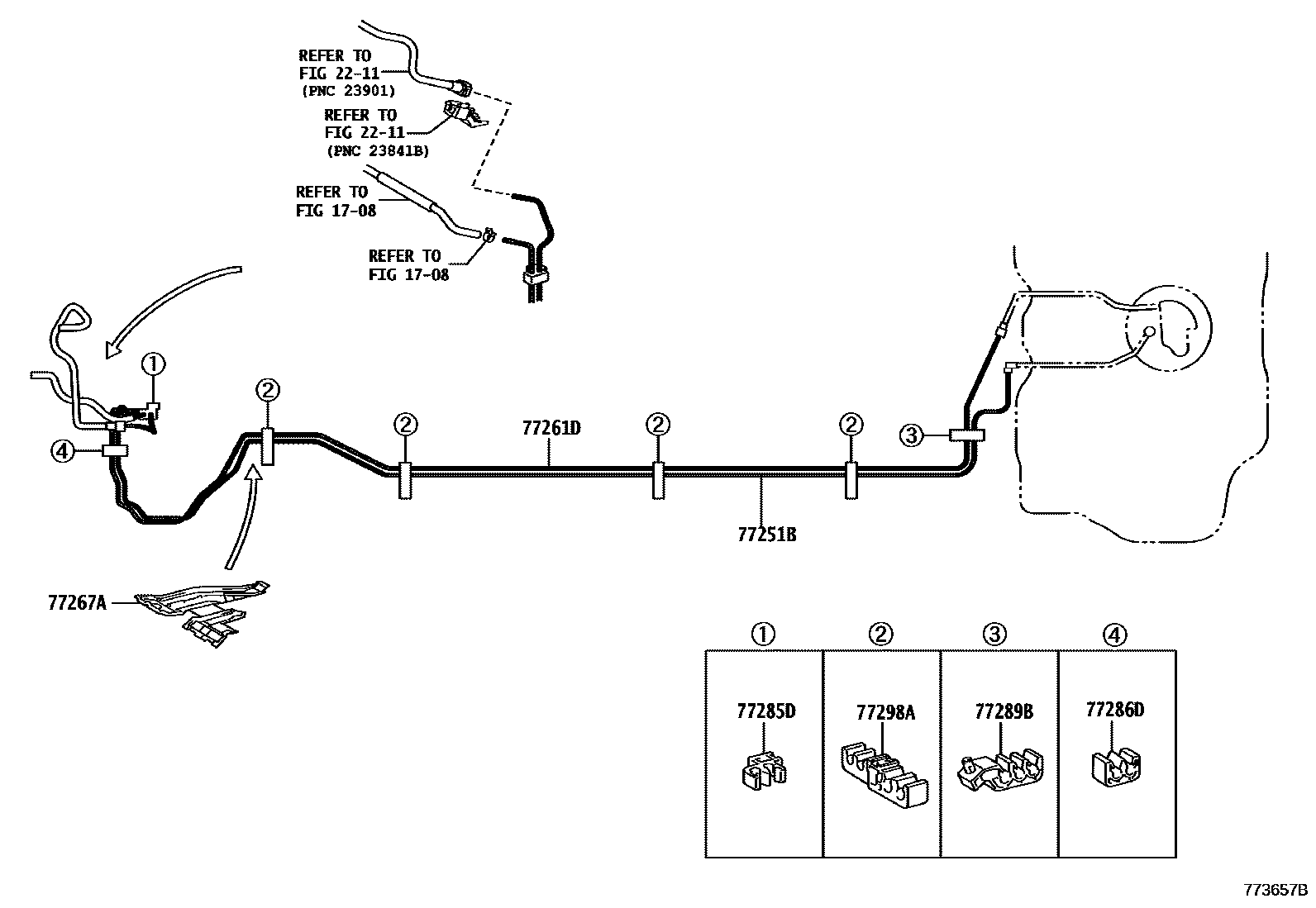

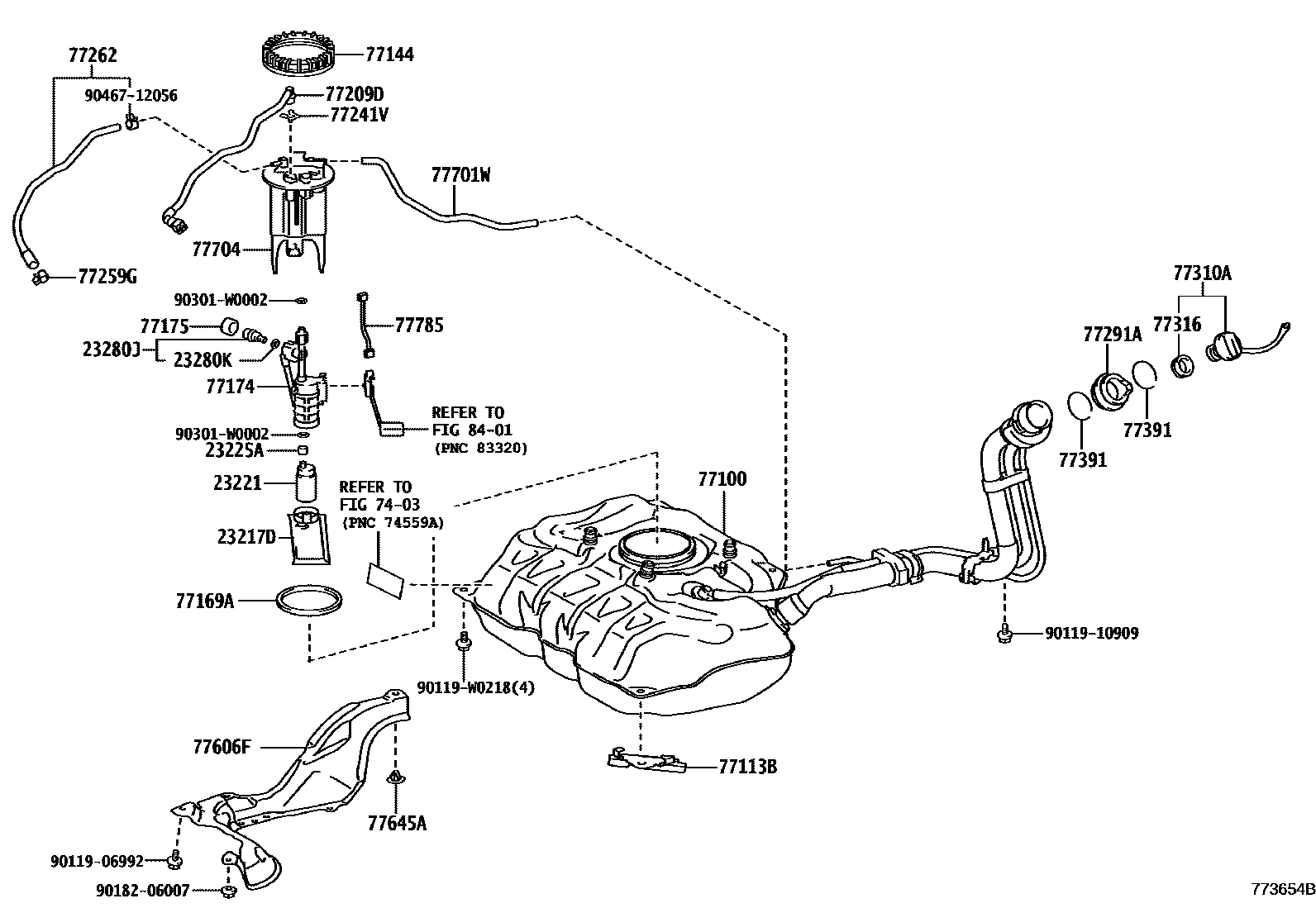

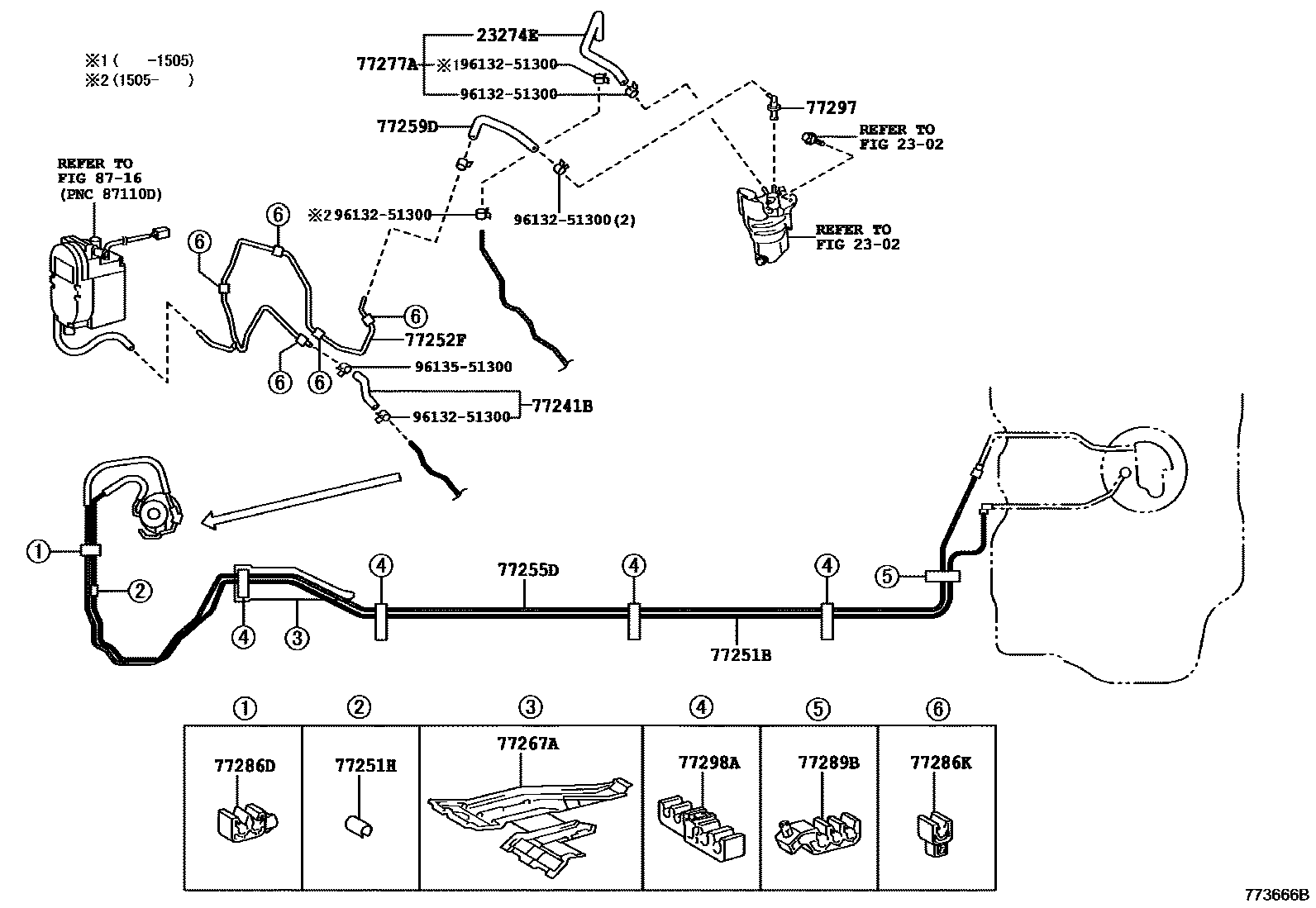

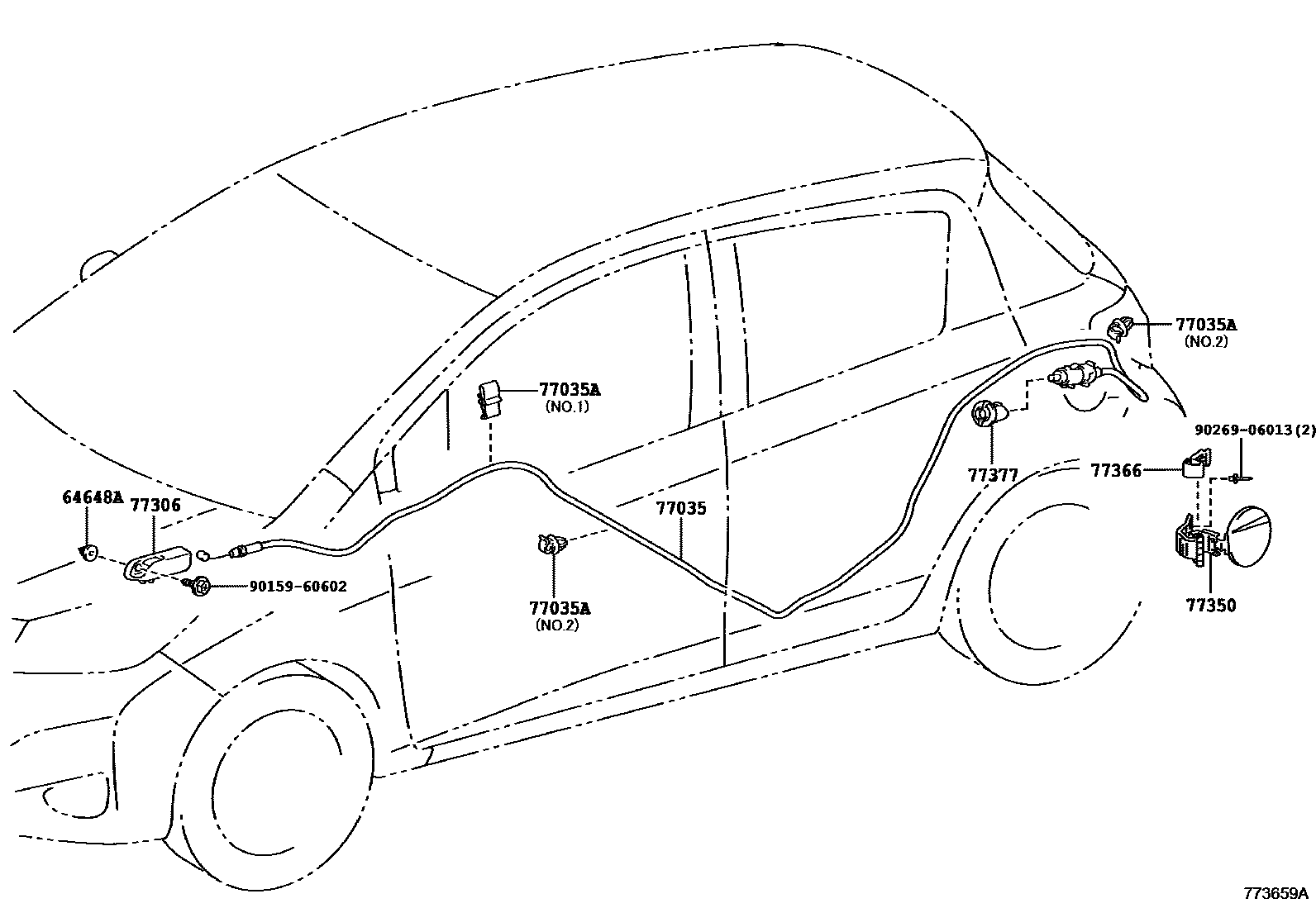

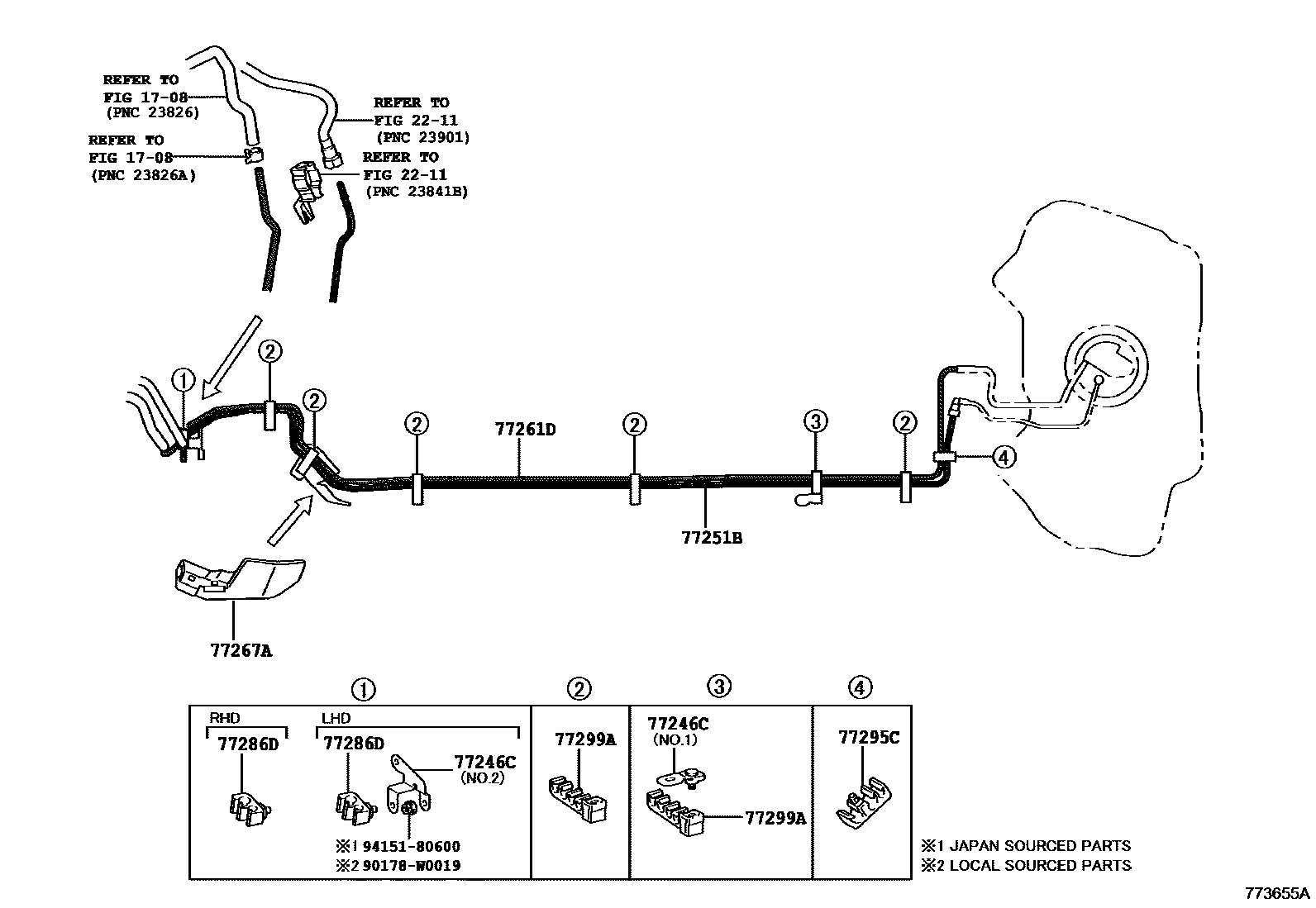

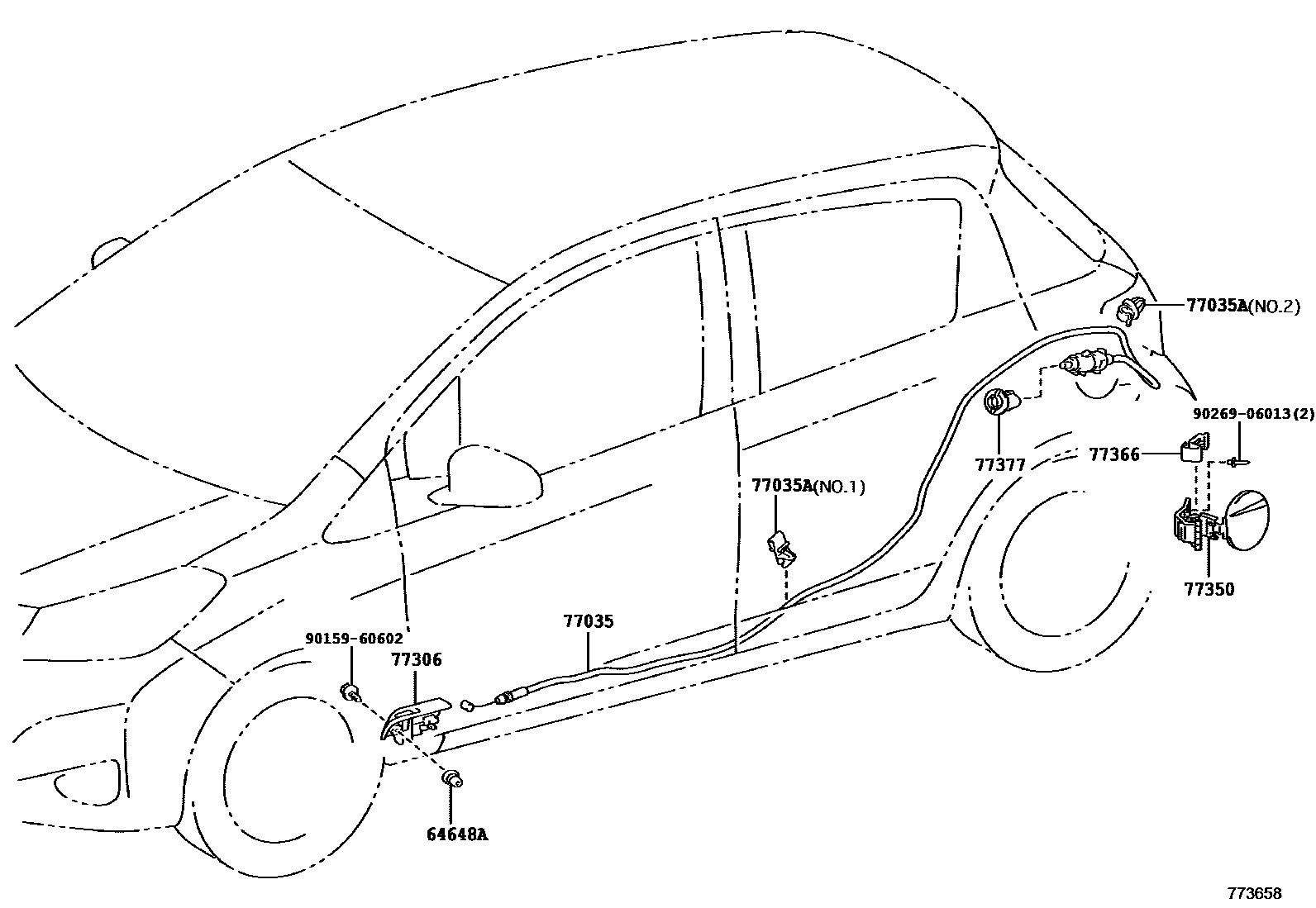

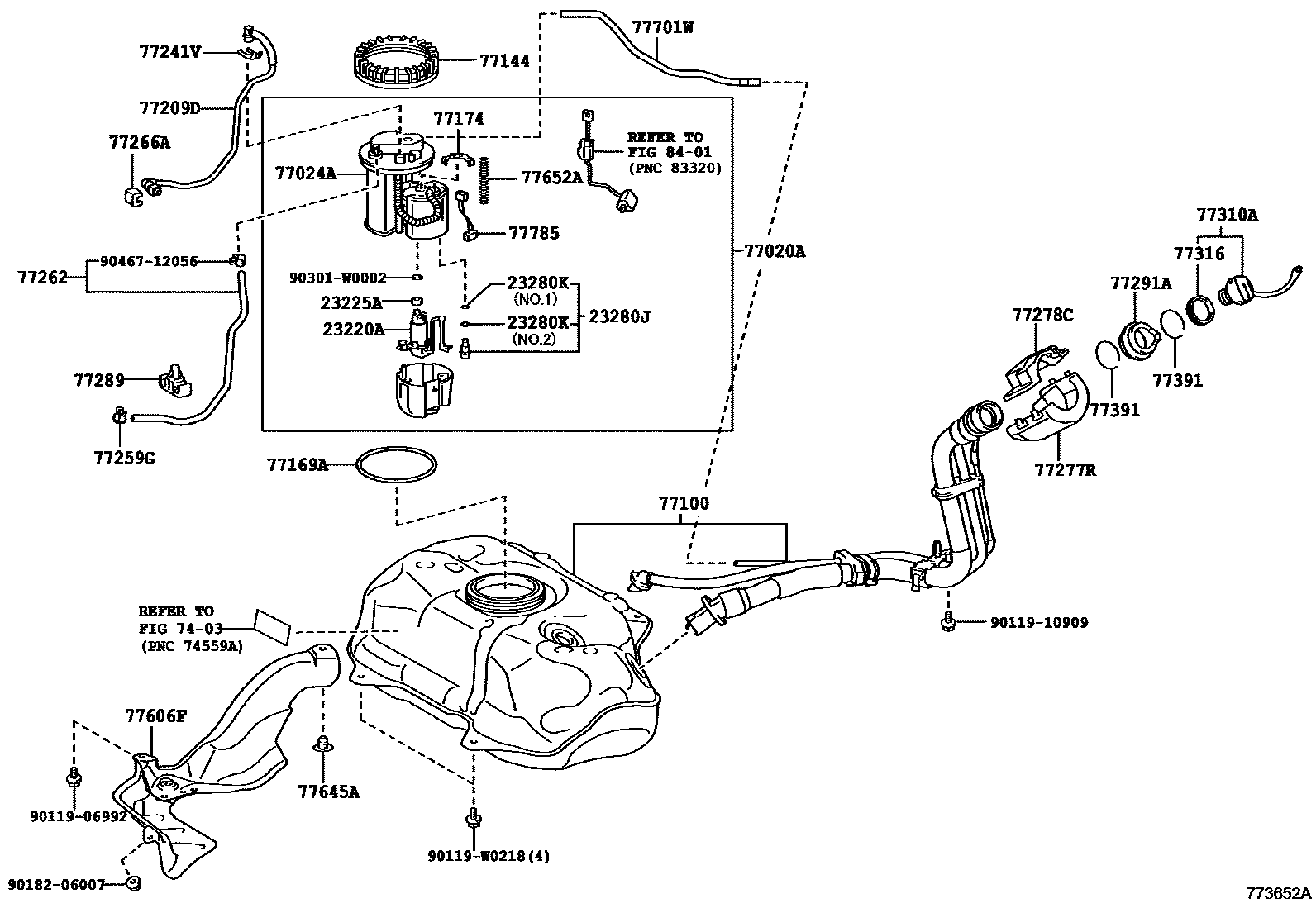

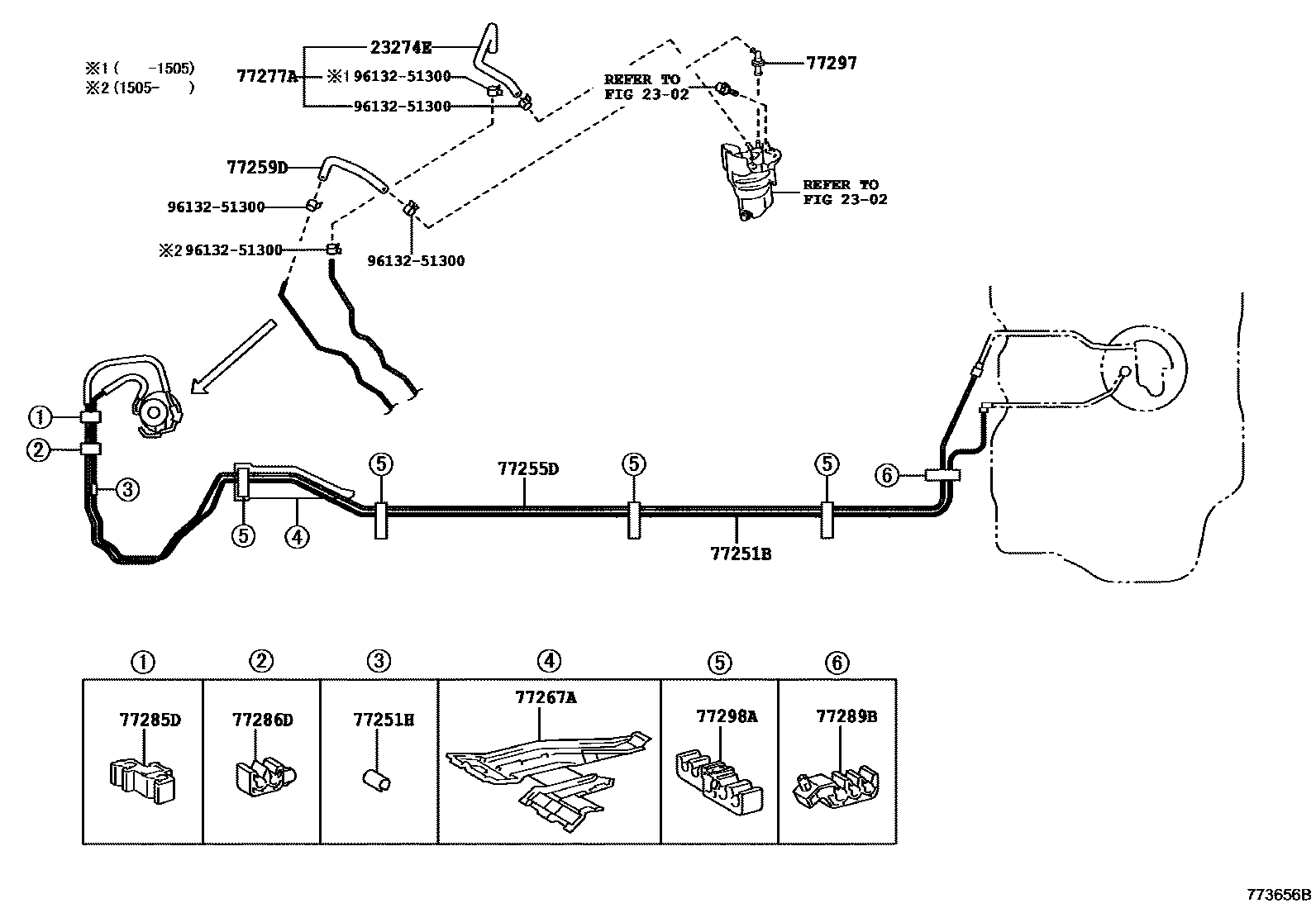

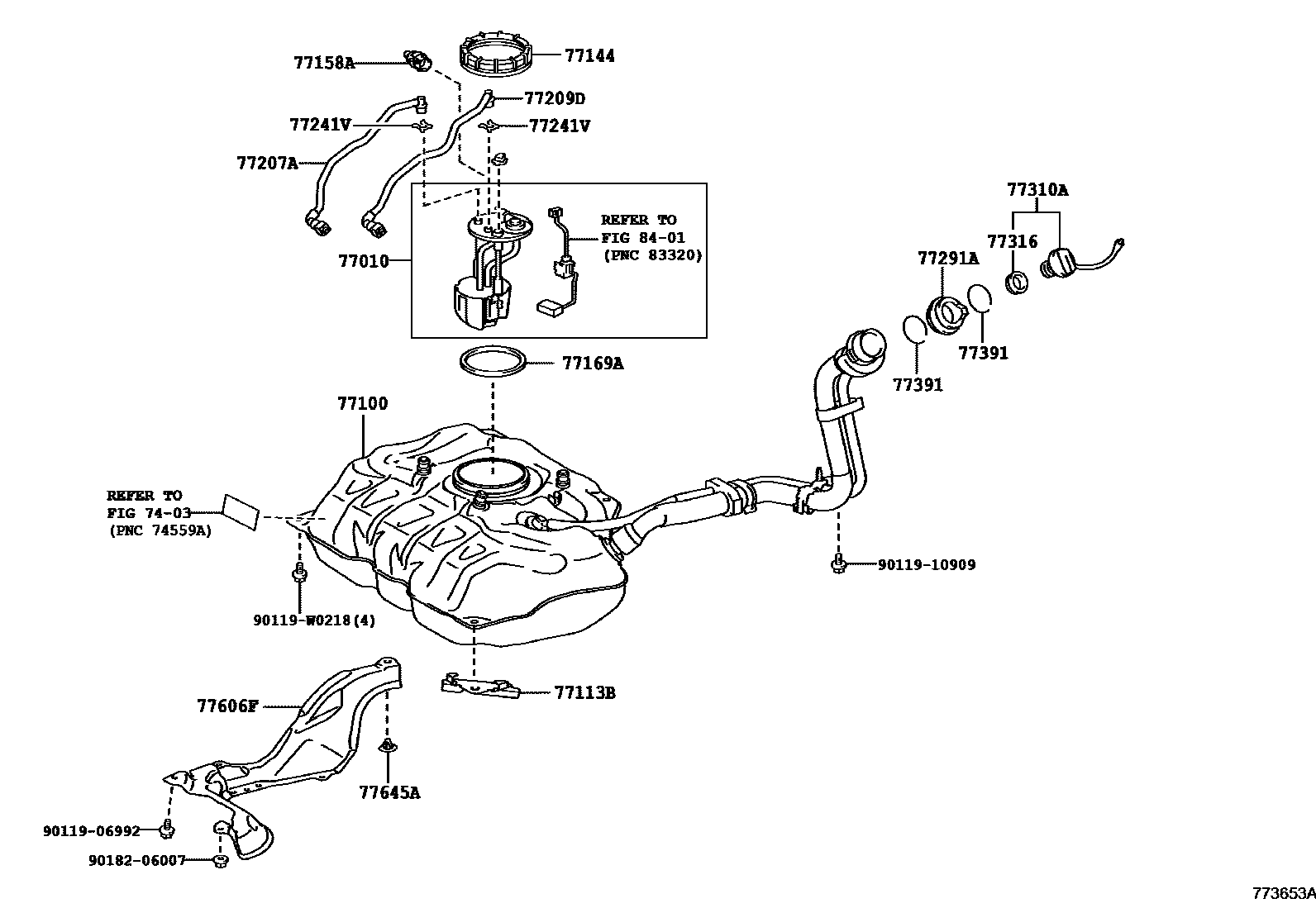

Toyota YARIS 燃油箱和燃油管 — Figure 7701
Toyota YARIS EPC diagram 7701, 燃油箱和燃油管, with 9 images and 61 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-0Q030 |
| 23220A | Fuel pump assembly with filter | 23220-0Q041 |
| 23221 | fuel pump | 23221-0Q051 |
| 23225A | fuel pump septum | 23225-0T010 |
| 23274E | No. 3 fuel hose | 23274-0N030 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 · 23280-22010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-07020 · 90301-15024 |
| 64648A | Trunk door lock opener seal | 64648-32020 |
| 77010 | Fuel tank vent pipe assembly | 77010-0D042 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-0D161 |
| 77024A | Fuel absorber sub-assembly | 77024-0D120 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0D240 · 77035-0D241 · 77035-0D242 · 77035-0D250 · 77035-0D251 · 77035-0D252 · 77035-0D630 · 77035-0D640 |
| 77035A | Clip (for fuel filler cap lock control cable) | 90469-04004 · 90469-06005 |
| 77100 | fuel tank assembly | 77001-0D160 · 77001-0D180 · 77001-0D200 · 77001-0D340 · 77001-0D470 · 77001-0D480 |
| 77113B | fuel tank side panel | 77113-0D050 |
| 77144 | Fuel pump instrument fixture | 77144-0D070 |
| 77158A | Fuel tank suction pipe bracket | 77158-0D020 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0D070 · 77169-0D150 |
| 77174 | No. 1 oil suction pipe bracket | 77174-0D050 · 77174-0D070 |
| 77175 | No. 2 oil suction pipe bracket | 77175-0D030 |
| 77207A | Fuel return pipe sub-assembly | 77204-0D070 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-0D100 · 77209-0D110 · 77209-0D120 · 77209-0D310 · 77209-0D320 |
| 77241B | No. 2 fuel hose (for No. 1 main fuel line) | 77049-52010 |
| 77241V | Pipe joint clip | 77241-32060 |
| 77246C | Main fuel pipe bracket | 77246-0D010 · 77246-52020 |
| 77251B | main fuel pipe | 77251-0D270 · 77251-0D290 · 77251-0D300 · 77251-0D310 |
| 77251H | Main fuel line cushion | 32926-20010 |
| 77252F | Rear main fuel pipe | 23902-0N010 · 77252-0D080 |
| 77255D | fuel return pipe | 77255-0D070 · 77255-0D080 |
| 77259D | No. 1 fuel hose | 77259-0D090 |
| 77259G | fuel hose clip | 90466-13004 · 90466-13005 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-0D230 · 77261-0D250 |
| 77262 | No. 2 fuel evaporation exhaust pipe | 77028-0D090 · 77028-0D110 |
| 77266A | No. 1 fuel line protection device | 77266-52110 |
| 77267A | No. 2 fuel pipe protection device | 77267-52050 · 77267-52061 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 23802-0N040 · 23802-0N060 |
| 77277R | Fuel tank filler pipe protection device | 77277-52090 |
| 77278C | No. 2 fuel tank filler pipe protection device | 77278-12070 |
| 77285D | No. 1 fuel pipe clamp | 77285-52060 · 77285-52120 |
| 77286D | No. 2 fuel pipe clamp | 77286-20190 · 77286-52100 · 77286-52130 |
| 77286K | No. 2 fuel pipe clamp | 77286-52110 |
| 77289 | Fuel tank pipe holder | 77289-52130 |
| 77289B | No. 3 fuel pipe clamp | 77289-52060 |
| 77291A | Fuel tank filler pipe cover | 77291-0D130 |
| 77295C | Fuel pipe retaining ring | 77295-42061 |
| 77297 | fuel line connector | 77297-52030 |
| 77298A | No. 4 fuel pipe clamp | 77298-52070 |
| 77299A | No. 5 fuel pipe clamp | 77299-52050 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-0D110 · 77306-0D120 · 77306-52050 · 77306-52060 |
| 77310A | Fuel tank cap assembly | 77300-20020 · 77300-52030 |
| 77316 | fuel tank cap gasket | 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-0D080 · 77350-0D081 |
| 77366 | Fuel filler cap hinge spring | 77366-52011 |
| 77377 | Fuel filler cap lock retainer | 77377-0D060 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77606F | Fuel tank cover vent housing sub-assembly | 77606-0D050 · 77606-0D060 · 77606-0D070 |
| 77645A | Fuel tank protective shell fixings | 77645-52040 |
| 77652A | No. 2 fuel tank liner | 77652-0D040 |
| 77701W | No. 1 carbon canister outlet hose sub-assembly | 77701-0D060 · 77701-0D070 |
| 77704 | Carbon canister sub-assembly | 77704-0D070 |
| 77785 | fuel pump wiring harness | 77785-0D071 · 77785-0D080 |
