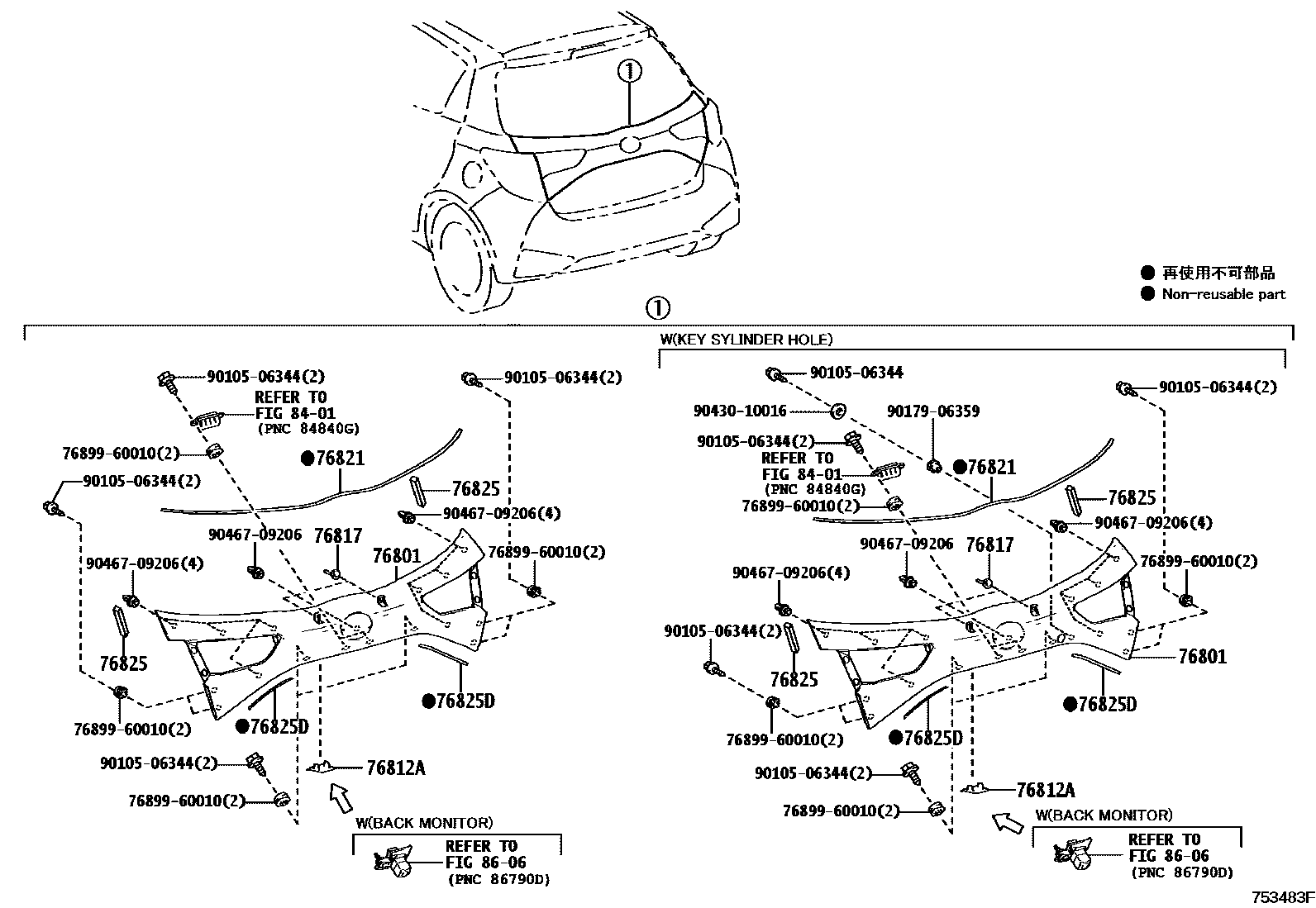

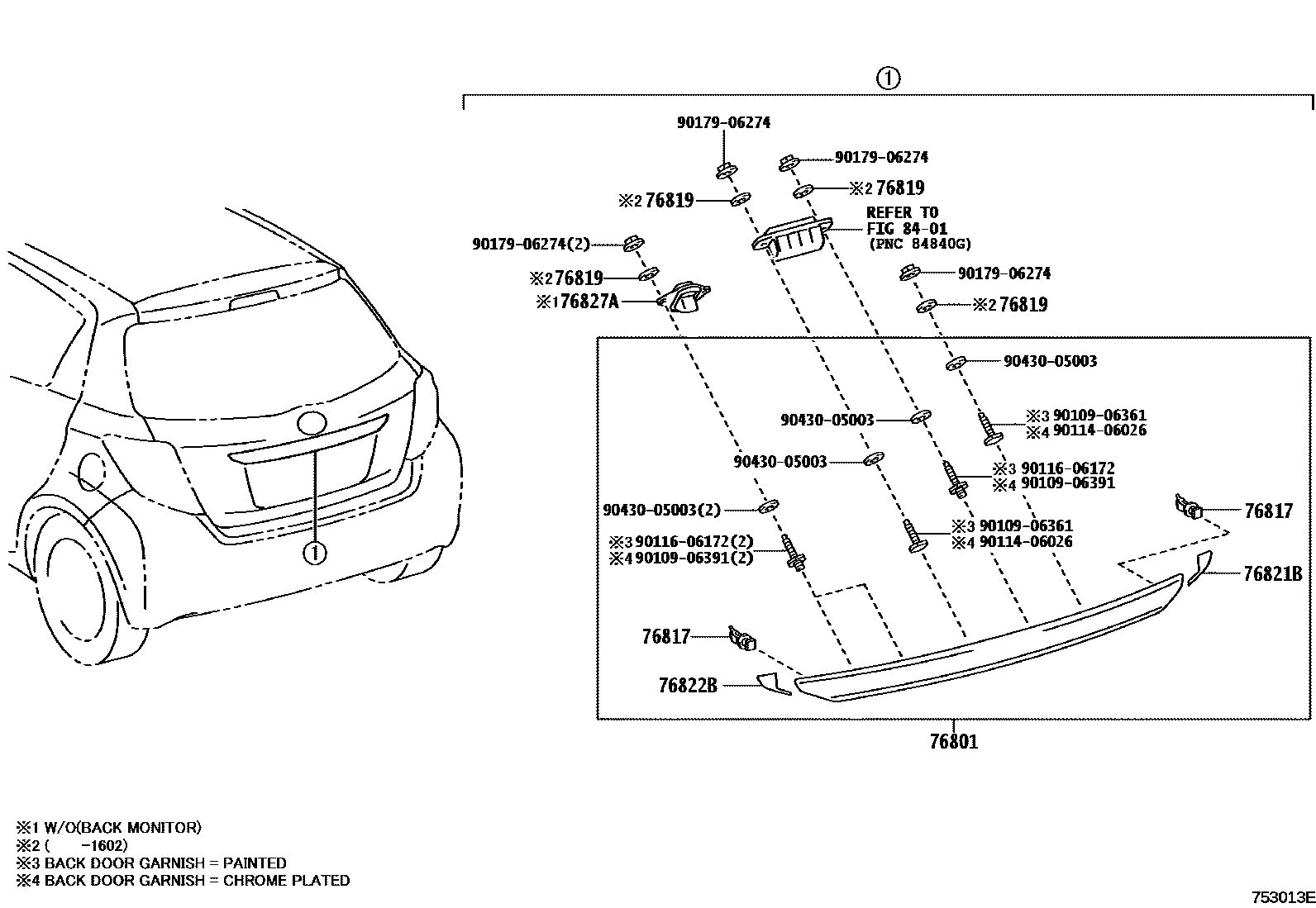

Toyota YARIS 后防护条 — Figure 7504
Toyota YARIS EPC diagram 7504, 后防护条, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-0D571 · 76801-0D581 · 76801-0D820 · 76801-0D830 · 76801-0D917 · 76801-0D918 · 76801-0D920 · 76801-0D921 · 76801-0D922 · 76801-0D923 |
| 76812A | No. 2 rear door exterior trim strip | 76812-0D040 |
| 76817 | Rear door exterior decorative strip clip | 76813-0D010 · 76817-50010 |
| 76819 | Rear door outer trim strip seal | 76819-0D010 |
| 76821 | Protective cover for rear door trim strip | 76821-0D390 |
| 76821B | Rear door right side decorative strip protective cover | 76821-0D250 |
| 76822B | Rear door left side decorative strip protective cover | 76822-0D120 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-0D290 |
| 76825D | No. 1 protective cover for rear door exterior trim strip | 76822-0D200 |
| 76827A | No. 2 rear door trim strip fixings | 76827-0D010 |
