Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 10 PNC and OE references.

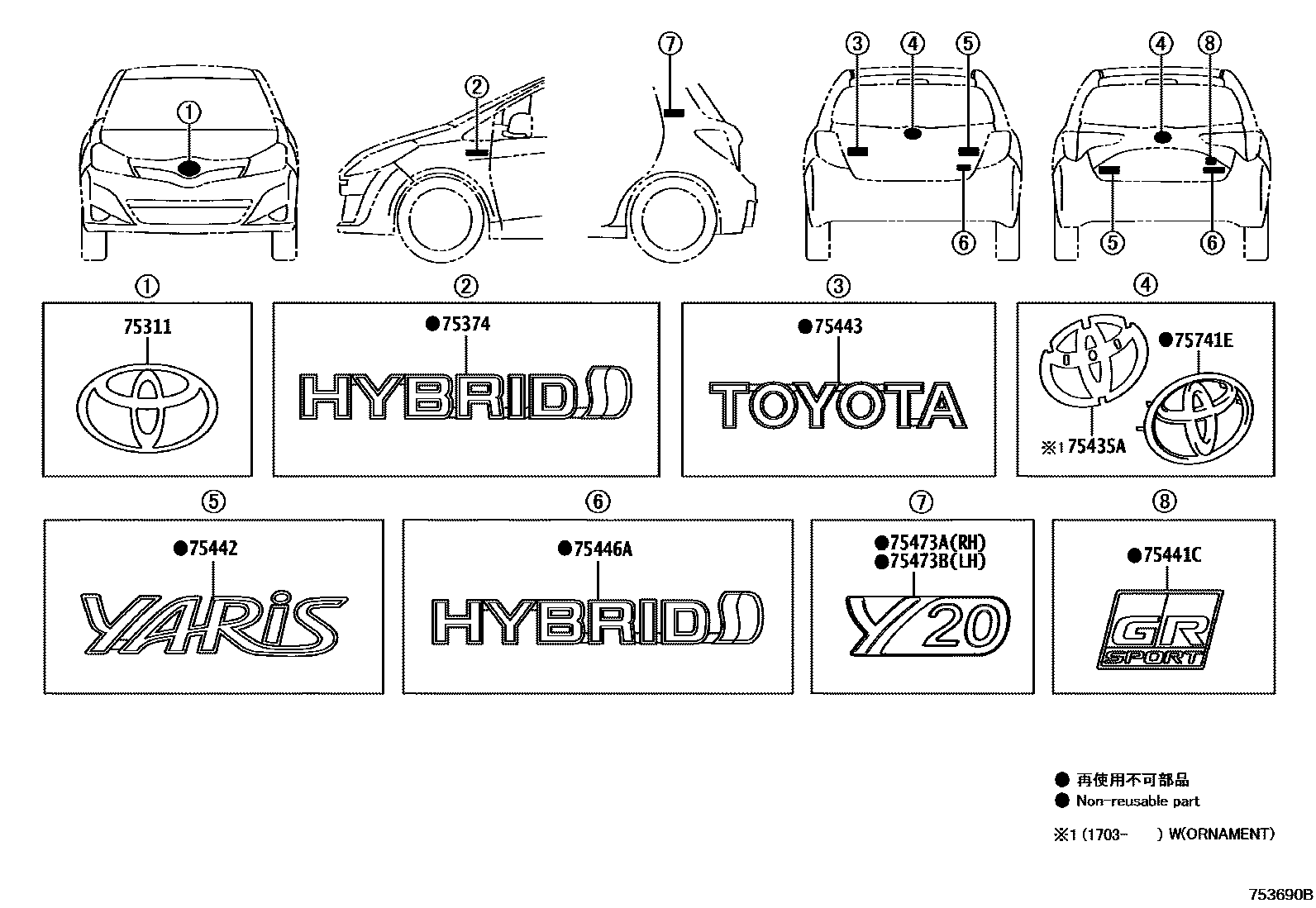

Toyota YARIS 丰田徽标和铭牌(车外和车内) EPC diagram — 753690B
丰田徽标和铭牌(车外和车内) — 753690B (201407 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75301-0D130 · 75311-02140
75374side panel sign75374-0D040 · 75374-0D050 · 75374-52050 · 75374-52060
75435ARear door trim75435-0D010 · 75435-0D020
75441CBack door nameplate75441-0D060
75442Trunk door number plate No. 275442-0D150 · 75442-0D510
75443No. 3 nameplate on back door75446-0D040
75446ANo. 6 nameplate on back door75374-0D030 · 75444-0DA80
75473ANo. 2 nameplate on rear body75473-0D010
75473BNo. 3 nameplate on rear body75473-0D020
75741Elogo75403-48010 · 75431-0D120 · 90975-02071
