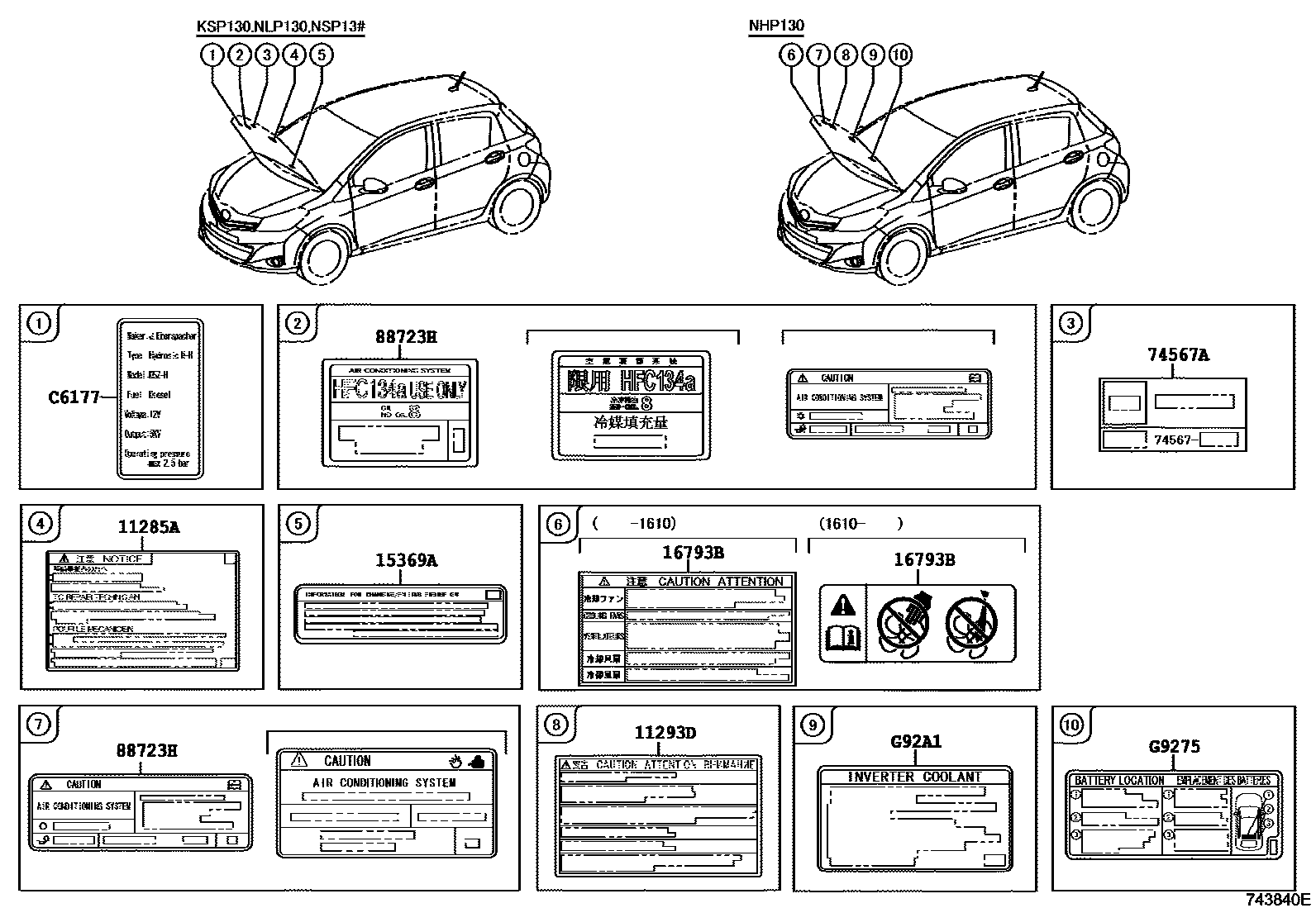

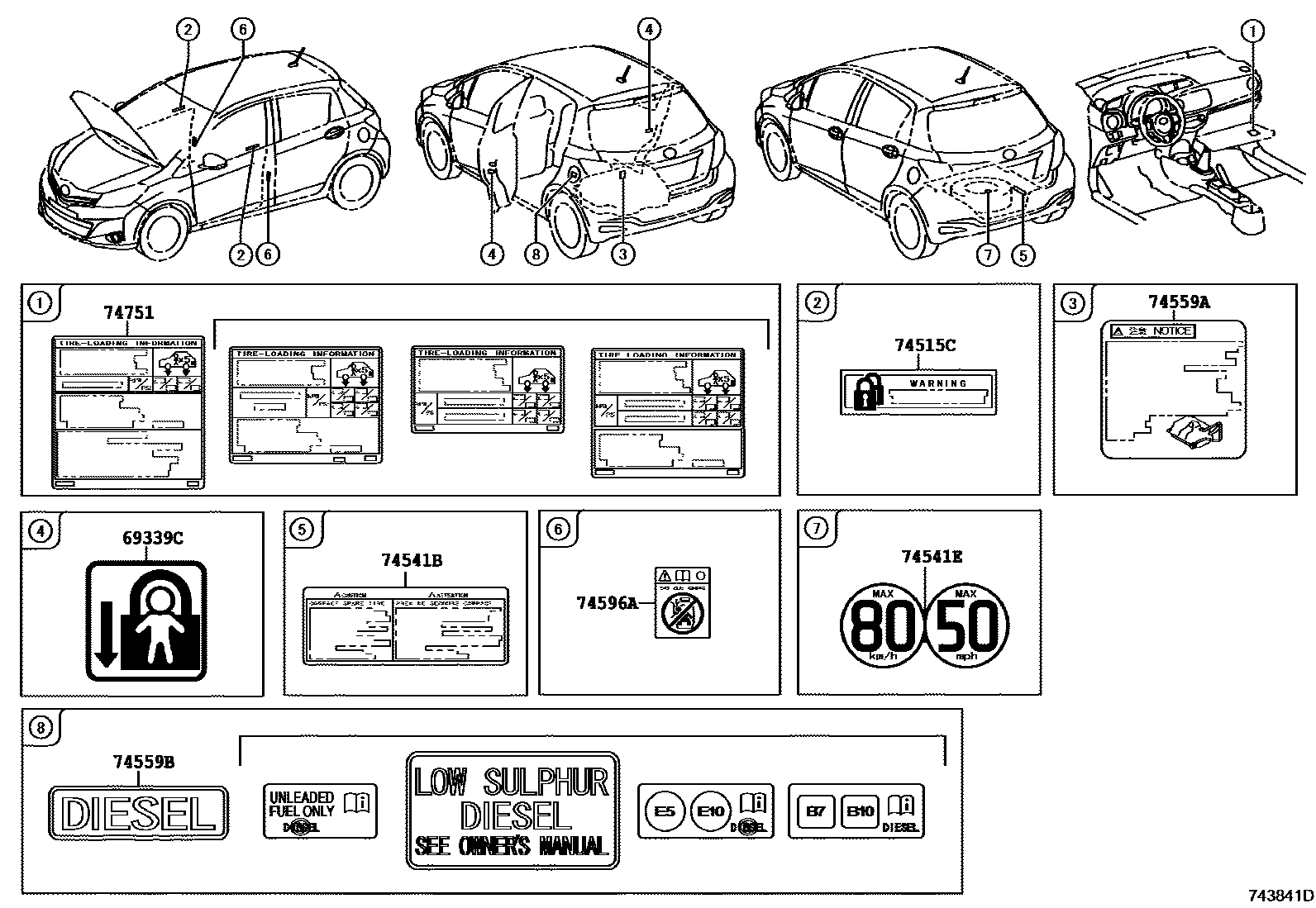

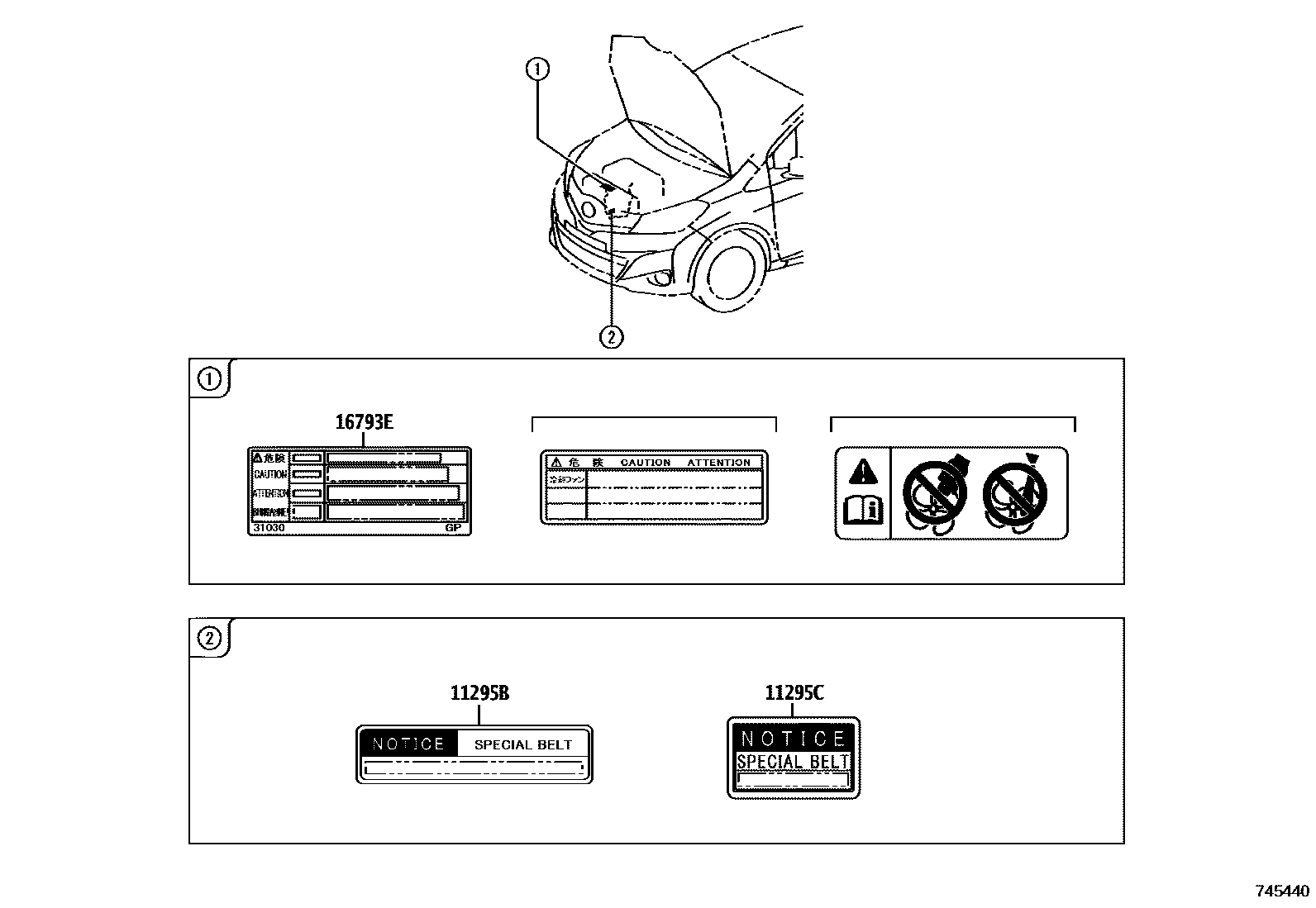

Toyota YARIS 警示铭牌(车外和车内) — Figure 7403
Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-33030 · 11285-33040 |
| 11293D | engine warning label | 11293-36070 |
| 11295B | ETIQUETTE, AVIS FONC MOTEUR NO.1 | 11295-33010 |
| 11295C | ETIQUETTE, AVIS FONC MOTEUR NO.2 | 11295-33020 |
| 15369A | Engine oil information label | 15369-0N010 · 15369-33010 |
| 16793B | Cooling fan information label | 16793-28040 · 16793-36030 |
| 16793E | ETIQUETTE, PRECAUTION VENT REFROIDISSEMENT | 16793-31030 · 16793-31070 · 16793-36030 · 88723-20081 |
| 69339C | Child Restraint Information Label | 69339-0D040 |

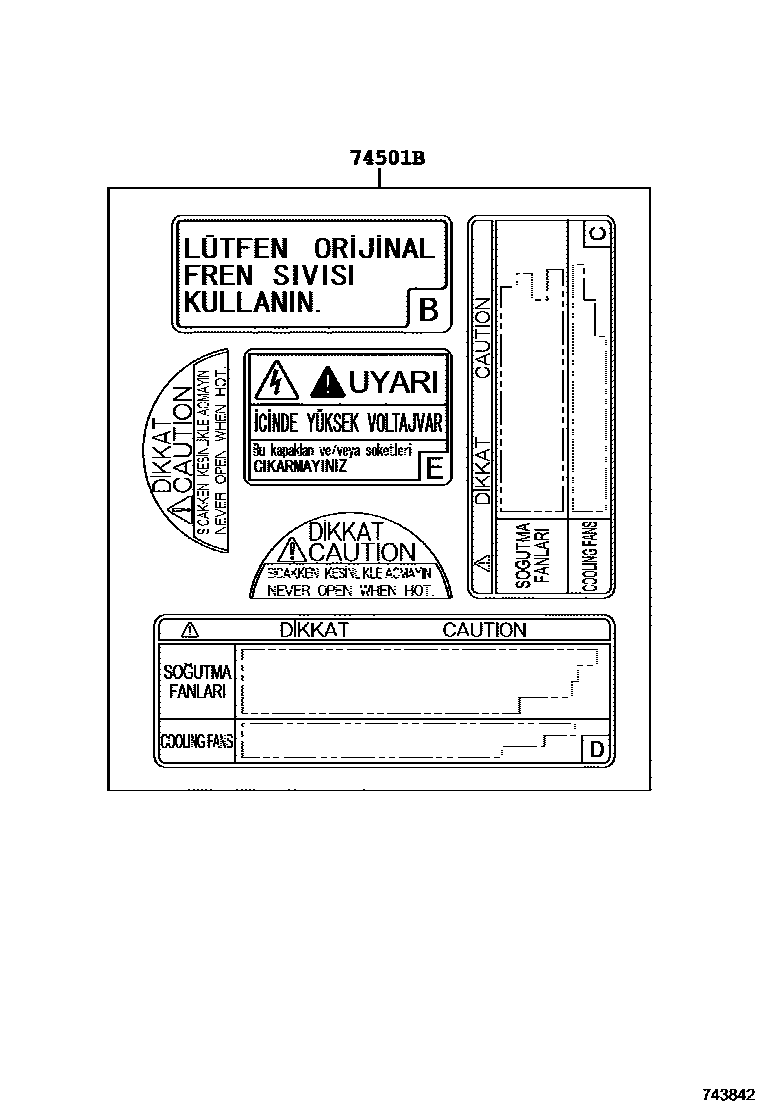

| 74501B | SERIE D'ETIQUETTES, AVERTISSEMENT | 74501-12010 · 74501-64010 |
| 74515C | Anti-theft warning information label | 74515-0D010 |
| 74541B | Small spare tire warning plate | 42668-42020 |
| 74541E | Small spare tire warning plate | 42668-0F030 |
| 74559A | Fuel warning plate | 74559-0D050 |
| 74559B | fuel information label | 74559-02010 · 74559-0D060 · 74559-11030 · 74559-20120 · 74559-20140 · 74559-71020 |
| 74567A | E.C.E approval number plate | 74567-25041 · 74567-26201 · 74567-52010 |
| 74596A | Side air bag warning label | 74596-0F010 |
| 74751 | tire pressure information label | 42661-0D421 · 42661-0D430 · 42661-0D440 · 42661-0D450 · 42661-0D470 · 42661-0D480 · 42661-0D510 · 42661-0D720 · 42661-0D780 · 42661-0DA70 |
| 88723H | Cooler maintenance warning label | 88723-0D050 · 88723-0D060 · 88723-0D190 · 88723-0D260 · 88733-0D030 · 88733-0W030 |
| C6177 | Heater Caution Label | C6177-05010 |
| G9275 | No. 1 battery warning label | G9275-52030 |
| G92A1 | HV coolant system information label | G92A1-76010 |
