Toyota YARIS battery holder — Figure 7402

Toyota YARIS EPC diagram 7402, battery holder, with 2 images and 6 PNC and OE references.

Toyota YARIS battery holder EPC diagram — 743834
battery holder — 743834 (201407 – 999999)

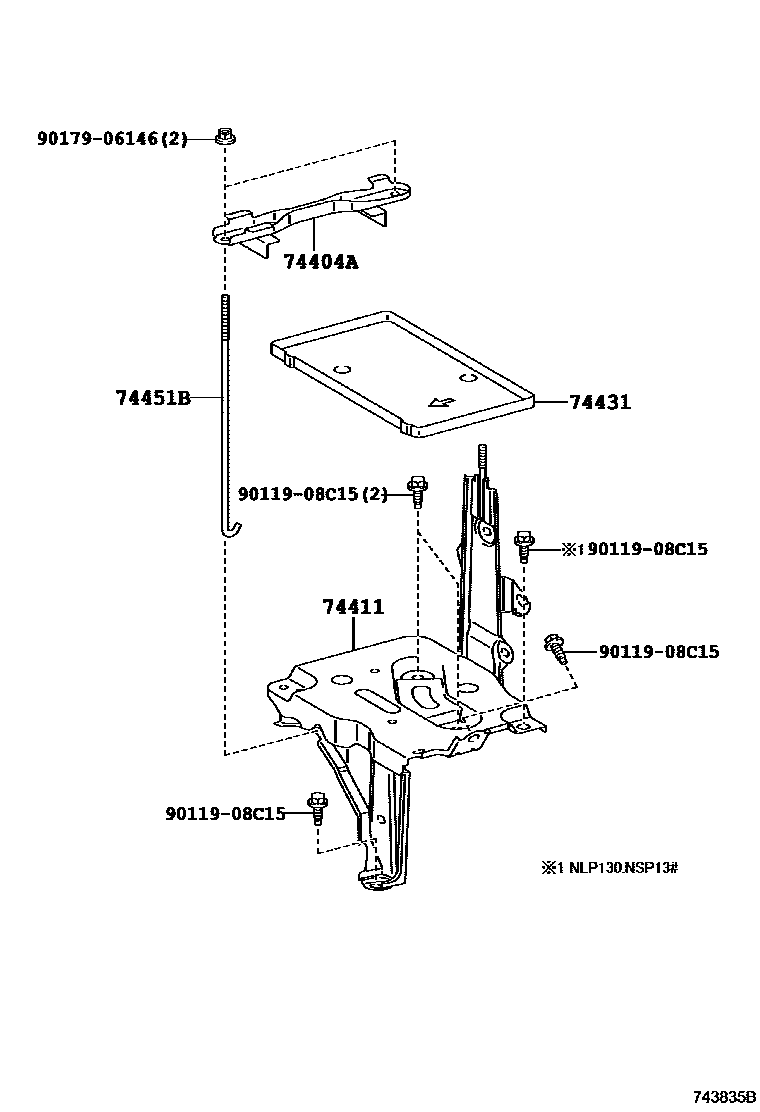

Toyota YARIS battery holder EPC diagram — 743835B
battery holder — 743835B (201407 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-0D130
74411battery holder74410-0D090 · 74410-0D100 · 74410-0D110
74417battery holder bracket74401-0D011
74431battery tray74431-0D100 · 74431-0D110 · 74431-0D160
74451BBattery clamp bolt74451-0D080
74481ABattery clip74481-0D111
