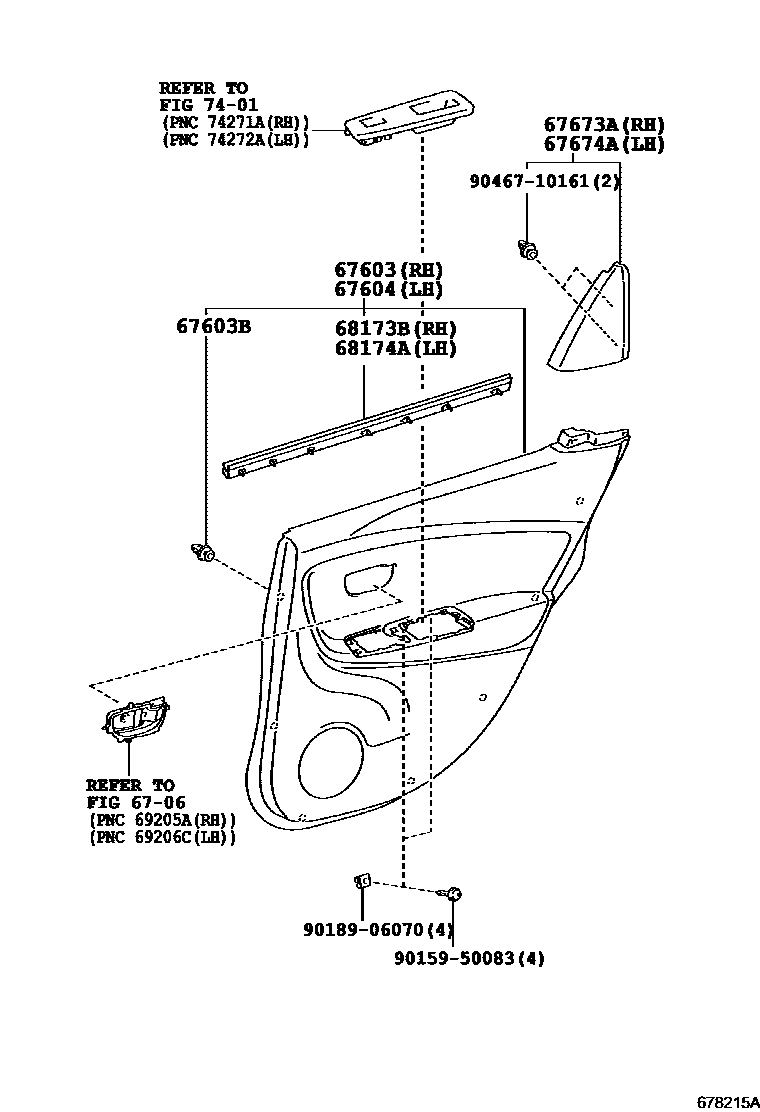

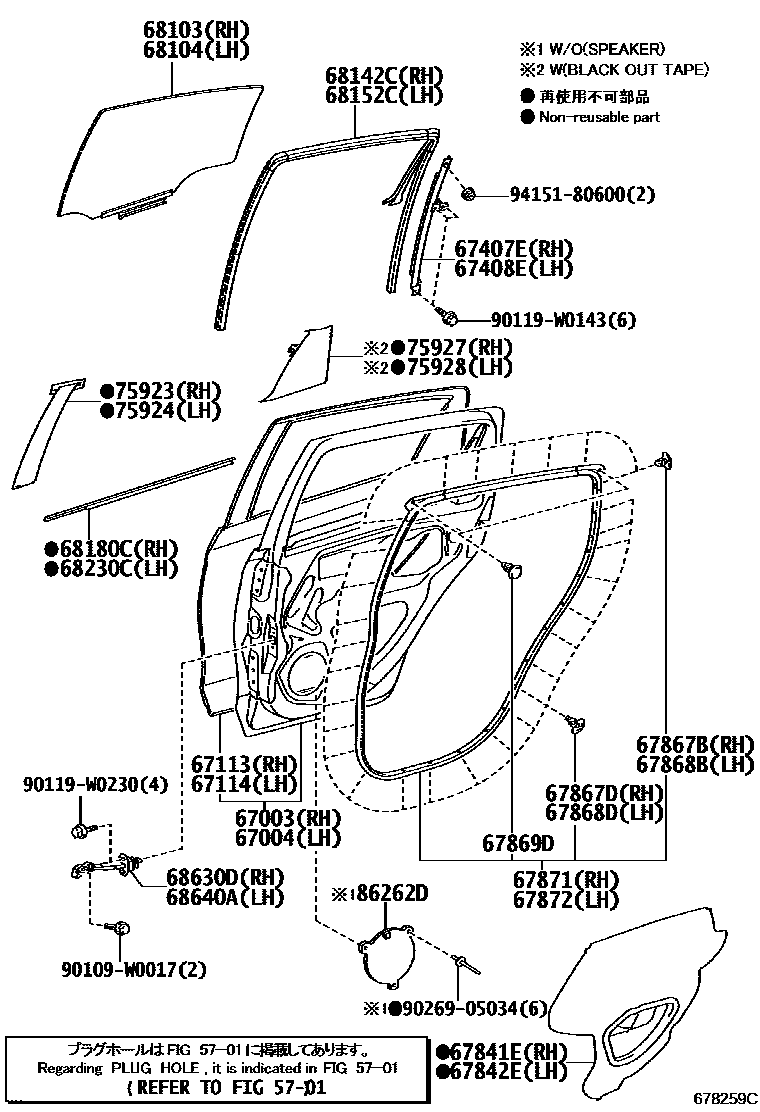

Toyota YARIS 后门板和后门玻璃 — Figure 6705
Toyota YARIS EPC diagram 6705, 后门板和后门玻璃, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-0D190 · 67003-0D530 |
| 67004 | Left rear door panel sub-assembly | 67004-0D210 · 67004-0D550 |
| 67113 | Right rear door outer panel | 67113-0D100 · 67113-52150 |
| 67114 | Left rear door outer panel | 67114-0D100 · 67114-52210 |
| 67407E | Right rear door window divider sub-assembly | 67407-52170 |
| 67408E | Left rear door window divider sub-assembly | 67408-52170 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 |
| 67841E | Right rear door access hole cover | 67841-0D340 · 67841-0D360 |
| 67842E | Left rear door access hole cover | 67842-0D200 · 67842-0D210 |
| 67867B | Door seal strip clip (for rear door) | 67867-52020 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868B | Door glass seal strip clip (for rear door) | 67867-52010 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67869D | Car door seal strip clip | 90467-06084 |
| 67871 | Right rear door sealing strip | 67871-0D090 · 67871-0D091 |
| 67872 | Left rear door sealing strip | 67872-0D090 · 67872-0D091 |
| 68103 | Right rear door glass sub-assembly | 68130-0D200 · 68130-0D210 |
| 68104 | Left rear door glass sub-assembly | 68140-0D200 · 68140-0D210 |
| 68142C | Right rear door glass lift slot | 68142-0D220 |
| 68152C | Left rear door glass lift slot | 68152-0D200 |
| 68173B | Right rear door glass inner sealing strip | 68173-0D210 |
| 68174A | Left rear door glass inner sealing strip | 68174-0D210 |
| 68180C | Right rear door glass outer sealing strip assembly | 68180-0D130 · 68180-0D260 · 68180-0D270 |
| 68230C | Left rear door glass outer sealing strip assembly | 68230-0D130 · 68230-0D260 · 68230-0D270 |
| 68630D | Right rear door opening limiter assembly | 68630-0D230 |
| 68640A | Left rear door opening limiter assembly | 68630-0D230 |
| 75923 | No. 2 right side light-shielding film | 75923-0D180 |
| 75924 | No. 2 left shading film | 75924-0D180 |
| 75927 | No. 4 right side light-blocking film | 75927-0D020 · 75927-0D030 |
| 75928 | No. 4 left shading film | 75928-0D020 · 75928-0D030 |
| 86262D | Rear door speaker cover | 86262-50010 |
