Toyota YARIS 前门锁和车门把手 — Figure 6703

Toyota YARIS EPC diagram 6703, 前门锁和车门把手, with 1 images and 20 PNC and OE references.

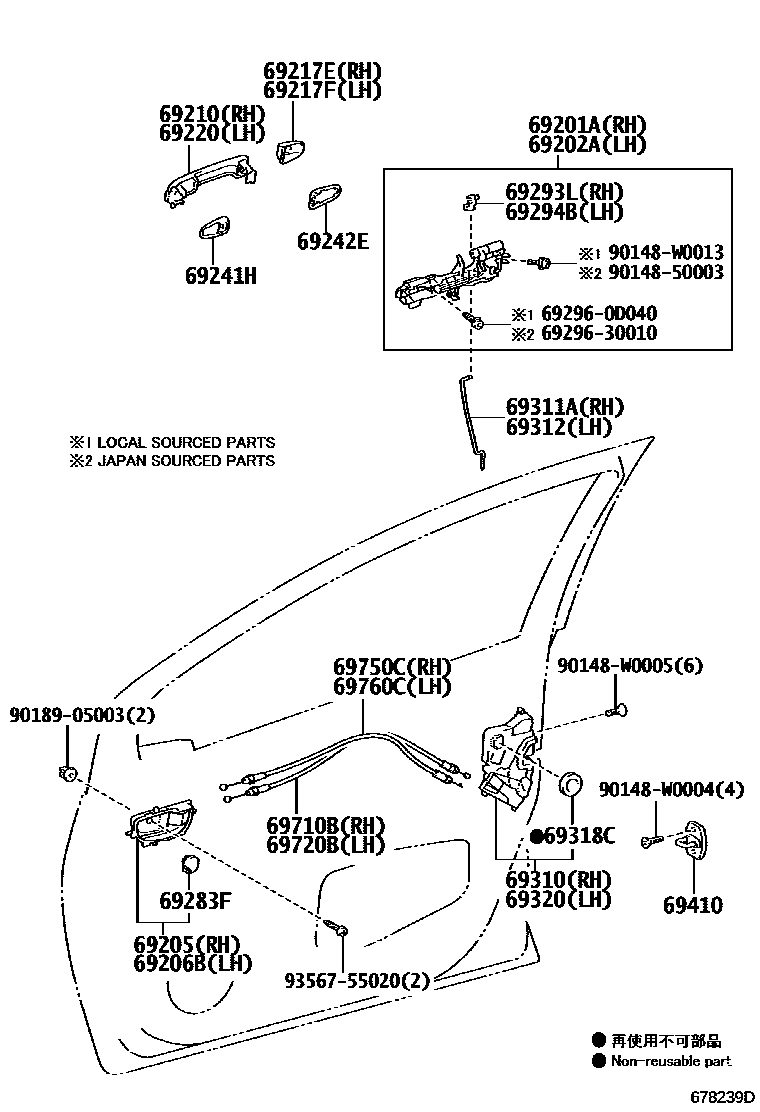

Toyota YARIS 前门锁和车门把手 EPC diagram — 678239D
前门锁和车门把手 — 678239D (201407 – 999999)

PNC and OE references

PNCPart nameOE numbers
69201ARight front door outer handle frame sub-assembly69201-02180 · 69201-0D050 · 69201-0D090 · 69201-0D110
69202ALeft front door outer handle frame sub-assembly69202-02160 · 69202-0D070
69210Right front door outer handle assembly69211-0D130 · 69211-0D904
69217ERight front door outer handle cover69217-02940 · 69217-02941 · 69217-0D090 · 69217-0D100 · 69217-0D911 · 69217-0D912
69217FLeft front door outer handle cover69217-02940 · 69217-02941 · 69217-0D090 · 69217-0D100 · 69217-0D911 · 69217-0D912
69220Left front door outer handle assembly69211-0D130 · 69211-0D904
69241HFront door exterior handle pad69241-0D010
69242EFront door rear outer handle pad69242-0D010
69293LRight front door outer handle buckle69293-0D030 · 69293-12030
69294BLeft front door outer handle buckle69293-0D060 · 69293-12040
69310Right front door lock assembly69030-0D130 · 69030-0D540 · 69030-0D550 · 69030-0D560
69311ARight front door lock opening lever69311-0D130
69312Left front door lock opening lever69312-0D130
69318Cdoor lock harness seal69318-47010
69320Left front door lock assembly69040-0D320 · 69040-0D520 · 69040-0D530 · 69040-0D540
69410Front door lock plate assembly69410-0D030
69710BRight front door lock remote control cable assembly69710-0D170 · 69710-0D181
69720BLeft front door lock remote control cable assembly69710-0D170 · 69710-0D181
69750CRight front door inner lock cable assembly69750-0D110 · 69750-0D121
69760CLeft front door inner lock cable assembly69750-0D110 · 69750-0D121
