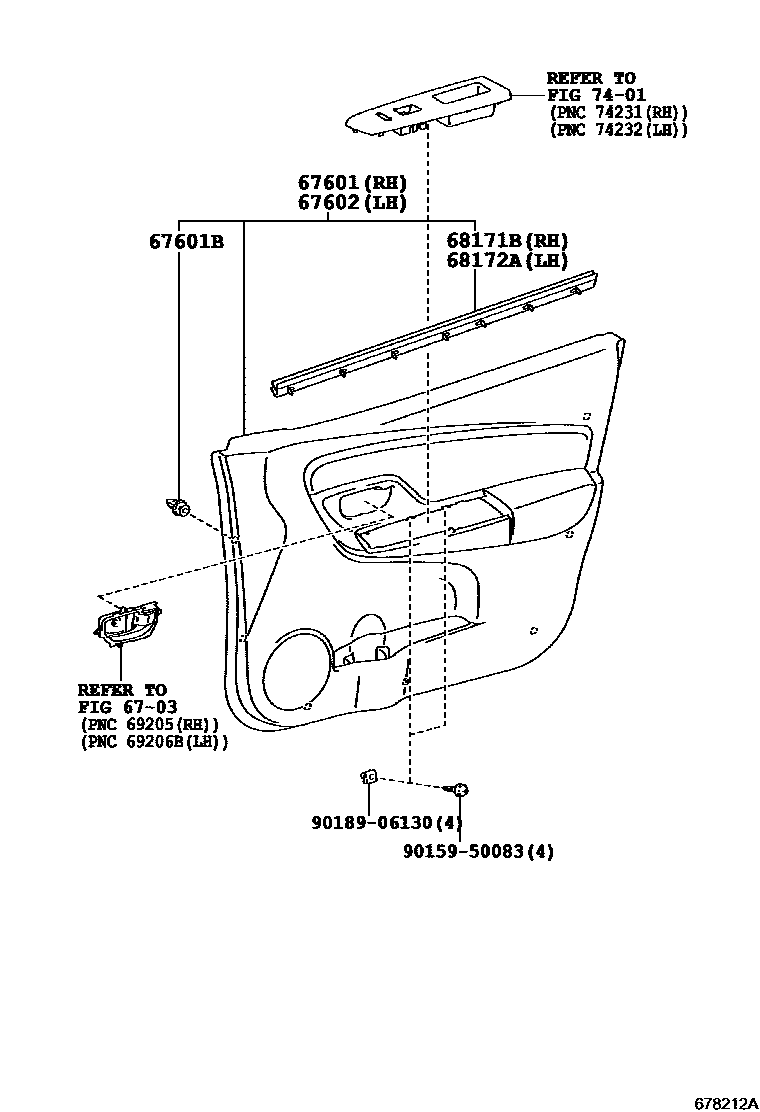

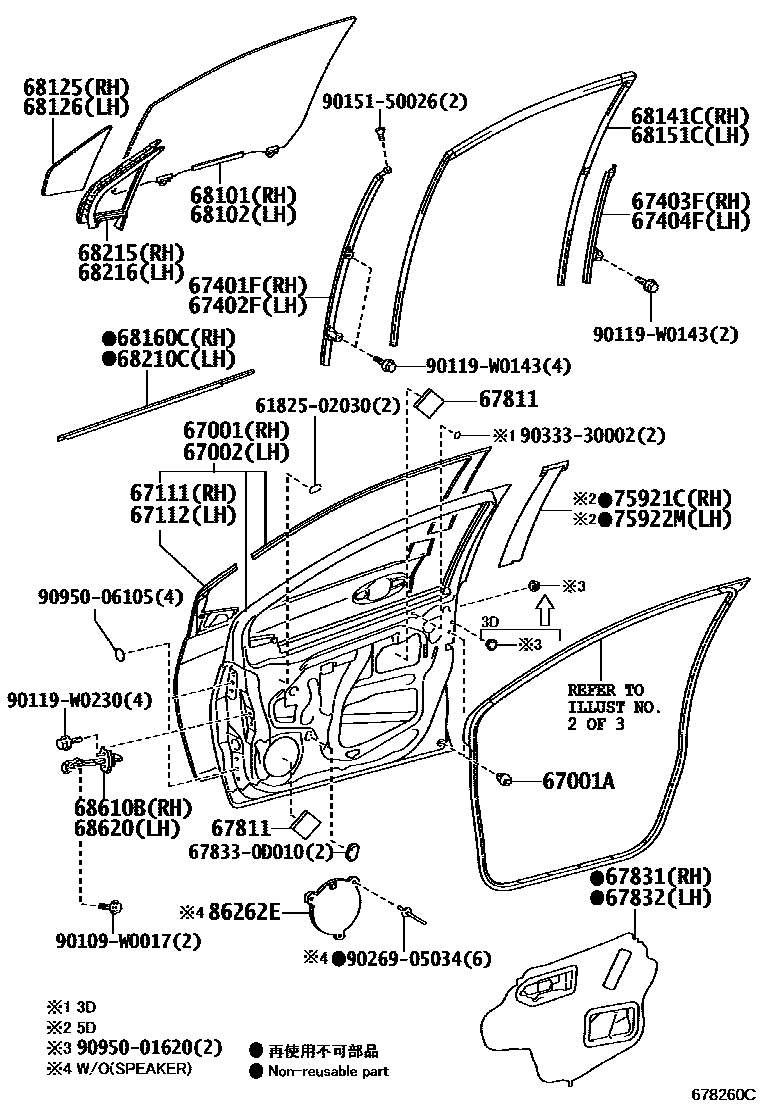

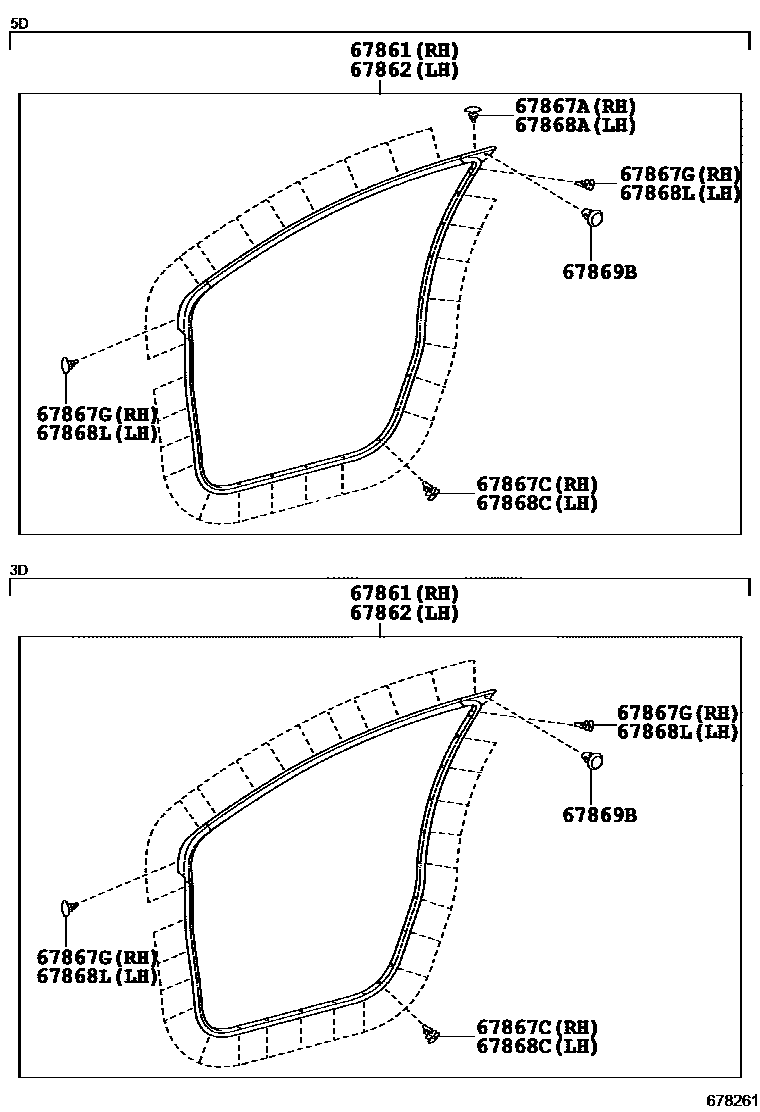

Toyota YARIS 前门板和前门玻璃 — Figure 6701
Toyota YARIS EPC diagram 6701, 前门板和前门玻璃, with 3 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-0D230 · 67001-0D240 · 67001-0D241 · 67001-0D500 · 67001-0D510 |
| 67001A | Front door panel cushion | 90541-09124 |
| 67002 | Left front door panel sub-assembly | 67002-0D230 · 67002-0D240 · 67002-0D241 · 67002-0D500 · 67002-0D510 |
| 67111 | Outer right front door panel | 67111-0D140 · 67111-52210 · 67111-52220 |
| 67112 | Outer left front door panel | 67112-0D150 · 67112-52200 · 67112-52210 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-52160 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-52150 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-52240 · 67403-52250 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-52210 · 67404-52220 |
| 67601B | Catch (for front door trim panel) | 90467-09206 |
| 67811 | Front door silencer pad | 67811-12180 |
| 67831 | Right front door access hole cover | 67831-0D340 · 67831-0D350 |
| 67832 | Left front door access hole cover | 67832-0D240 · 67832-0D250 |
| 67861 | Right front door seal | 67861-0D130 · 67861-0D131 · 67861-0D140 · 67861-0D141 |
| 67862 | Left front door seal | 67862-0D120 · 67862-0D121 · 67862-0D130 · 67862-0D131 |
| 67867A | Door seal strip clip (for front door) | 90467-04034 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67867G | Right door sealing strip fixing | 67867-52020 · 67867-52040 |
| 67868A | Door glass seal strip clip (for front door) | 90467-04034 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67868L | Left door seal strip fixing | 67867-52010 · 67867-52030 |
| 67869B | Front door seal strip clip | 90467-06084 |
| 68101 | Right front door glass sub-assembly | 68110-0D191 · 68110-0D201 |
| 68102 | Left front door glass sub-assembly | 68120-0D191 · 68120-0D201 |
| 68125 | Right front door fixed window glass | 68125-0D021 |
| 68126 | Left front door fixed window glass | 68126-0D021 |
| 68141C | Right front door glass lift channel | 68141-0D260 · 68141-0D270 |
| 68151C | Left front door glass lift channel | 68151-0D240 · 68151-0D250 |
| 68160C | Right front door glass outer sealing strip assembly | 68160-0D150 · 68160-0D160 · 68160-0D270 · 68160-0D280 · 68160-0D290 · 68160-0D300 |
| 68171B | Right front door glass inner sealing strip | 68171-0D230 · 68171-0D240 |
| 68172A | Left front door glass inner sealing strip | 68172-0D230 · 68172-0D240 |
| 68210C | Left front door glass outer sealing strip assembly | 68210-0D150 · 68210-0D160 · 68210-0D270 · 68210-0D280 · 68210-0D290 · 68210-0D300 |
| 68215 | Right front door fixed window seal | 68215-0D050 |
| 68216 | Left front door fixed window seal | 68216-0D050 |
| 68610B | Right front door opening limiter assembly | 68610-0D180 · 68610-0D190 |
| 68620 | Left front door opening limiter assembly | 68610-0D180 · 68610-0D190 |
| 75921C | No. 1 right side light-shielding film | 75921-0D160 |
| 75922M | No. 1 left shading film | 75922-0D160 |
| 86262E | front speaker cover | 86262-50010 |
