Toyota YARIS 底板和底板装饰罩 — Figure 6404

Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 2 images and 7 PNC and OE references.

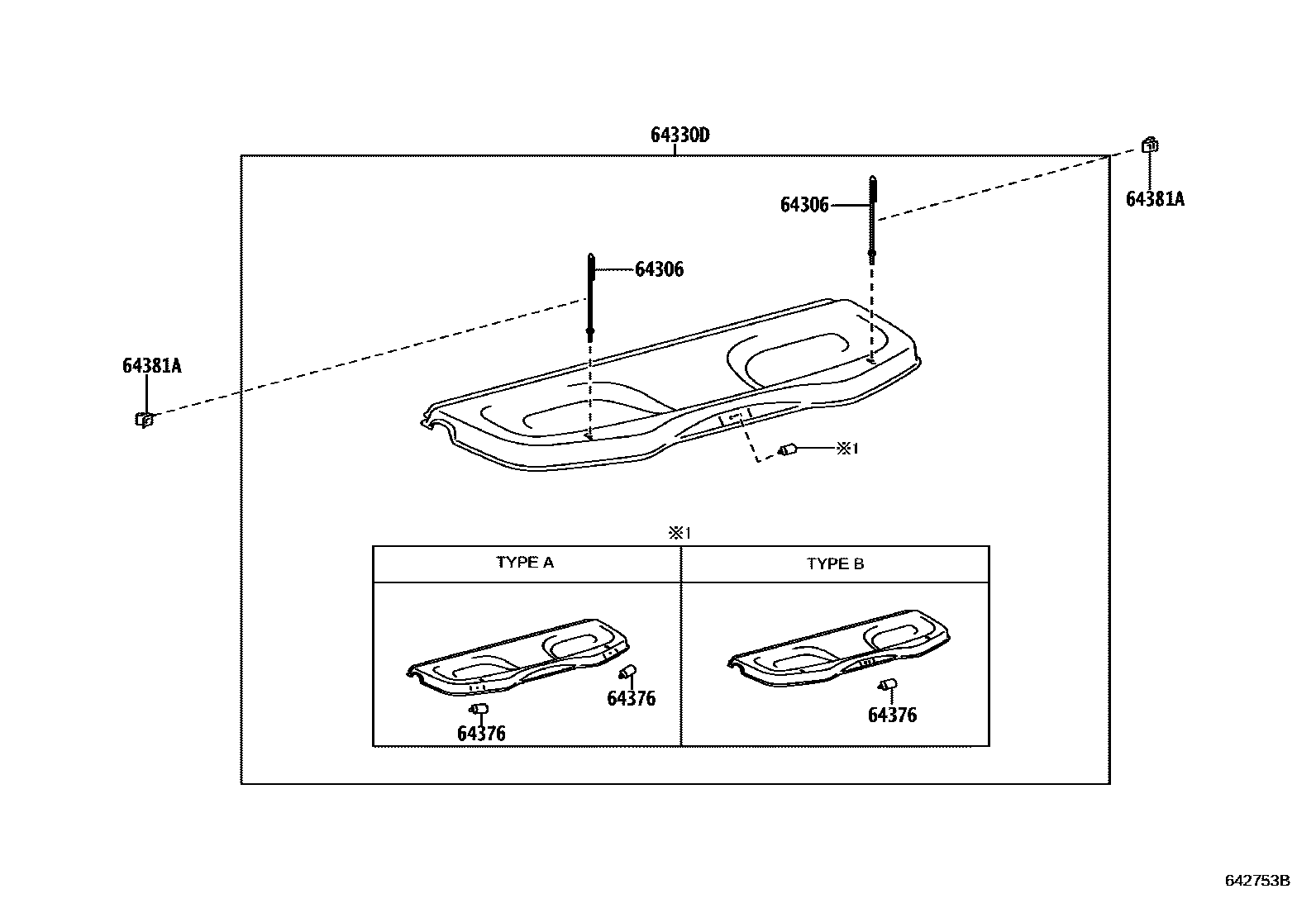

Toyota YARIS 底板和底板装饰罩 EPC diagram — 642753B
底板和底板装饰罩 — 642753B (201407 – 999999)
Toyota YARIS 底板和底板装饰罩 EPC diagram — 643561A
底板和底板装饰罩 — 643561A (201407 – 999999)

PNC and OE references

PNCPart nameOE numbers
64306Glove box decorative panel fixed rod sub-assembly64306-0D090 · 64306-52050
64330DGlove box decorative panel assembly64330-52420
64376No. 2 glove box decorative panel spacer64376-0D010 · 64376-12020
64381AGlove box decorative panel hanger64381-52010
64750FClip (for bottom panel side decorative panel)63395-12150
64777JSpare tire cushion64777-0D060
64993Bottom floor box64993-0D040
