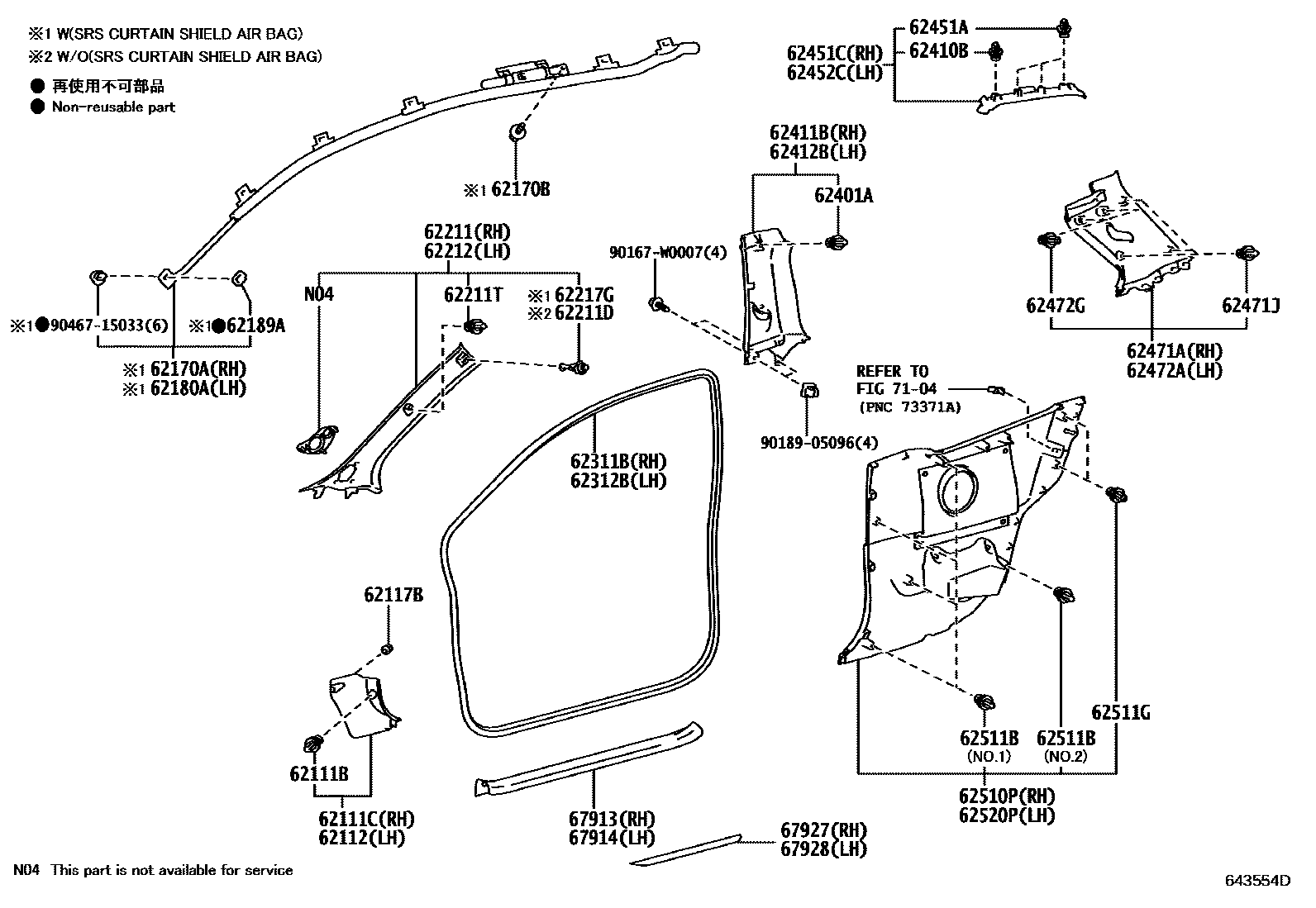

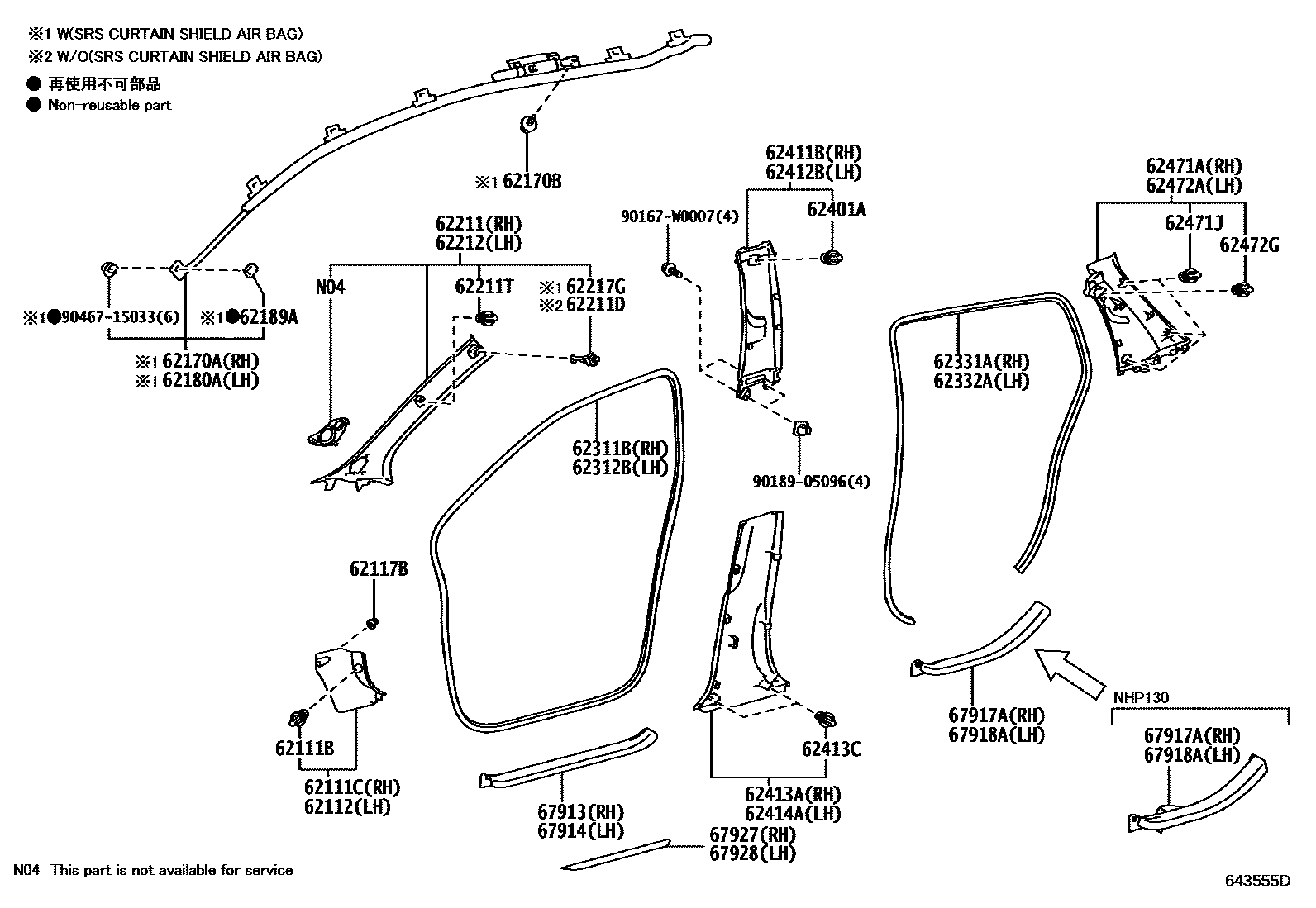

Toyota YARIS 内饰板和车门防水胶条 — Figure 6401
Toyota YARIS EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-10161 |
| 62170A | Right curtain air bag assembly | 62170-0D031 · 62170-0D120 |
| 62170B | Bolts with washers | 90119-06869 · 90119-W0078 |
| 62180A | Left curtain air bag assembly | 62180-0D031 · 62180-0D120 |
| 62189A | Curtain air bag clip spacer | 62189-20010 |
| 62211D | Clip (for body front pillar decorative panel) | 90467-10161 |
| 62211T | Clip (for front pillar decorative panel) | 90467-10161 |
| 62217G | Front pillar decorative plate clip | 62217-52030 · 62217-52050 · 62217-52100 · 62217-52110 · 90467-10161 |
| 62311B | Right front door opening waterproof tape | 62311-0D400 · 62311-0D410 |
| 62312B | Left front door opening waterproof tape | 62312-0D380 · 62312-0D390 |
| 62331A | Right rear door opening waterproof tape | 62331-0D070 |
| 62332A | Left rear door opening waterproof tape | 62332-0D070 |
| 62401A | Clips (for decorative panels on center pillars) | 90467-10167 |
| 62410B | clip | 90467-10161 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10161 |
| 62451A | Side decorative parts clip | 90467-10161 |
| 62471J | Clips (for roof side trim panels) | 90467-A0033 |
| 62472G | Clips (for roof side trim panels) | 63395-12150 |
| 62511B | Clip (for the inner decorative panel of the side panel) | 63395-12150 · 90467-10161 |
| 62511G | Clip (for the inner decorative panel of the side panel) | 63395-12150 |
| 67927 | Right front door wear plate trim | 67913-YY360 · 67913-YY370 · 67913-YY510 |
| 67928 | Left front door wear plate trim | 67913-YY360 · 67914-YY230 · 67914-YY240 |
