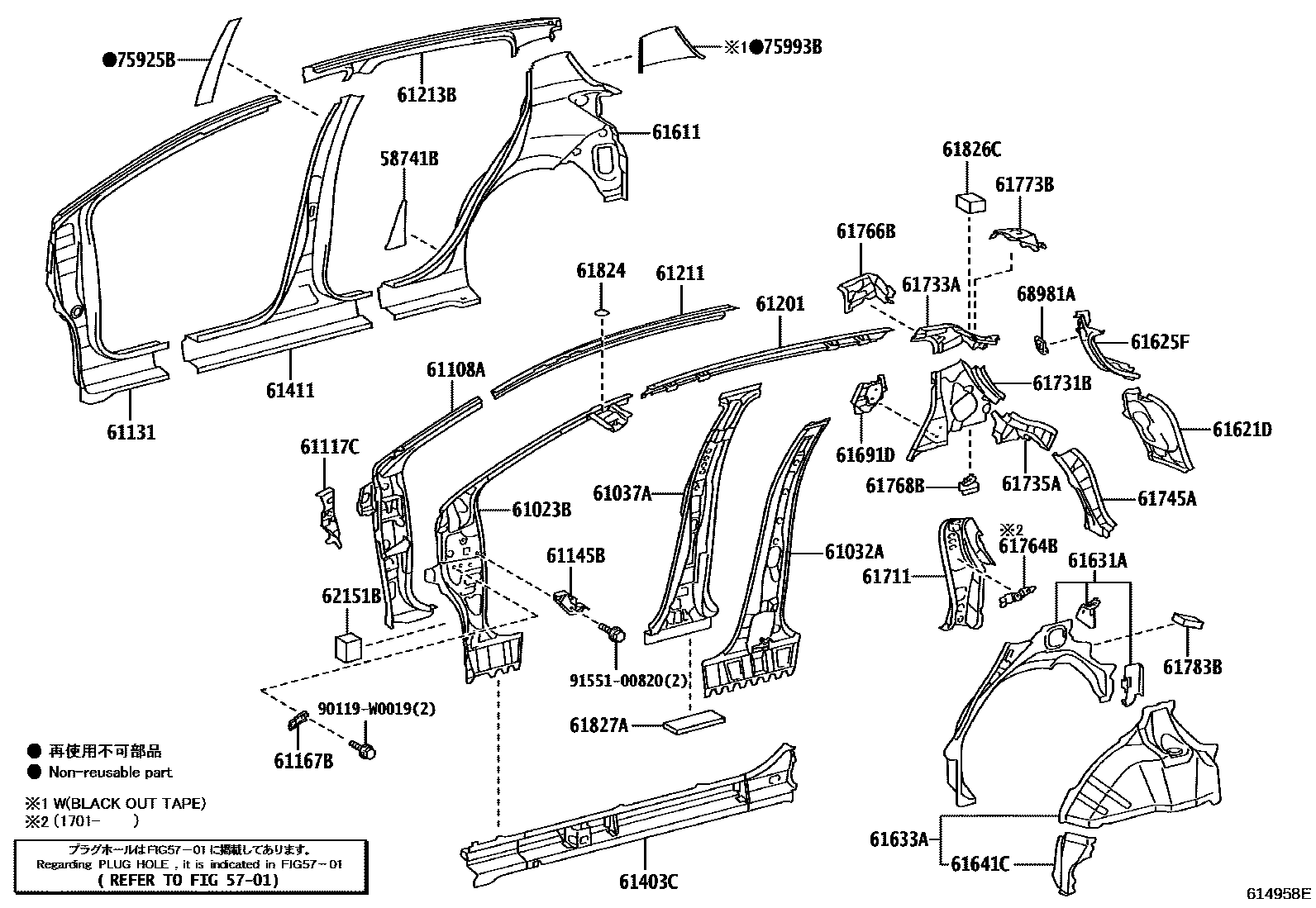

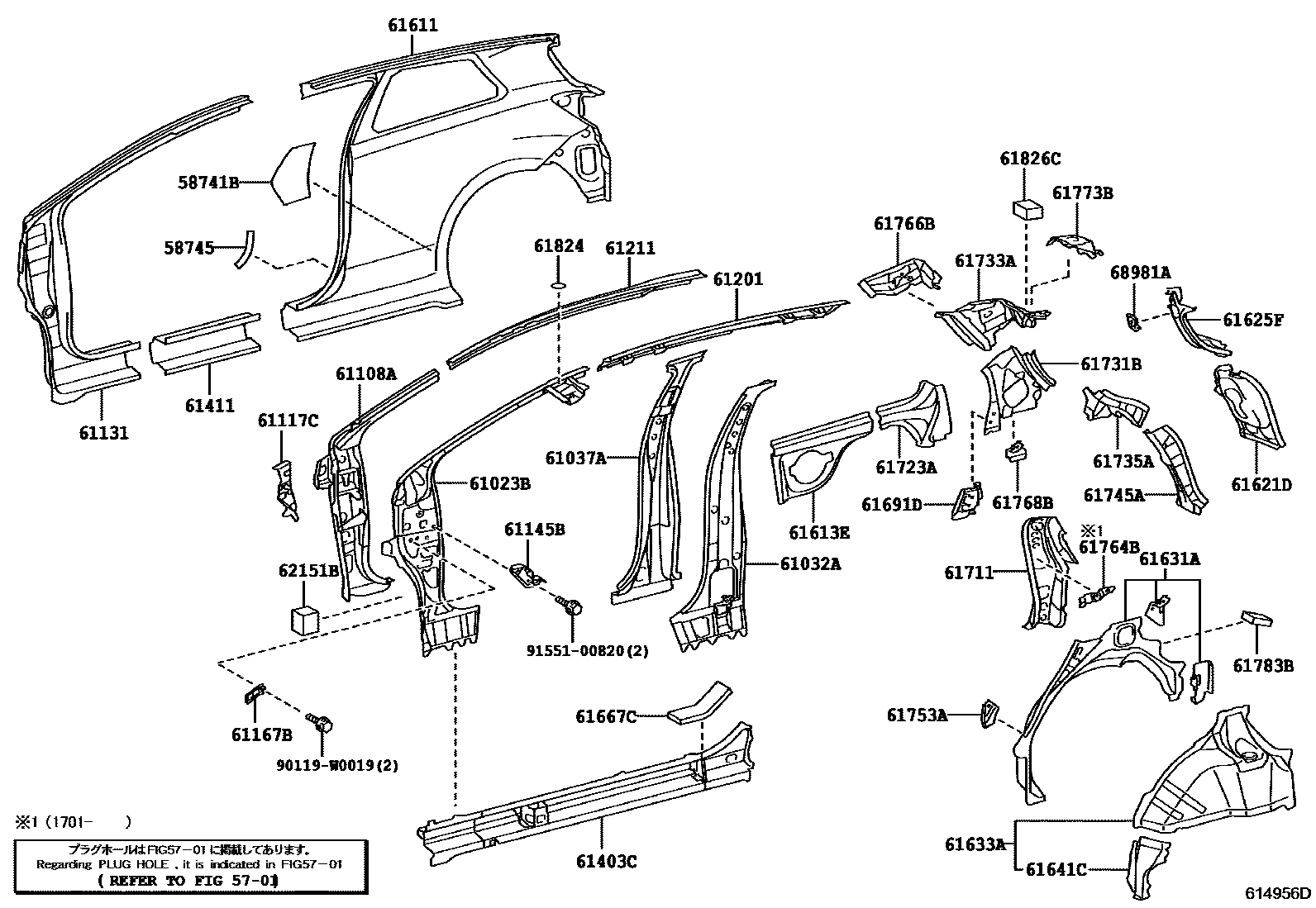

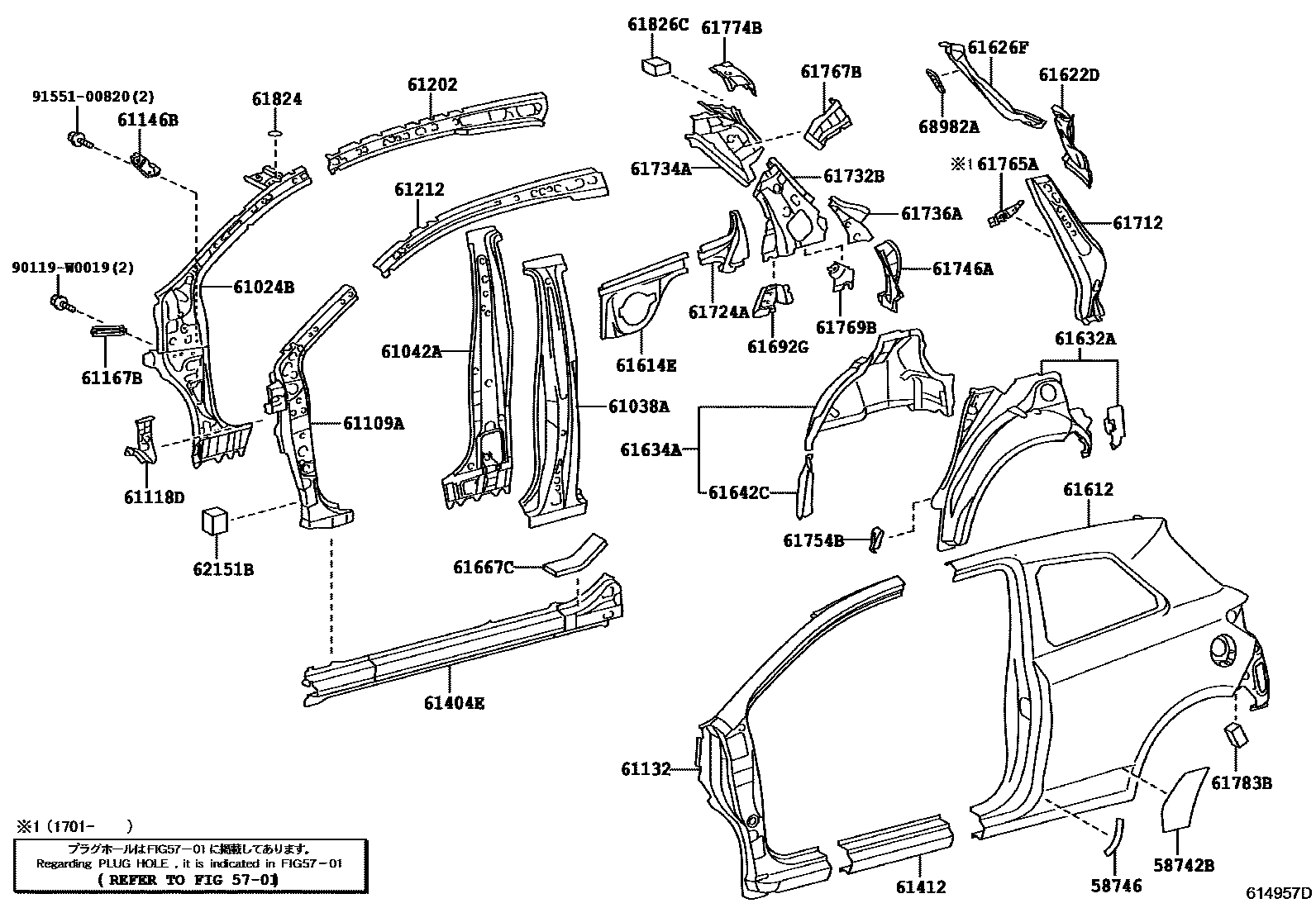

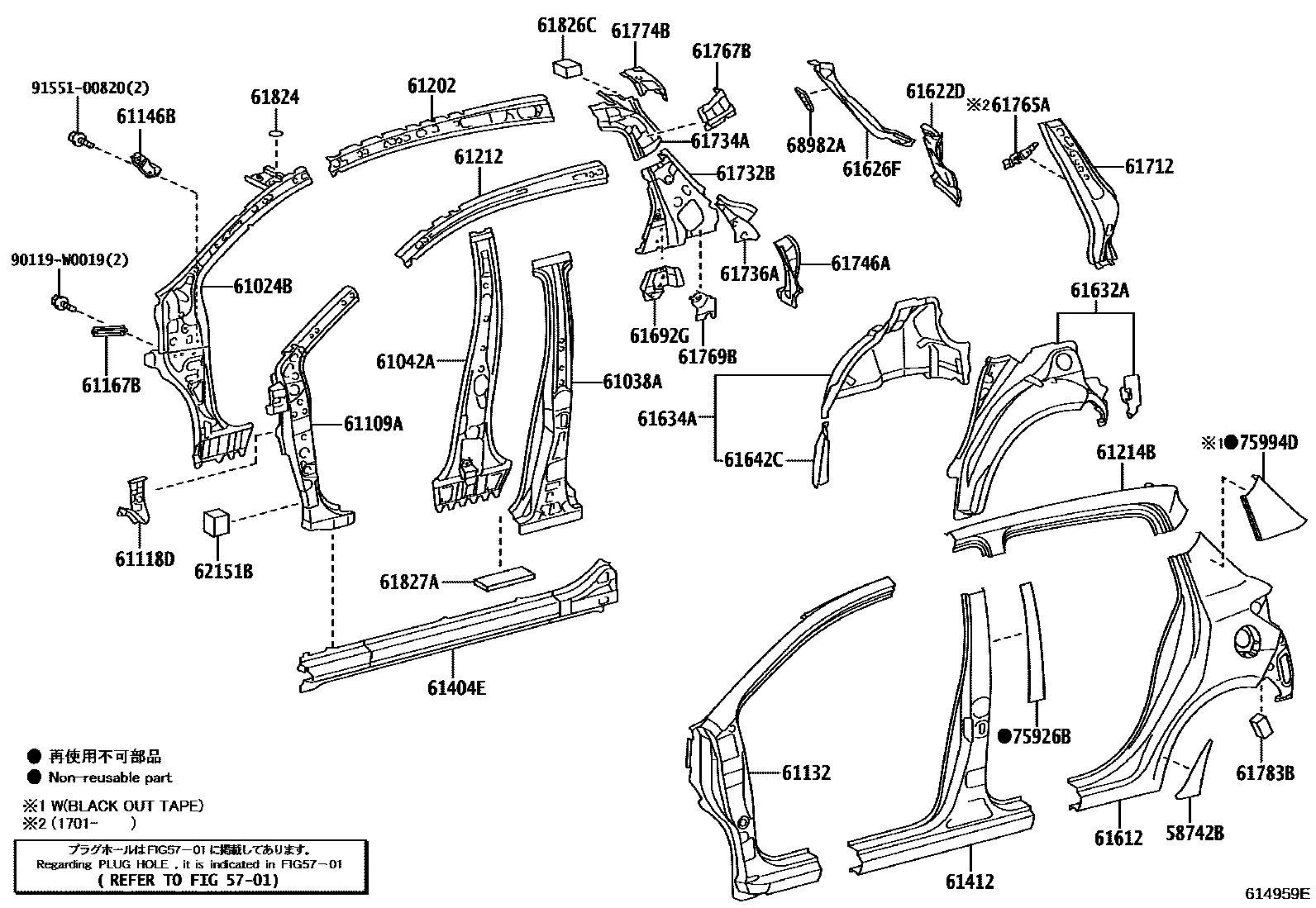

Toyota YARIS 侧梁 — Figure 6101
Toyota YARIS EPC diagram 6101, 侧梁, with 4 images and 79 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58741B | Right side enclosure protection panel | 58741-0D050 · 58741-0D110 |
| 58742B | Left side enclosure protection panel | 58742-0D050 · 58742-0D110 |
| 58745 | Right front side panel protector | 58745-0D040 |
| 58746 | Left front side panel protector | 58746-0D040 |
| 61023B | Right body inner front pillar sub-assembly | 61023-0D150 |
| 61024B | Left body inner front pillar sub-assembly | 61024-0D150 |
| 61032A | No. 1 right inner column sub-assembly | 61032-0D070 · 61032-0D080 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-0D907 · 61037-0D908 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-0D907 · 61038-0D908 |
| 61042A | No. 1 left inner column sub-assembly | 61042-0D070 · 61042-0D080 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-0D901 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-0D901 |
| 61117C | Side panel to right front quarter panel | 61117-0D070 |
| 61118D | Side panel to left front quarter panel | 61118-0D070 |
| 61131 | Right body outer front upper pillar | 61131-0D140 |
| 61132 | Left body outer front upper pillar | 61132-0D140 |
| 61145B | Right body front pillar lower corner panel | 61145-0D010 |
| 61146B | Left body front pillar lower corner panel | 61146-0D010 |
| 61167B | Body front pillar lower bracket | 61167-0D040 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-0D070 · 61201-0D071 · 61201-0D072 · 61201-0D080 · 61201-0D081 · 61201-0D082 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-0D070 · 61202-0D071 · 61202-0D072 · 61202-0D080 · 61202-0D081 · 61202-0D082 |
| 61211 | Roof right outer longitudinal beam | 61071-0D020 · 61211-0D110 |
| 61212 | Roof left outer longitudinal beam | 61072-0D020 · 61212-0D110 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-0D120 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-0D120 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-0D140 · 61403-0D150 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-0D140 · 61404-0D150 |
| 61411 | Right door outer sill panel | 61411-0D150 · 61411-0D160 |
| 61412 | Left door outer sill panel | 61412-0D150 · 61412-0D160 |
| 61611 | Right side hoarding | 61601-0D130 · 61601-0D200 |
| 61612 | left side panel | 61602-0D150 · 61602-0D151 · 61602-0D210 |
| 61613E | Right side inner panel | 61613-0D020 |
| 61614E | Left side inner panel | 61614-0D020 |
| 61621D | Back door right opening slot | 61621-0D080 · 61621-0D130 |
| 61622D | Rear door left opening slot | 61622-0D090 · 61622-0D140 |
| 61625F | Extension on right side panel | 61625-52150 |
| 61626F | Extension on left side panel | 61626-52150 |
| 61631A | Right wheel cover outer panel | 61631-0D901 · 61631-0D904 |
| 61632A | Left side wheel cover outer panel | 61632-0D901 |
| 61633A | Right wheel housing lining panel | 61607-0D902 |
| 61634A | Left side wheel housing lining panel | 61608-0D902 |
| 61641C | Right front side wheel housing corner panel | 61641-0D060 |
| 61642C | Left front side wheel housing corner panel | 61642-0D060 |
| 61667C | No. 1 side panel seal | 61667-0D010 · 61667-52070 |
| 61691D | Rear right seat back lock buckle reinforcement | 61691-0D010 · 61691-0D020 |
| 61692G | Rear left seat back lock buckle reinforcement | 61692-0D010 · 61692-0D020 |
| 61711 | Roof right side outer panel | 61711-52180 · 61711-52181 |
| 61712 | Roof left outer panel | 61712-52210 · 61712-52211 |
| 61723A | No. 1 right corner window opening fixing piece | 61723-0D010 |
| 61724A | No. 1 left corner window opening fixing piece | 61724-0D010 |
| 61731B | Roof right inner panel | 61731-52240 · 61731-52241 · 61731-52250 · 61731-52251 |
| 61732B | Roof left inner panel | 61732-52290 · 61732-52291 · 61732-52300 · 61732-52301 |
| 61733A | Right front roof inner panel | 61733-0D010 · 61733-0D011 · 61733-0D012 · 61733-0D020 · 61733-0D021 · 61733-0D022 |
| 61734A | Left front roof inner panel | 61734-0D011 · 61734-0D012 · 61734-0D013 · 61734-0D021 · 61734-0D022 · 61734-0D023 |
| 61735A | Right rear roof inner panel | 61735-0D070 |
| 61736A | Left rear roof inner panel | 61736-0D080 |
| 61745A | Back door opening lower right reinforcement | 61745-52120 |
| 61746A | Rear door opening lower left reinforcement | 61746-52120 |
| 61753A | Side panel lower fixings | 61753-52020 |
| 61754B | Left side decorative panel lower fixing piece | 61754-52020 |
| 61764B | Seat belt anchor reinforcement for seat No. 2, right | 61764-0D030 |
| 61765A | Seat belt anchor reinforcement for No. 2 left seat | 61765-0D040 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-0D030 · 61766-0D070 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-0D070 · 61767-0D080 |
| 61768B | Rear right seat belt anchor to roof inner reinforcement | 61768-0D030 · 61768-0D080 |
| 61769B | Rear left seat belt anchor to roof inner reinforcement | 61769-0D030 · 61769-0D080 |
| 61773B | Back door upper right opening frame | 61773-52020 |
| 61774B | Back door upper left opening frame | 61774-52020 |
| 61783B | No. 1 rear fender outer panel pad | 61783-0D190 · 61783-52040 |
| 61824 | Noise Control Panel No. 1 | 61824-12060 |
| 61826C | No. 3 silencer panel gasket | 61826-52040 |
| 61827A | Noise Control Panel No. 4 | 61826-0D080 · 61826-52030 |
| 62151B | Front cowl side silencer pads | 62151-52030 |
| 68981A | Back door right side support rod fixing | 68981-0D040 · 68981-0D170 |
| 68982A | Back door left support rod fixing | 68982-0D010 · 68982-0D130 |
| 75925B | No. 3 right side light-blocking film | 75925-0D040 |
| 75926B | No. 3 left shading film | 75926-0D040 |
| 75993B | Right rear side panel | 75993-0D020 · 75993-0D030 · 75993-0D040 |
| 75994D | Left rear side panel | 75994-0D020 · 75994-0D030 · 75994-0D040 |
