Toyota YARIS 中央扶手箱和支架 — Figure 5806

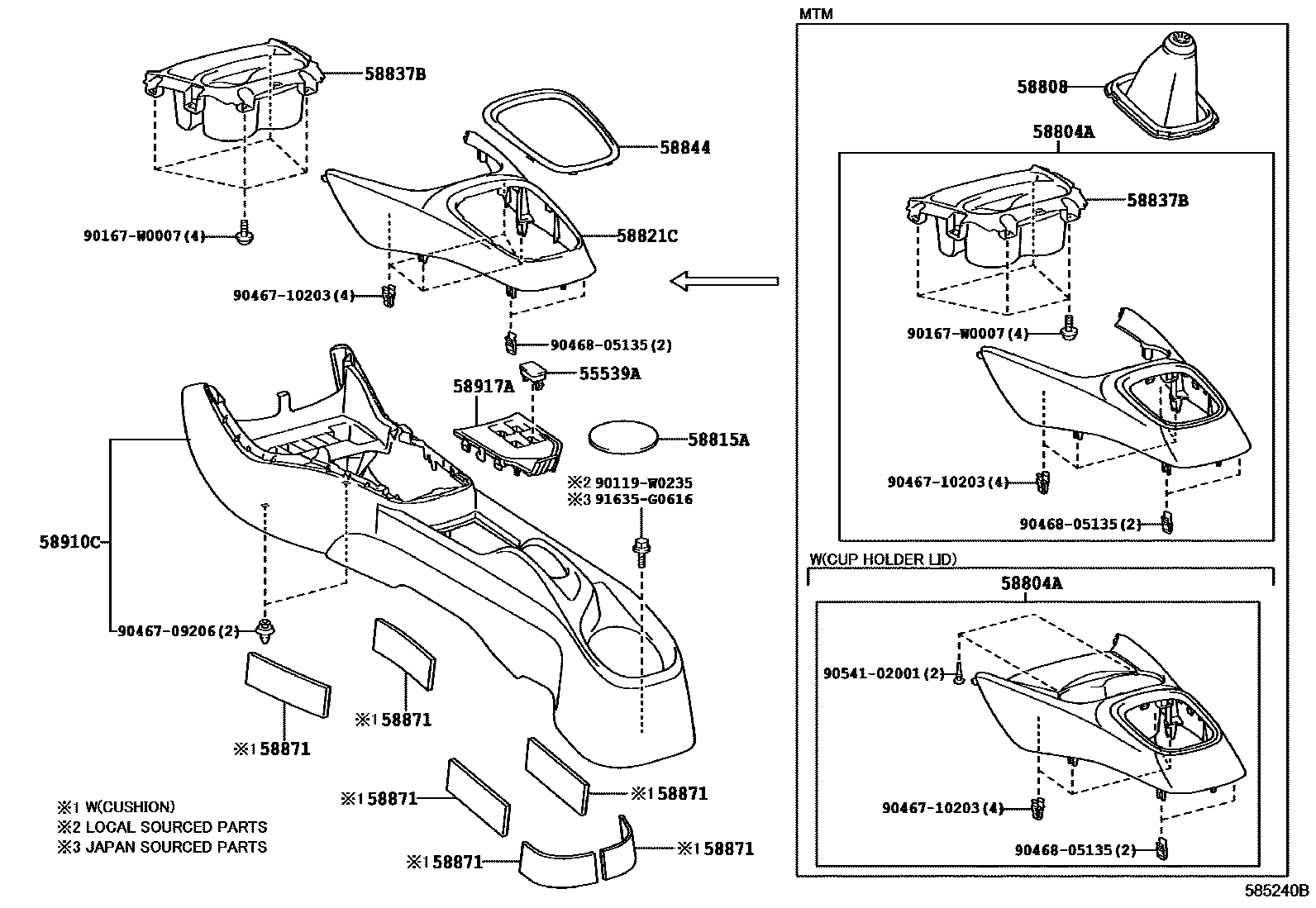

Toyota YARIS EPC diagram 5806, 中央扶手箱和支架, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58815A | Armrest box felt pad | 58815-0D280 |
| 58844 | armrest box frame | 58844-0D120 |
| 58871 | Armrest box cushion | 58871-0D070 |
