Toyota YARIS 地板隔热垫 — Figure 5802

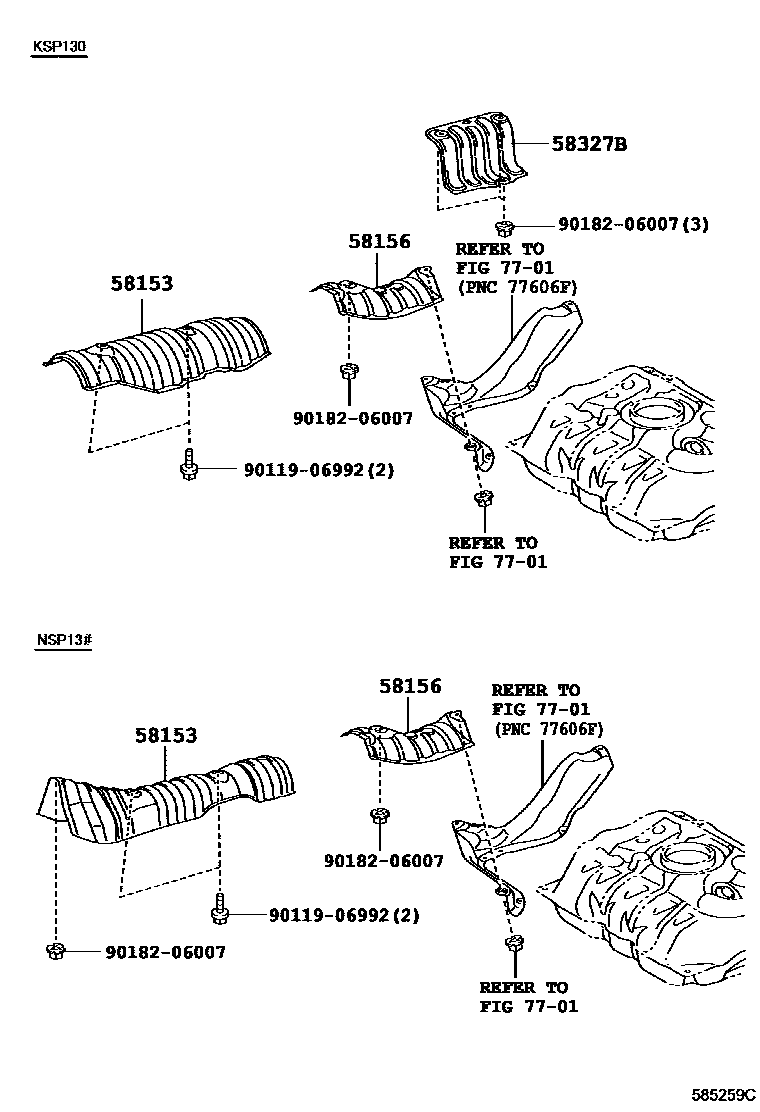

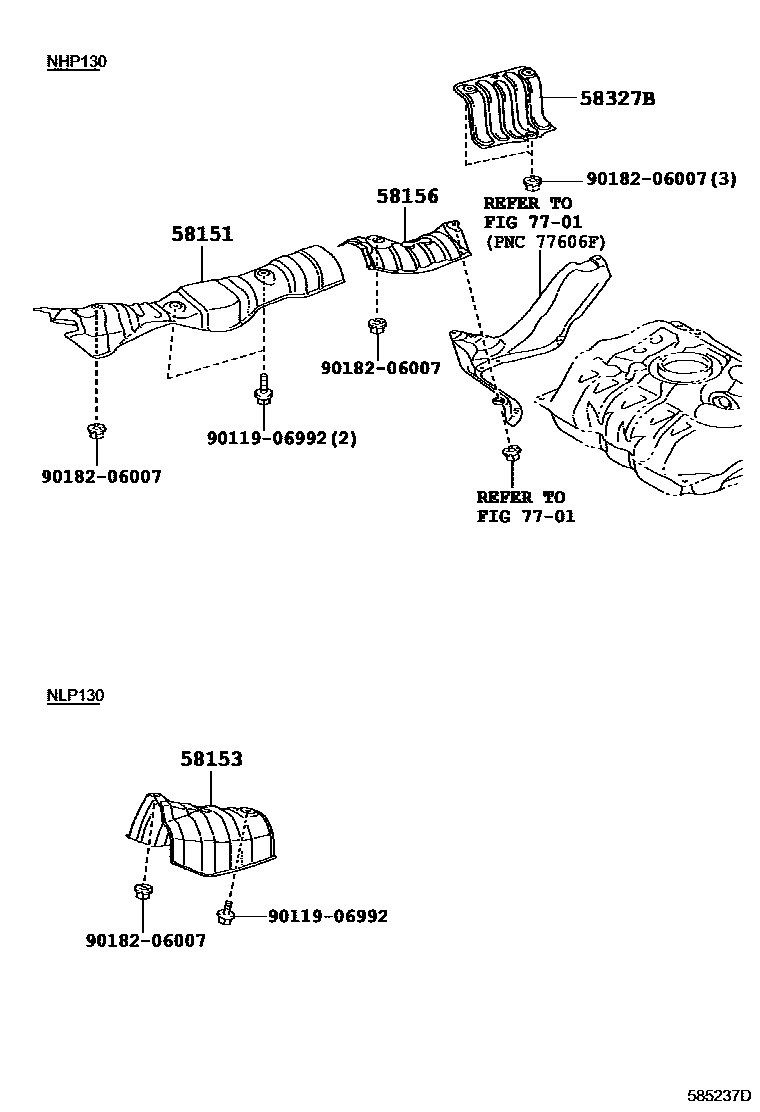

Toyota YARIS EPC diagram 5802, 地板隔热垫, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58151-0D100 |
| 58153 | Front floor insulation mat No. 2 | 58153-0D040 · 58153-0D050 · 58153-0D090 |
| 58156 | Front floor insulation mat No. 4 | 58156-0D010 |
| 58327B | Main muffler heat insulation pad | 58327-0D050 |
