Toyota YARIS 浅盘形地板和车身下背板 — Figure 5801

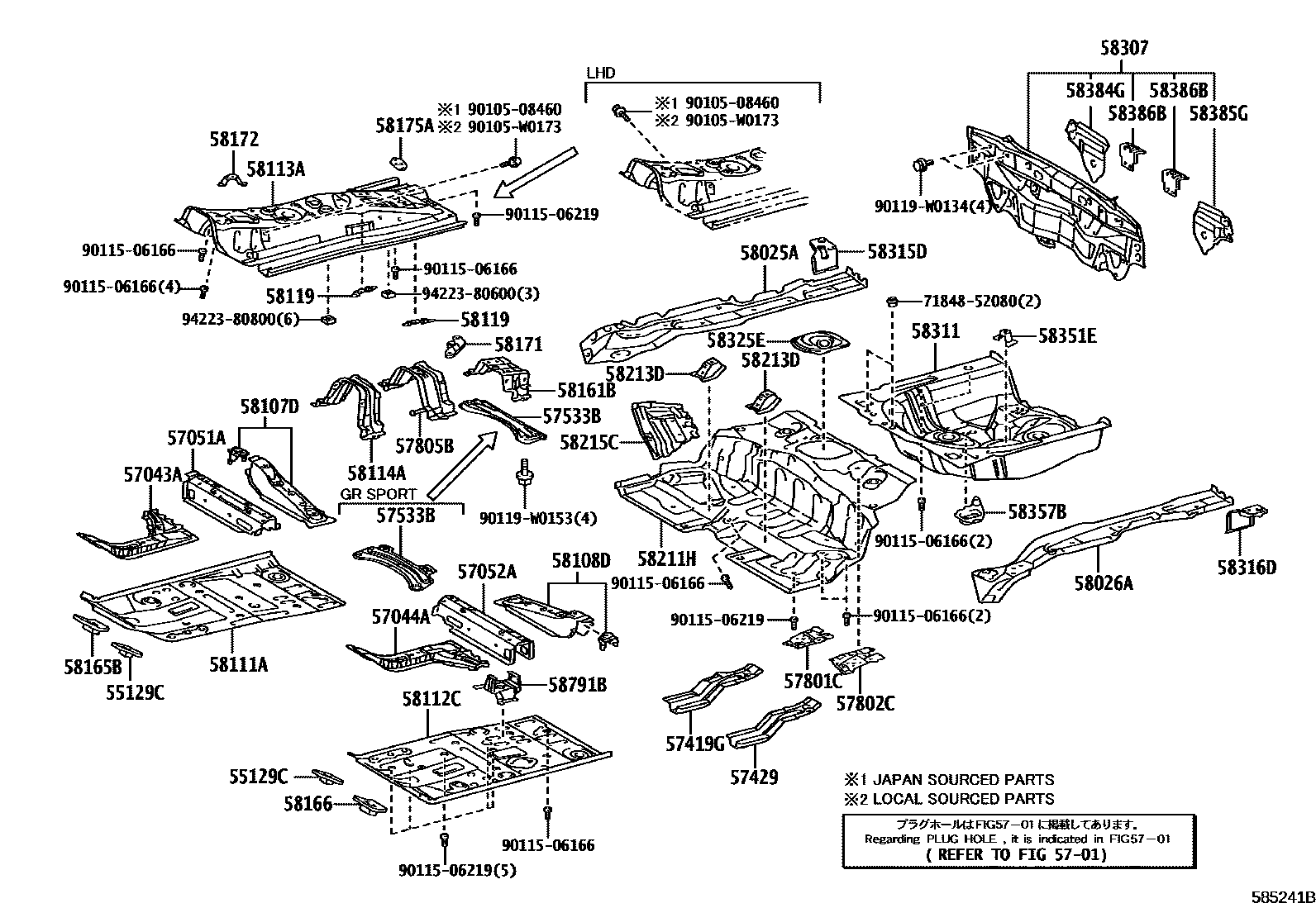

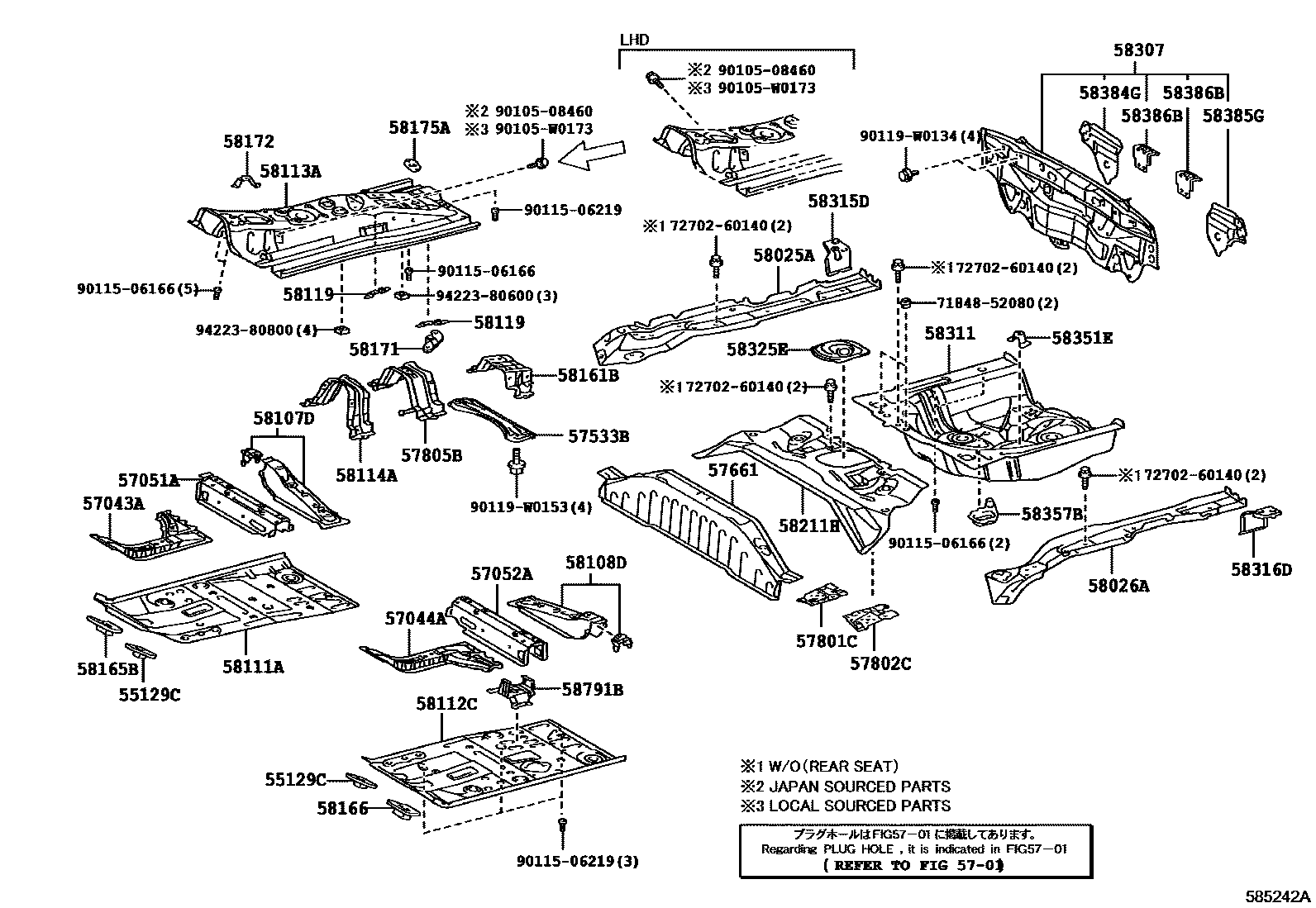

Toyota YARIS EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55129C | Front panel hole cover | 55129-0D100 · 55139-0D020 |
| 57043A | Right front longitudinal beam rear reinforcement sub-assembly | 57043-0D012 · 57043-0D013 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-0D042 · 57044-0D043 |
| 57051A | Front floor right cross member sub-assembly | 57051-52020 |
| 57052A | Front floor left cross member sub-assembly | 57052-52020 |
| 57419G | Front floor right rear lower reinforcement | 57419-0D080 |
| 57429 | Left rear reinforcement under front floor | 57429-0D080 |
| 57533B | Front floor center bracket | 57533-0D050 · 57533-WY040 |
| 57661 | Rear floor right front side panel | 57661-0D050 |
| 57801C | Seat belt anchor No. 1 right side reinforcement sub-assembly | 57801-0D060 · 57801-0D080 |
| 57802C | Seat belt anchor No. 1 left reinforcement sub-assembly | 57802-0D050 · 57802-0D070 |
| 57805B | Right seat belt anchor reinforcement sub-assembly | 57805-0D090 |
| 58025A | Front floor right longitudinal beam plate sub-assembly | 58025-52022 |
| 58026A | Front floor left longitudinal beam plate sub-assembly | 58026-52022 |
| 58107D | Front cross member to front panel right reinforcement sub-assembly | 58107-0D051 |
| 58108D | Left front cross member to front panel reinforcement sub-assembly | 58108-0D031 |
| 58111A | Front floor right bottom panel | 58111-52270 · 58111-52271 |
| 58112C | Front floor left bottom panel | 58112-0D908 · 58112-0D909 · 58112-52918 · 58112-52922 |
| 58113A | front floor center panel | 58113-52925 |
| 58114A | front floor reinforcement | 58114-0D100 · 58114-0D101 · 58114-0D102 |
| 58119 | front floor front side panel | 58119-0D020 |
| 58161B | Seat belt anchor to floor pan reinforcement | 58161-0D080 |
| 58165B | Front floor right cover | 58165-0D020 |
| 58166 | Front floor left cover | 58166-0D020 |
| 58171 | Parking brake base reinforcement | 58171-0D070 |
| 58172 | No. 3 ECU mounting bracket | 58172-52020 |
| 58175A | No. 1 parking brake base reinforcement | 58175-52020 |
| 58211H | central floor base | 58211-0D080 · 58211-0D902 |
| 58213D | Central floor reinforcement | 57551-0D010 |
| 58215C | Center floor No. 2 right reinforcement | 58215-0D070 |
| 58307 | Body lower back panel sub-assembly | 58307-0D140 |
| 58311 | rear floor pan | 58311-52110 |
| 58315D | Rear floor pan right extension | 58315-0D040 |
| 58316D | Rear floor pan left extension | 58316-0D040 |
| 58325E | Rear floor access hole cover | 58325-0D060 · 58325-0D130 |
| 58351E | Spare tire clip bracket | 58351-52070 |
| 58357B | No. 3 right actuator cover bracket | 58357-52031 · 58357-52080 |
| 58384G | Body lower back panel upper right corner panel | 58384-0D060 |
| 58385G | Body lower back panel upper left corner panel | 58385-0D080 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-0D040 |
| 58791B | jack bracket | 58791-0D110 |
