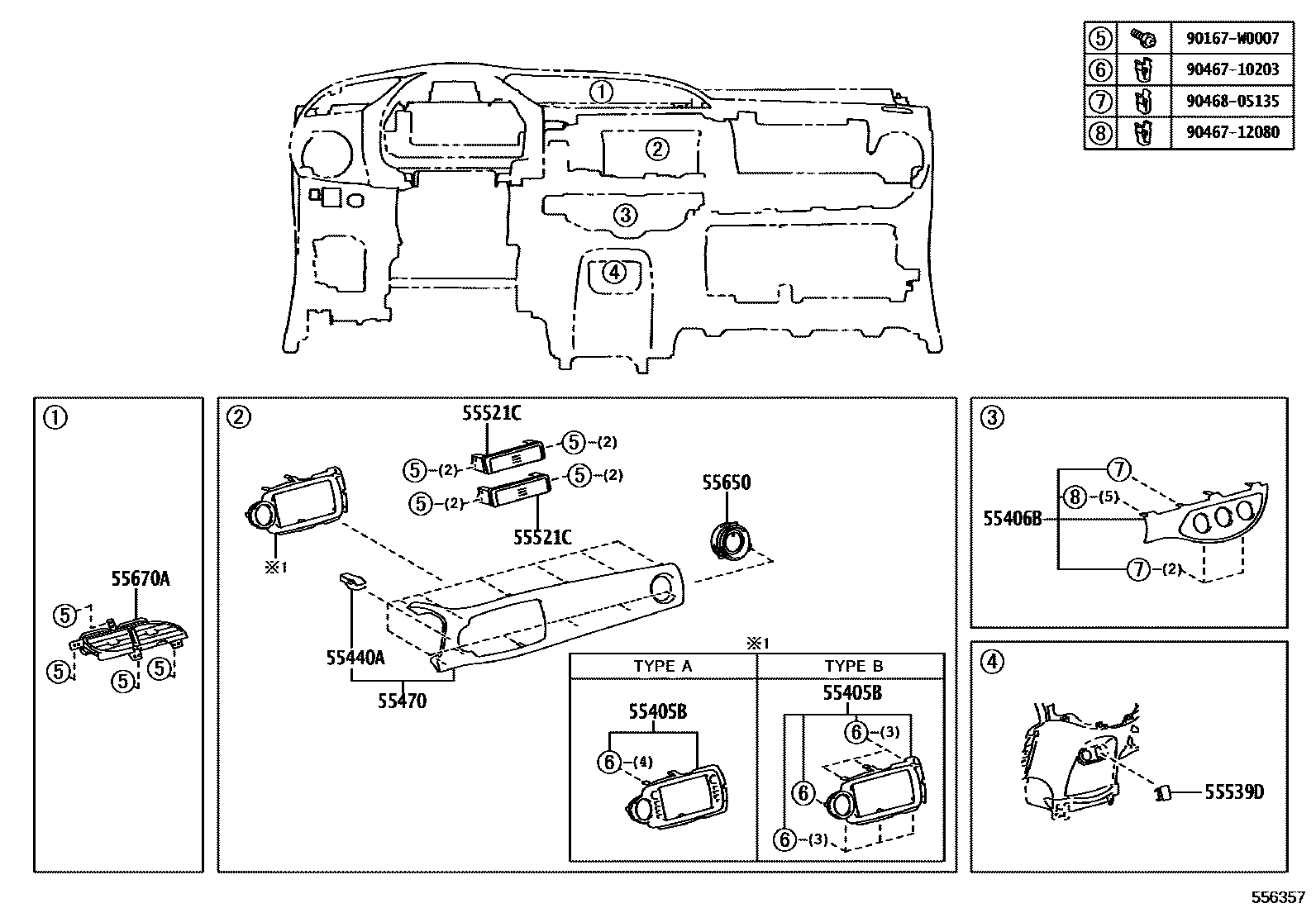

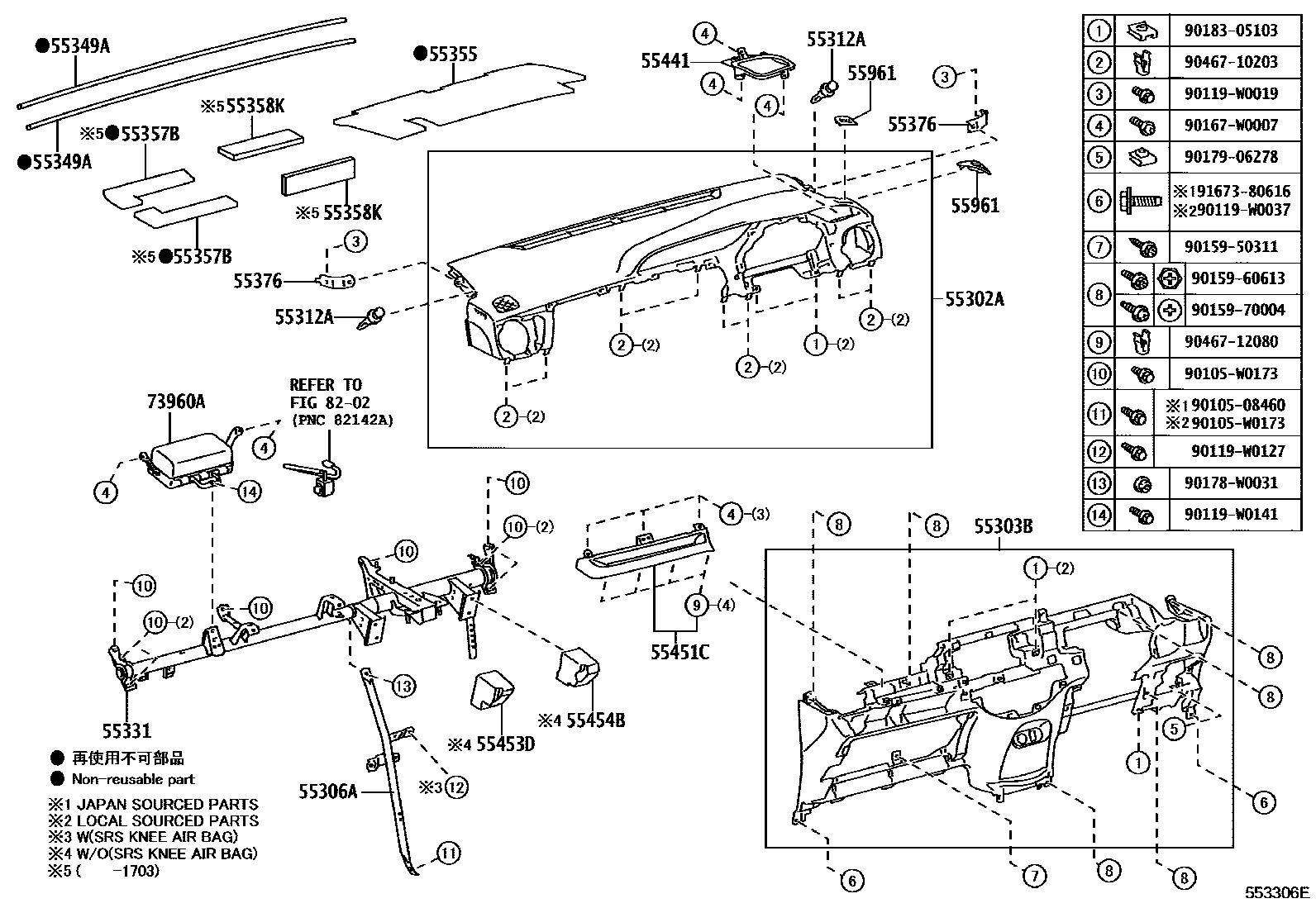

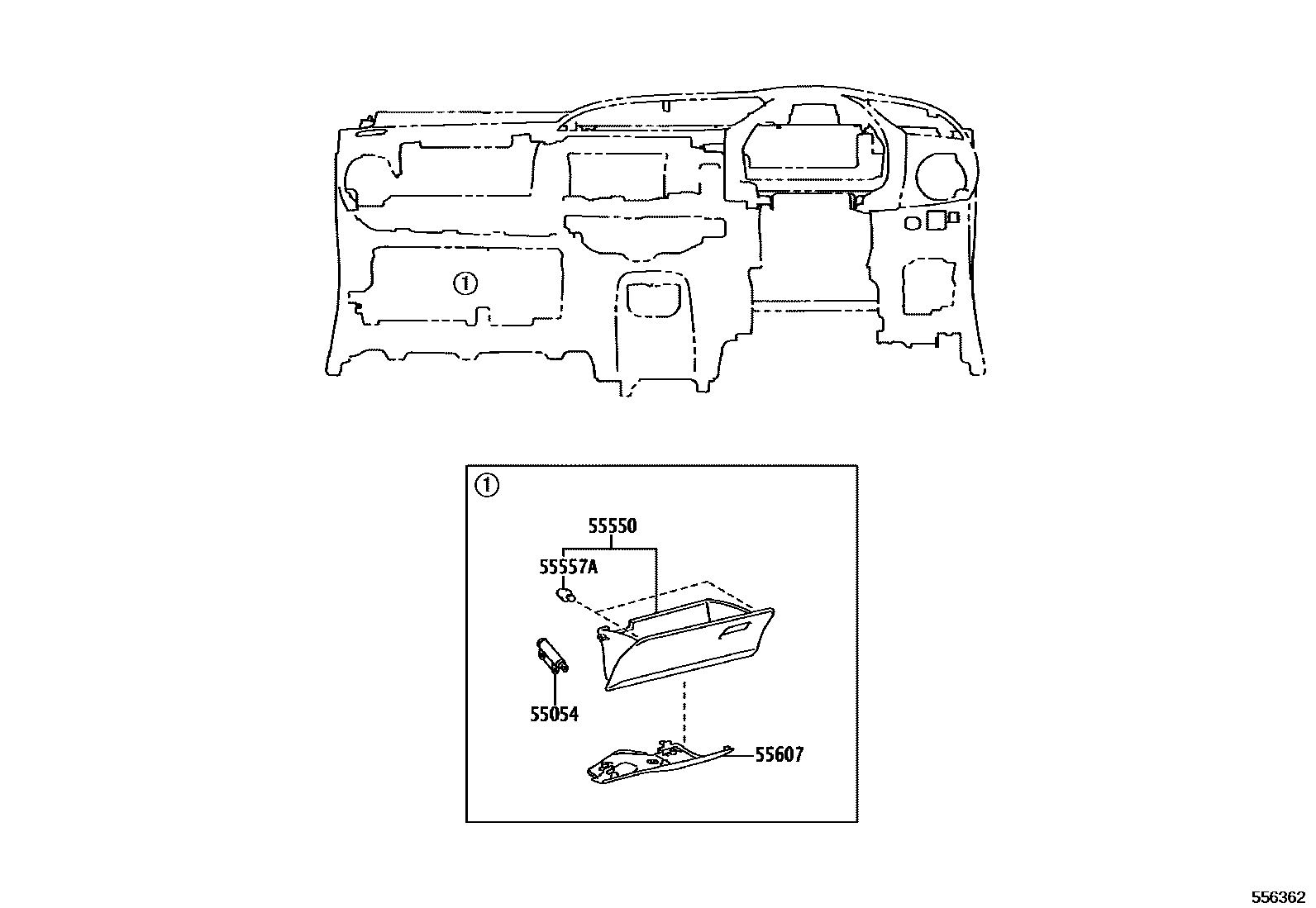

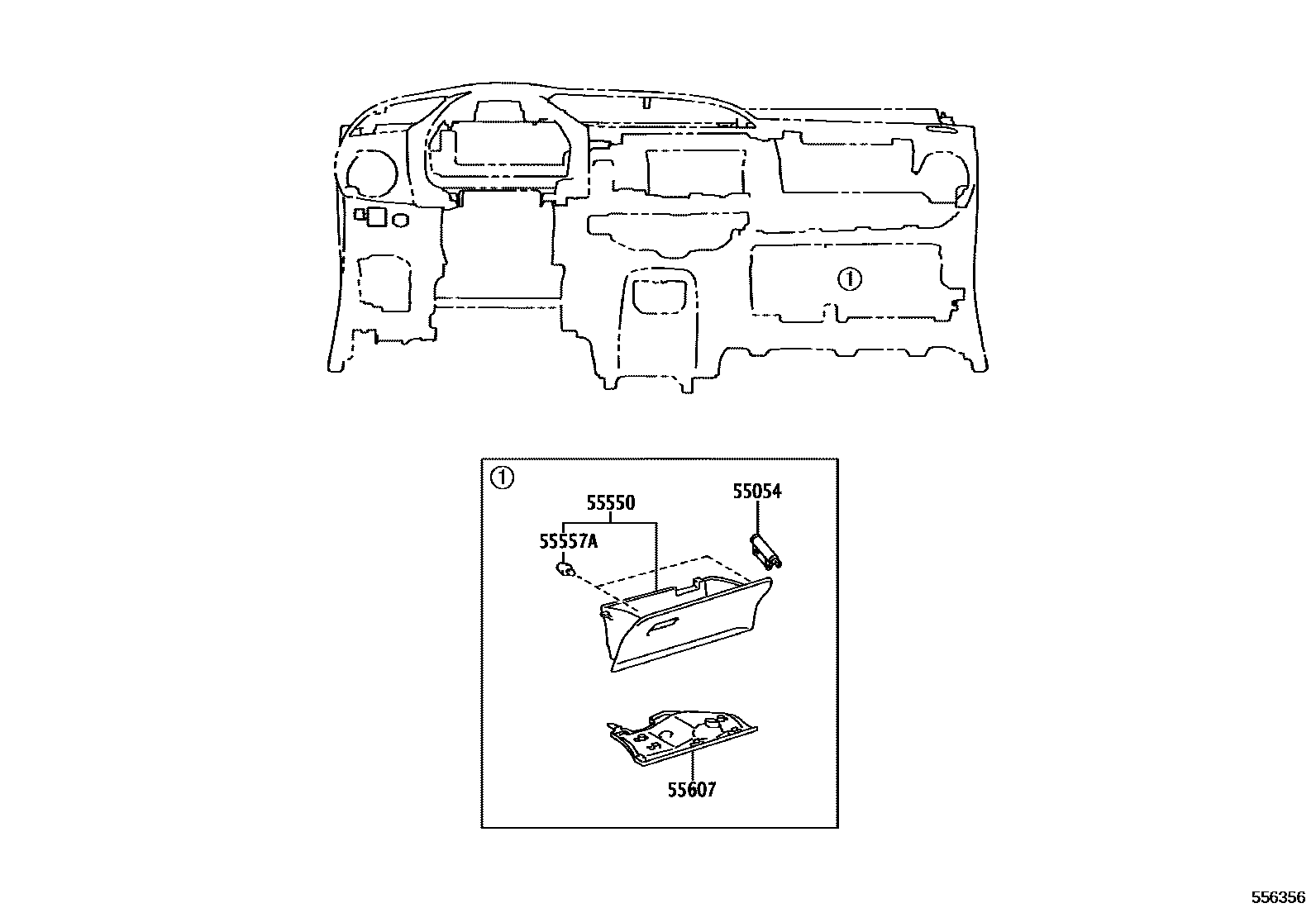

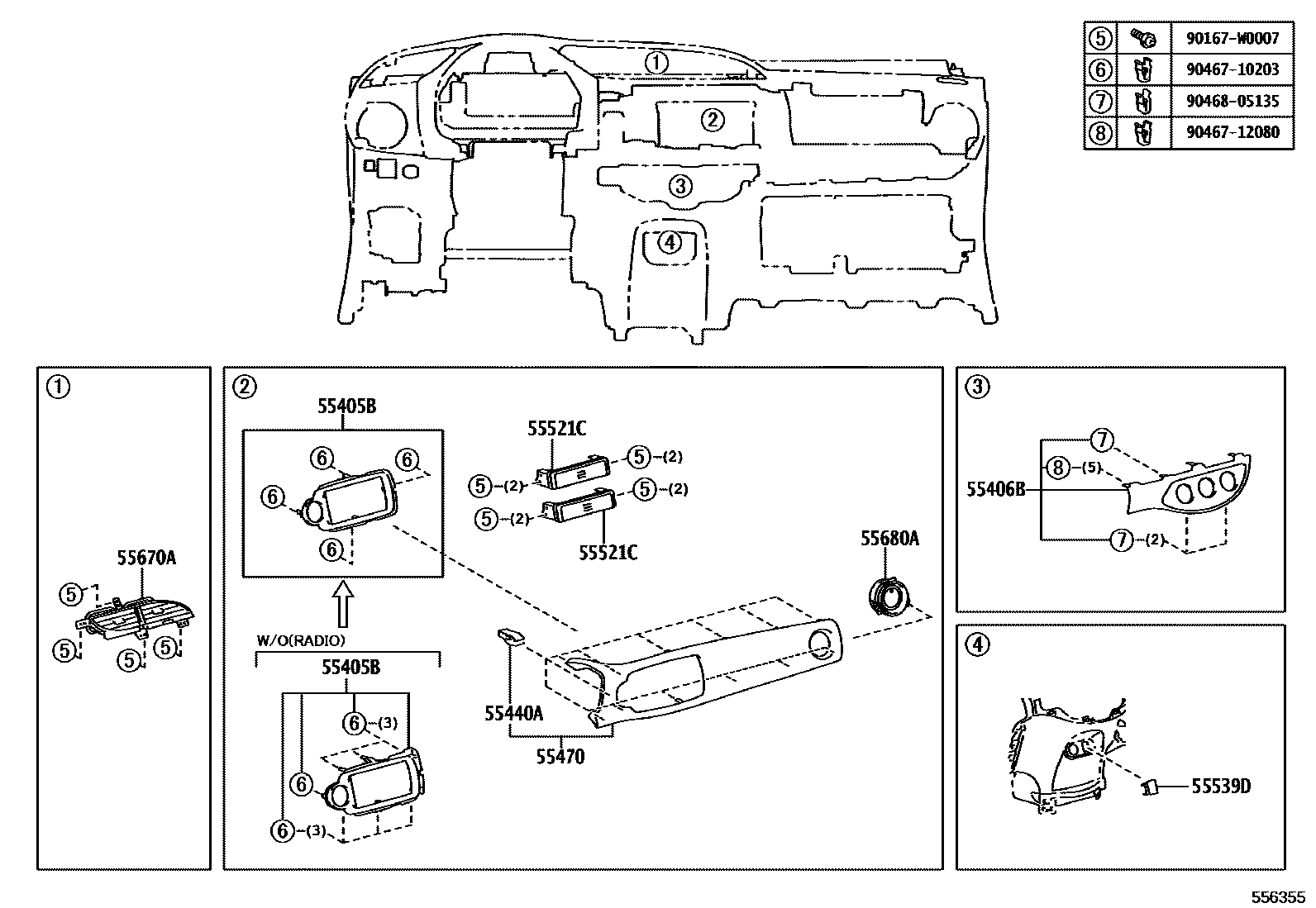

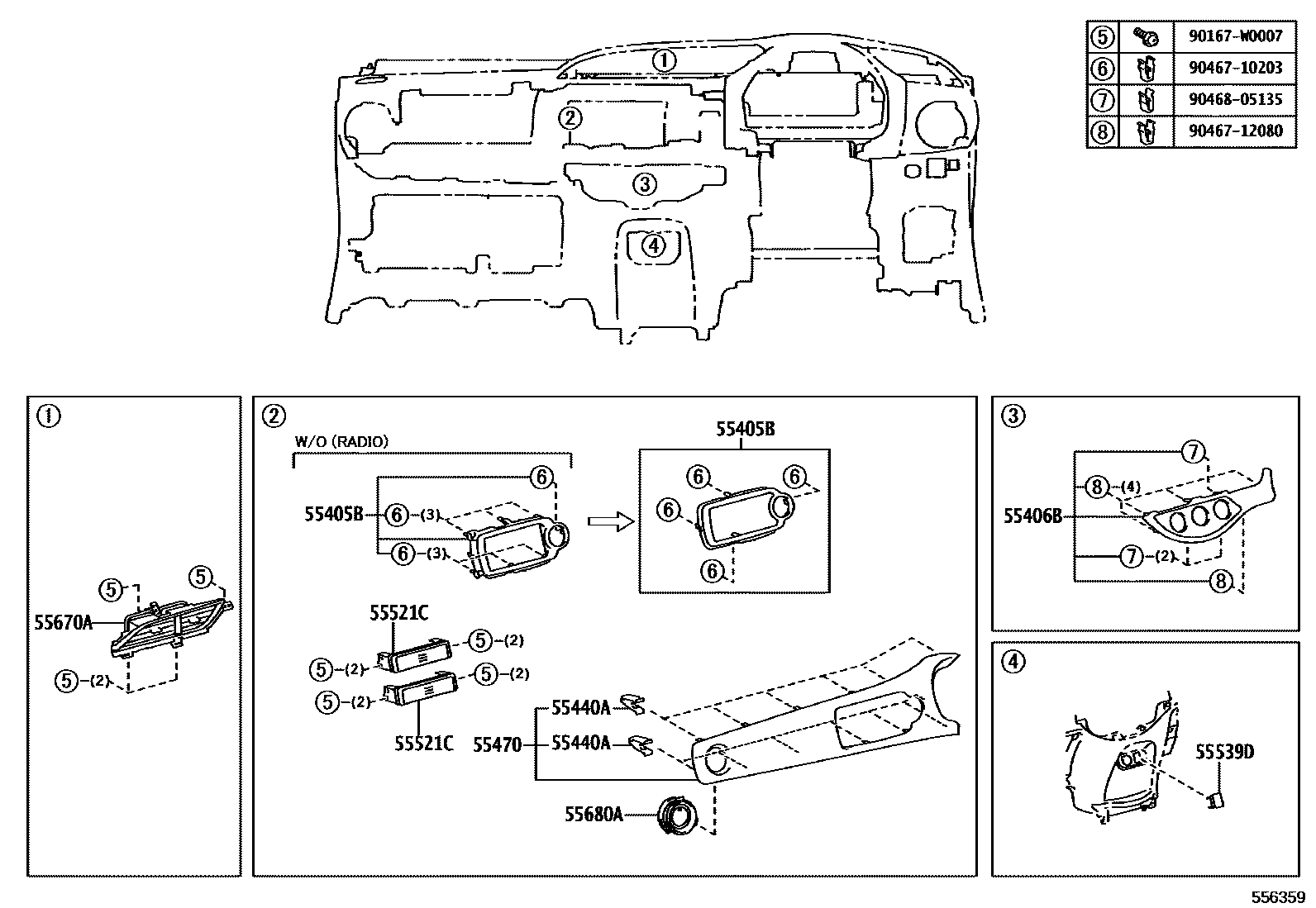

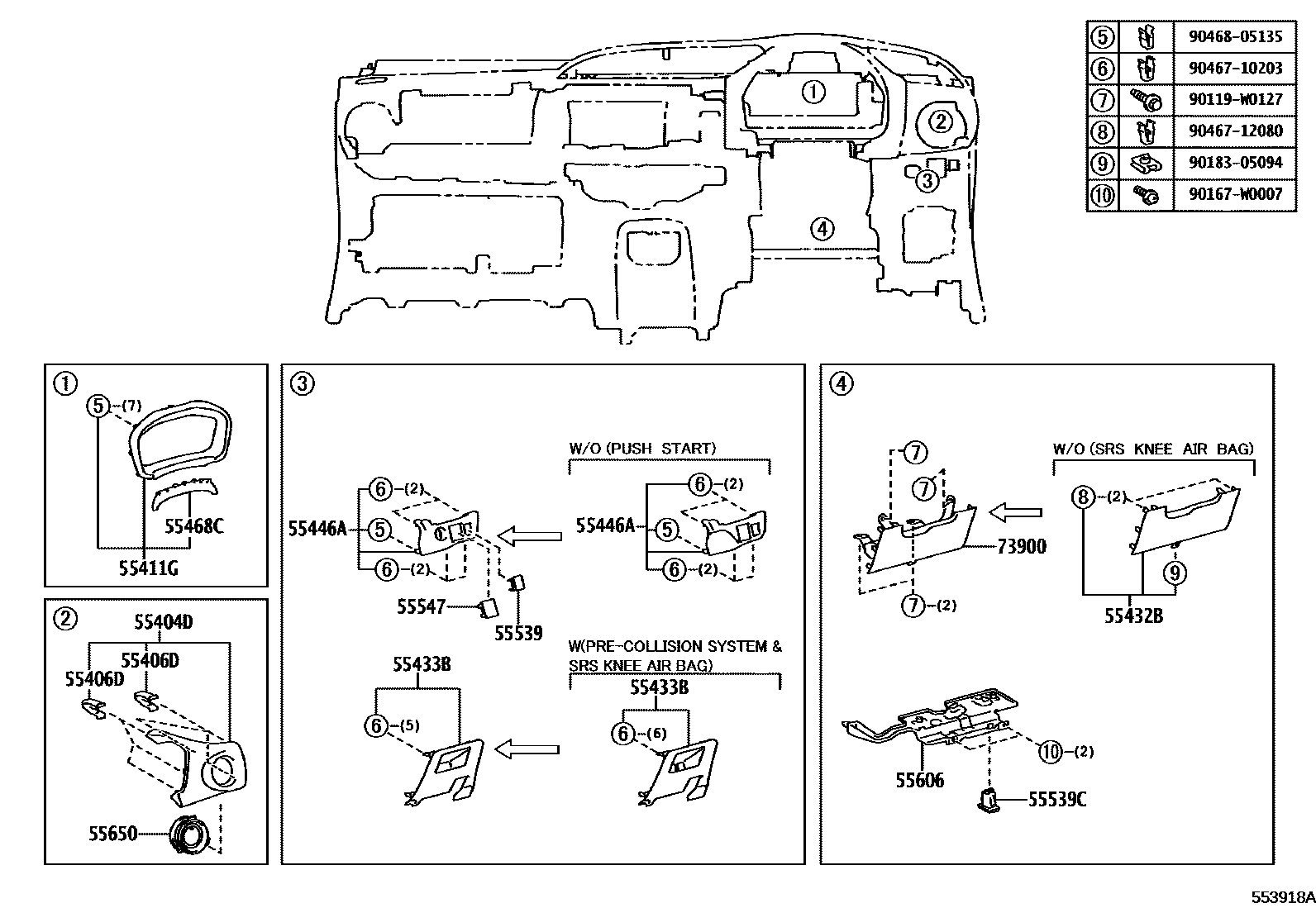

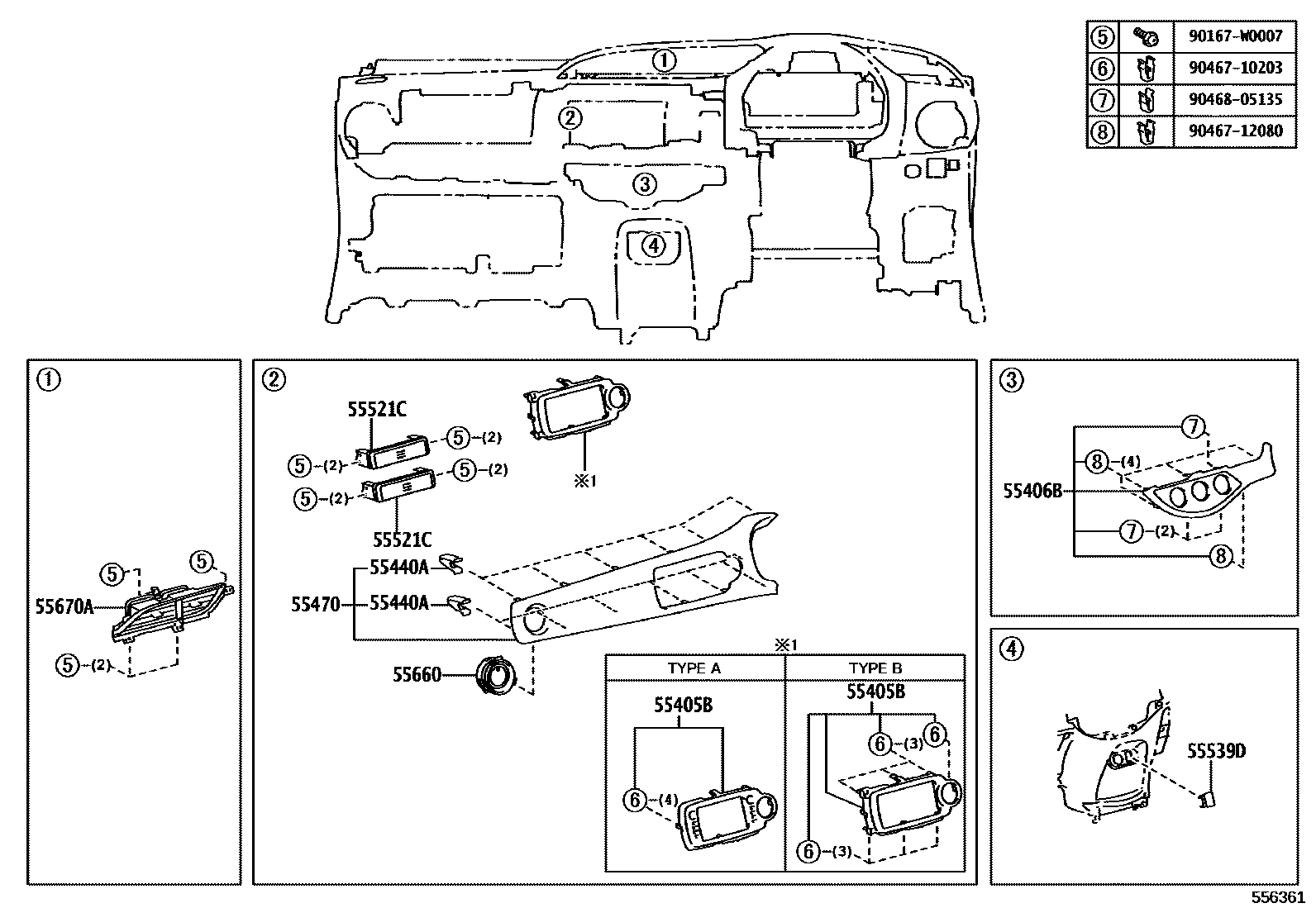

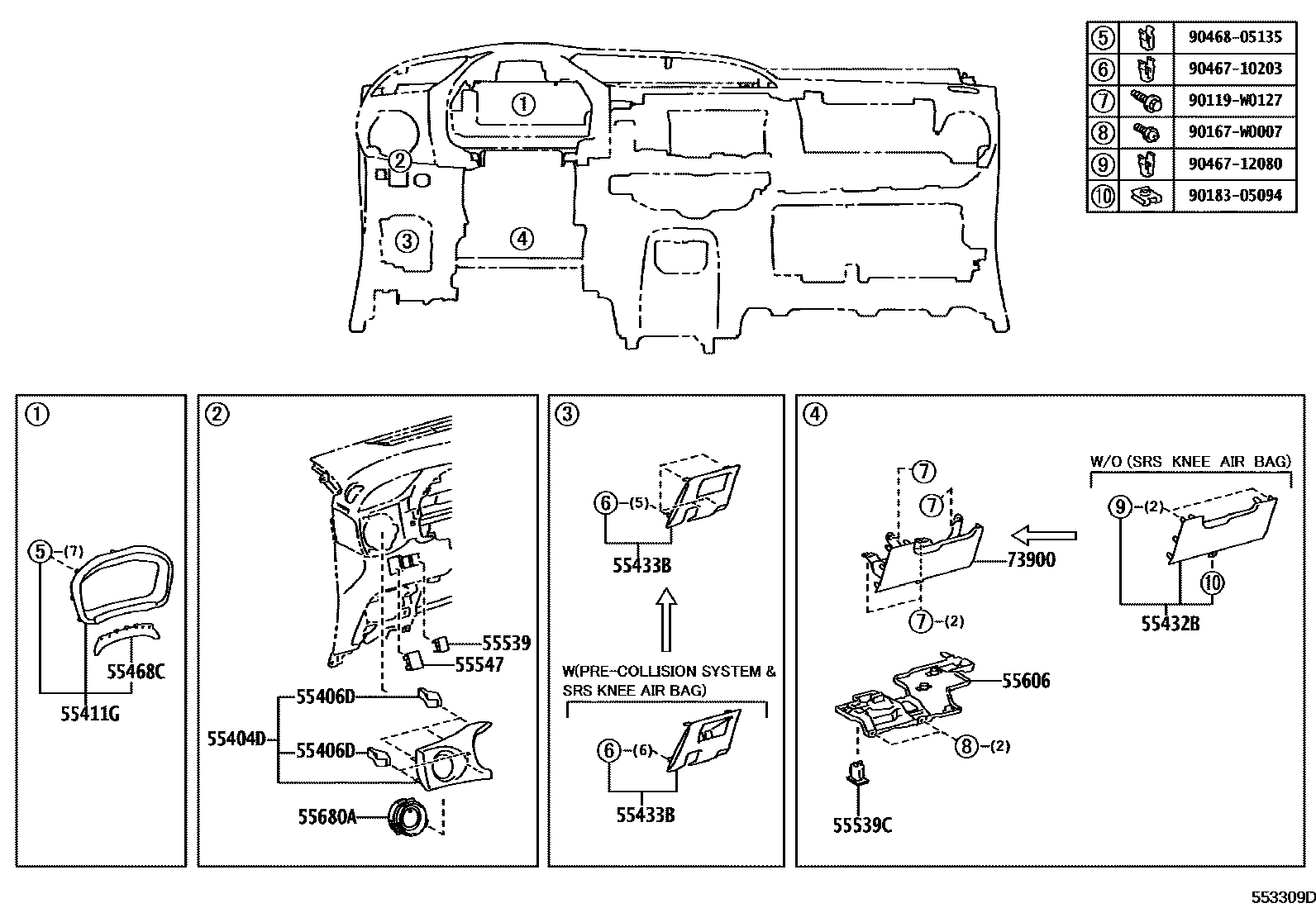

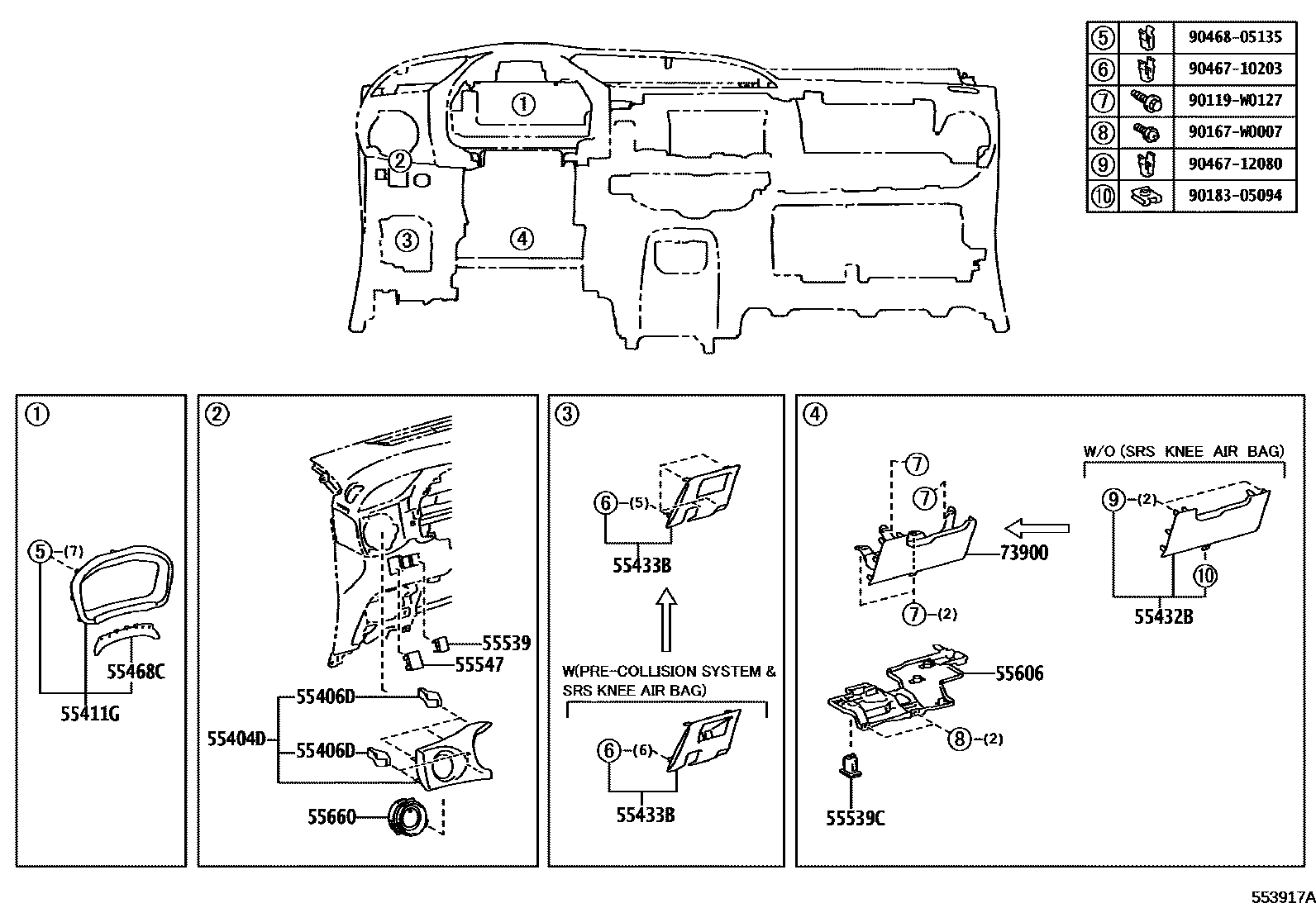

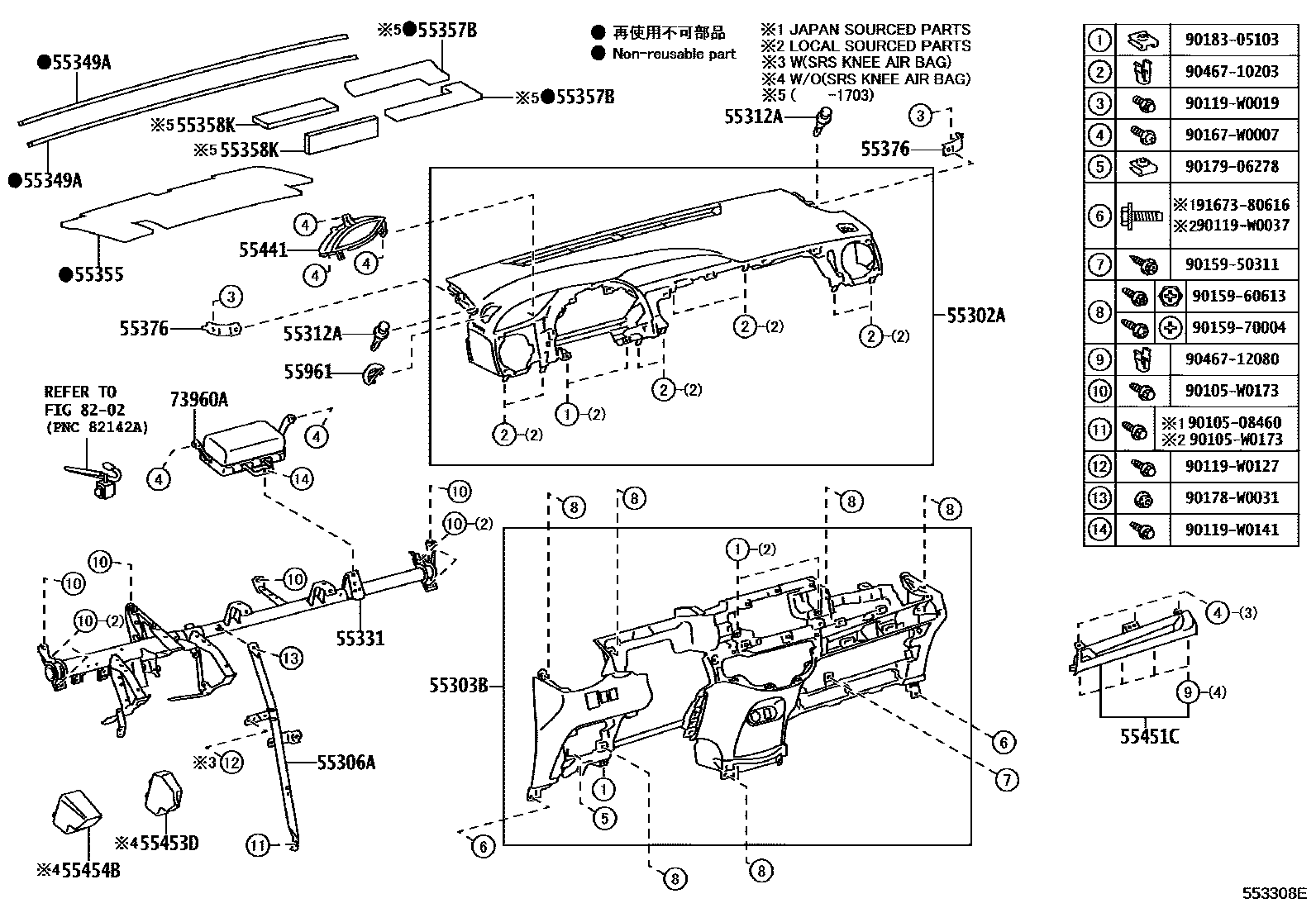

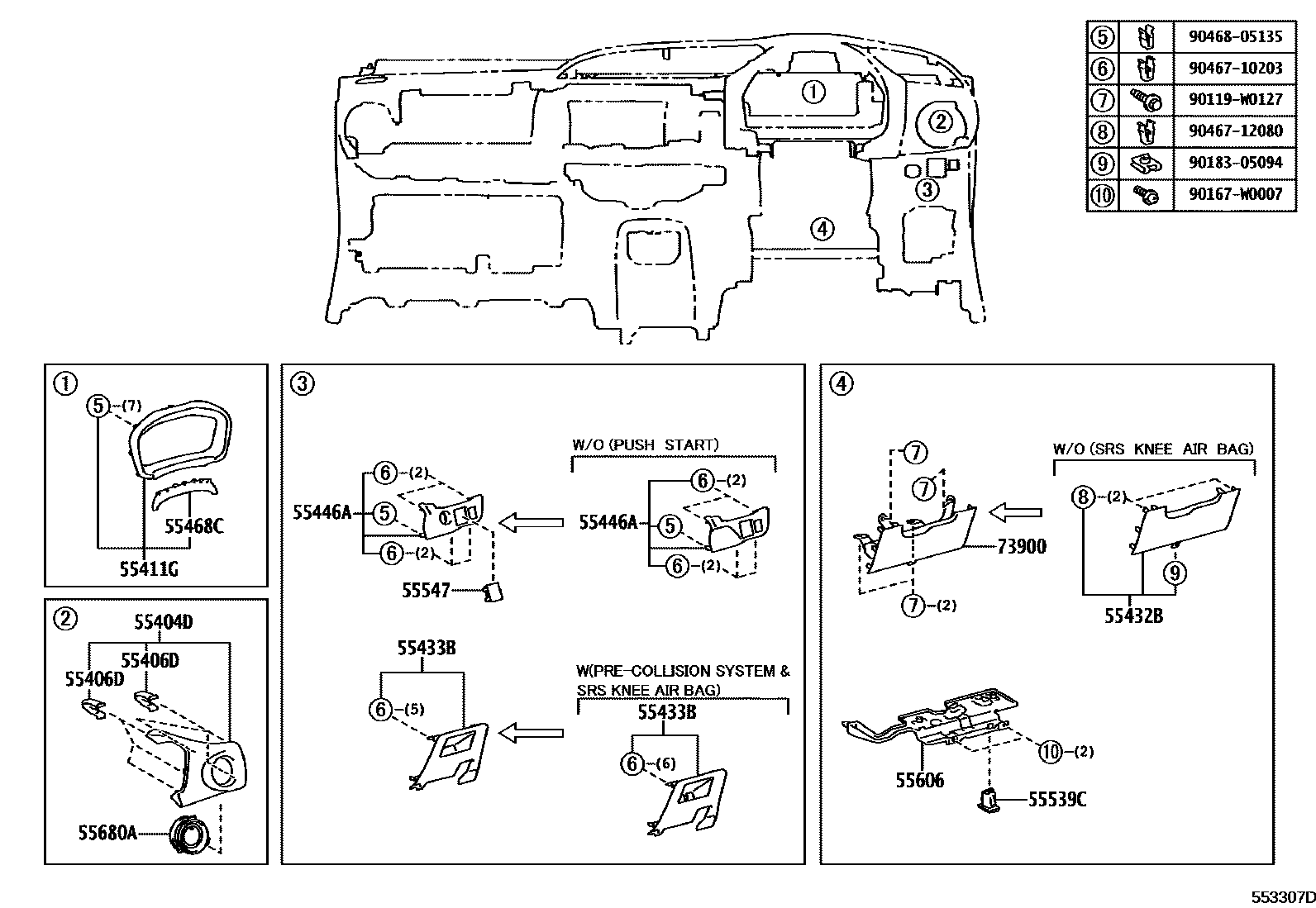

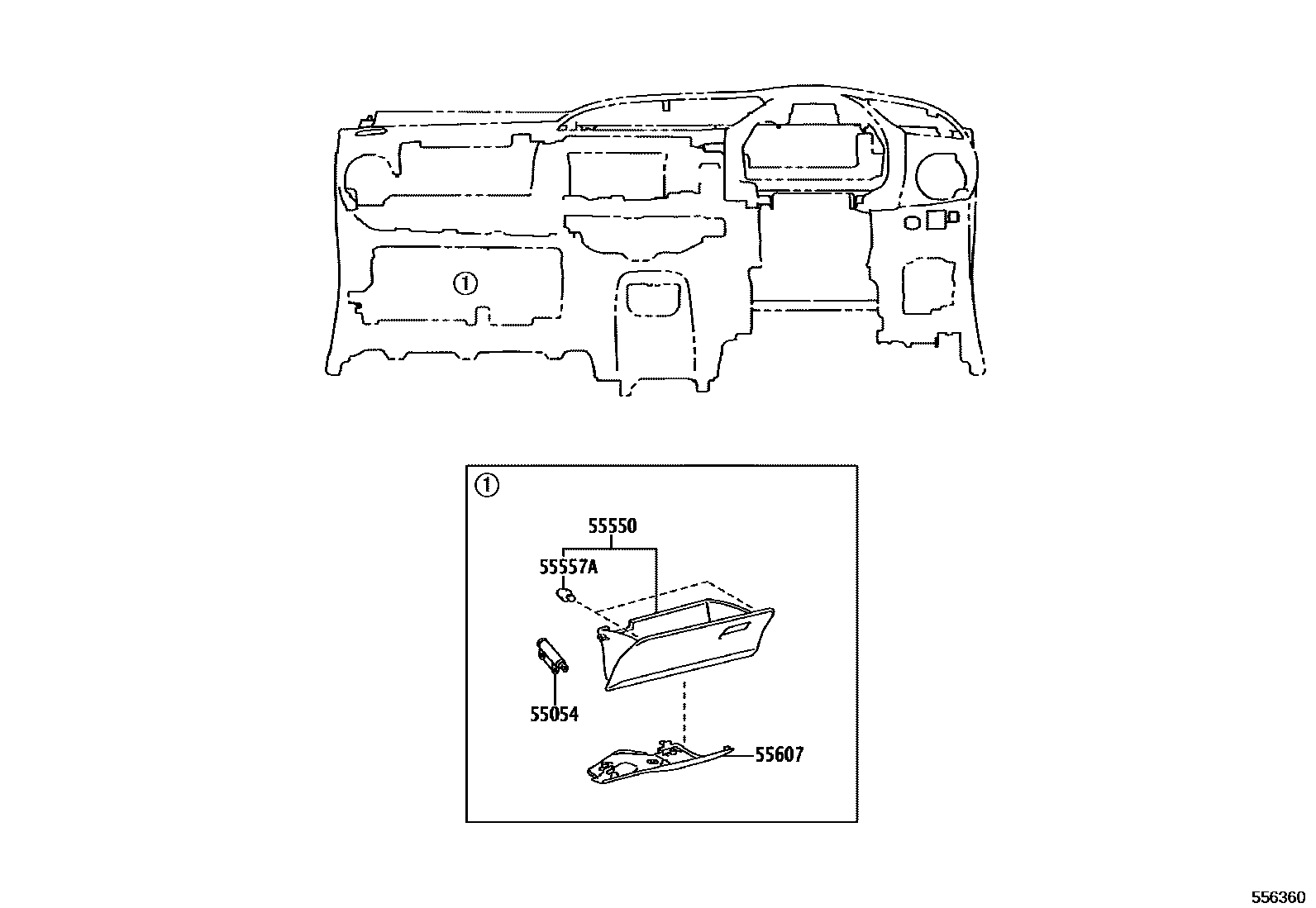

Toyota YARIS 仪表板和手套箱 — Figure 5501
Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 14 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-52020 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0D290 · 55306-0D300 · 55306-0D310 · 55306-0D320 · 55306-0D360 · 55306-0D370 |
| 55312A | Dashboard clip | 52161-02030 |
| 55331 | Dashboard reinforcement | 55330-0D540 · 55330-0D541 · 55330-0D550 · 55330-0D551 · 55330-0D570 · 55330-0D571 · 55330-0D580 · 55330-0D581 |
| 55349A | Dashboard cushion | 55355-0D031 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-0D311 · 55355-0D470 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-0D240 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-0D170 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-0D030 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-0D620 · 86451-0D040 |
| 55406D | Clip (for instrument cluster decorative panel) | 67773-07020 |
| 55440A | Clip (for center instrument panel trim) | 67773-07020 |
| 55453D | Dashboard Safety Mat No. 1 | 55453-52120 · 55453-52130 |
| 55454B | Dashboard Safety Mat No. 2 | 55454-0D060 · 55454-52120 |
| 55468C | Instrument cluster No. 1 decorative panel seal | 55468-0D170 · 55468-0D180 |
| 55521C | stereo system hole cover | 55521-05030 |
| 55539C | Spare switch hole cover | 55539-48020 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-0D050 · 55606-0D060 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-0D050 · 55607-0D060 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0D111 · 73960-0D112 |
