Toyota YARIS radiator grille — Figure 5301

Toyota YARIS EPC diagram 5301, radiator grille, with 2 images and 4 PNC and OE references.

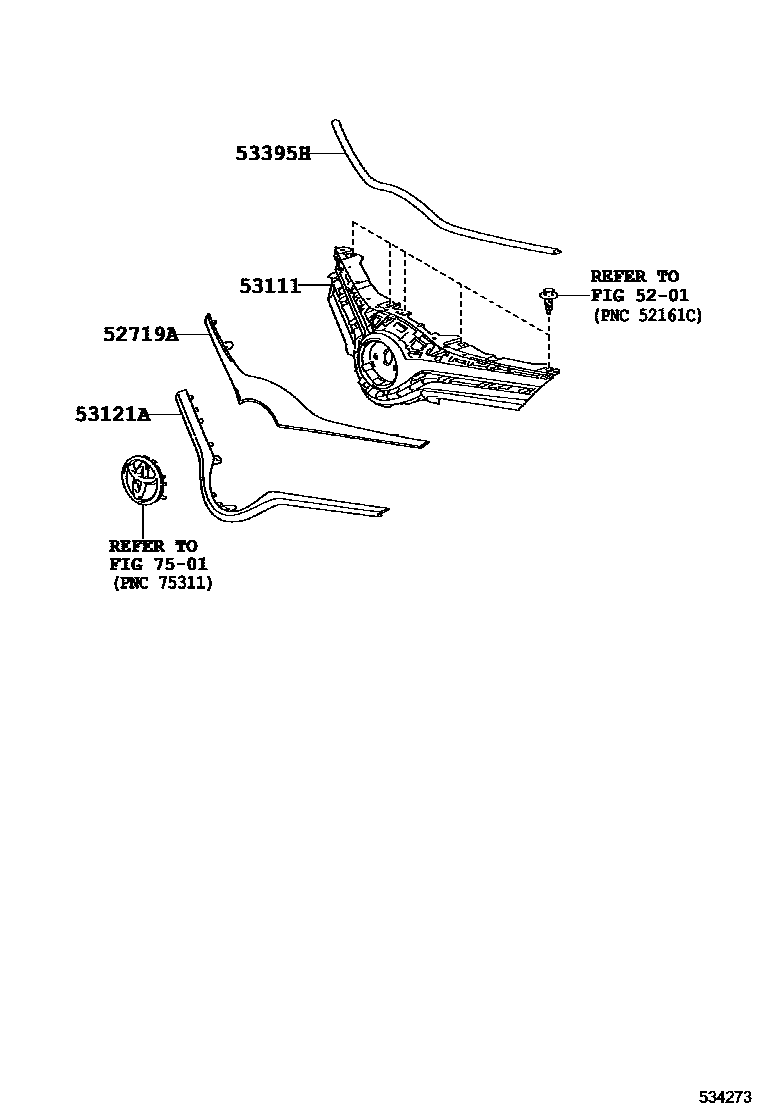

Toyota YARIS radiator grille EPC diagram — 534273
radiator grille — 534273 (201407 – 201703)

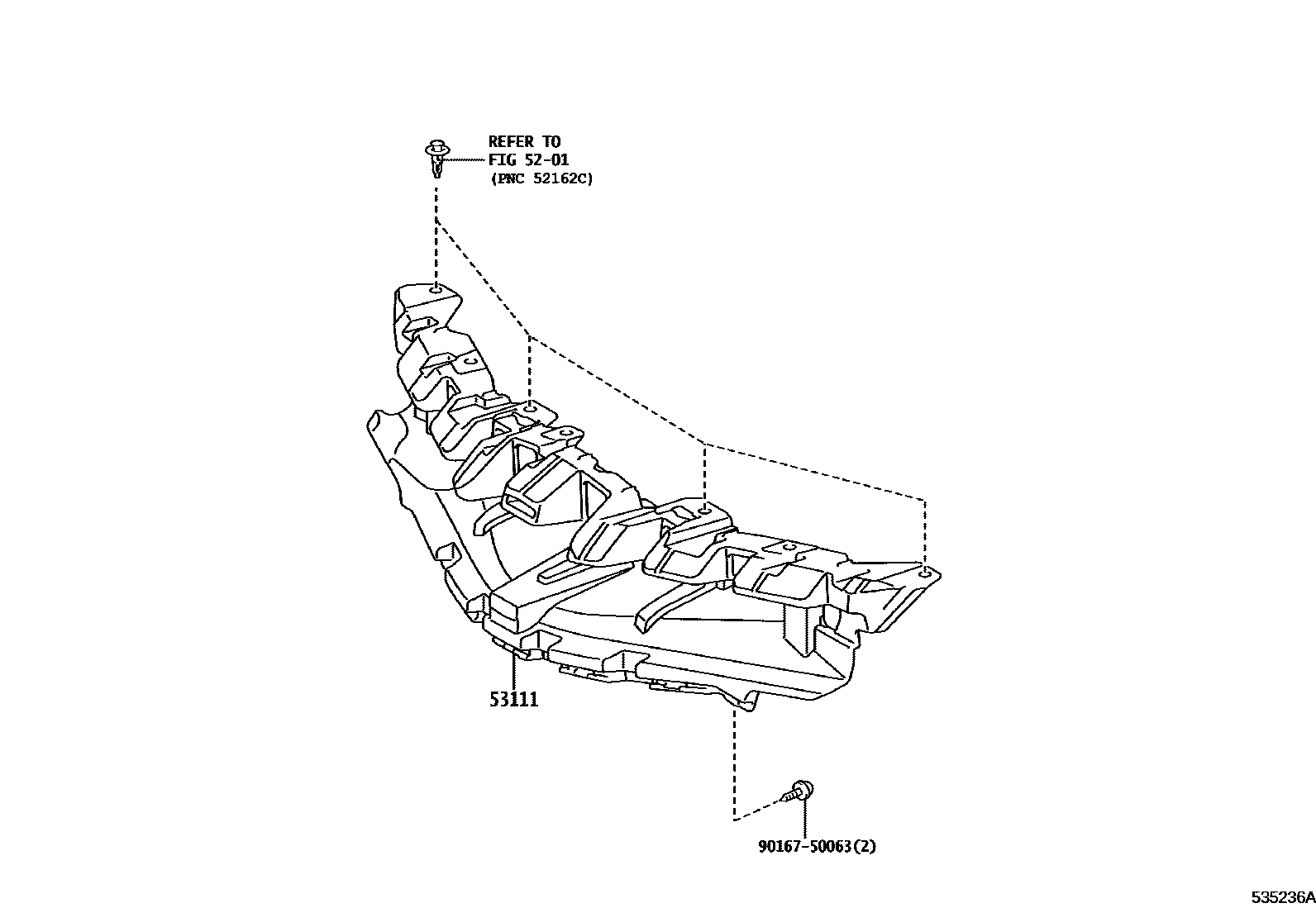

Toyota YARIS radiator grille EPC diagram — 535236A
radiator grille — 535236A (201703 – 999999)

PNC and OE references

PNCPart nameOE numbers
52719ACOUVERCLE, MOULURE DE PARE-CHOCS AVANT52719-0D900
53111radiator grille53111-0D800 · 53111-0D810 · 53111-0D820 · 53111-0DB10
53121ARadiator grille protection strip53121-0D250 · 53121-0D260
53395HEngine cover to radiator grille seal53395-0D030
