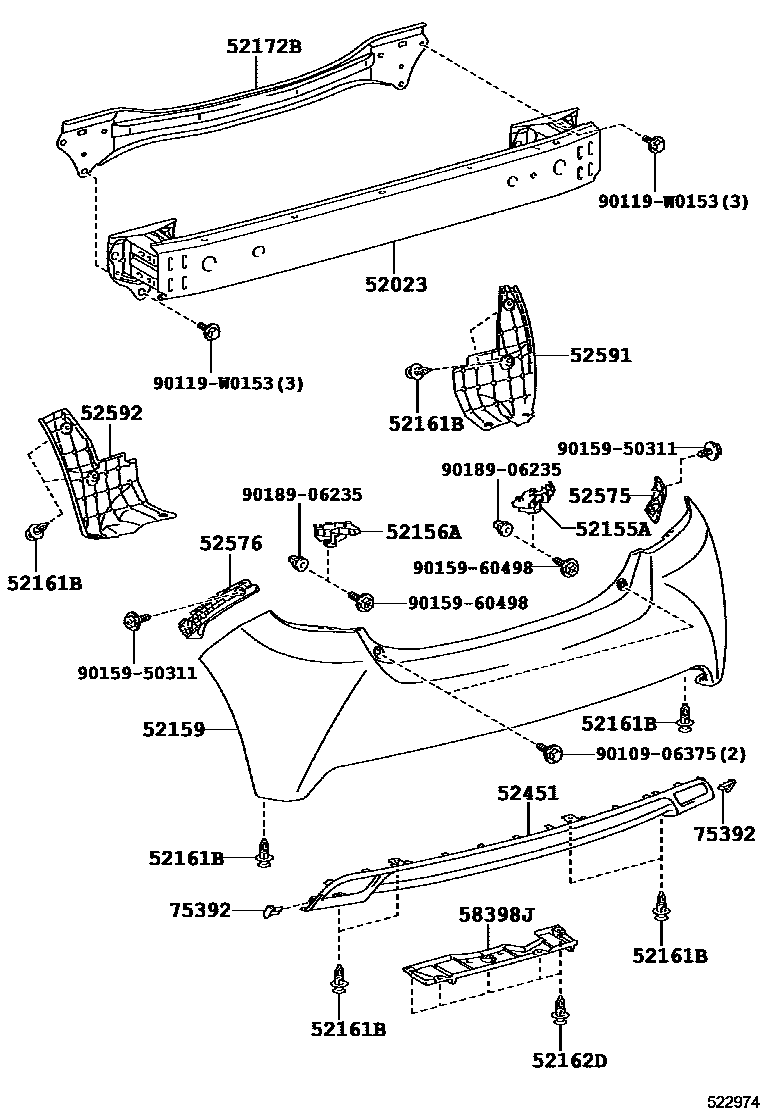

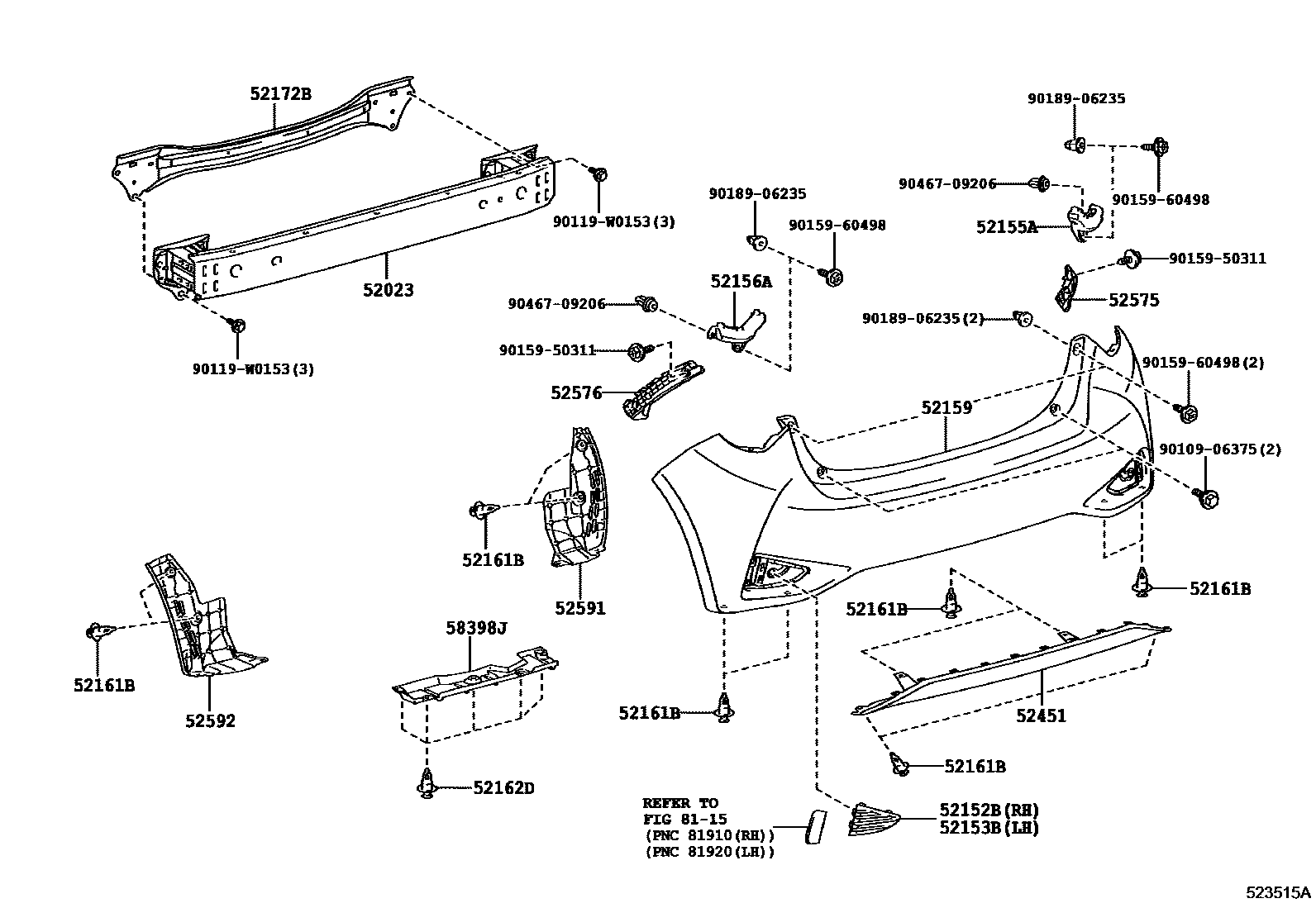

Toyota YARIS 后保险杠及附件 — Figure 5202
Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-0D080 |
| 52152B | Rear bumper right extension | 52681-0D010 |
| 52153B | Rear bumper left extension | 52682-0D010 |
| 52155A | Rear bumper right side bracket | 52155-0D100 · 52155-0D101 · 52155-0D220 |
| 52156A | Rear bumper left bracket | 52156-0D090 · 52156-0D091 · 52156-0D210 |
| 52159 | rear bumper cover | 52159-0U917 · 52159-0U921 |
| 52161B | Rear bumper insert | 52161-02030 |
| 52162D | Rear bumper insert | 52161-02030 |
| 52172B | Rear bumper reinforcement No. 2 | 52172-0D020 |
| 52451 | Rear bumper anti-impact parts | 52453-0D050 · 52453-0D090 |
| 52575 | Rear bumper right side fixing bracket | 52575-0D270 · 52575-0D271 · 52575-0D272 · 52575-0D460 |
| 52576 | Rear bumper left side fixing bracket | 52576-0D260 · 52576-0D261 · 52576-0D262 · 52576-0D450 |
| 52591 | Rear bumper right seal | 52591-0D280 |
| 52592 | Rear bumper left seal | 52592-0D280 |
| 58398J | No. 1 floor under cover | 58398-0D020 |
| 75392 | External protective strip fixings | 75392-35200 |
