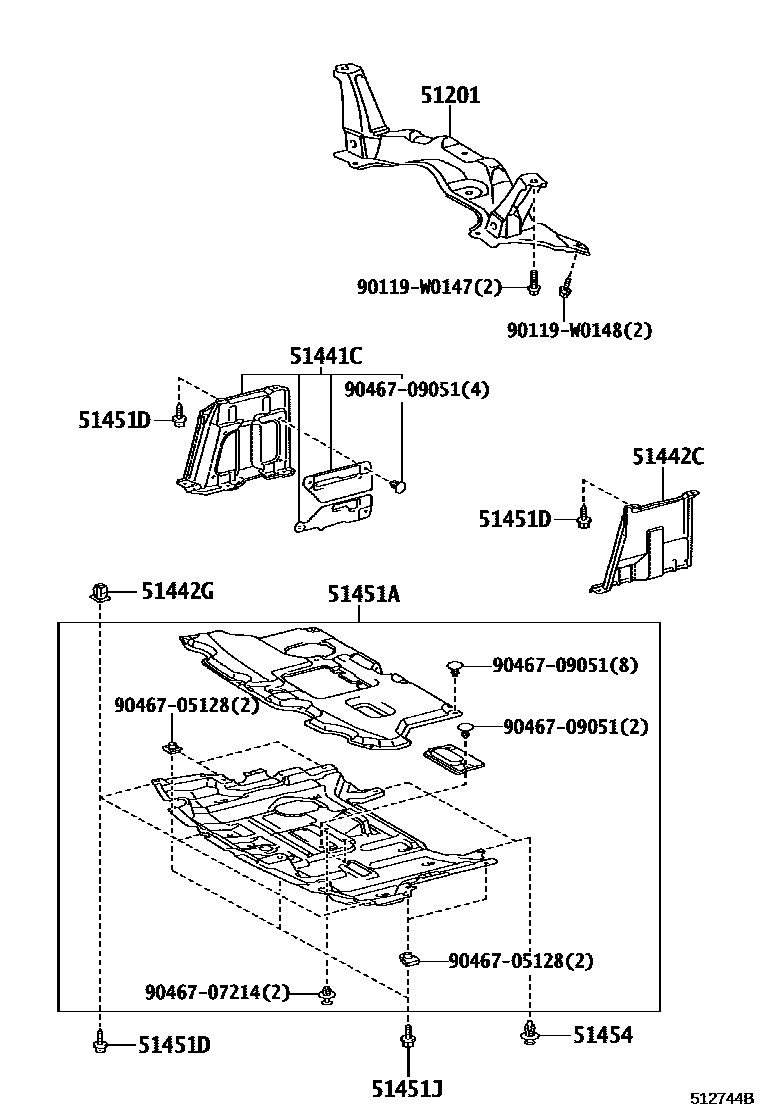

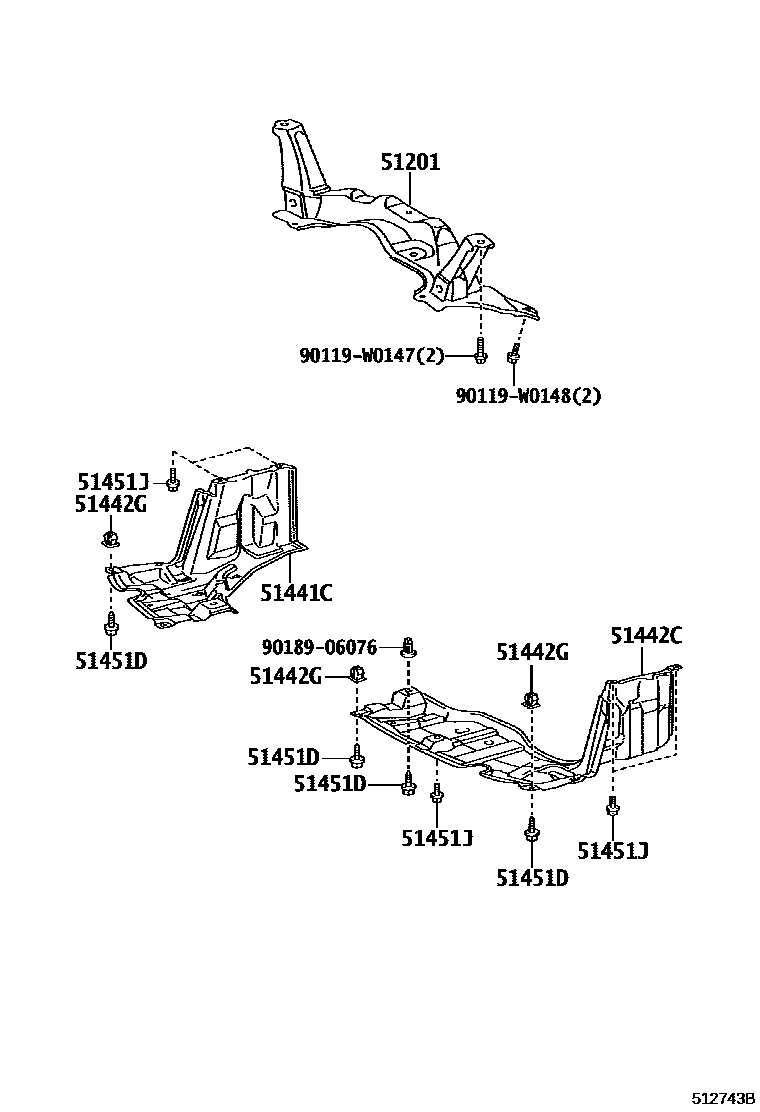

Toyota YARIS 悬架横梁和发动机底罩 — Figure 5102
Toyota YARIS EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-0D096 · 51201-0D106 |
| 51441C | Engine right bottom cover | 51441-0D221 · 51441-0D231 · 51441-0D240 |
| 51442C | Engine left bottom cover | 51442-0D141 · 51442-0D150 |
| 51442G | No. 1 engine bottom cover clip | 90189-06237 |
| 51451A | Engine center cover | 51451-0D011 |
| 51451D | VIS, NO.1 | 90159-W0007 |
| 51451J | BOULON, NO.1 | 90119-W0089 |
