Toyota YARIS Rear Spring & Shock Absorber — Figure 4804

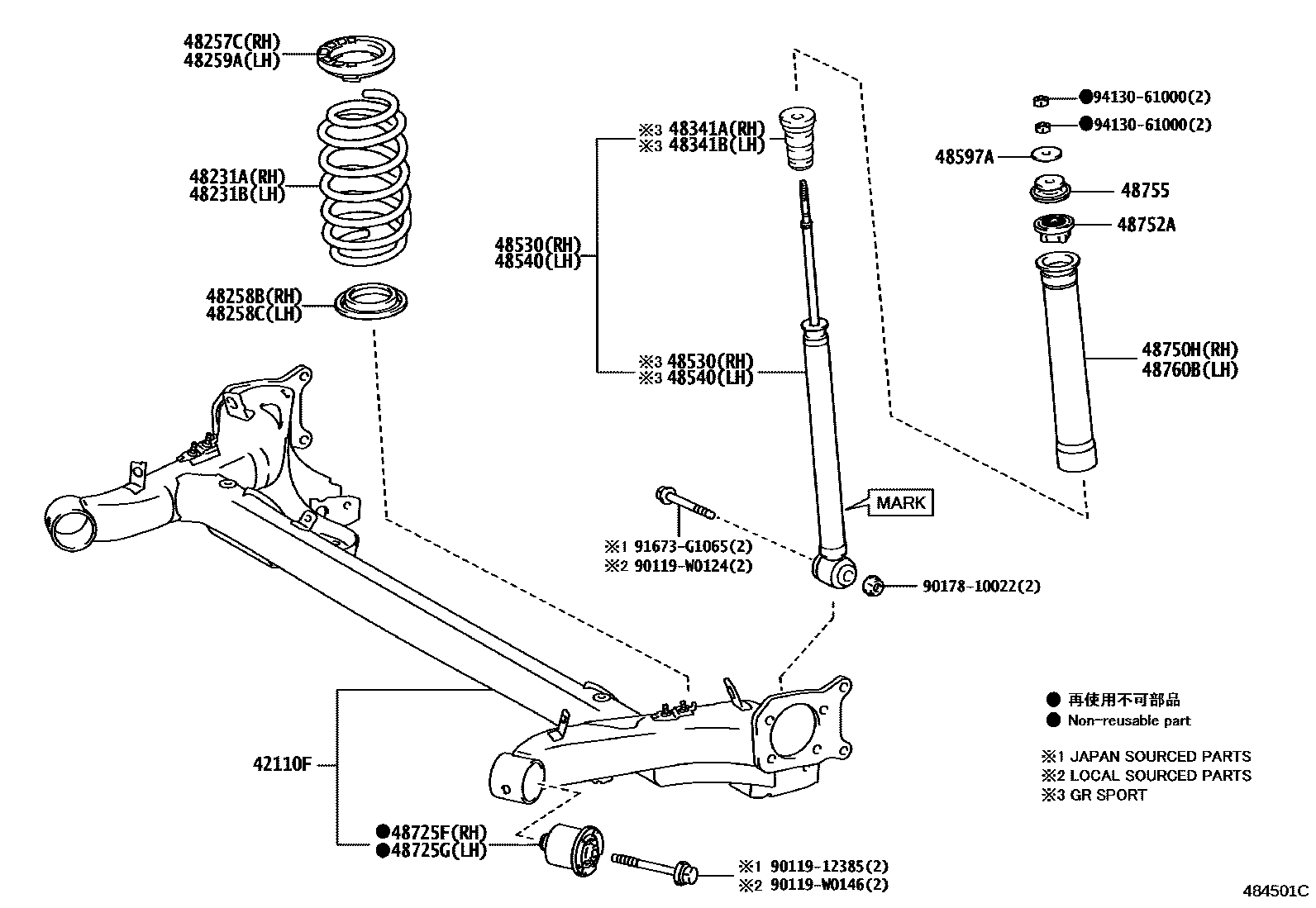

Toyota YARIS EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42110-0D510 · 42110-0D520 |
| 48231A | Right rear coil spring | 48231-0D640 · 48231-0D641 · 48231-0D670 · 48231-0D671 · 48231-0D720 · 48231-0D721 · 48231-0D730 · 48231-0D731 · 48231-0D740 · 48231-0D741 · 48231-0D750 · 48231-0D751 · 48231-0DB90 |
| 48231B | Left rear coil spring | 48231-0D640 · 48231-0D641 · 48231-0D670 · 48231-0D671 · 48231-0D720 · 48231-0D721 · 48231-0D730 · 48231-0D731 · 48231-0D740 · 48231-0D741 · 48231-0D750 · 48231-0D751 · 48231-0DB90 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-0D010 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-0D050 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-0D050 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-0D010 |
| 48341A | No. 1 right rear spring buffer block | 48341-0D070 |
| 48341B | No. 1 left rear spring buffer block | 48341-0D070 |
| 48530 | Right rear shock absorber assembly | 48530-0D890 · 48530-0D891 · 48530-0D892 · 48530-0DA00 · 48530-0DA01 · 48530-0DA10 · 48530-0DA11 · 48530-0DA20 · 48530-0DA21 · 48530-0DA40 · 48530-0DA60 · 48530-0DA61 · 48530-0DF10 · 48530-0DF11 · 48530-0DF12 · 48530-0DF20 · 48530-0DF21 · 48530-0DF22 · 48530-0DG60 |
| 48540 | Left rear shock absorber assembly | 48530-0D890 · 48530-0D891 · 48530-0D892 · 48530-0DA00 · 48530-0DA01 · 48530-0DA10 · 48530-0DA11 · 48530-0DA20 · 48530-0DA21 · 48530-0DA40 · 48530-0DA60 · 48530-0DA61 · 48530-0DF10 · 48530-0DF11 · 48530-0DF12 · 48530-0DF20 · 48530-0DF21 · 48530-0DF22 · 48530-0DG60 |
| 48597A | Rear shock absorber buffer pad | 90201-10320 |
| 48725F | Right rear axle bracket bushing | 48725-0D110 |
| 48725G | Left rear axle bracket bushing | 48725-0D110 |
| 48750H | Right rear suspension support assembly | 48750-0D170 |
| 48752A | Rear suspension mount block | 48752-0D010 |
| 48755 | rear suspension mount | 48755-0D070 |
| 48760B | Left rear suspension support assembly | 48750-0D170 |
