Toyota YARIS Front Spring & Shock Absorber — Figure 4803

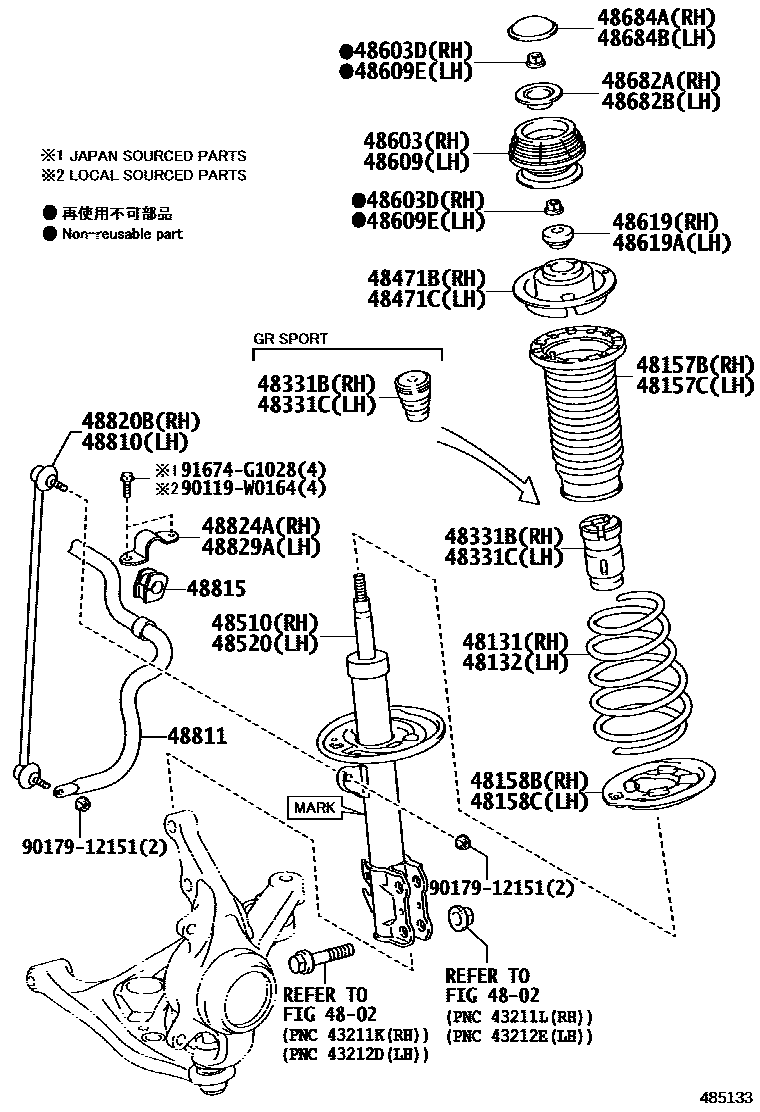

Toyota YARIS EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-0D631 · 48131-0D632 · 48131-0D641 · 48131-0D642 · 48131-0D671 · 48131-0D672 · 48131-0D681 · 48131-0D682 · 48131-0D710 · 48131-0D711 · 48131-0D780 · 48131-0DB30 · 48131-0DB31 · 48131-0DB40 · 48131-0DB41 · 48131-0DB90 · 48131-0DB91 · 48131-0DC10 · 48131-0DC11 · 48131-0DC40 · 48131-0DC41 |
| 48132 | Left front coil spring | 48131-0D631 · 48131-0D632 · 48131-0D641 · 48131-0D642 · 48131-0D671 · 48131-0D672 · 48131-0D681 · 48131-0D682 · 48131-0D710 · 48131-0D711 · 48131-0D780 · 48131-0DB30 · 48131-0DB31 · 48131-0DB40 · 48131-0DB41 · 48131-0DB90 · 48131-0DB91 · 48131-0DC10 · 48131-0DC11 · 48131-0DC40 · 48131-0DC41 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-0D090 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-0D090 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-0D020 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-0D020 |
| 48331B | Right front spring buffer block | 48331-0D030 · 48331-0D150 · 48331-WY080 |
| 48331C | Left front spring buffer block | 48331-0D030 · 48331-0D150 · 48331-WY080 |
| 48471B | Front coil spring upper right seat | 48471-0D140 · 48471-52030 |
| 48471C | Front coil spring upper left seat | 48471-0D140 · 48471-52030 |
| 48510 | Right front shock absorber assembly | 48510-0D870 · 48510-0D871 · 48510-0D880 · 48510-0D881 · 48510-0D890 · 48510-0DA20 · 48510-0DA30 · 48510-0DA31 · 48510-0DE60 · 48510-0DE61 · 48510-0DE62 · 48510-0DE70 · 48510-0DE71 · 48510-0DE72 · 48510-0DF00 · 48510-0DF01 · 48510-0DF02 · 48510-0DF90 |
| 48520 | Left front shock absorber assembly | 48520-0D280 · 48520-0D281 · 48520-0D290 · 48520-0D291 · 48520-0D300 · 48520-0D330 · 48520-0D340 · 48520-0D341 · 48520-0D420 · 48520-0D421 · 48520-0D422 · 48520-0D430 · 48520-0D431 · 48520-0D432 · 48520-0D440 · 48520-0D441 · 48520-0D442 · 48520-0D600 |
| 48603 | Right front suspension bearing sub-assembly | 48609-0D041 |
| 48603D | Nut (for front mount to right front shock absorber) | 90178-W0015 · 90179-12145 |
| 48609 | Left front suspension bearing sub-assembly | 48609-0D041 |
| 48609E | Nut (for front mount to left front shock absorber) | 90178-W0015 · 90179-12145 |
| 48619 | Bearing installed on the right sliding column | 48619-0D011 · 48619-0D031 |
| 48619A | Bearing installed on the left sliding column | 48619-0D011 · 48619-0D031 |
| 48682A | No. 2 right front suspension support | 48682-0D021 |
| 48682B | No. 2 left front suspension support | 48682-0D021 |
| 48684A | Right front suspension support dust cover | 48684-52020 |
| 48684B | Left front suspension support dust cover | 48684-52020 |
| 48810 | Left front stabilizer bar link assembly | 48820-52040 |
| 48811 | front stabilizer bar | 48811-0D150 · 48811-52170 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-0D100 |
| 48820B | Right front stabilizer bar link assembly | 48820-52040 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-52060 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-52060 |
