Toyota YARIS 制动配管和卡箍 — Figure 4708

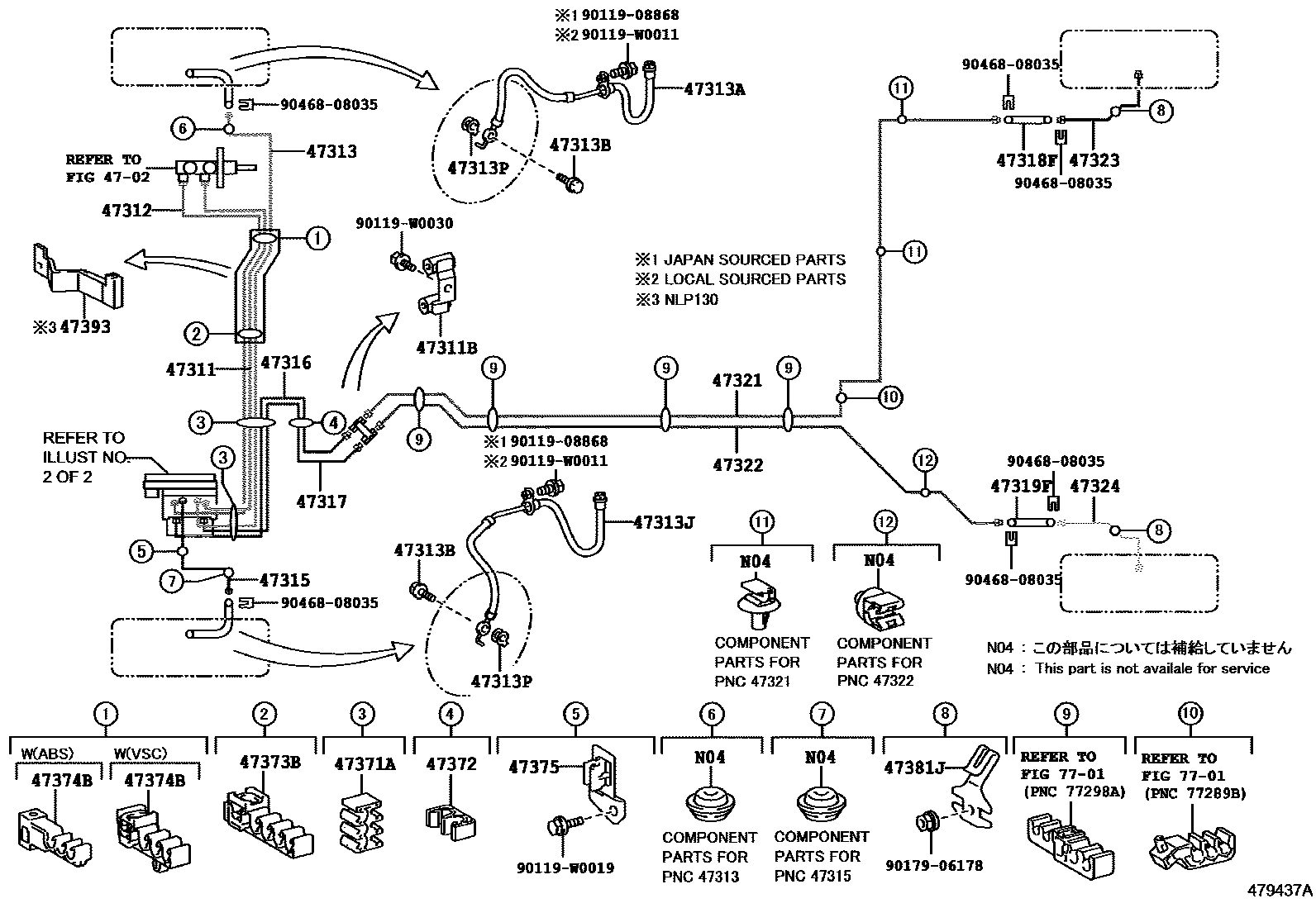

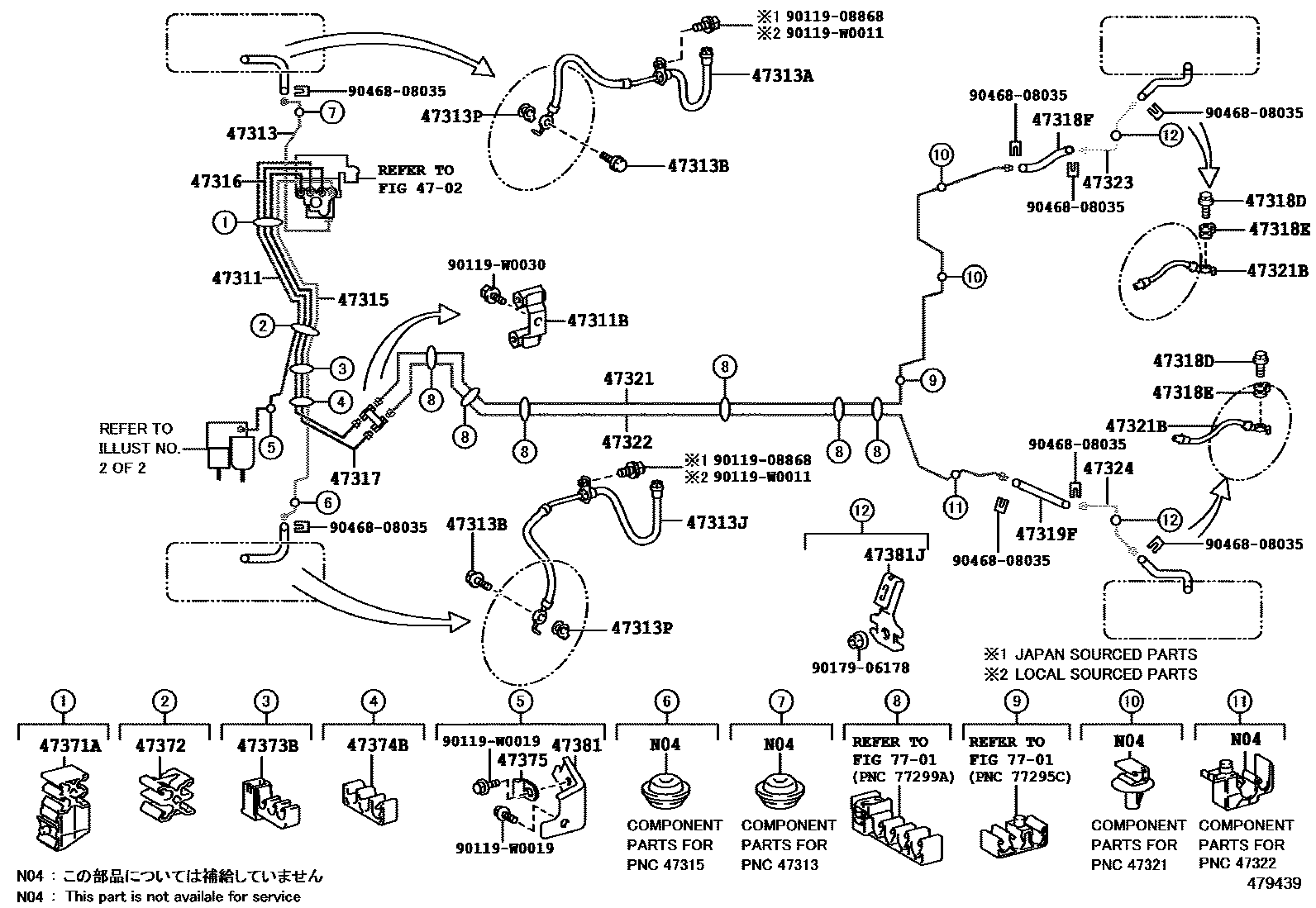

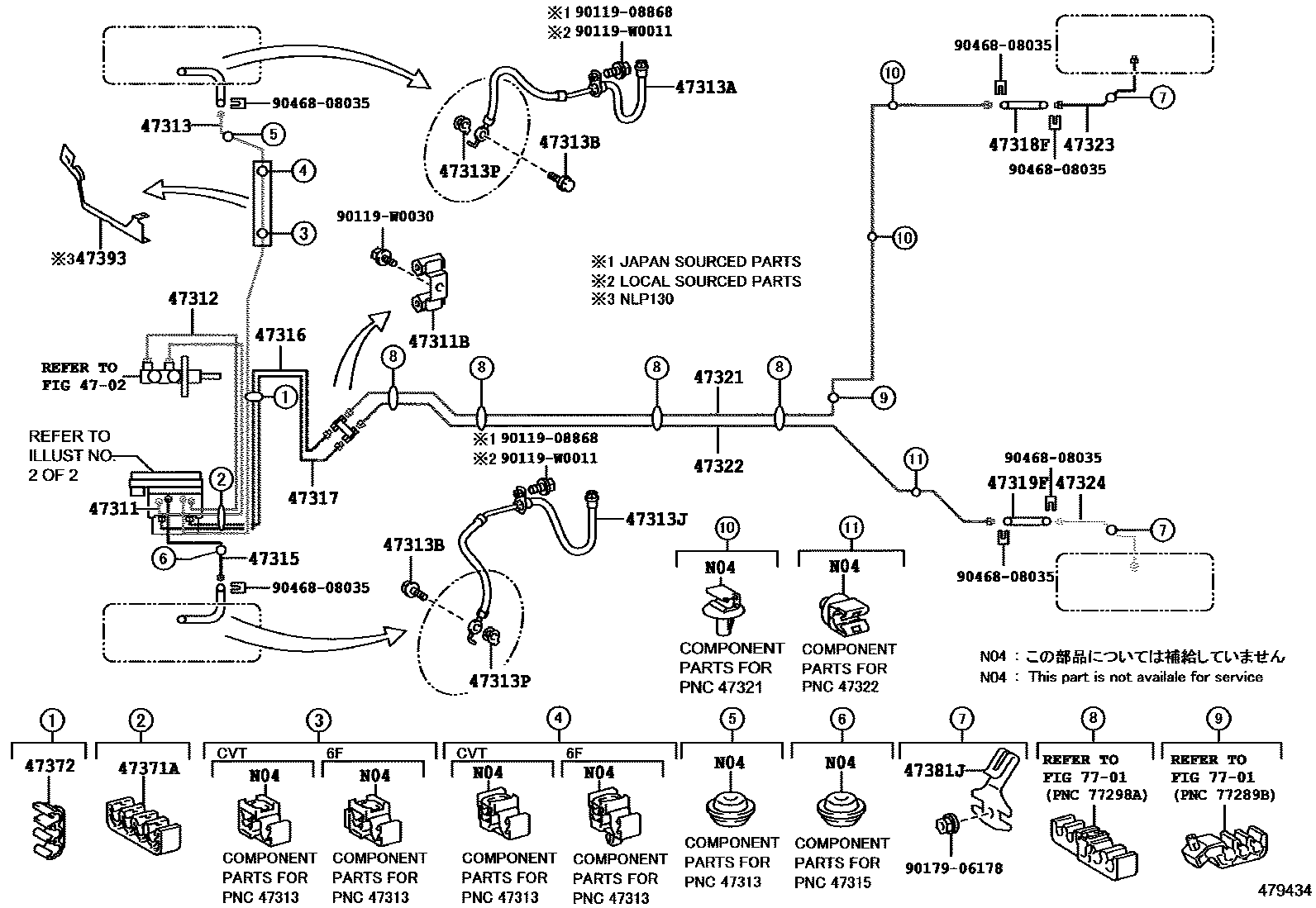

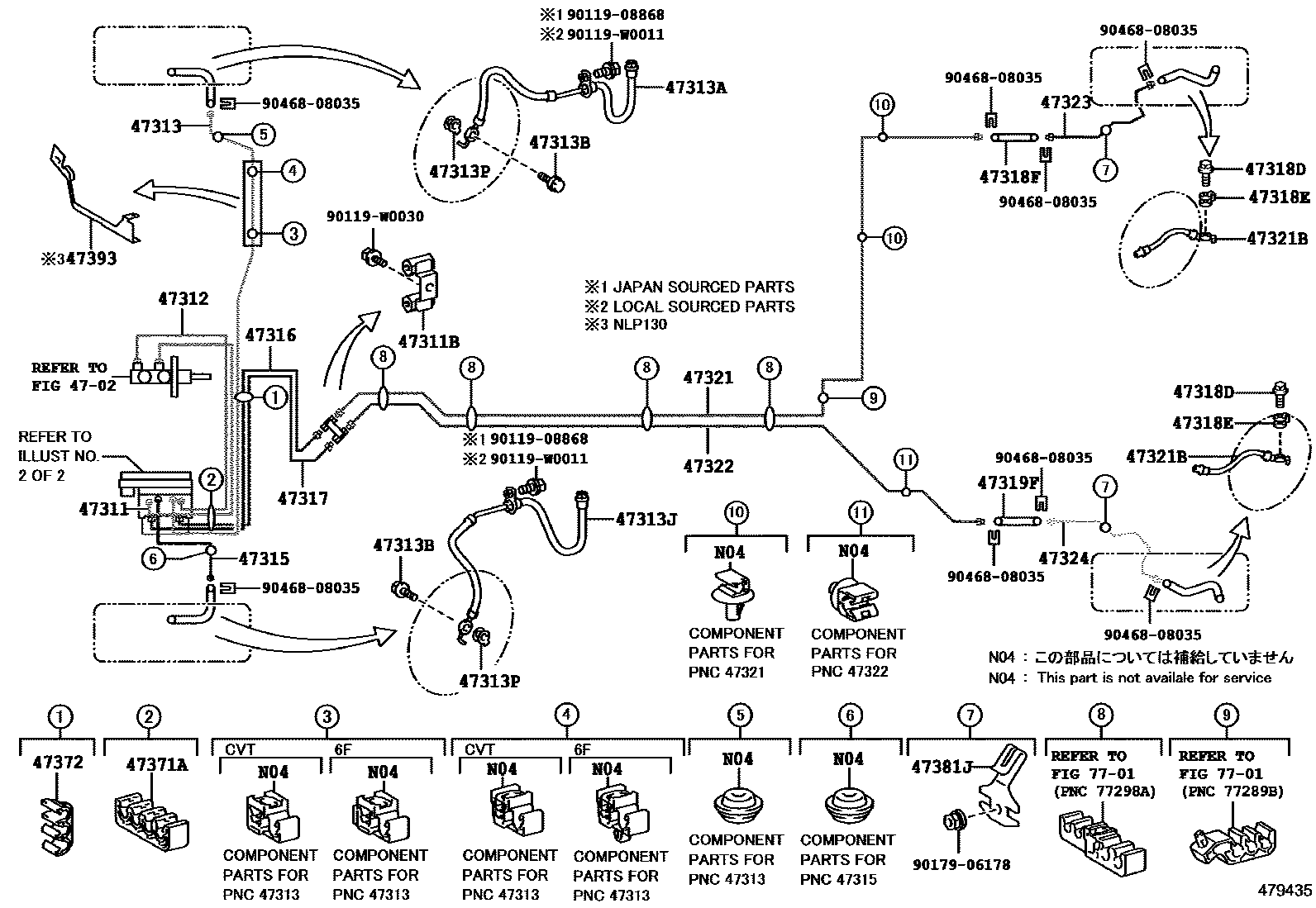

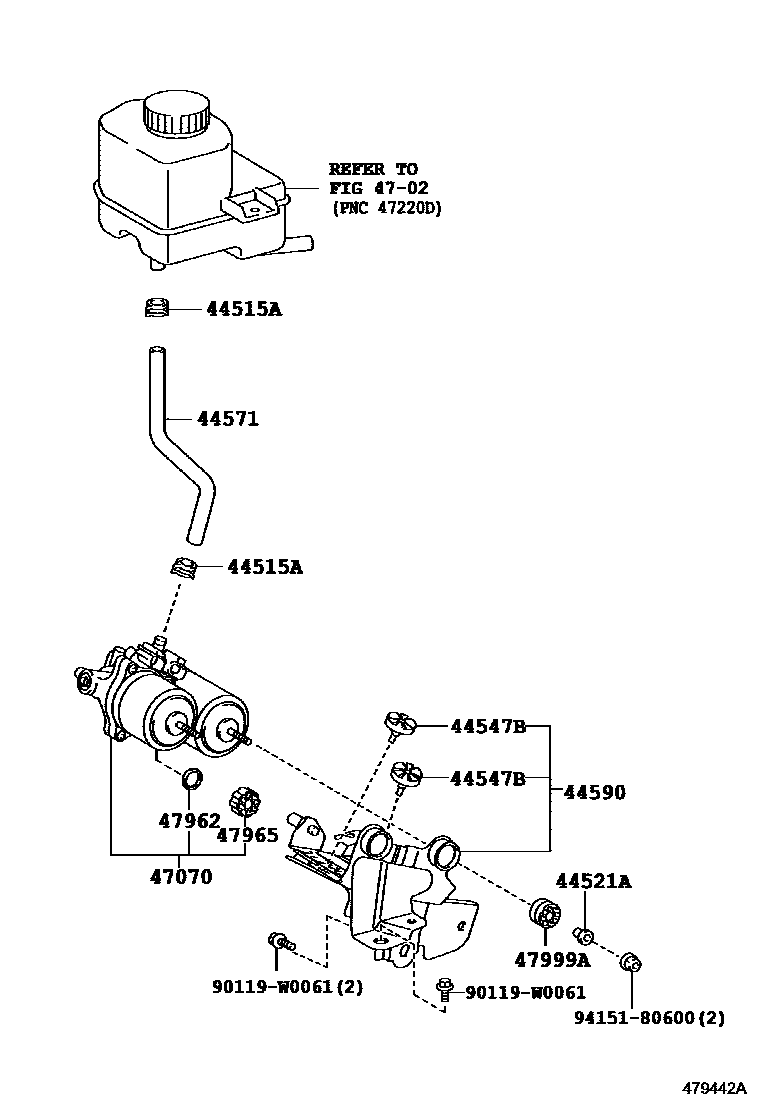

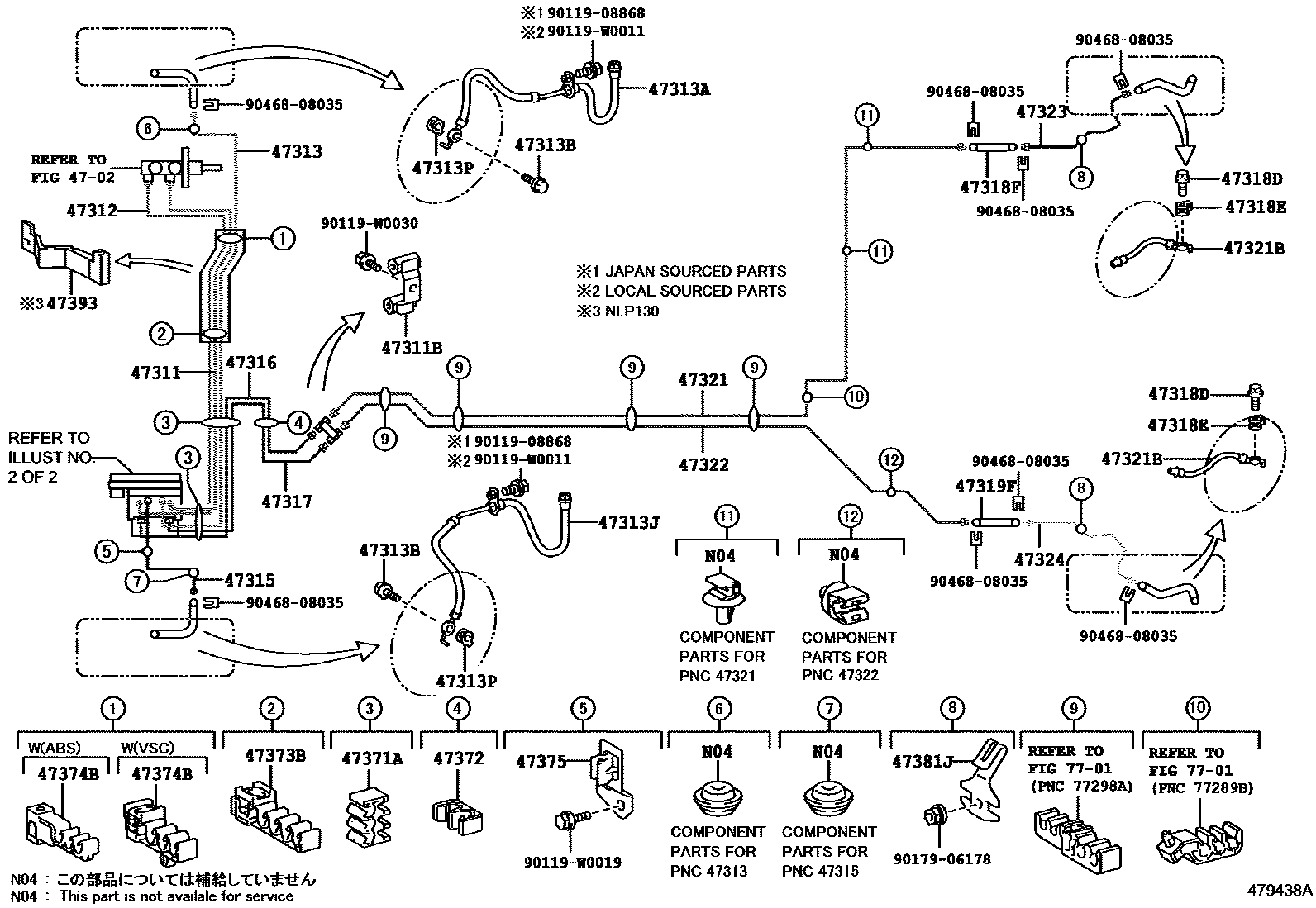

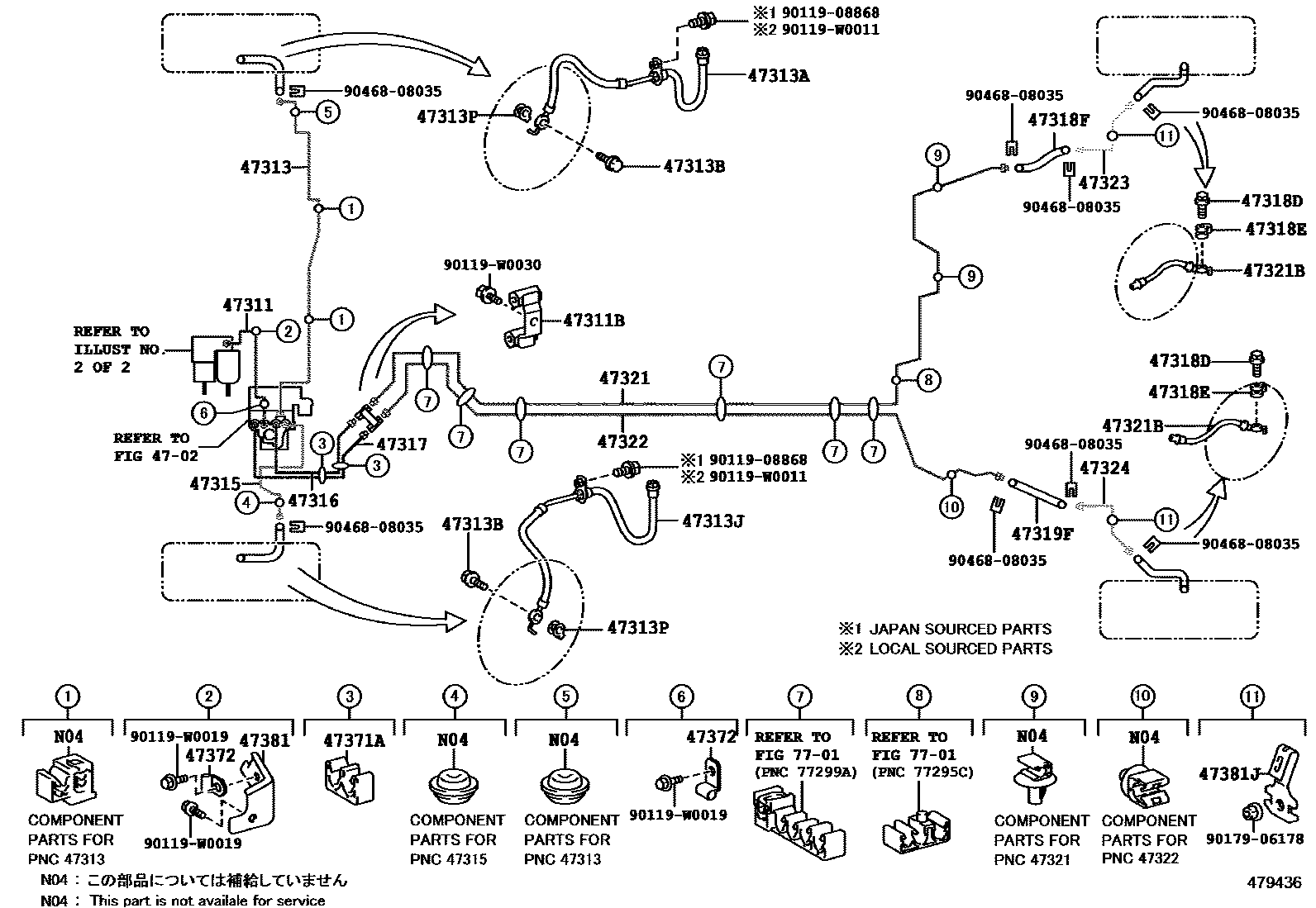

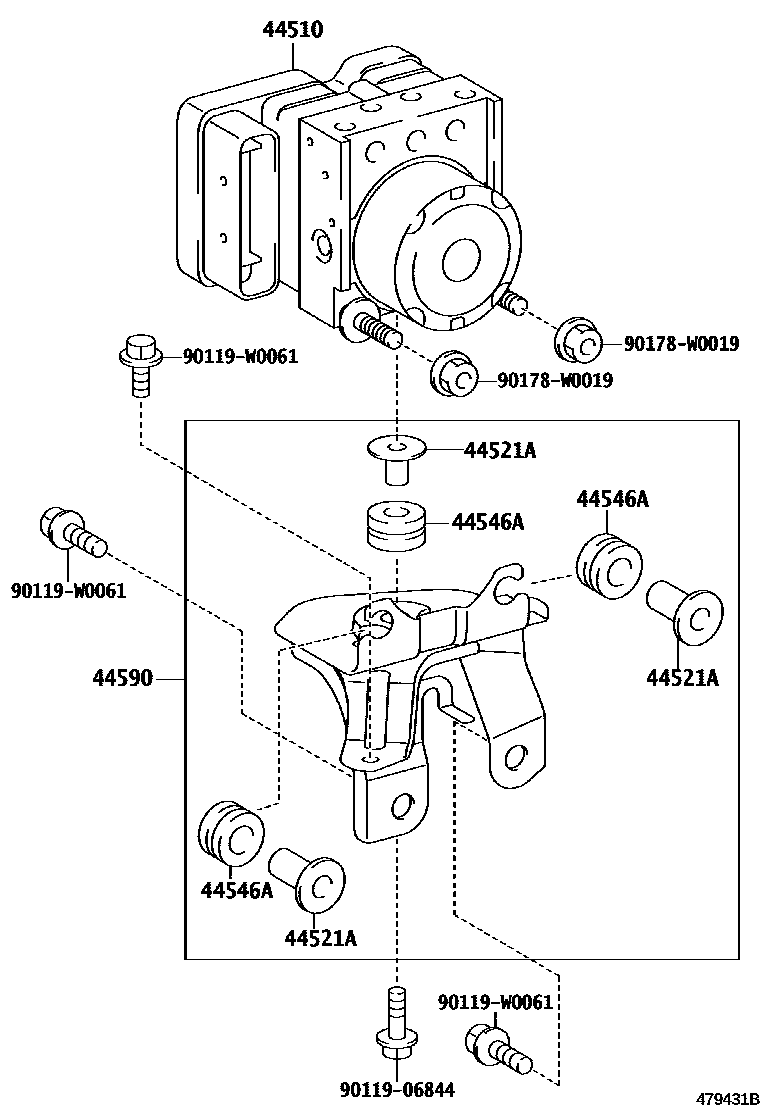

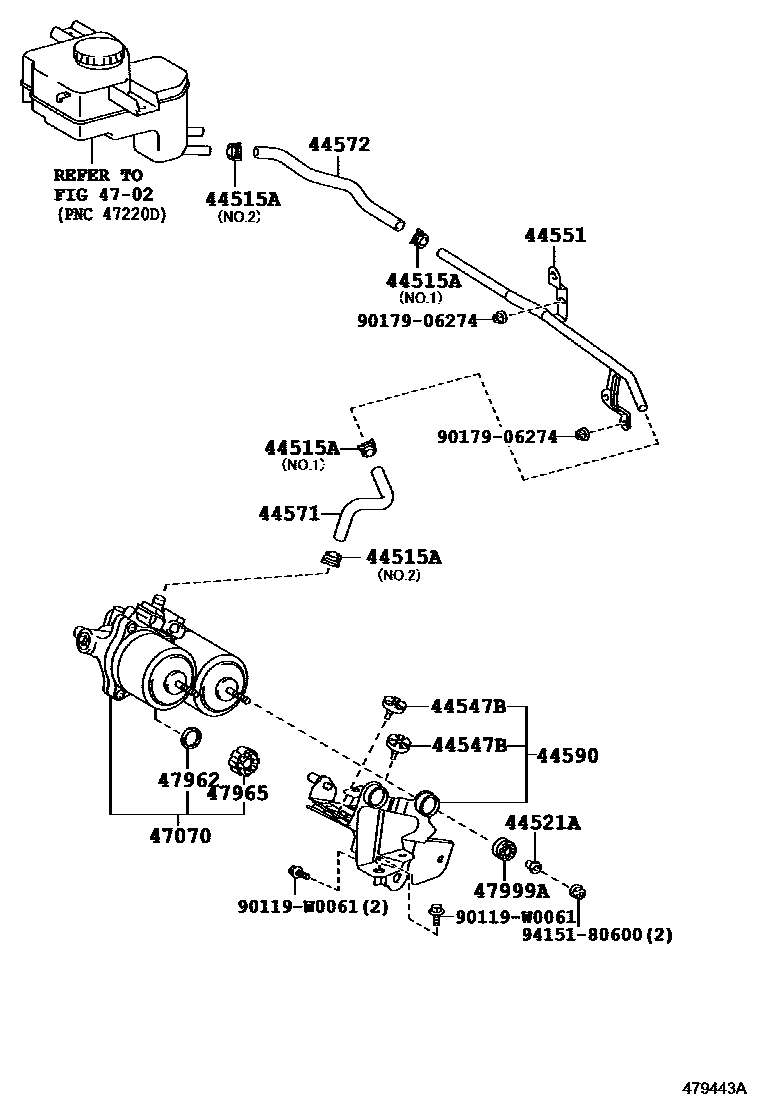

Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 9 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-0D350 · 44050-0D370 · 44050-0D380 · 44050-0D390 · 44050-0D400 · 44050-0D410 · 44050-0D420 · 44050-0D430 · 44050-0D510 · 44050-0D520 · 44050-0D530 · 44050-0D540 · 44050-0D550 · 44050-0D560 · 44050-0D790 · 44050-0D800 · 44050-0D810 · 44050-0D820 · 44050-0D830 · 44050-0D840 · 44050-0D850 · 44050-0D860 |
| 44515A | Clamp (for brake actuator hose) | 96137-41501 · 96137-51501 |
| 44521A | COLLIER, BOITIER ACTIONNEUR FREIN, NO.1 | 44521-0D020 · 44521-47010 |
| 44546A | Brake actuator bolt cushion | 44546-52020 |
| 44547B | brake actuator bracket cushion | 47131-47070 |
| 44551 | No. 1 brake actuator pipe | 44551-52010 |
| 44571 | brake actuator hose | 44571-52010 · 44571-52030 |
| 44572 | No. 2 brake actuator hose | 44572-52010 |
| 44590 | Brake actuator bracket assembly | 44590-0D110 · 44590-0D120 · 44590-0D130 · 44590-0D140 · 44590-0D150 |
| 47070 | Brake booster pump assembly | 47070-12020 |
| 47311 | No. 1 front brake pipe | 47311-0D290 · 47311-0D311 · 47311-0D461 · 47311-0D471 · 47311-0D480 · 47311-0D491 · 47311-0D500 · 47311-0D511 · 47311-0D520 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10285 |
| 47312 | No. 2 front brake pipe | 47312-0D260 · 47312-0D400 · 47312-0D411 · 47312-0D421 · 47312-0D430 · 47312-0D441 · 47312-0D450 |
| 47313 | No. 3 front brake pipe | 47313-0D171 · 47313-0D331 · 47313-0D351 · 47313-0D361 · 47313-0D371 · 47313-0D391 · 47313-0D401 · 47313-0D411 · 47313-0D421 · 47313-0D431 · 47313-0D441 · 47313-0D640 · 47313-0D650 |
| 47313A | No. 1 front flexible hose | 90947-W2034 · 90947-W2050 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-W2035 · 90947-W2051 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47315 | No. 5 front brake pipe | 47315-0D231 · 47315-0D371 · 47315-0D381 · 47315-0D391 · 47315-0D401 · 47315-0D411 · 47315-0D421 · 47315-0D431 |
| 47316 | No. 6 front brake pipe | 47316-0D181 · 47316-0D281 · 47316-0D291 · 47316-0D301 · 47316-0D311 · 47316-0D321 · 47316-0D331 · 47316-0D341 |
| 47317 | No. 7 front brake pipe | 47317-0D181 · 47317-0D281 · 47317-0D291 · 47317-0D301 · 47317-0D311 · 47317-0D321 · 47317-0D331 · 47317-0D341 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-W2036 |
| 47319F | Left rear flexible hose | 90947-W2037 |
| 47321 | No. 1 rear brake pipe | 47321-0D301 · 47321-0D311 |
| 47321B | Flexible hose (for rear brake pipe) | 90947-W2038 |
| 47322 | No. 2 rear brake pipe | 47322-0D301 · 47322-0D311 |
| 47323 | No. 3 rear brake pipe | 47323-0D191 · 47323-0D201 |
| 47324 | No. 4 rear brake pipe | 47324-0D191 · 47324-0D201 |
| 47371A | No. 1 brake pipe clamp | 90464-00904 · 90464-00956 · 90949-01D64 · 90949-01D95 · 90949-01D99 · 90949-W1002 |
| 47372 | No. 2 brake pipe clamp | 90461-10851 · 90464-00876 · 90949-01D91 · 90949-01D92 |
| 47373B | No. 3 brake pipe clamp | 90949-01D08 · 90949-01D96 · 90949-01D97 |
| 47374B | No. 4 brake pipe clamp | 90464-00857 · 90464-00955 · 90949-01D94 |
| 47375 | No. 5 brake pipe clamp | 47371-0D020 · 47371-0D021 · 90461-10851 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-52030 |
| 47381J | No. 2 brake pipe clamp bracket | 47381-52020 |
| 47393 | brake pipe heat shield | 47393-0D010 · 47393-0D020 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
| 47999A | Bushing (for brake pull actuator bracket) | 47965-24010 |
