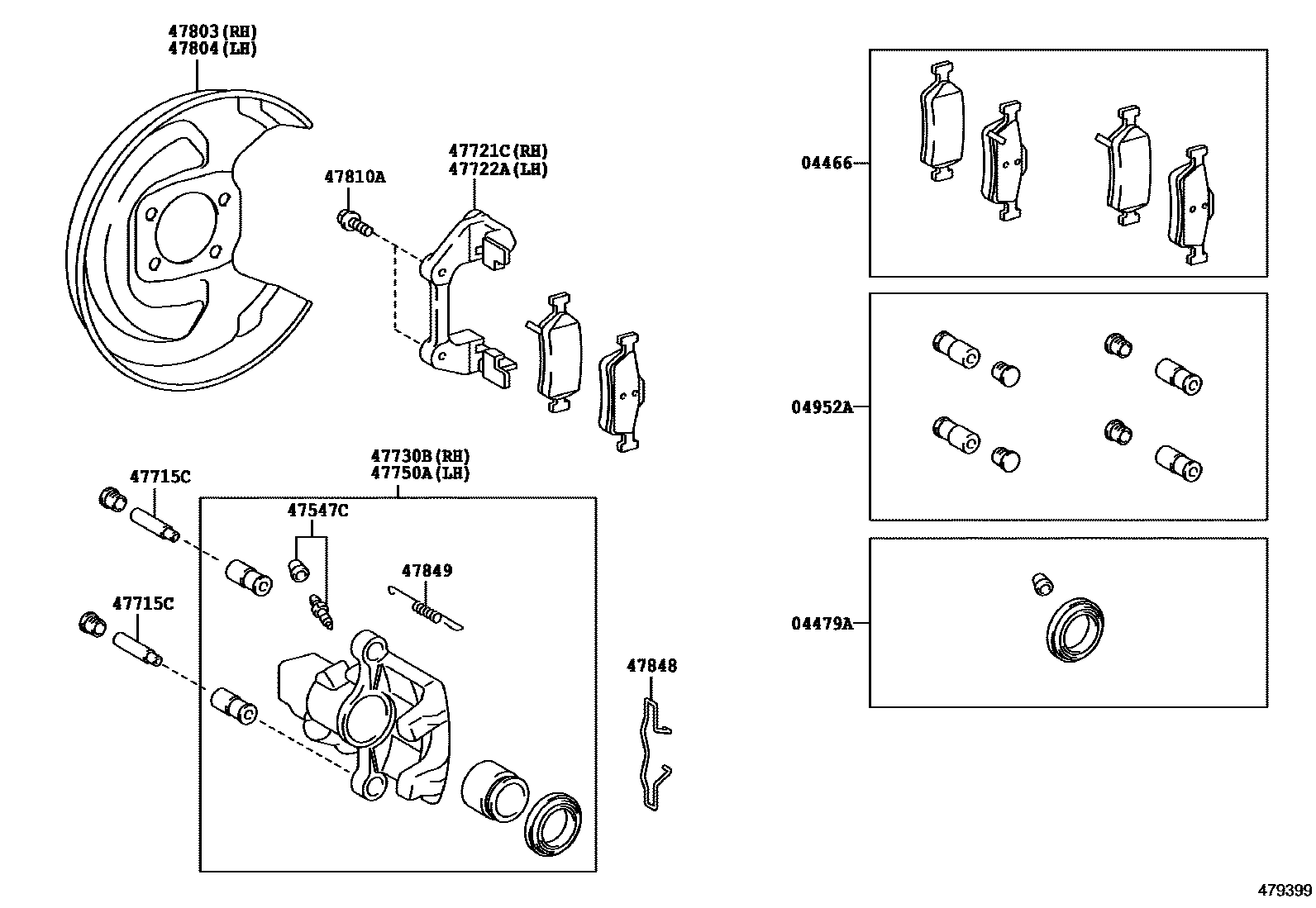

Toyota YARIS 后盘式制动器卡钳和防尘罩 — Figure 4707
Toyota YARIS EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-0D010 |
| 04479A | Rear disc brake cylinder assembly | 04479-0D040 |
| 04952A | Rear disc brake cylinder sliding pin assembly | 04951-05010 |
| 47547C | Bleed plug (for rear disc brake) | 47547-09050 |
| 47715C | Brake cylinder slide pin (for rear disc brake) | 47715-05010 |
| 47721C | Right rear disc brake cylinder retainer | 47821-0D020 |
| 47722A | Left rear disc brake cylinder retainer | 47821-0D020 |
| 47730B | Right rear disc brake cylinder assembly | 47830-0D020 |
| 47750A | Left rear disc brake cylinder assembly | 47850-0D020 |
| 47803 | Right rear disc brake dust cover sub-assembly | 47881-0D050 |
| 47804 | Left rear disc brake dust cover sub-assembly | 47882-0D050 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90105-W0117 |
| 47848 | Anti-vibration spring No. 1 (for rear disc brake) | 47848-0D020 |
| 47849 | Anti-vibration spring No. 2 (for rear disc brake) | 47843-0D020 |
