Toyota YARIS 后鼓式制动器分泵和底板 — Figure 4706

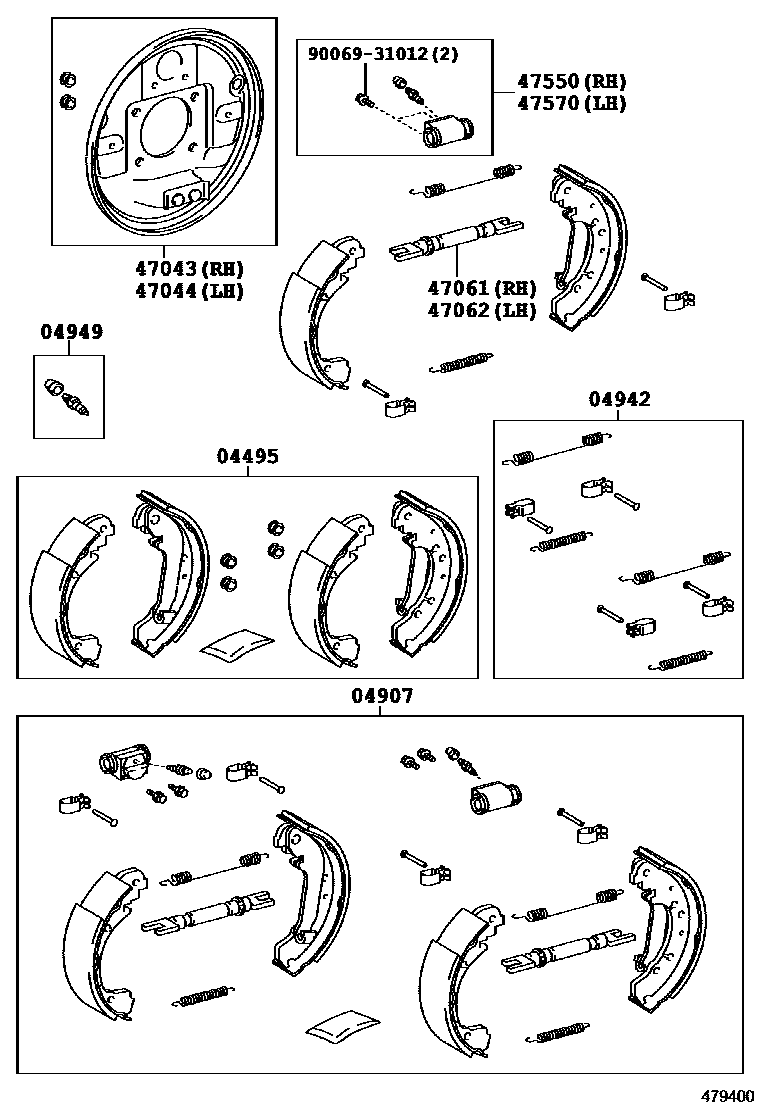

Toyota YARIS EPC diagram 4706, 后鼓式制动器分泵和底板, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04495 | Rear brake shoe assembly | 04495-0D090 |
| 04907 | Rear drum brake mounting assembly | 04907-0D030 |
| 04942 | Rear brake spring assembly | 04942-0D050 |
| 04949 | Rear brake plug assembly | 04949-09010 |
| 47043 | Right rear brake base plate sub-assembly | 47043-09020 |
| 47044 | Left rear brake base plate sub-assembly | 47044-09020 |
| 47061 | Right parking brake shoe push rod assembly | 47061-0D040 |
| 47062 | Left parking brake shoe push rod assembly | 47061-0D040 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-09130 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47550-09130 |
