Toyota YARIS 制动助力器和真空管 — Figure 4703

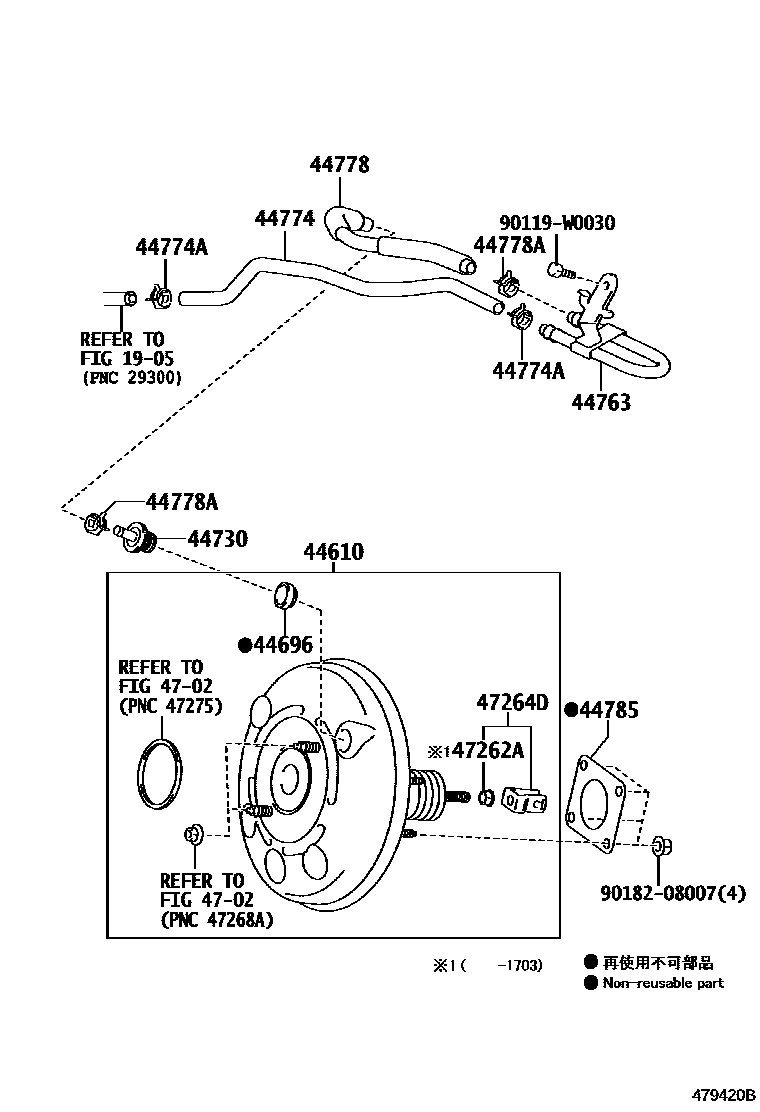

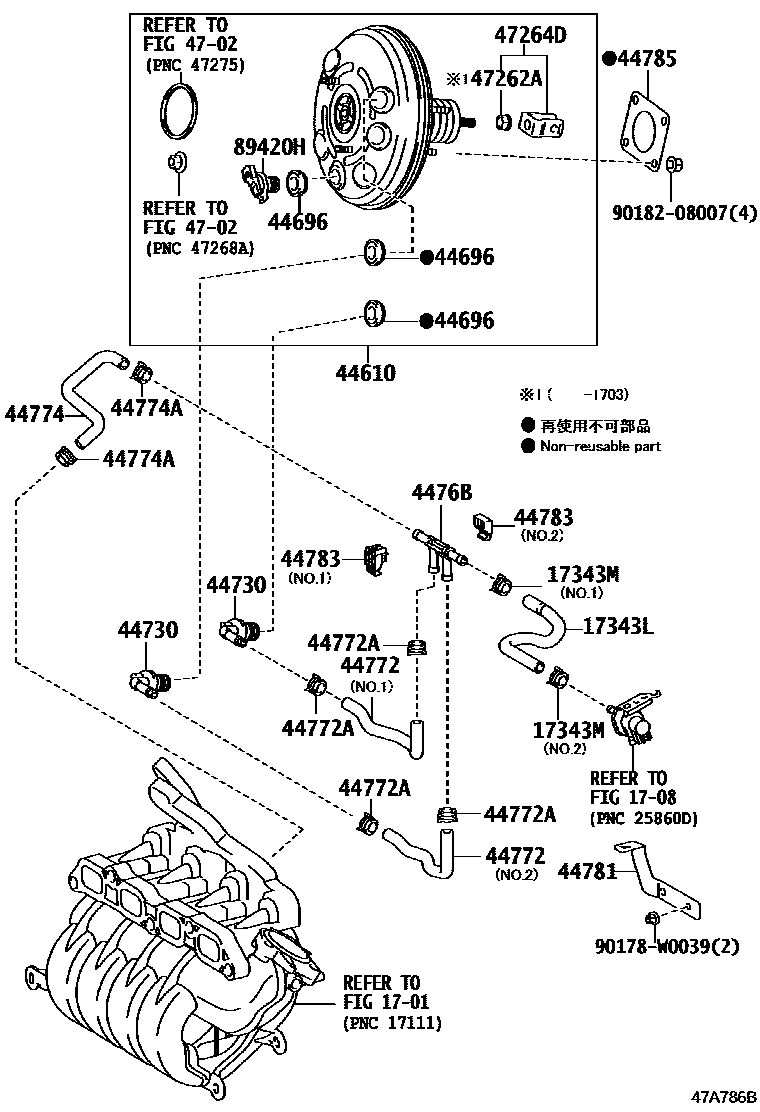

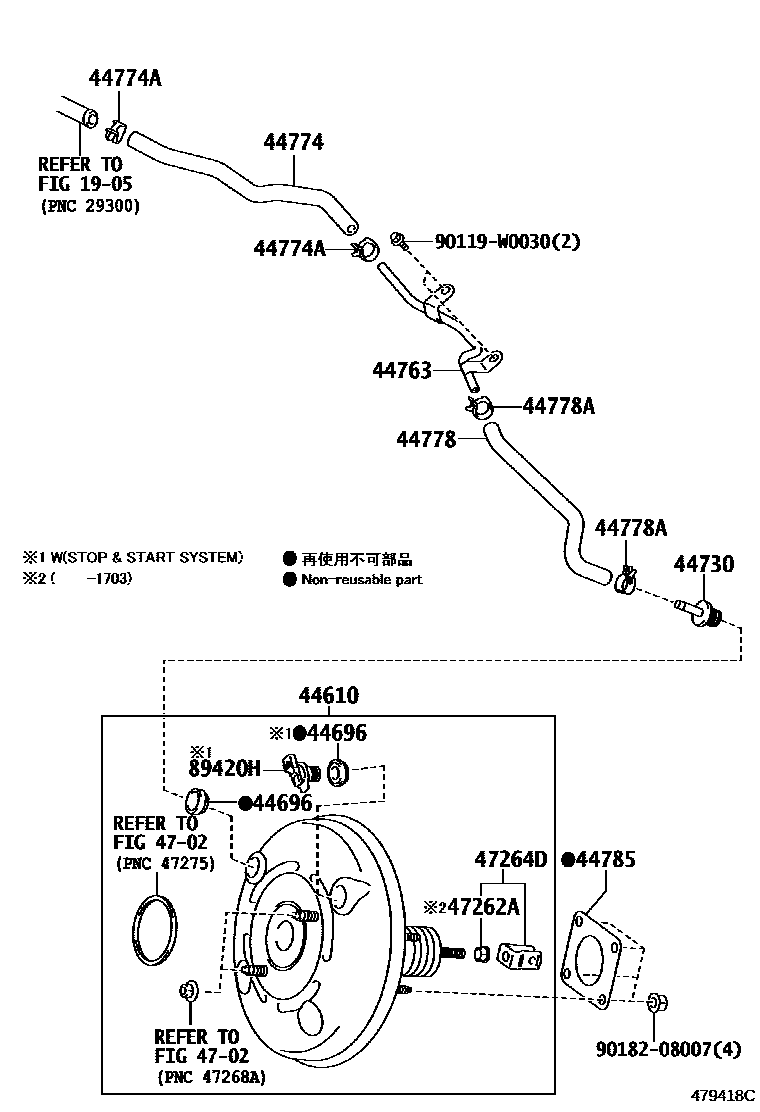

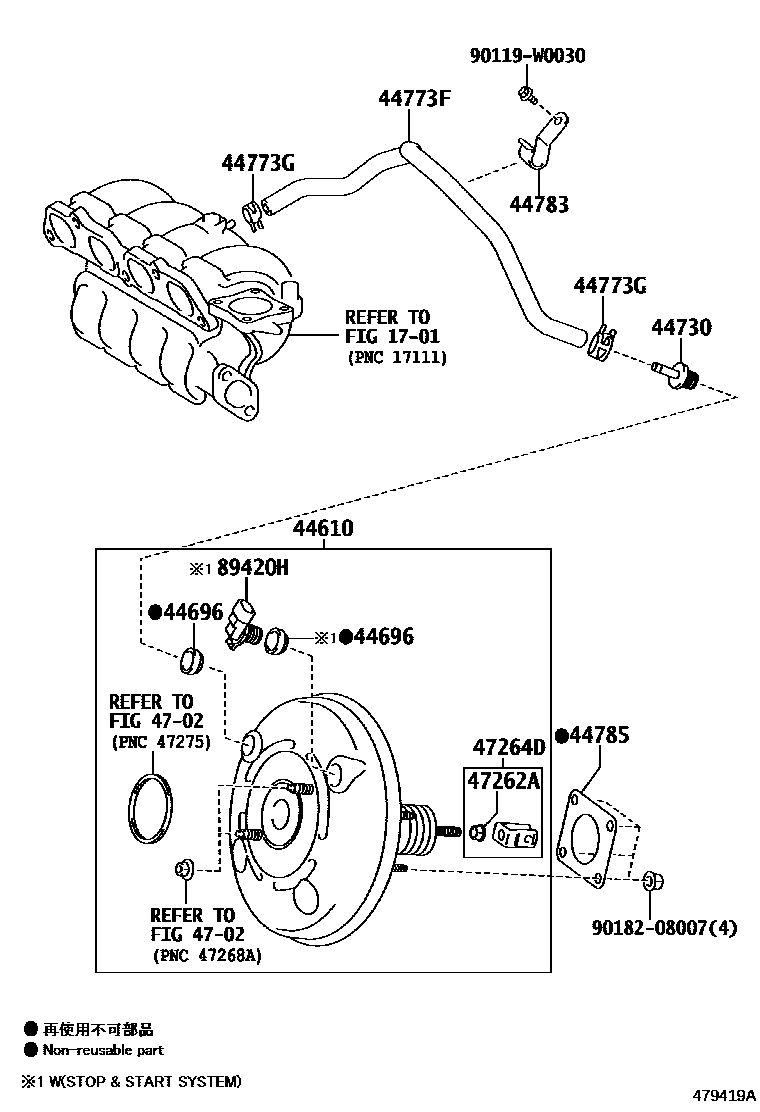

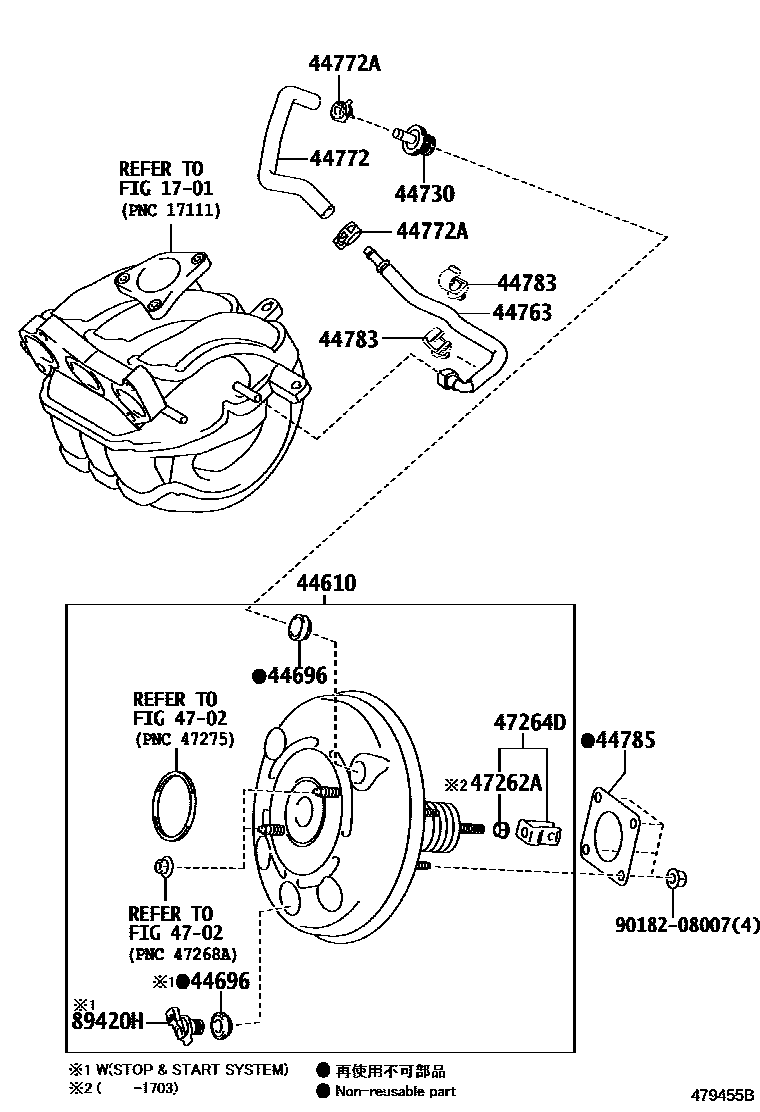

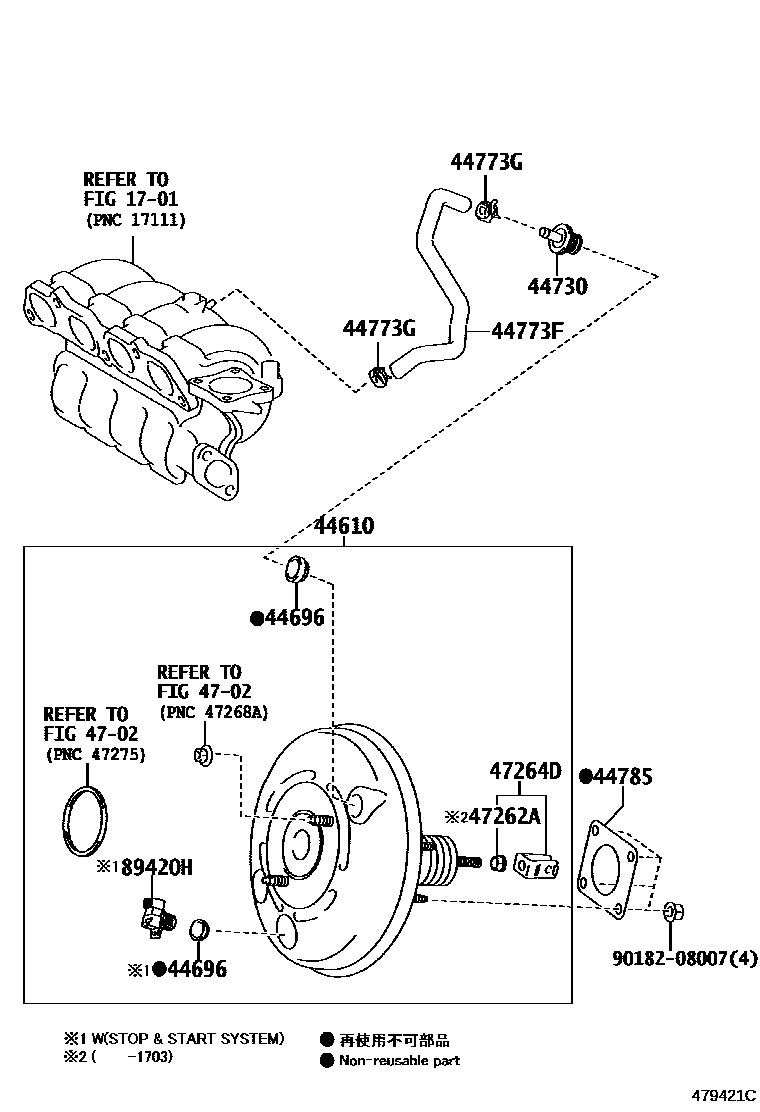

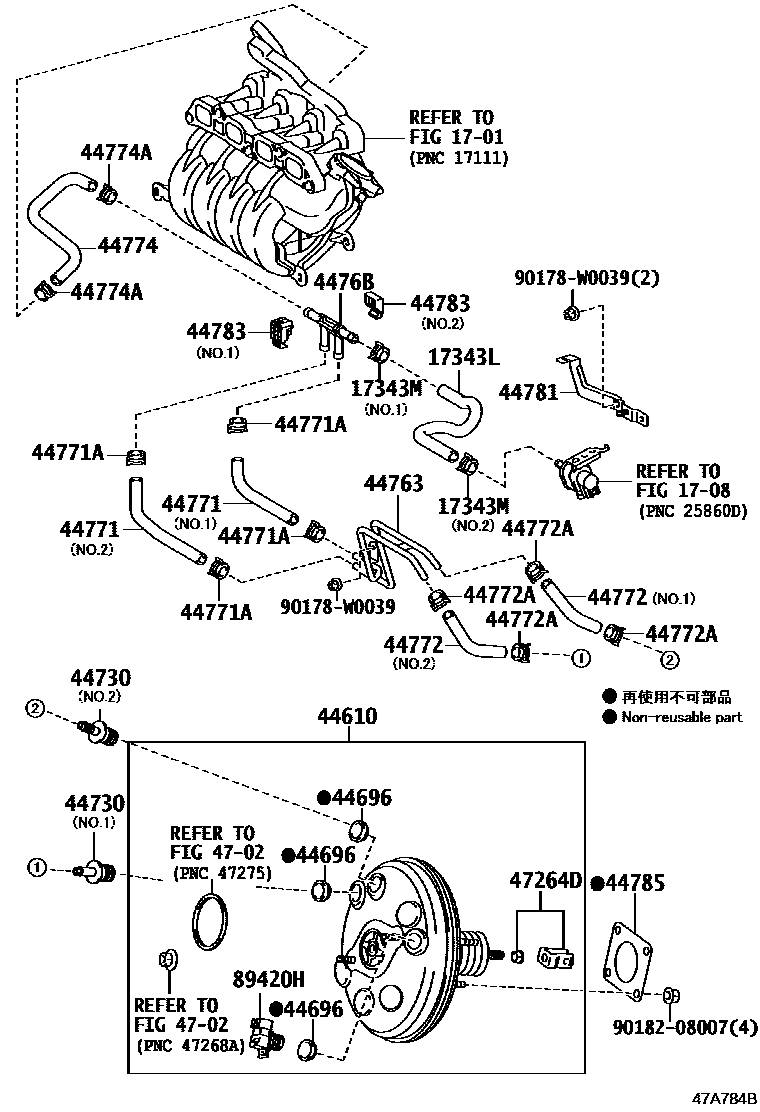

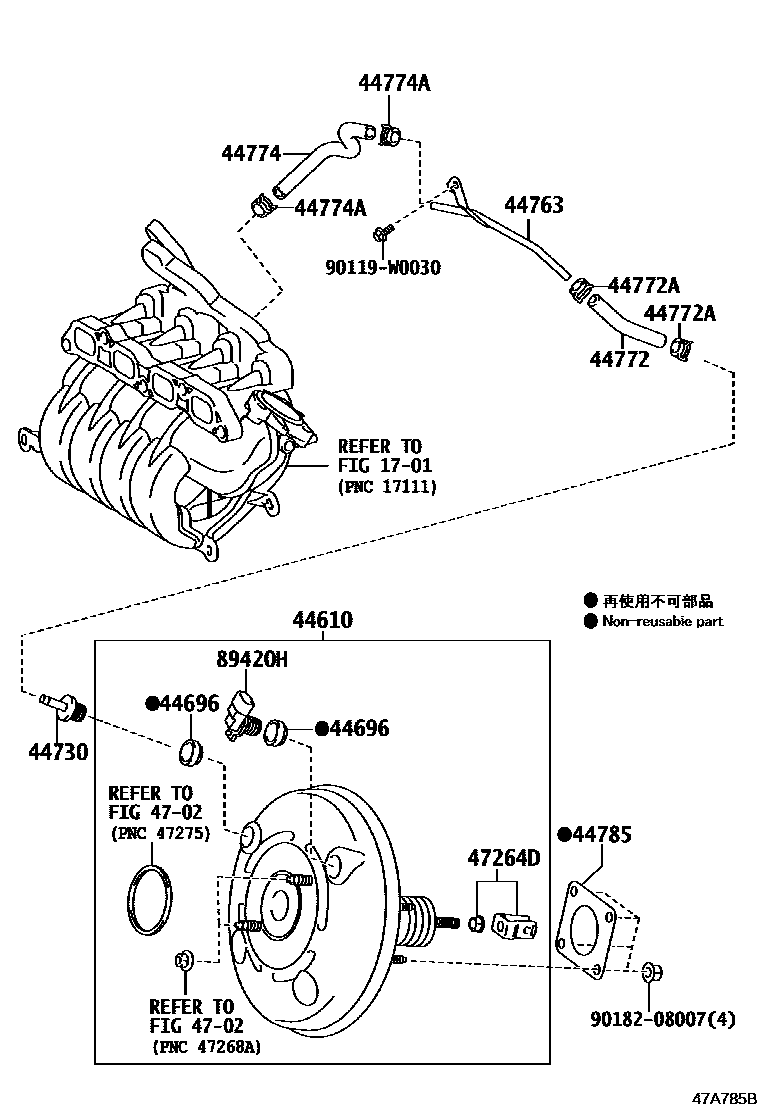

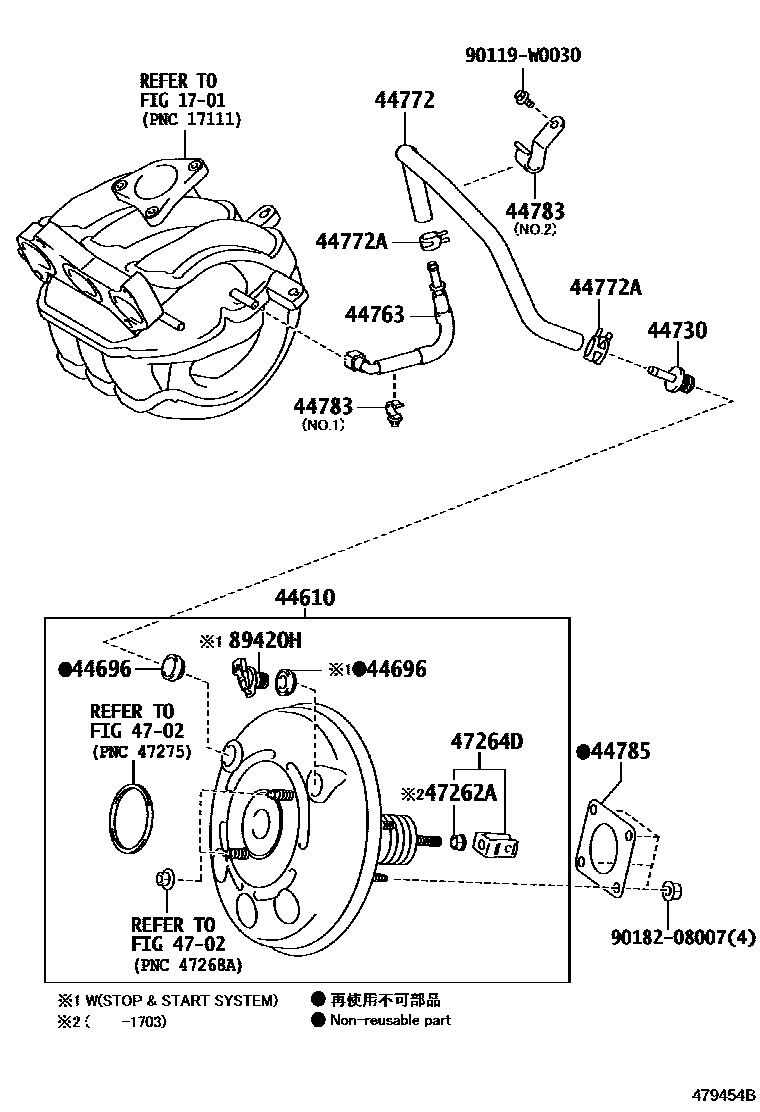

Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 9 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17343L | TUYAU, AIR, NO.3 | 44727-52020 · 44727-52030 |
| 17343M | ATTACHE(POUR TUYAU D'AIR NO.3) | 90467-16014 · 96133-41501 |
| 44610 | brake booster assembly | 44610-09840 · 44610-09870 · 44610-09880 · 44610-09C10 · 44610-09C20 · 44610-09C30 · 44610-09E60 · 44610-09E70 · 44610-09E80 · 44610-09E90 · 44610-09F00 · 44610-09F10 · 44610-09F20 · 44610-09F30 |
| 44696 | One-way valve seal | 44692-0D020 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-0D010 · 44730-0D050 |
| 44763 | booster vacuum tube | 44763-0D220 · 44763-0D230 · 44763-0D440 · 44763-52140 · 44763-52150 · 44763-52180 · 44763-52190 |
| 4476B | Brake booster vacuum injection pump | 4476B-48010 |
| 44771 | Vacuum tube connector hose | 44771-52010 · 44771-52020 |
| 44771A | Clip (for vacuum tube connector hose) | 90467-16014 |
| 44772 | Hoses (check valve to connector tube) | 44772-0D640 · 44772-0D650 · 44772-0D660 · 44772-52270 · 44772-52280 · 44772-52300 · 44772-52310 · 44772-52320 · 44772-52330 · 44772-52340 |
| 44772A | Clip (for check valve to connector tube) | 90466-W0008 · 90467-16014 |
| 44773F | Hoses (connector to check valve) | 44773-52230 · 44773-52260 · 44773-52270 |
| 44773G | Clamp (for connector to one-way valve hose) | 90466-W0008 · 90467-16014 |
| 44774 | Hoses (joints to connector tubes) | 44774-0D300 · 44774-0D310 · 44774-52030 · 44774-52140 · 44774-52170 · 44774-52180 · 44774-52200 |
| 44774A | Clip (for fitting to connector tube hose) | 90466-W0008 · 90467-16014 |
| 44778 | Hoses (connector to check valve) | 44778-0D010 · 44778-0D020 · 44778-52120 · 44778-52150 |
| 44778A | Clip (for connector to check valve hose) | 90466-W0008 |
| 44781 | hose holder | 44781-0D200 · 44781-0D210 |
| 44783 | Vacuum hose clamp | 44783-52070 · 44783-52090 · 44783-52100 · 44783-70010 |
| 44785 | brake booster pad | 44785-16020 |
| 47262A | Master cylinder push rod U-shaped clamp lock nut | 47262-05010 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47262-09010 · 47264-09010 |
| 89420H | Vacuum sensor assembly | 89421-0D010 |
