Toyota YARIS Front Drive Shaft — Figure 4302

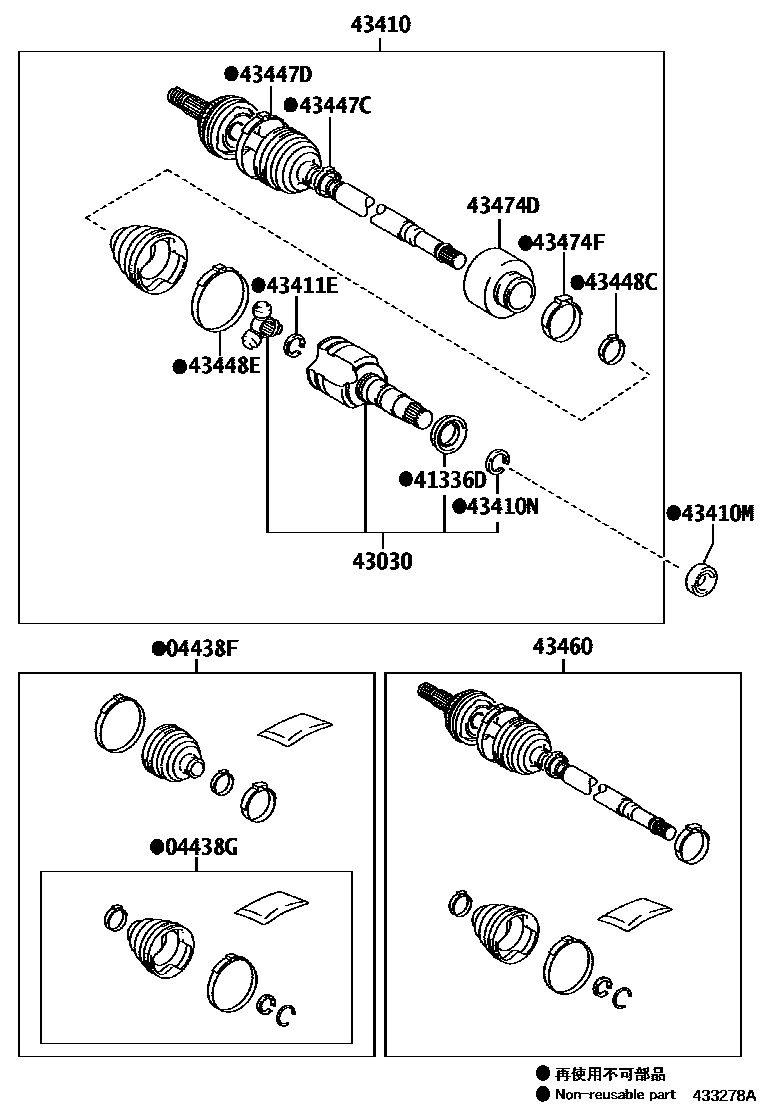

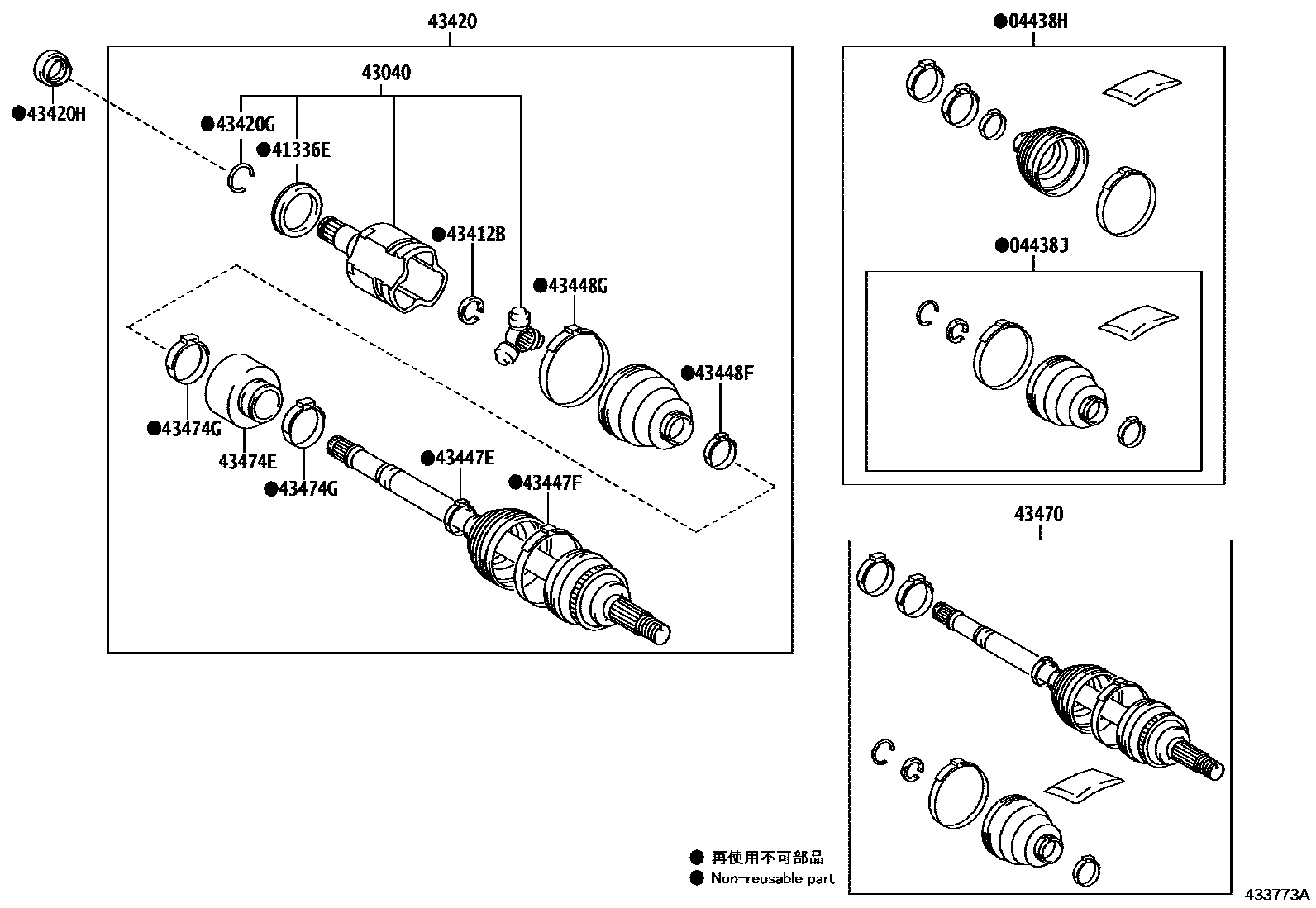

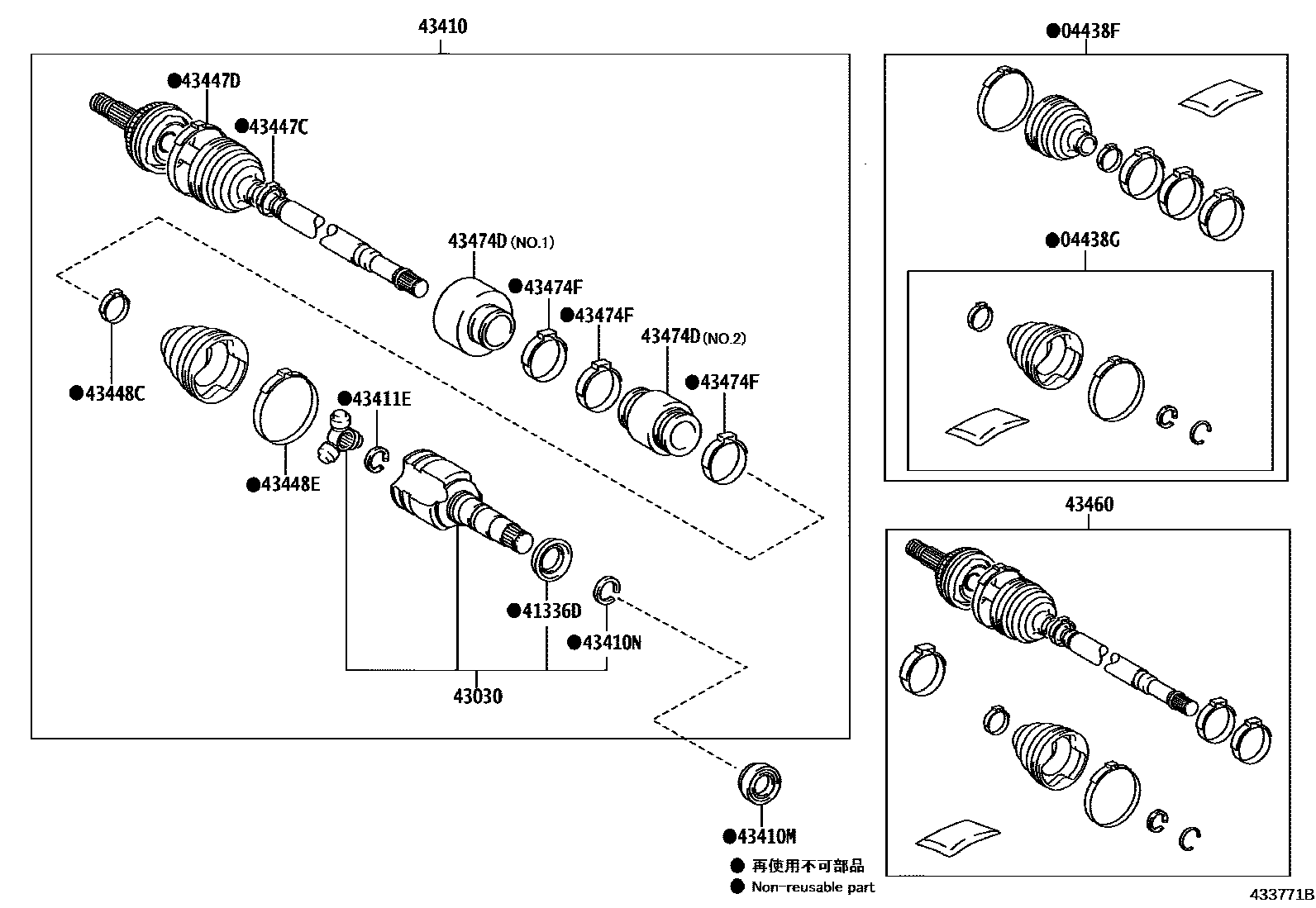

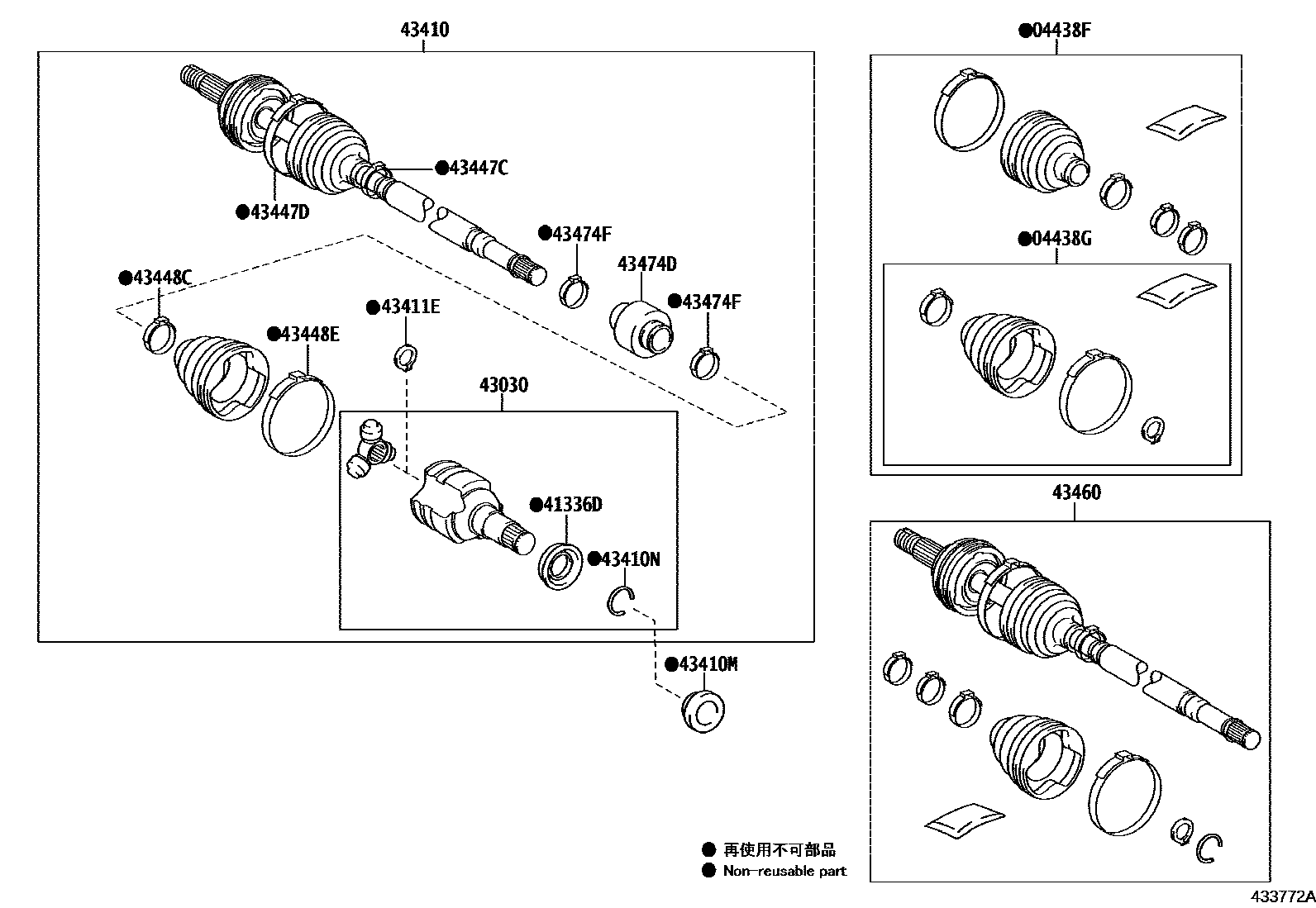

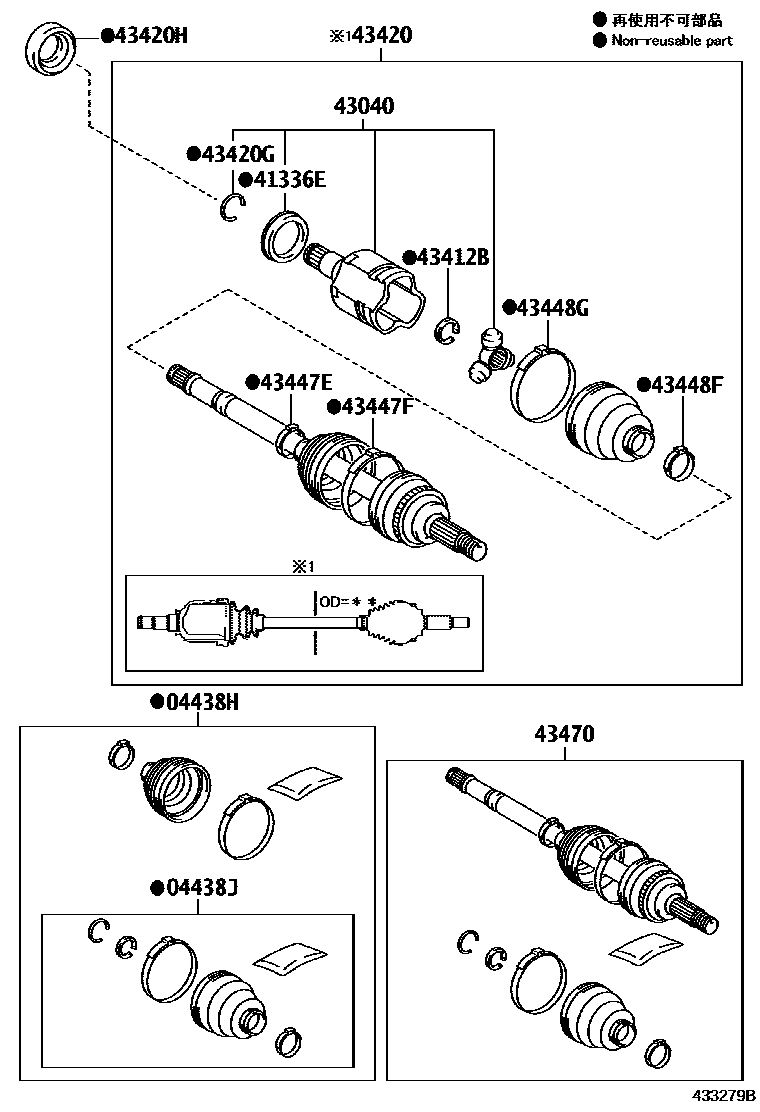

Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 5 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-0D300 · 04427-0D310 · 04427-0D320 · 04427-0D380 · 04427-0D400 · 04427-0D470 · 04427-0D474 · 04427-0D480 · 04427-0D483 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-0D050 · 04437-0D220 · 04437-0D310 · 04437-0H020 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-0D300 · 04427-0D310 · 04427-0D320 · 04427-0D400 · 04428-0D270 · 04428-0D450 · 04428-0D454 · 04428-0D460 · 04428-0D463 · 04428-0D530 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-0D050 · 04437-0D220 · 04437-0H020 |
| 41336D | Right front driveshaft dust cover | 41336-05140 · 41336-0H010 |
| 41336E | Left front driveshaft dust cover | 41336-05140 · 41336-0H010 |
| 43030 | Right front drive shaft inner universal joint assembly | 43040-0D020 · 43403-0D061 · 43403-0D170 · 43403-0H020 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-0D020 · 43403-0D061 · 43403-0H020 |
| 43410 | Right front driveshaft assembly | 43410-0D292 · 43410-0D331 · 43410-0D341 · 43410-0D401 · 43410-0D510 · 43410-0D650 · 43410-0D660 · 43410-0D670 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90311-34041 · 90311-34046 · 90311-34047 · 90311-34050 · 90311-34054 · 90311-35065 · 90311-W0015 · 90311-W0025 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-0H040 · 90080-52055 · 90080-52056 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-0D090 · 43425-0H010 · 90080-52093 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-0D090 · 43425-0H010 · 90080-52093 |
| 43420 | Left front drive shaft assembly | 43420-0D322 · 43420-0D331 · 43420-0D390 · 43420-0D411 · 43420-0D480 · 43420-0D640 · 43420-0D650 · 43420-0D660 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-0H040 · 90080-52055 · 90080-52056 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90311-34022 · 90311-34043 · 90311-34044 · 90311-34051 · 90311-35066 · 90311-35068 · 90311-35075 · 90311-W0016 · 90311-W0017 · 90311-W0023 · 90311-W0024 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-0D260 · 42345-0D440 · 42345-0D630 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-0D250 · 42345-0D430 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-0D260 · 42345-0D440 · 42345-0D630 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-0D250 · 42345-0D430 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-02240 · 42345-0D210 · 42345-0H020 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-0D200 · 42345-0D850 · 42345-0H011 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-02240 · 42345-0D210 · 42345-0H020 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-0D200 · 42345-0D850 · 42345-0H011 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09U60 · 43460-09V00 · 43460-09V30 · 43460-09V60 · 43460-09Y11 · 43460-09Z00 · 43460-09Z30 · 43460-09Z40 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-8Z008 · 43470-8Z012 · 43470-8Z031 · 43470-8Z044 · 43470-8Z237 · 43470-8Z270 · 43470-8Z278 · 43470-8Z279 |
| 43474D | Right front driveshaft shock absorber | 43474-0D160 · 43474-0D170 · 43474-0D190 · 43474-0D220 · 43474-0D370 · 43474-0D380 |
| 43474E | Left front driveshaft shock absorber | 43474-0D390 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-0D720 · 42345-0D770 · 42345-0D830 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-0D830 |
