Toyota YARIS 传动桥总成(CVT) — Figure 3401

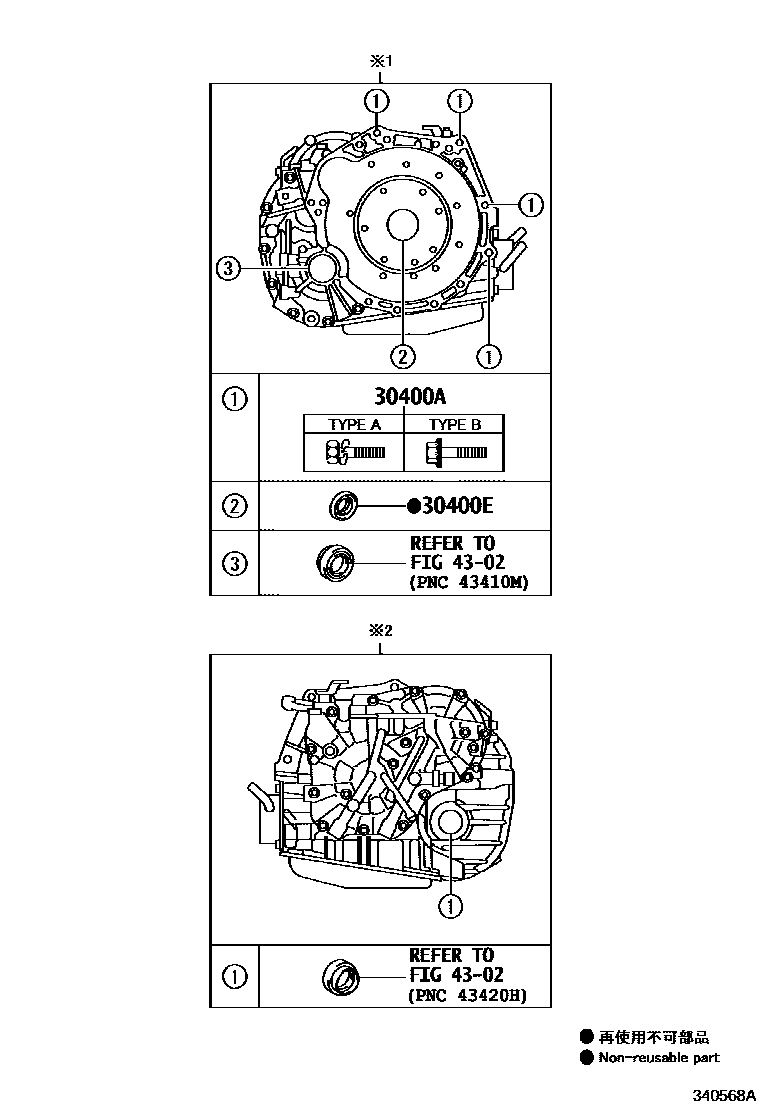

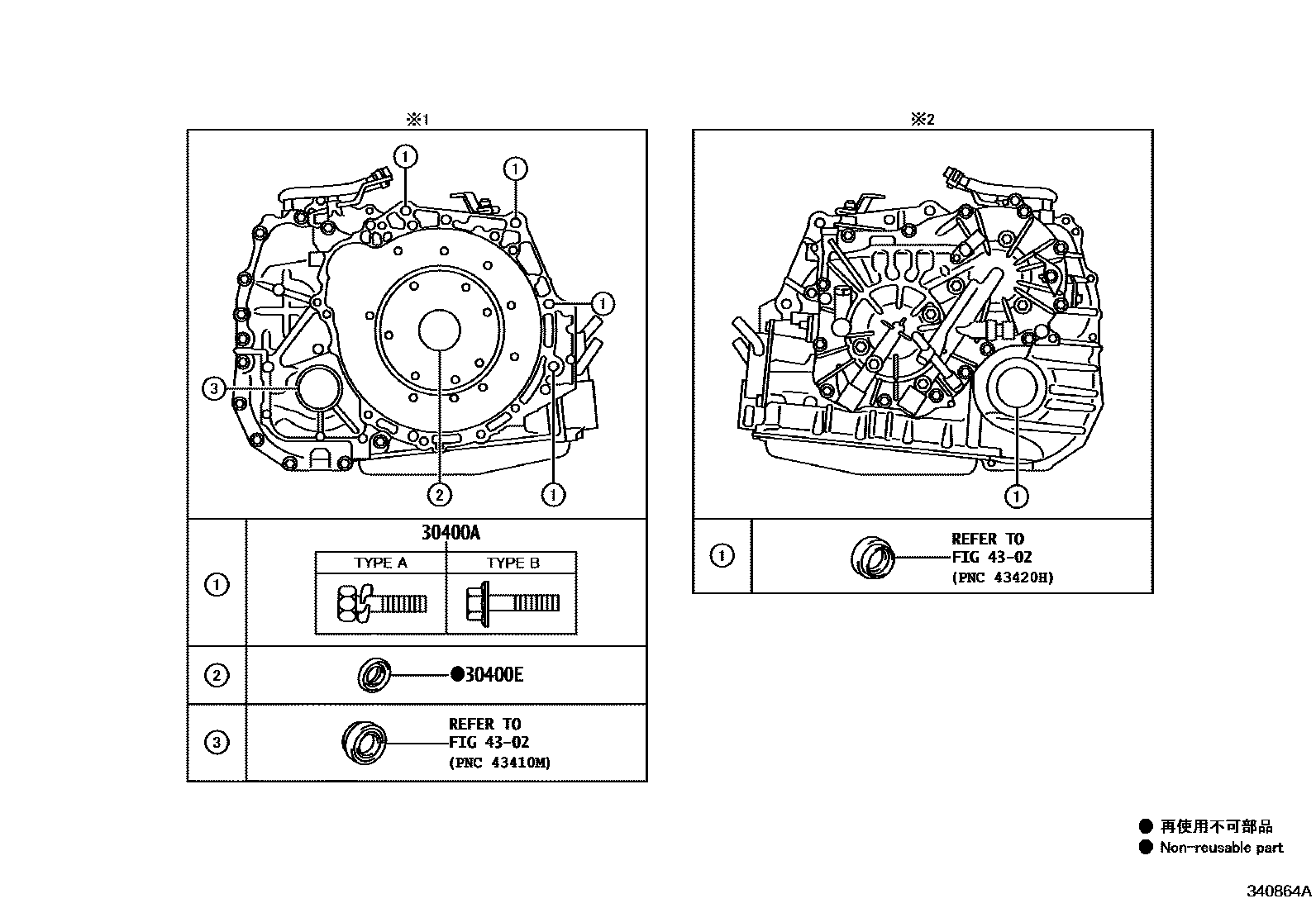

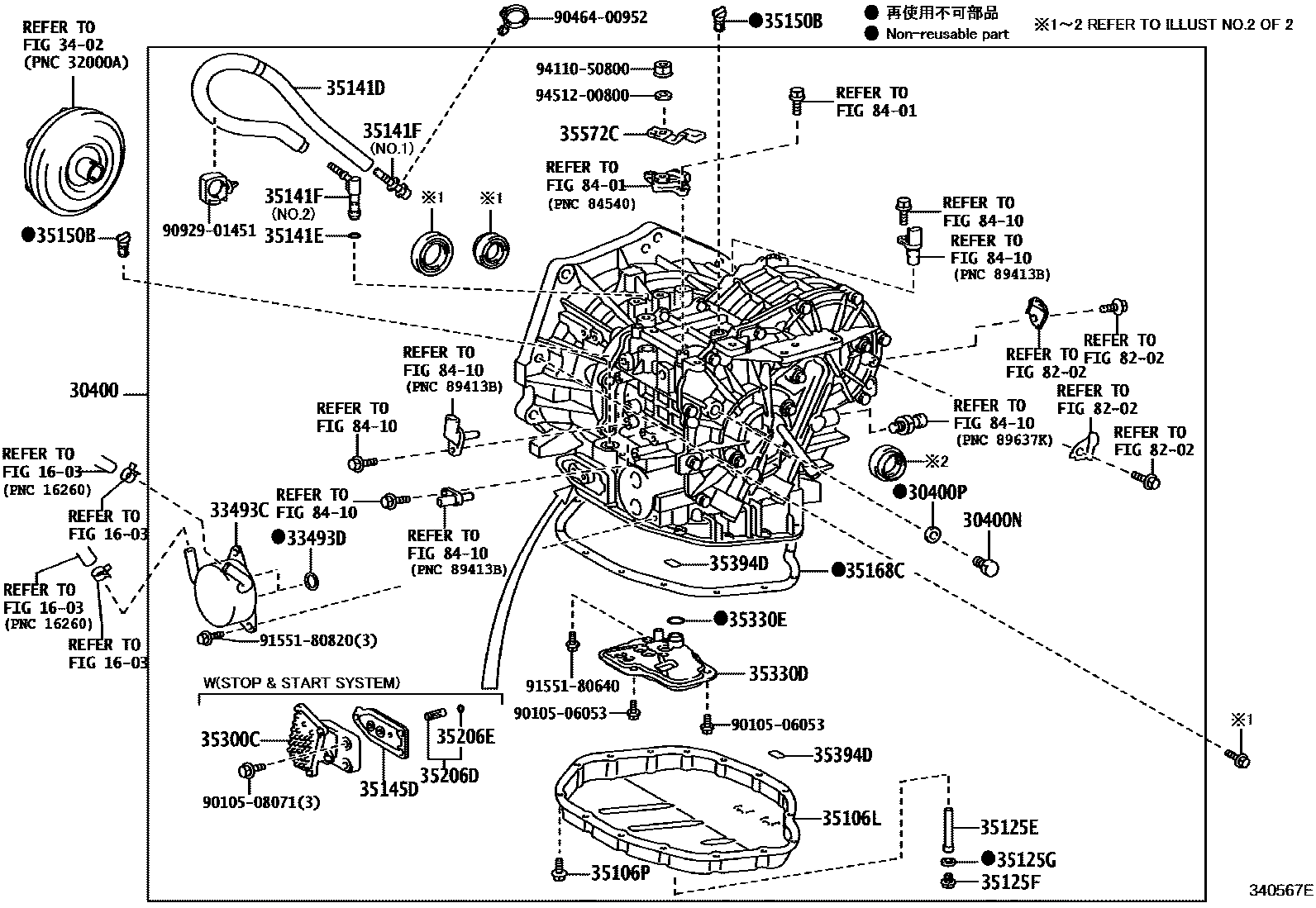

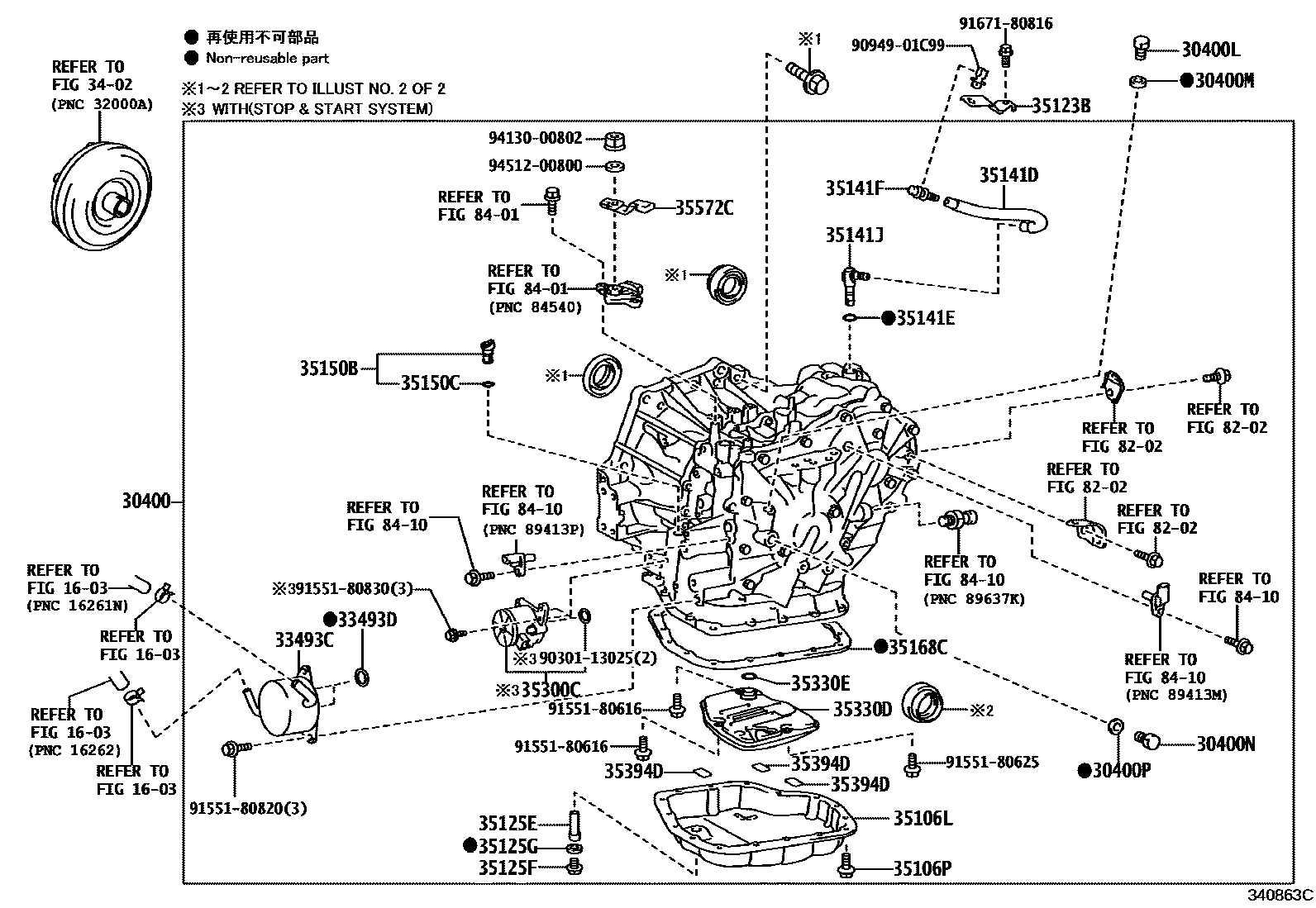

Toyota YARIS EPC diagram 3401, 传动桥总成(CVT), with 4 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30400 | Continuously variable transmission axle assembly | 30400-52190 · 30400-52260 · 30400-52530 · 30400-52540 |
| 30400A | Bolts (for securing transaxle and engine) | 90105-W0046 · 90119-W0097 · 91552-81245 |
| 30400E | T-type oil seal (for CVT oil pump) | 90311-42039 · 90311-45027 |
| 30400L | BOUCHON, DE REMPLISSAGE(TRANSMISSION A VARIATION CONTINUE) | 90341-12025 |
| 30400M | JOINT D'ETANCHEITE, BOUCHON REMPLISSAGE(TRANSM. CONTINUE) | 90430-12221 |
| 30400N | BOUCHON, REMPLISSAGE(CVT) | 90341-18077 |
| 30400P | JOINT ETANCHEITE, BOUCHON REMPLISSAGE(CVT) | 90430-18008 |
| 33493C | Transmission oil cooler | 33493-20100 · 33493-52030 |
| 33493D | O-ring (for transmission oil cooler) | 90301-20012 |
| 35106L | Transmission axle oil pan sub-assembly (CVT) | 35106-12200 · 35106-52090 |
| 35106P | Bolts (for transaxle oil pan) | 90119-06173 |
| 35123B | Transmission breather skirt | 35123-52050 |
| 35125E | TUYAU, TROP-PLEIN(CVT) | 35125-12440 · 35125-52200 |
| 35125F | BOUCHON, TROP-PLEIN(CVT) | 90341-12034 |
| 35125G | JOINT ETANCHEITE, BOUCHON TROP-PLEIN(CVT) | 90430-12008 |
| 35141D | Hoses (for breather plug) | 35121-52020 · 35121-52030 |
| 35141E | O-ring (for breather plug) | 90301-06021 · 90301-08015 |
| 35141F | No. 1 vent plug (CVT) | 90930-03149 · 90930-03209 |
| 35141J | BOUCHON RENIFLARD NO.1 (CVT) | 90930-03191 |
| 35145D | Transmission axle housing gasket | 35145-52020 |
| 35150B | gearbox plug assembly | 35150-44010 · 35150-48010 |
| 35150C | O-ring (for gearbox plug) | 90301-09173 |
| 35168C | Transaxle oil pan gasket (CVT) | 35168-12091 · 35168-52030 |
| 35206D | SOUS-ENS. SOUPAPE, VERIFICATION, NO.1 | 35206-52020 |
| 35206E | JOINT, TORIQUE(POUR SOUS-ENS. SOUPAPE ANTI-RETOUR NO.1) | 90301-08015 |
| 35300C | ENSEMBLE POMPE, HUILE AVEC MOTEUR | 35300-12011 · 35300-52021 |
| 35330D | ENSEMBLE CREPINE | 35330-12050 · 35330-52060 |
| 35330E | JOINT, TORIQUE (POUR CREPINE) | 90301-22014 · 90301-22019 |
| 35394D | Oil filter magnet (CVT) | 35394-30011 · 35394-48010 |
| 35572C | transmission control lever | 35572-12160 · 35572-52070 |
